KBGRCivil
Public Use

Bangor International

Bangor, ME
Phone: 207-992-4600
www.flybangor.com
Nearby airports

Satellite
Diagram
Sectional

Open in Google Maps

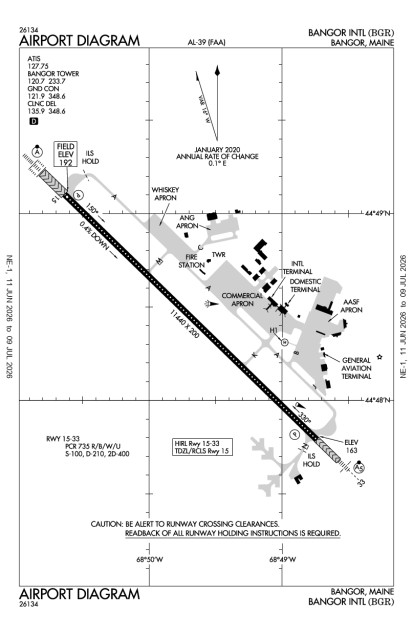

AIRPORT DIAGRAM

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

Jet A	$ 4.67 (full service)
100 LL	$ 5.75 (full service)

Alerts

Security Directive SD-8G

Call FBO for transient pilot security procedures or after hours escort. Learn More

Expand Additional Remarks

Arng: Opr 1230-2100z++ Mon-Fri Exc Hol. Ltd Maint. J8. Ppr May-Oct Svc Dsn 626-1100

Ang: Fee Rqr. Ang Not Eqpt or Manned with An Aerial Port Flt 30 or More Psgr Will be Sent to City for Processing. Can Handle All Amc Acft. Svc Avbl 24/7.All Haz Cargo Should be Pre-Coord for Safety Reasons, No Hot Crgo Pad Avbl

Ang: Ppr Required Dsn 698-7232 (Comm 207-990-7232), 3 Hr Out Call (Hf 6761) & 30 Min Out Call (311.0) Rqd to Ensure Customs/Ag Avail & Timely Transient Svc. Tran Maint Avbl by Ppr. Tran Acft May be Diverted to Civ Side Dur Oprg Hrs

Misc: Rwy 15-33 Grooved

Tfc Pat: Rwy 33 Left Tfc, Turbo Jet Tfc 2000' MSL Unless Otherwise Instr

Rstd: Twy 'J' Clsd during Winter

Transient Acft May be Diverted to Civilian Side During Non-Duty Hrs & Weekends. Fee Required; No Ang Transient Alert

Service-Fluid: Rmks: Foreign Military Only: on Base Lox Svc Unavbl. Off-Base Contracted Lox Avbl 24/7, CTC Advantage Gas (207-942-6393) for Precoordination

Caution: Bash Phase Ii Period Oct-Nov, Apr-May. Expect Increased Bird Activity. Contact Base Ops/Command Post/Sof for Current Birdwatch Cond

Twy J Limited to Aircraft 75000 Lbs Gross Takeoff Weight

Security Directive SD-8G

Intensive Flight Training

H2 Maine Army Gaurd use only

Restriction on gnd run-up, ctc 992-4623 or 132.0 MHZ

NOTAMs | TFR's

Runway 15/33

Dimensions:	11440 x 200ft. / 3486.9 x 61.0m	Weight Bearing Cap:	Single wheel: 100000 lb
Surface:	asphalt, grooved, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Tr. Pat.	Markings	Approach Lights	ILS/LOC	Obstructions
15	192.1ft. MSL 153° mag 134° true 0.3% down	No Data	precision	runway visual range: Touchdown, Midfield end touchdown: End Touchdown Lights are present runway visual value: RVV is present visual glide slope: 4-Light/Left-Side PAPI centerline: Centerline Lights are present approach: 2400ft/High-Intensity/Sequenced Flashers, Cat-II/III Config.	ILS/DME

33	162.9ft. MSL 333° mag 314° true 0.3% up		precision	visual glide slope: 4-Light/Left-Side PAPI runway visual value: RVV is present runway visual range: Touchdown, Midfield centerline: Centerline Lights are present approach: 1400ft/Medium-Intensity/Runway Alignment Indicators	ILS/DME	Trees, Both-Sides, 76 ft high, 2,800 ft from end, 34:1 clearance slope

Helipad H1

Dimensions:	100 x 100ft. / 30.5 x 30.5m	Weight Bearing Cap:
Surface:	concrete, no surface treatment, in good condition	Runway Edge Lights:

#	Elev/Hdg	Tr. Pat.	Markings	Approach Lights	TD Point	ILS/LOC	Obstructions	Comments/Noise
H1	No Data	No Data		No Data

Business/Service Information

Name		Location	Freq. Monitored	Main Phone
Bangor Aviation Services	$5.75 $4.67	On field: SE 44.804006-68.811493	UNICOM: 122.95 ARINC: 132.0	207-992-4582
Maine Aero Services, Inc.	Maintenance Rentals Sales Flight Training	On field: NE	UNICOM: 122.7 ARINC: 129.62	207-990-5555
The University Flying Club	Flight Training	Orono, ME		207-581-2242

List Your Business in AOPA Airports

Services at this airport:

Services:
Engine Repair: MajorAirframe Repair: MajorBulk Oxygen: Low
Fuel: 100LL Low-Lead, Jet A
Transportation: Shuttle Bus, Limousine, Public
Rental Cars:

Enterprise	Book Now!	866-315-9155
National	Book Now!	866-315-9155
Avis
Budget
Hertz

Customs: International Landing Rights

Expand Nearby restaurants, attractions

Ground Round 1/2 mi 207-942-5621

Nickey's 1/2 mi 207-942-3430

Sea Dog 207-947-8004

nmrs otrs

Captain Nicks 1/2 mi 207-942-6444

Penobscot 947-4894

Brad's 941-9695

Airport Coffee Shop 207-947-4375

Paul Bunyan 2 mi

Maine Air Museum on fld

Cole Transportation Museum 1 mi

Wright Brothers Cafe 207-947-6721

Dick's Taxi 942-6403

Information above provided by the airport manager.
Search nearby: Hotels | Restaurants

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

10019LEYMASMJ8/24/2010 2:28:12 AM UTC
Flew into BGR for a week with my family in our Grumman Tiger. The staff at Avitat did everything they could to make us feel welcome. Very friendly! If you need to pick up a rental car, they can transport you to the terminal via. shuttle bus. Ramp fee was a reasonable $33 for the week (that's their monthly rate). We'll definitely use Avitat in the future!

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Member-submitted Photos

View all
Upload your photos of Bangor International

Operations & More Information

Lat/Long:	N44 48.4467' / W68 49.6883'44.8074444-68.8281389
Charts:	NACO: Halifax Sectional
Mag Var:	19W (1985)
ARTCC:	Boston (ZBW)
FSS:	Bangor (BGR) 1-800-WXBRIEF
NOTAM Facility:	BGR
Approach/Departure Control Facility
Pattern Altitude:	Turbine Aircraft: 2000 MSL
Wind Indicator:	Lighted
Seg. Circle:	No
Lighting:	No data

Aircraft & Activity

Based GA Aircraft

Single Engine:	30
Multi Engine:	4
Jets:	0
Helicopters:	3
Gliders:
Ultralights:

Airport Activity

GA Local:	7,097
GA Itinerant:	14,089
Commercial:	15,994
Air Taxi:
Military:	12,859

(12-month period ending on 5/31/2012)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone	Sector
Approach/Departure CLASS C	Bangor	118.925	155-334
Approach/Departure CLASS C IC	Bangor	124.5	335-154
WX	Bangor	.0T (207-947-5293)
ATIS	Bangor	127.75
Clearance-Delivery	Bangor	135.9
EMERG	Bangor	121.5
Ground Control	Bangor	121.9
Tower	Bangor	120.7
NG OPS	Bangor	41.2
UNICOM	Bangor	122.95

Expand Navaids

ID	Type	Freq	Radial	Distance
BGR	VOT	111.0	000	1 nm
BGR	VORTAC	114.8	155	3 nm
OLD	NDB	272.0	234	15 nm
BUP	NDB	348.0	092	24 nm
BST	NDB	278.0	036	25 nm
SUH	NDB	356.0	033	47 nm
MLT	VOR/DME	117.9	216	49 nm

Contact Addresses

ASN Volunteer:	Owner:	Airport Manager:
Brian Bowdoin	City of Bangor	Rebecca Hupp
	73 Harlow Street	Bangor International Arpt
	Bangor, ME 04401	Bangor, ME 04401
	207-992-4200 (Office)	207-992-4600 (Office)
Contact the ASN Volunteer
		Airport Manager Admin

Attendance:	Attended Year-round, 7 Days a Week,All
Tower:	ATCT plus Terminal Radar Approach Control, 24 hrs/day, everyday, year-roundTower Hrs: 24Tower Hrs: 0730-1600 MON-FRI
Elevation:	192 ft (58.5 m) (Surveyed)
Location:	3.00 mi. W of Bangor
Beacon:	Present (white-green)
Approaches:	ILS, DME, LOC, VOR, RNAV, GPS, TACAN
Runways:	15/33, H1 Longest paved runway: 11440 ft
Fees:	Tiedown, Hangar, Landing

APD	AIRPORT DIAGRAM	97.9 KB
DP	BANGOR ONE	204.8 KB
IAP	HI-ILS OR LOC/DME RWY 15	299 KB
IAP	ILS OR LOC RWY 15	275 KB
IAP	ILS OR LOC RWY 33	329.5 KB
IAP	ILS RWY 15(CAT II) (deleted)	B
IAP	ILS RWY 15 (CAT II - III) (changed)	247.6 KB
IAP	RNAV (GPS) RWY 15	216.5 KB
IAP	RNAV (GPS) RWY 33	224.7 KB
IAP	VOR/DME RWY 15	197.2 KB
IAP	VOR/DME RWY 33	216.2 KB
IAP	HI-VOR/DME OR TACAN RWY 15	258.9 KB
IAP	HI-VOR/DME OR TACAN RWY 33	270.6 KB
IAP	VOR-A	147.7 KB
MIN	TAKEOFF MINIMUMS	177.4 KB
MIN	ALTERNATE MINIMUMS	42.3 KB
MIN	RADAR MINIMUMS (changed)	17.6 KB
