AOPA Airports: Dupage (DPA)

Satellite
Diagram
Sectional

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

100 LL	$ 6.28 (self service)
Jet A	$ 5.97 (full service)
100 LL	$ 6.82 (full service)

Expand Additional Remarks

Acft on Short Final to Ry 15 are Not Vsb From ATCT Due to Trees

Deer, Coyote, Birds & Migratory Waterfowl on & Invof Arpt

Intensive Flight Training

All acft maintain 2500 til nec to descend

NOTAMs | TFR's

Runway 02L/20R

Dimensions:	7571 x 100ft. / 2307.6 x 30.5m	Weight Bearing Cap:	Single wheel: 30000 lb
Surface:	concrete, grooved, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Tr. Pat.	Markings	Approach Lights	ILS/LOC	Obstructions	Comments/Noise
02L	750.9ft. MSL 15° mag 14° true 0.1% up	No Data	precision	centerline: Centerline Lights are present approach: 1400ft/Medium-Intensity/Runway Alignment Indicators end touchdown: End Touchdown Lights are present	ILS		Ry 02l Rvr Ant is Loctd at Thld

20R	755.5ft. MSL 195° mag 194° true 0.1% down	No Data	precision	visual glide slope: 4-Light/Left-Side PAPI centerline: Centerline Lights are present		Tree, 475 ft Right of center, 79 ft high, 2,823 ft from end, 33:1 clearance slope

Runway 02R/20L

Dimensions:	6443 x 100ft. / 1963.8 x 30.5m	Weight Bearing Cap:	Single wheel: 30000 lb
Surface:	concrete, grooved, in good condition	Runway Edge Lights:	medium

#	Elev/Hdg	Tr. Pat.	Markings	Approach Lights	Obstructions
02R	750.9ft. MSL 15° mag 14° true 0.1% up		non-precision	runway end identifier: REIL is present	Building, 96 ft Right of center, 52 ft high, 2,484 ft from end, 43:1 clearance slope

20L	758.9ft. MSL 195° mag 194° true 0.1% down	No Data	non-precision	runway end identifier: REIL is present

Runway 10/28

Dimensions:	4750 x 75ft. / 1447.8 x 22.9m	Weight Bearing Cap:	Single wheel: 30000 lb
Surface:	asphalt, porous friction course, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC	Obstructions	Comments/Noise
10	753.3ft. MSL 97° mag 96° true 0.1% up	precision	approach: RLLS runway end identifier: REIL is present visual glide slope: 4-Box/Left-Side VASI	ILS		Ry 10 Restriction, Unusable Byd 5 Deg Left & 5 Deg Right of Cntln

28	755.9ft. MSL 277° mag 276° true 0.1% down	precision	visual glide slope: 4-Light/Left-Side PAPI runway end identifier: REIL is present		Tree, 244 ft Left of center, 48 ft high, 1,262 ft from end, 22:1 clearance slope

Runway 15/33

Dimensions:	3399 x 100ft. / 1036.0 x 30.5m	Weight Bearing Cap:	Single wheel: 30000 lb
Surface:	asphalt, no surface treatment, in good condition	Runway Edge Lights:	medium

#	Elev/Hdg	Markings	Approach Lights	TD Point	Obstructions	Comments/Noise
15	757.0ft. MSL 149° mag 148° true 0.0% up	basic	visual glide slope: 4-Light/Right-Side PAPI runway end identifier: REIL is present		Tree, 162 ft Left of center, 83 ft high, 1,215 ft from end, 12:1 clearance slope

33	757.7ft. MSL 329° mag 328° true 0.0% down	basic	runway end identifier: REIL is present	190' Disp Threshold	Tree, 248 ft Left of center, 72 ft high, 1,327 ft from end, 15:1 clearance slope	+13 Ft Road 199 Ft Fm Ry End 125 Ft R Apch Ratio is 23:1 to Dsplcd Thld

Business/Service Information

Name		Location	Freq. Monitored	Main Phone
American Flyers	Flight Training	On field: NE 41.914589-88.238904		630-584-4700
ATP Flight School – DPA	Flight Training	On field: NW 41.920960-88.242359		800-255-2877
DuPage Flight Center	$6.82 $6.28 $5.97	On field: W 41.906557-88.255234	UNICOM: 122.95	800-208-5690
Fox Flying Club		On field: NE 41.919060-88.239977		630-447-9369
Illinois Aviation Academy, Inc.	Maintenance Rentals Sales Flight Training	On field: NW 41.915627-88.261843	UNICOM: 122.95	630-513-2224
International Flying Club		On field: NE 41.919842-88.244076		630-690-6610
Mukenschnabl, Inc.	Maintenance Fuel Sales	On field: N		630-584-7570
Neoflite Flying Club	Rentals Flight Training	ELMHURST, IL		630-279-7273
T-Bird Aviation, Inc.		On field: S		630-587-9550
The Pilot Shop		On field: E 41.914541-88.239527		630-377-6727
Travel Express Aviation, LLC	Maintenance Rentals Sales Flight Training	On field: NE 41.915372-88.239098		630-584-6462
Vagabond Flying Association		On field: NE 41.919268-88.239355		847-695-3195
Valley Air Service, Inc.		ELGIN, IL 41.909224-88.257262		847-468-7473

List Your Business in AOPA Airports

Expand Nearby restaurants, attractions

Limo Network 630-584-1616

West Suburban Limo 630-942-5466

Keen Limo 630-377-3235

Gino's East Pizza 3 mi 630-513-1311

Olive Garden 630-443-1122

Chilis 1 mi 630-584-8013

Portillo's 630-762-8484

Morton Arboretum 16 mi

Elfstrom Stadium 4 mi

Prairie Landing Golf Course adj

Charlestowne Centre 1 1/2 mi

Kitty Hawk Cafe 630-208-6189

St. Charles Place 2 mi 630-377-3333

Colonial 2 1/2 mi 630-584-4647

Information above provided by the airport manager.
Search nearby: Hotels | Restaurants

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Operations & More Information

Lat/Long:	N41 54.4232' / W88 14.8798'41.9070528-88.2479972
Charts:	NACO: Chicago Sectional
Mag Var:	01W (1985)
ARTCC:	Chicago (ZAU)
FSS:	Kankakee (IKK) 1-800-WXBRIEF
NOTAM Facility:	DPA
Approach/Departure Control Facility	ORD
Pattern Altitude:	Fixed Wing: 1559 MSL
Wind Indicator:	Lighted
Seg. Circle:	No
Lighting:	Atc-Ctl

Aircraft & Activity

Based GA Aircraft

Single Engine:	175
Multi Engine:	34
Jets:	36
Helicopters:	5
Gliders:
Ultralights:

Airport Activity

GA Local:	31,223
GA Itinerant:	46,587
Commercial:	18
Air Taxi:	11,654
Military:	507

(12-month period ending on 7/31/2008)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone
Approach/Departure	Chicago	133.5
WX	Dupage	.0T (630-584-2728)
ATIS	Dupage	132.075
Clearance-Delivery	Dupage	119.75
Ground Control	Dupage	121.8
Tower	Dupage	120.9
Tower(S)	Dupage	124.5
UNICOM	Dupage	122.95

Expand Navaids

ID	Type	Freq	Radial	Distance
DPA	VOR/DME	108.4	076	5 nm
ME	NDB	350.0	250	11 nm
ME	NDB	257.0	250	11 nm
ME	NDB	287.0	250	11 nm
ORD	VOR/DME	113.9	251	16 nm
HK	NDB	332.0	303	22 nm
HK	NDB	332.0	303	22 nm
JOT	VORTAC	112.3	006	22 nm
OBK	VOR/DME	113.0	217	23 nm
MDW	VOT	111.0	000	23 nm
MX	NDB	248.0	293	27 nm
CGT	VORTAC	114.2	306	39 nm
OIX	NDB	266.0	039	43 nm
EON	VORTAC	113.2	330	43 nm
ENW	VOR/DME	109.2	201	44 nm
RFD	VOR/DME	110.8	113	47 nm
BUU	VOR/DME	114.5	178	47 nm
RA	NDB	206.0	199	49 nm
RA	NDB	254.0	199	49 nm
LVV	NDB	404.0	162	50 nm

Contact Addresses

ASN Volunteer:	Owner:	Airport Manager:
Daniel Swanson	Dupage Airport Authority	David Bird
	2700 International Drive Ste 200	2700 Int'L Drive, Ste 200
	West Chicago, IL 60185-0787	West Chicago, IL 60185-0787
	630-584-2211 (Office)	630-584-2211 (Office)
Contact the ASN Volunteer
		Airport Manager Admin

Attendance:	Attended Year-round, 7 Days a Week,All
Tower:	Air Traffic Control Tower, 24 hrs/day, everyday, year-round
Elevation:	759 ft (231.3 m) (Surveyed)
Location:	29.00 mi. W of Chicago/West Chicago
Beacon:	Present (white-green)
Approaches:	ILS, LOC, VOR, RNAV, GPS
Runways:	02L/20R, 02R/20L, 10/28, 15/33 Longest paved runway: 7571 ft
Fees:	Tiedown, Hangar, Ramp, Parking

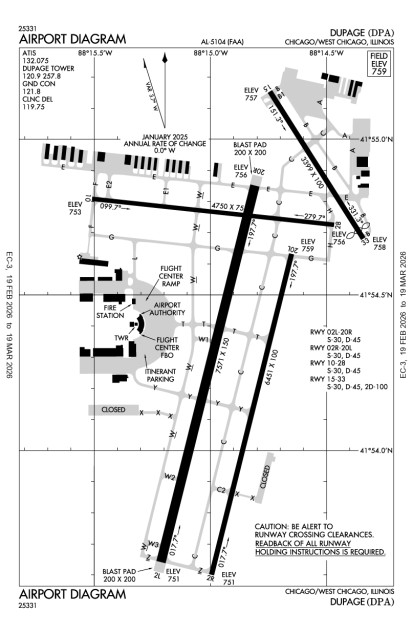

APD	AIRPORT DIAGRAM	155.4 KB
DP	ADELL TWO (RNAV)	217.5 KB
DP	ADELL TWO (RNAV), CONT.1	335.9 KB
DP	BLOKR TWO (RNAV)	229.2 KB
DP	BLOKR TWO (RNAV), CONT.1	340.3 KB
DP	CARYN TWO (RNAV)	210.3 KB
DP	CARYN TWO (RNAV), CONT.1	338 KB
DP	DARCY TWO (RNAV)	224 KB
DP	DARCY TWO (RNAV), CONT.1	338.5 KB
DP	ELANR TWO (RNAV)	229.8 KB
DP	ELANR TWO (RNAV), CONT.1	336.6 KB
IAP	ILS OR LOC RWY 02L	262.8 KB
IAP	ILS OR LOC RWY 10	277.7 KB
IAP	RNAV (GPS) RWY 02L	281.3 KB
IAP	RNAV (GPS) RWY 02R	269.8 KB
IAP	RNAV (GPS) RWY 10	249.2 KB
IAP	RNAV (GPS) RWY 20L	274.4 KB
IAP	RNAV (GPS) RWY 20R	271 KB
IAP	VOR RWY 02L	321.2 KB
IAP	VOR RWY 10	214.1 KB
MIN	TAKEOFF MINIMUMS	197.4 KB
MIN	ALTERNATE MINIMUMS	48.8 KB

Dupage

Overview

Expand Instrument Approach Procedures
