FAA Information Effective: 5/2/2013

  • 3979 msl
AOPA members save at 3,000+ GA airports.Book Now!
E06Civil
Public Use

Lea County-Zip Franklin Memorial

Lovington, NM
Phone: 575-391-2934
www.leacounty-nm.org
Nearby airports

Operations | Communications | Weather | Runways | Comments | Remarks | Procedures | Services, Businesses & FBOsKneeboard Format

Overview

Attendance: Not Attended
Unattended
Tower:No
Elevation:3,979 ft (1,212.8 m) (Surveyed)
Location:3.00 mi. W of Lovington
Beacon: Present (white-green)
Approaches:RNAV, GPS
Runways:03/21, 12/30
Longest paved runway: 6001 ft
Fees:No data
  |  Embed this
  • METARs
  • TAFs

Expand Instrument Approach Procedures

Use subject to Terms and Conditions

Check All | Download checked: Single PDF | ZIP

  • Satellite

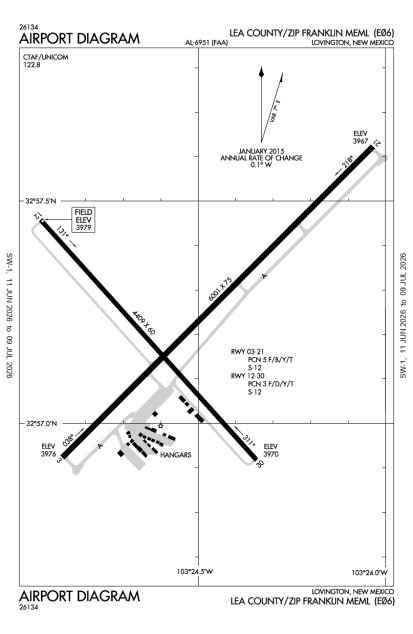

  • Diagram
  • Sectional

Click chart for current METARs and aeronautical charts

Expand Additional Remarks

NOTAMs | TFR's

Runway 03/21

Dimensions:6001 x 75ft. / 1829.1 x 22.9mWeight Bearing Cap: Single wheel: 12000 lb
Surface:asphalt, no surface treatment, in good conditionRunway Edge Lights:medium
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
033976.2ft. MSL
35° mag
45° true
0.2% down		non-precisionvisual glide slope: Pulsating-Steady Burn/Left-Side VASI
Power-Line, 273 ft Right of center, 40 ft high, 936 ft from end, 18:1 clearance slope
213966.5ft. MSL
215° mag
225° true
0.2% up		non-precisionvisual glide slope: Pulsating-Steady Burn/Left-Side VASI
Tree, 75 ft Left of center, 21 ft high, 624 ft from end, 20:1 clearance slope

Runway 12/30

Dimensions:4409 x 60ft. / 1343.9 x 18.3mWeight Bearing Cap: Single wheel: 12000 lb
Surface:asphalt, no surface treatment, in good conditionRunway Edge Lights:medium
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
123979.2ft. MSL
128° mag
138° true
0.2% down		basicNo DataFence, Both-Sides, 4 ft high, 258 ft from end, 14:1 clearance slope
303969.5ft. MSL
308° mag
318° true
0.2% up		basicNo DataPower-Line, 150 ft Left of center, 35 ft high, 1,250 ft from end, 30:1 clearance slope

Business/Service Information

List Your Business in AOPA Airports

Expand Nearby restaurants, attractions

Information above provided by the airport manager.
Search nearby: Hotels | Restaurants

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

CancelDelete

Member-submitted Photos

View all
Upload your photos of Lea County-Zip Franklin Memorial

    Operations & More Information

    Lat/Long:N32 57.2367' / W103 24.5267'
    Charts:NACO: Albuquerque Sectional
    Mag Var:10E (1985)
    ARTCC:Fort Worth (ZFW)
    FSS:Albuquerque (ABQ)
    1-800-WXBRIEF
    NOTAM Facility:ABQ
    Approach/Departure Control Facility
    Pattern Altitude:Light Aircraft: 4774 MSL; Heavy Aircraft: 5174 MSL
    Wind Indicator:Lighted
    Seg. Circle:Yes
    Lighting:Pilot Activated Lighting:
    • high intensity: 7 clicks in 7 secs
    • medium intensity: 5 clicks in 5 secs
    • low intensity: 3 clicks in 3 secs
    Dusk-Dawn. MIRL Ry 03/21 and Ry 12/30 Preset Low Intst; to Incr Intst Actvt - CTAF

    Aircraft & Activity

    Based GA Aircraft

    Single Engine:5
    Multi Engine:2
    Jets:0
    Helicopters:0
    Gliders:
    Ultralights:

    Airport Activity

    GA Local:1,100
    GA Itinerant:1,100
    Commercial:
    Air Taxi:
    Military:

    (12-month period ending on 4/7/2011)

    Air Safety Institute Resources

    Accident Reports

    Expand Communications Card

    Contact Addresses

    ASN Volunteer:Owner:Airport Manager:
    Donald PittsLea CountyCory Needham
    Po Box 1106Po Box 1106
    Hobbs, NM 88241-1106Hobbs, NM 88241-1106
    575-391-2934 (Office) 575-391-2934 (Office)
    Contact the ASN Volunteer
    Airport Manager Admin
