FAA Information Effective: 4/3/2014

  • 3118 msl
AOPA members save at 3,000+ GA airports.Book Now!
E26Civil
Public Use

Lea County/Jal

Jal, NM
Phone: 575-391-2934
www.leacounty.nm.ort
Nearby airports


Overview

Attendance: Not Attended
Unattended
Tower:No
Elevation:3,118 ft (950.4 m) (Surveyed)
Location:3.00 mi. NE of Jal
Beacon: Present (white-green)
Approaches:
Runways:01/19, 09/27
Longest paved runway: 4704 ft
Fees:No data

  • METARs
  • TAFs

Expand Instrument Approach Procedures

Use subject to Terms and Conditions

  • Satellite

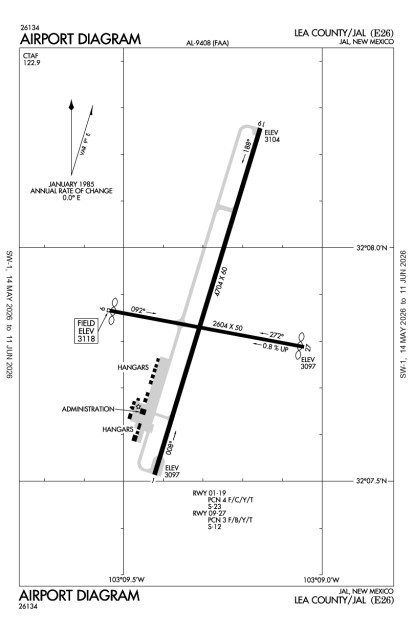

  • Diagram
  • Sectional

Expand Additional Remarks

Runway 01/19

Dimensions:4704 x 60ft. / 1433.8 x 18.3mWeight Bearing Cap: Single wheel: 23000 lb
Surface:asphalt, no surface treatment, in fair conditionRunway Edge Lights:medium
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
013097.0ft. MSL
8° mag
17° true
0.2% up
basicvisual glide slope: Pulsating-Steady Burn/Left-Side VASI
Brush, 110 ft Right of center, 8 ft high, 201 ft from end
+6- 8 Ft Brush 115-125 Ft Left of Cntrln, 95-200 Ft Fm End of Ry
193104.0ft. MSL
188° mag
197° true
0.2% down
basicvisual glide slope: Pulsating-Steady Burn/Left-Side VASI
Brush, 125 ft Left of center, 10 ft high, 201 ft from end
+6-10 Ft Brush 105-125 Ft Left of Cntrln, 0-200 Ft Fm End of Ry

Runway 09/27

Dimensions:2604 x 50ft. / 793.7 x 15.2mWeight Bearing Cap: Single wheel: 12000 lb
Surface:asphalt, no surface treatment, in good conditionRunway Edge Lights:
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
093118.0ft. MSL
92° mag
101° true
0.8% down
basicNo Data40' Disp Threshold
Brush, Both-Sides, 5 ft high, 200 ft from end
+4 Ft Fence & Road 70 Ft Fm End; +4 Ft Gnd and Brush 10 Ft Right of Ry Edge Apch Slope 10:1 to Dsplcd Thr Fm +15 Ft Road 160 Ft
273097.0ft. MSL
272° mag
281° true
0.8% up
basicNo Data45' Disp Threshold
Power-Line, Both-Sides, 30 ft high, 880 ft from end, 22:1 clearance slope
+4 Ft Fence 15 Ft Fm Ry End, +7 Ft Brush 20 Ft Fm Ry End Apch Slope 28:1 to Dsplcd Thr Fm +4 Ft Fence 115 Ft

Business/Service Information

List Your Business in AOPA Airports

Expand Nearby restaurants, attractions

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

Are you sure you want to delete this comment?

CancelDelete

Operations & More Information

Lat/Long:N32 7.8647' / W103 9.2910'
Charts:NACO: Albuquerque Sectional
Mag Var:09E (1985)
ARTCC:Fort Worth (ZFW)
FSS:Albuquerque (ABQ)
1-800-WXBRIEF
NOTAM Facility:ABQ
Approach/Departure Control Facility
Pattern Altitude:Light Aircraft: 3915 MSL; Heavy Aircraft: 4315 MSL
Wind Indicator:Lighted
Seg. Circle:Yes
Lighting:Pilot Activated Lighting:
  • high intensity: 7 clicks in 7 secs
  • medium intensity: 5 clicks in 5 secs
  • low intensity: 3 clicks in 3 secs
MIRL Ry 01/19 Preset Low Intst; to Incr Intst Actvt - CTAF

Aircraft & Activity

Based GA Aircraft

Single Engine:2
Multi Engine:0
Jets:0
Helicopters:0
Gliders:
Ultralights:

Airport Activity

GA Local:500
GA Itinerant:2,500
Commercial:
Air Taxi:
Military:

(12-month period ending on 4/7/2011)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Contact Addresses

ASN Volunteer:Owner:Airport Manager:
Wanliss ArmstrongLea CountyCory Needham
Po Box 1106Po Box 1106
Hobbs, NM 88241-1106Hobbs, NM 88241-1106
575-391-2934 (Office) 575-391-2934 (Office)
Contact the ASN Volunteer
Public Works Director
