AOPA Airports: Key West International (EYW)

FAA Information Effective: 3/7/2013

AOPA members save at 3,000+ GA airports.Book Now!

KEYWCivil
Public Use

Key West International

Key West, FL
Phone: 305-809-5200
Nearby airports

Overview

Attendance:	Attended Year-round, 7 Days a Week,0700-2300
Tower:	Air Traffic Control Tower, 14 hrs/day, everyday, year-round
Elevation:	3 ft (0.9 m) (Surveyed)
Location:	2.00 mi. E of Key West
Beacon:	Present (white-green)
Approaches:	RNAV, GPS, NDB
Runways:	09/27 Runway length: 4801 ft
Fees:	No data

Plain | Embed this

METARs
TAFs

Satellite
Diagram
Sectional

Open in Google Maps

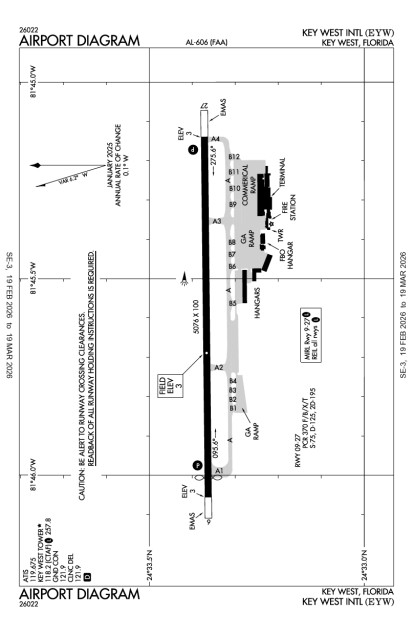

AIRPORT DIAGRAM

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

Jet A	$ 6.55 (full service)
100 LL	$ 7.24 (full service)

Alerts

Security Directive SD-8G

Call FBO for transient pilot security procedures or after hours escort. Learn More

Expand Additional Remarks

Twy A5 Not Visible From ATCT

Departing Vfr Acft Requested to Maintain Ry Heading Until Reaching Field Boundary, Then Execute Turns for North or South Departure

Ppr for Acft Exceeding Ry Wt Bearing Capacity; Call Amgr 305-809-5200

Extremely Noise Sensitive Area. Urge No Opns 2300-0700. Use Nbaa Close in Noise Abatement Procedures Other Times. Local Ordinance Reqs Engine Runups in Dsgnd Area on N Side Coml Ramp Fm 2300-0700 & Fines

Enter Arpt Trf Area Blo 2000'; Refer to Miami Vfr Terminal Area Chart for Suggested Vfr Flyway Routes

Intensive Military Jet Tfc South and East of Arpt; Acft Entering Arpt Trf Area From Southeast Thru West

Restricted Area R-2916 Lctd 14 Nm NE of Arpt Has Strobe-Lgtd and Mkd Balloon and Cable to 14000 Ft

Numerous Flocks of Birds on and Invof Arpt

Security Directive SD-8G

Published Noise rule

Intensive Flight Training

FAA funded; NBAA close-in vol rstr of all acft ops 12pm to 6am; extreme noise sens area; use run-up area 11pm-7am; penalties apply

NOTAMs | TFR's

Runway 09/27

Dimensions:	4801 x 100ft. / 1463.3 x 30.5m	Weight Bearing Cap:	Single wheel: 75000 lb
Surface:	asphalt, grooved, in good condition	Runway Edge Lights:	medium

#	Elev/Hdg	Markings	Approach Lights	Comments/Noise
09	2.7ft. MSL 93° mag 89° true	non-precision	visual glide slope: 4-Box/Left-Side VASI runway end identifier: REIL is present	Arresting Gear/System: Engineered Material Arresting System (Emas) 340 Ft in Length by 120 Ft in Width Located at the Departure End of Ry 09

27	2.5ft. MSL 273° mag 269° true	non-precision	visual glide slope: 4-Box/Left-Side VASI runway end identifier: REIL is present

Business/Service Information

Name		Location	Freq. Monitored	Main Phone
Air Key West		On field: CTR		305-923-4033
Island City Flying Service	Maintenance $7.24 $6.55 Rentals Flight Training	On field: CTR	UNICOM: 122.95	305-296-5422

List Your Business in AOPA Airports

Services at this airport:

Services:
Engine Repair: MajorAirframe Repair: Major
Fuel: 100 Octane, Jet A
Transportation: Limousine, Van
Rental Cars:

Alamo	Book Now!	866-315-9155
Avis
Dollar
Hertz
Budget
Thrifty

Customs: Airport of Entry

Expand Nearby restaurants, attractions

Conch Republic Cottage Suites e.5 mi 305-296-5169, 800-413-1978

Chico's Cantina 305-296-4714

Hurrican Joes 305-294-0200

Friendly Cab 305-292-0000

Florida Keys 305-296-6666

Lighthouse Museum

Hemingway House

Audubon House

Smathers Beach

Sunset Ritual-Mallory Square

Old Island Trolley/Conch Train Tours

Conch Flyer 305-296-6333

Rusty Anchor 305-294-5369

Information above provided by the airport manager.
Search nearby: Hotels | Restaurants

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

21075JOHN MCGUIRE2/10/2013 5:29:40 PM UTC
Customs did not answer in the late afternoon but answered promptly at 8:00 am. When we landed two agents met us outside on the ramp, asked a few questions, scanned the plane and then invited us inside to clear. We were not required to unload anything. This could not have been easier or more pleasant! We called Island City to send a tug that towed us to the tie down. This was even easier than Ft. Pierce.
20152KEYWESTPHOTOG12/1/2012 6:44:14 PM UTC
FOR GA Island City is your best bet here. Mike, Adriana, and Rose have always been friendly, and even the maintenance crew was very quick and attentive when I needed a cart start. I would advise you call ahead to notify them of your arrival as they are more than welcoming and will even pick you up in the stretch golf cart if you desire.
15429WOLFGANG1112/7/2011 9:18:22 PM UTC
Nice little airport, but avoid if you need to clear customs they seem to always be somewhere else. Better off clearing at KTMB.
14250RICHMCG9/28/2011 6:17:53 PM UTC
Landed my Cherokee here. All the comments below are on the mark. Be aware the airport is deserted at night. I unexpectedly arrived after 11 p.m. and the only one around was Search and Rescue and a mechanic working in a hangar who showed us how to get out of the field -- the exit outside the lock fence is not visible due to the FBO undergoing renovation and in temporary quarters. Fuel was 6.62. Conch Farm on the marina in town, north shore, is a big post day drink and eat open eatery. NOTE Kneeboard has the wrong ATIS - it dropped the "7" in 119.675
11721MH94942/27/2011 12:39:38 AM UTC
Island City Flying Service (FBO) did a good job. Security is apparently improved now with 24 hour cameras. Try the sea plane excursion to Dry Tortuga National Park.
11647TVOGELPO2/17/2011 11:45:59 PM UTC
2/13/2011 - Island City Flying Service (FBO) provided great service. Line staff awaited our arrival, provided a luggage cart, and called for our cab. Ride into town was $8 per person. Fuel was $6.08 per gallon and tiedown was $15 per night with fuel ($30 without fuel). Old Town Trolley provides efficient means to tour island with daily service. IFR arrivals/departures follow west side of Florida across the Gulf. No over-flights of naval base east of airport.. Watch for radar balloon NE of airport. tvogelpo@eos.net
10858ROCKGOD4U11/23/2010 8:29:31 PM UTC
Take all your stuff out of your aircraft! We had over $6,500 of equipment stolen from the aircraft while parked directly in front of the FBO's main office windows. 4 other aircraft were broken into as well (including broken windows). So if you don't lock your plan evething gets stoel and if you do, the same may happen along with a damaged aircraft. It seems the only solution is to remove everything. They said there are no security cameras, "but they are working on it." Such an expensive FBO needs better sucurity. For the ramp fee of just a few aircrafst they could post a guard if they had to.
10506GKGINN10/9/2010 12:02:10 PM UTC
Island City Flying Service was very helpful for our first visit to Key West. Tie down was $30.00 per night or $15.00 with a min. 10 gallon fuel purchase. A little expensive but what isn't in Key West. A great place to stay is the Coco Plum Inn at 611 Whitehead Street this place is in the middle of everything. No need to rent a car, just a couple of bikes to get around and that is a big plus for us. The owners of the Coco Plum Inn will make you feel right at home. I had a weather delay leaving and they just told me leave whenever your ready, no extra charge. (www.cocopluminn.com or 877-644-2955) What a great way to celebrate our 17th anniversary.
10053TGREGORY8/27/2010 10:58:15 AM UTC
6/2010 - flew our Cardinal in for a week long fly and dive adventure. Everyone was very accomodating and we were very well treated. Rental car was there waiting for us. Tie downs are well located. Linesmen hauled us and all our gear to the plane when we were leaving. Great experience with this airport.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Member-submitted Photos

View all
Upload your photos of Key West International

Operations & More Information

Lat/Long:	N24 33.3667' / W81 45.5733'24.5561111-81.7595556
Charts:	NACO: Miami Sectional
Mag Var:	04W (2000)
ARTCC:	Miami (ZMA)
FSS:	Miami (MIA) 1-800-WXBRIEF
NOTAM Facility:	EYW
Approach/Departure Control Facility	NQX
Pattern Altitude:	Light Aircraft: 800 MSL; Heavy Aircraft: 1500 MSL
Wind Indicator:	Lighted
Seg. Circle:	Yes
Lighting:	Pilot Activated Lighting: high intensity: 7 clicks in 5 secs medium intensity: 5 clicks in 5 secs low intensity: 3 clicks in 5 secs Actvt MIRL Ry 09/27, VASI Rys 09 & 27 and REIL Rys 09 & 27 - CTAF

Aircraft & Activity

Based GA Aircraft

Single Engine:	36
Multi Engine:	22
Jets:	0
Helicopters:	1
Gliders:
Ultralights:

Airport Activity

GA Local:	7,792
GA Itinerant:	36,337
Commercial:	7,801
Air Taxi:	10,167
Military:	196

(12-month period ending on 12/31/2011)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone
Approach/Departure	Navy Key West	124.025
Approach/Departure(S)	Navy Key West	126.575
WX	Key West	119.65T (305-292-4046)
ATIS	Key West	119.675
CTAF	Key West	118.2
EMERG	Key West	121.5
Ground Control Clearance-Delivery	Key West	121.9
Tower	Key West	118.2
UNICOM	Key West	122.95

Expand Navaids

ID	Type	Freq	Radial	Distance
FIS	NDB	332.0	076	2 nm
EYW	VORTAC	113.5	127	3 nm
NQX	TACAN	.0	253	5 nm
MTH	NDB	260.0	260	38 nm

Contact Addresses

Owner:	Airport Manager:
Monroe County	Peter Horton
3491 S Roosevelt Blvd	3491 S Roosevelt Blvd
Key West, FL 33040-5260	Key West, FL 33040-5260
305-809-5200 (Office)	305-809-5200 (Office)
	Airport Manager Admin

APD	AIRPORT DIAGRAM	86.7 KB
IAP	RNAV (GPS) RWY 09	214.2 KB
IAP	RNAV (GPS) RWY 27	186.6 KB
IAP	NDB-A	157.2 KB
MIN	TAKEOFF MINIMUMS	162 KB
MIN	ALTERNATE MINIMUMS	34.2 KB
MIN	RADAR MINIMUMS	58.6 KB
