AOPA Airports: Robert Gray AAF (GRK)

FAA Information Effective: 5/2/2013

AOPA members save at 3,000+ GA airports.Book Now!

KGRKArmy
Public Use

Robert Gray AAF

Fort Hood/Killeen, TX
Phone: 254-501-8700
Nearby airports

Satellite
Diagram
Sectional

Open in Google Maps

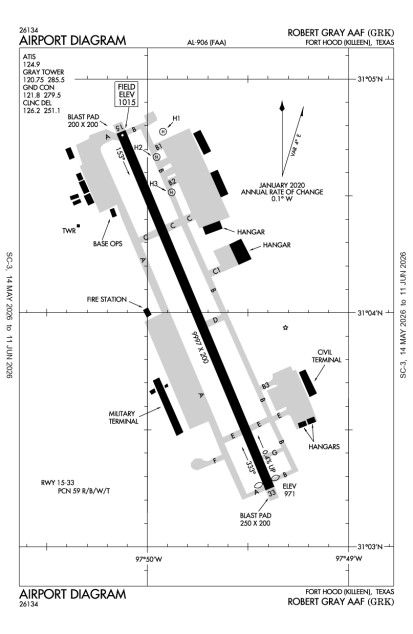

AIRPORT DIAGRAM

Click chart for current METARs and aeronautical charts

Alerts

Security Directive SD-8G

Call FBO for transient pilot security procedures or after hours escort. Learn More

Expand Additional Remarks

Fuel: J8 Ppr Only

Jasu: 1(Am32-95) Lass 1(Tug Tmd-250) 1(Essex B809)

Bearing Strength Rwy 15/33: St175 Sbtt593 Trt840 Trt585

Misc: Wx Vis Obst Rstd S Thru Nw

Misc: Ltd Prk

Misc: 24 Hr Notice Rqr for Lav and Water Svc

Rstd: Twy B From Twy C to Aer 15 Rstd to Acft with An Acn of 24 or Less

Cstms/Ag/Img: Usda Ag Inspection Not Avbl

Caution: Extv Copter Sod Ops

Cstms/Ag/Img: Cstms Avbl 24 Hr Pn Rqr. Dur Nml Duty Hr CTC Pmo Cstms Dsn 737-1942, C254-287-1942, Ot CTC Base Ops Dsn 738-9200, C254-288-9200

Caution: Extv Copter Opr Vcnty Fort Hood, Some Wo Conspicuous Mrk and Blend with Terrain

Misc:Base Ops Apvl for Ramp Access

Misc: Par Not Avbl (Exc Emergency) From 0500-1300z++

Rstd: Twy B Fr Twy C to E Rstd to Acft with Wingspan 200' or Less

Rstd: Twy B Fr Twy E to Apch End Rwy 33 Not Auth for Dod Acft That Rqr Class B Rwy

Rstd: Ppr Rqr Dsn 738-9200/9209, C254-288-9200/9209

Ppr All Civil Acft CTC Amgr at 254-501-8704, or Ops 254-501-8750

Misc: All Inbd Vip Acft CTC Ptd 20 Min Prior to Ldg. Base Ops Fax Dsn 738-1930, C254-288-1930

Misc: Clsd Circuit Tv Opr

Tfc Pat: Tfc Pat Alt Left and Rgt. R/W 1500', F/W 2500', Pure Jet/Overhead 3000'

Security Directive SD-8G

RESTRICTED. MILITARY AIRPORT. PRIOR PERMISSION REQUIRED. CONTACT BASE OPS MANAGER 254/501-8700

NOTAMs | TFR's

Runway 15/33

Dimensions:	10000 x 200ft. / 3048.0 x 61.0m	Weight Bearing Cap:
Surface:	pem, no surface treatment, in excellent condition	Runway Edge Lights:	high

#	Elev/Hdg	Tr. Pat.	Markings	Approach Lights	TD Point	ILS/LOC
15	1015.2ft. MSL 150° mag 157° true 0.4% down	No Data	precision	visual glide slope: 4-Light/Left-Side PAPI approach: 1400ft/Medium-Intensity/Runway Alignment Indicators runway visual range: Touchdown		ILS

33	971.5ft. MSL 330° mag 337° true 0.4% up	No Data	precision	visual glide slope: 4-Light/Left-Side PAPI approach: 1400ft/Medium-Intensity/Runway Alignment Indicators	194' Disp Threshold	ILS/DME

Business/Service Information

List Your Business in AOPA Airports

Services at this airport:

Fuel: Jet A

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Member-submitted Photos

View all
Upload your photos of Robert Gray AAF

Operations & More Information

Lat/Long:	N31 4.0350' / W97 49.7350'31.0672500-97.8289167
Charts:	NACO: San Antonio Sectional
Mag Var:	07E (1990)
ARTCC:	Fort Worth (ZFW)
FSS:	San Angelo (SJT) 1-800-WXBRIEF
NOTAM Facility:	GRK
Approach/Departure Control Facility
Pattern Altitude:	No data provided. Assume 1000 AGL
Wind Indicator:	Present (unlit)
Seg. Circle:	No
Lighting:	No data

Aircraft & Activity

Airport Activity

GA Local:	NaN
GA Itinerant:	70
Commercial:	11,174
Air Taxi:
Military:

(12-month period ending on 5/30/2012)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone
Approach/Departure	Gray	120.075
ATIS	Gray	124.9
Clearance-Delivery	Gray	121.8
CTAF	Gray	120.75
EMERG	Gray	121.5
FT HOOD FLT FLW	Gray	143.1
Ground Control	Gray	126.2
Tower	Gray	120.75
PMSV GRAY METRO	Gray	41.2
PTD	Gray	125.05
RANGE CTL	Gray	38.3
RANGE CTL	Gray	30.45
RDR	Gray	118.95

Expand Navaids

ID	Type	Freq	Radial	Distance
GRK	VOR/DME	111.8	332	2 nm
GR	NDB	323.0	150	7 nm
HLR	NDB	347.0	232	7 nm
AGJ	VORTAC	112.5	109	18 nm
TPL	VOR/DME	110.4	239	23 nm
MNZ	NDB	251.0	147	37 nm
CWK	VORTAC	112.8	334	44 nm
ACT	VORTAC	115.3	210	46 nm
ROB	NDB	400.0	229	47 nm

Contact Addresses

Owner:	Airport Manager:
US Army Atca-Aso	John Sutton
Cameron Station	8101 Clear Creek Rd, Box C
Alexandria, VA 22314	Killeen, TX 76549
254-288-9200 (Office)	254-501-8700 (Office)
	Airport Manager Admin
Civilian Arpt Manager
Contact Ron Gerner, Director of Aviation for Military

Attendance:	Attended Year-round, 7 Days a Week,All
Tower:	ATCT plus Approach Control, 24 hrs/day, everyday, year-roundTower Hrs: 24ATIS Hrs: PART-TIME
Elevation:	1,015 ft (309.4 m) (Surveyed)
Location:	6.00 mi. SW of Fort Hood/Killeen
Beacon:	Present (split-white-green)
Approaches:	ILS, DME, LOC, VOR, RNAV, GPS, NDB
Runways:	15/33 (unpaved) Runway length: 10000 ft
Fees:	No data

APD	AIRPORT DIAGRAM	80.8 KB
DP	CONRA ONE	175 KB
DP	LAMPS FOUR	157.1 KB
DP	LAMPS FOUR, CONT.1	127.2 KB
IAP	ILS OR LOC RWY 15	312.2 KB
IAP	ILS OR LOC RWY 33	281.1 KB
IAP	RNAV (GPS) RWY 15	269.8 KB
IAP	RNAV (GPS) RWY 33	244.3 KB
IAP	VOR/DME RWY 15	217.6 KB
IAP	VOR-A	184.4 KB
IAP	NDB RWY 15	266.1 KB
IAP	COPTER VOR RWY 33	185.1 KB
MIN	TAKEOFF MINIMUMS	104.2 KB
MIN	ALTERNATE MINIMUMS	31 KB
MIN	RADAR MINIMUMS	49.2 KB
