AOPA Airports: Athens/Ben Epps (KAHN)

Satellite
Diagram
Sectional

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

Jet A	$ 5.75 (full service)
100 LL	$ 6.29 (full service)

Expand Additional Remarks

Ry 02/20 Non-Air Carrier Only

Noise Sensitive Area S of Arpt; CTC Fbo for Information

Intensive Flight Training

Security Directive SD-8G

Milutary actt opns in tfc pattern remain N of ry 9-27

NOTAMs | TFR's

Runway 02/20

Dimensions:	3995 x 100ft. / 1217.7 x 30.5m	Weight Bearing Cap:	Single wheel: 40000 lb
Surface:	asphalt, no surface treatment, in good condition	Runway Edge Lights:	medium

#	Elev/Hdg	Markings	Approach Lights	Obstructions	Comments/Noise
02	774.6ft. MSL 24° mag 21° true 0.7% up	non-precision	visual glide slope: 4-Box/Left-Side VASI	Trees, 150 ft Left of center, 72 ft high, 1,500 ft from end, 20:1 clearance slope	Ry 02 Slope 0.7% Up NE

20	803.3ft. MSL 204° mag 201° true 0.7% down	non-precision	visual glide slope: 4-Light/Left-Side PAPI	Trees, 250 ft Right of center, 63 ft high, 1,475 ft from end, 20:1 clearance slope	Ry 20 Slope 0.7% Down SW

Runway 09/27

Dimensions:	5522 x 100ft. / 1683.1 x 30.5m	Weight Bearing Cap:	Single wheel: 65000 lb
Surface:	asphalt, grooved, in good condition	Runway Edge Lights:	medium

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC	Comments/Noise
09	755.2ft. MSL 91° mag 88° true 1.0% up	non-precision	visual glide slope: 4-Light/Left-Side PAPI		Ry 09 Slope 1.0% Up E

27	807.5ft. MSL 271° mag 268° true 1.0% down	precision	runway end identifier: REIL is present approach: Omni-directional ALS visual glide slope: 4-Box/Left-Side VASI	LOC/GS	Ry 27 Slope 1.0% Down W

Business/Service Information

Name		Location	Freq. Monitored	Main Phone
Athens/Ben Epps Airport	Maintenance $6.29 $5.75 Rentals Sales Flight Training	On field: CTR	UNICOM: 122.95	706-613-3420
Athens Turboprop Management, Inc.	Maintenance	ATHENS, GA		706-546-7969
Falcon Aviation Academy	Rentals Flight Training	ATHENS, GA		706-369-4497

List Your Business in AOPA Airports

Services at this airport:

Services:
Engine Repair: MajorAirframe Repair: Major
Fuel: 100LL Low-Lead, Jet A1
Transportation: Courtesy Car, Limousine
Rental Cars:

Hertz

Expand Nearby restaurants, attractions

Your Cab 546-5844

Butts-Mehre Heritage Hall 2 1/2 mi

Navy Supply Corps Museum 3 1/2 mi

NCAA Hall of Fame 13 mi

Georgia Museum of Art 8 mi

Botanical Gardens 3 mi

Ryan's Family Steakhouse 1 1/2 mi 549-0186

Rafferty's 8 mi 613-0045

Outback Steakhouse 8 1/2 mi 613-6015

Peking 2 mi 549-0274

Information above provided by the airport manager.
Search nearby: Hotels | Restaurants

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

17069PUMPKIN4/9/2012 10:16:09 PM UTC
Wow. Some of the worst service ever! After filling up and spending the weekend, we asked for our plane to be towed out of parking. They wanted $25 to do this! I have never seen an FBO in all my flying history that charges you to bring your plane up front for you. It's a shame such a cool town has to have such a lousy FBO.
11589CTAPP562/8/2011 2:00:42 AM UTC
Great service all the way around. The tower controller, lineman, front desk all very friendly and helpful. Facilities still look new, well maintained, very clean and comfortable. Easy in and easy out. Definitely a great place to stop.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Operations & More Information

Lat/Long:	N33 56.9150' / W83 19.5817'33.9485833-83.3263611
Charts:	NACO: Atlanta Sectional
Mag Var:	03W (1985)
ARTCC:	Atlanta (ZTL)
FSS:	Macon (MCN) 1-800-WXBRIEF
NOTAM Facility:	AHN
Approach/Departure Control Facility	A80
Pattern Altitude:	Tpa for Light Acft 992 Ft Agl; Tpa for Jets 1492 Ft AGL Heavy Aircraft: 2300 MSL; Turbine Aircraft: 2300 MSL; Light Aircraft: 1800 MSL
Wind Indicator:	Present (unlit)
Seg. Circle:	Yes
Lighting:	Pilot Activated Lighting: high intensity: 7 clicks in 5 secs medium intensity: 5 clicks in 5 secs low intensity: 3 clicks in 5 secs Actvt PAPI Rys 09 & 20, REIL Ry 27 & ODALS Ry 27 - CTAF. When ATCT Clsd MIRL Ry 09/27 Preset Low Intst; to Increase Intst Actvt - CTAF

Aircraft & Activity

Based GA Aircraft

Single Engine:	64
Multi Engine:	8
Jets:	0
Helicopters:	0
Gliders:
Ultralights:

Airport Activity

GA Local:	9,806
GA Itinerant:	16,933
Commercial:	63
Air Taxi:	2,129
Military:	1,649

(12-month period ending on 8/9/2012)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone	Sector
Approach DEP/P	Atlanta	127.5	7000 FT AND ABOVE (0615-0000
Approach/Departure	Atlanta	132.475	0615-0000
Approach/Departure	Atlanta	132.475	BLO 7000 FT (0615-0000
WX	Athens	132.875T (706-613-7373)
Clearance-Delivery	Atlanta	127.5	WHEN ATCT CLSD
CTAF	Athens	126.3
Ground Control	Athens	121.8
Tower	Athens	126.3
UNICOM	Athens	122.95

Expand Navaids

ID	Type	Freq	Radial	Distance
AHN	VORTAC	109.6	307	0 nm
BJT	NDB	221.0	271	5 nm
DDA	NDB	244.0	128	12 nm
BMW	NDB	404.0	091	13 nm
VV	NDB	353.0	325	24 nm
JNM	NDB	392.0	061	24 nm
VV	NDB	299.0	325	24 nm
VOF	NDB	370.0	053	30 nm
FKV	NDB	365.0	121	33 nm
AJR	NDB	347.0	166	35 nm
ELW	VORTAC	108.6	224	39 nm
AA	NDB	341.0	309	43 nm
AA	NDB	365.0	309	43 nm
ODF	VORTAC	113.4	182	45 nm
UMB	NDB	380.0	354	48 nm
CEU	NDB	257.0	212	49 nm
PDK	VOR/DME	116.6	090	49 nm

Contact Addresses

ASN Volunteer:	Owner:	Airport Manager:
Christopher Anderson	Clarke County	Tim Beggerly
	Po Box 448, Co Courthouse	1010 Ben Epps Drive
	Athens, GA 30601	Athens, GA 30605
	706-613-3420 (Office)	706-613-3416 (Office)
Contact the ASN Volunteer

Attendance:	Attended Year-round, 7 Days a Week,0600-2200
Tower:	Air Traffic Control Tower, 12 hrs/day, everyday, year-round
Elevation:	808 ft (246.3 m) (Surveyed)
Location:	3.00 mi. E of Athens
Beacon:	Present (white-green)
Approaches:	ILS, DME, LOC, VOR, RNAV, GPS, NDB
Runways:	02/20, 09/27 Longest paved runway: 5522 ft
Fees:	Ramp, Tiedown, Hangar, Parking, Landing

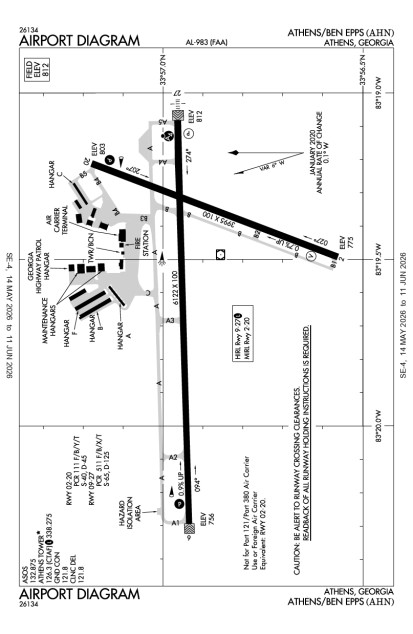

APD	AIRPORT DIAGRAM	112.3 KB
IAP	ILS OR LOC/DME RWY 27	287.3 KB
IAP	RNAV (GPS) RWY 02	213.3 KB
IAP	RNAV (GPS) RWY 09	210.3 KB
IAP	RNAV (GPS) RWY 20	185.8 KB
IAP	RNAV (GPS) RWY 27	260.8 KB
IAP	VOR RWY 02	165.2 KB
IAP	VOR RWY 27	171.5 KB
IAP	NDB RWY 27	194 KB
MIN	TAKEOFF MINIMUMS	188.6 KB
MIN	ALTERNATE MINIMUMS	40.2 KB

Athens/Ben Epps

Overview

Expand Instrument Approach Procedures
