AOPA Airports: Alpena County Regional (KAPN)

AOPA members save at 3,000+ GA airports.Book Now!

KAPNCivil
Public Use

Alpena County Regional

Alpena, MI
Phone: 989-354-2907
www.alpenaairport.com
Nearby airports

Overview

Attendance:	Attended Year-round, 7 Days a Week,0500-2200
Tower:	ATCT plus Approach Control, 8 hrs/day, weekdays onlyTower Hrs: 0800-1600 WKDAYS (ANG).
Elevation:	690 ft (210.3 m) (Surveyed)
Location:	6.00 mi. W of Alpena
Beacon:	Present (white-green)
Approaches:	ILS, DME, LOC, VOR, RNAV, GPS, NDB, TACAN
Runways:	01/19, 07/25 Longest paved runway: 9001 ft
Fees:	Landing, Hangar

Plain | Embed this

METARs
TAFs

Satellite
Diagram
Sectional

Open in Google Maps

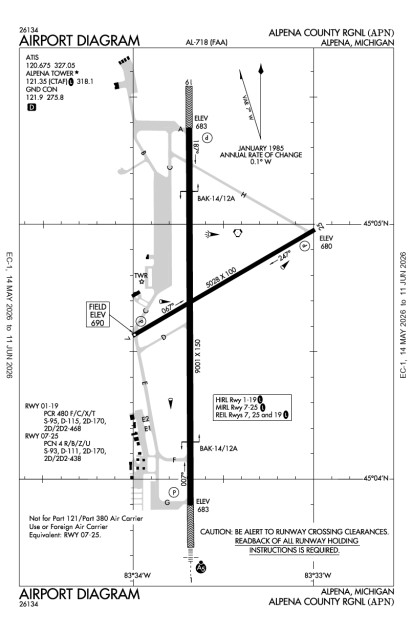

AIRPORT DIAGRAM

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

Jet-A	$ 5.10 (truck service)
100LL	$ 6.25 (self-service service)
Jet A	$ 5.16 (full service)
100 LL	$ 6.46 (full service)

Expand Additional Remarks

Ang Duty Hrs 0800-1630 Mon - Fri Except Holidays

Mil Opns - 72 Hr Ppr; CTC Basops Dsn 741-6226 or Coml 800-292-6583 for Ppr Nr

Birds & Other Wildlife on & Invof Arpt

Ang - Joap Svc Unavbl

for Svc Aft Hrs Call989-464-1419

Twy H, East of Ry 01/19 Clsd to Military Acft

Twy 'A' West of Twy 'C' and Twy 'B' Restricted to Military Only. be Alert for Uncontrolled Vehicles on the Twy

Ry 01/19 Bak 12/14; Ry 01-1500 Ft Fm Thld & Ry 19 - 1515 Ft Fm Thld

Rys 01 & 19 Each Have 1000' Ovrn

Security Directive SD-8G

Restriction on gnd run-up, ctc APM

NOTAMs | TFR's

Runway 01/19

Dimensions:	9001 x 150ft. / 2743.5 x 45.7m	Weight Bearing Cap:	Single wheel: 95000 lb
Surface:	concrete, grooved, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC	Obstructions
01	682.8ft. MSL 7° mag 0° true	precision	visual glide slope: 4-Light/Left-Side PAPI approach: 1400ft/Medium-Intensity/Runway Alignment Indicators	ILS	Tree, 329 ft Right of center, 68 ft high, 3,190 ft from end, 43:1 clearance slope

19	683.0ft. MSL 187° mag 180° true	precision	visual glide slope: 4-Light/Left-Side PAPI runway end identifier: REIL is present		Tree, 440 ft Right of center, 56 ft high, 2,174 ft from end, 35:1 clearance slope

Runway 07/25

Dimensions:	5028 x 100ft. / 1532.5 x 30.5m	Weight Bearing Cap:	Single wheel: 93000 lb
Surface:	concrete, grooved, in fair condition	Runway Edge Lights:	medium

#	Elev/Hdg	Markings	Approach Lights	Obstructions
07	689.5ft. MSL 67° mag 60° true 0.2% down	non-precision	runway end identifier: REIL is present visual glide slope: 4-Light/Left-Side PAPI	Trees, 295 ft Right of center, 41 ft high, 809 ft from end, 14:1 clearance slope

25	679.6ft. MSL 247° mag 240° true 0.2% up	non-precision	visual glide slope: 4-Light/Left-Side PAPI runway end identifier: REIL is present	Trees, 427 ft Left of center, 80 ft high, 2,866 ft from end, 33:1 clearance slope

Business/Service Information

Name		Location	Freq. Monitored	Main Phone
Aviation Express	$6.25 $5.10 Flight Training	ALPENA, MI		989-255-4871
Aviation North	Maintenance $6.46 $5.16 Sales	On field: SW	UNICOM: 122.95	989-356-6361

List Your Business in AOPA Airports

Services at this airport:

Services:
Engine Repair: MinorAirframe Repair: Minor
Fuel: 100LL Low-Lead, Jet A
Transportation: Limousine, Public
Rental Cars:

Avis
Hertz

Customs: International Landing Rights

Expand Nearby restaurants, attractions

Applebee's 5 mi 989-354-3886

nmrs fast food 6-8 mi

The Anchorage 8 mi 989-356-2151

Mr. D's Steakhouse 6 mi 989-358-2050

Zimmers Shuttle & Courrier 989-734-2255

Russell's Limousine 989-356-8707

Thunder Bay Underwater Preserve

Brown Trout Festival 7 mi

Great Lakes Lighthouse Festival 7 mi

Alpena Cab 989-354-4601

Information above provided by the airport manager.
Search nearby: Hotels | Restaurants

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Operations & More Information

Lat/Long:	N45 4.6850' / W83 33.6183'45.0780833-83.5603056
Charts:	NACO: Lake Huron Sectional
Mag Var:	07W (1985)
ARTCC:	Minneapolis (ZMP)
FSS:	Lansing (LAN) 1-800-WXBRIEF
NOTAM Facility:	APN
Approach/Departure Control Facility
Pattern Altitude:	Nonturbine Aircraft: 1700 MSL; Turbine Aircraft: 2200 MSL; Rotorcraft: 1200 MSL
Wind Indicator:	Lighted
Seg. Circle:	Yes
Lighting:	Pilot Activated Lighting: high intensity: 7 clicks in 5 secs medium intensity: 5 clicks in 5 secs low intensity: 3 clicks in 5 secs Actvt HIRL Ry 01/19; MIRL Ry 07/25; REIL Rys 19; 07 & 25; MALSR Ry 01 - CTAF

Aircraft & Activity

Based GA Aircraft

Single Engine:	14
Multi Engine:	6
Jets:	0
Helicopters:	1
Gliders:
Ultralights:

Airport Activity

GA Local:	1,838
GA Itinerant:	143
Commercial:	1,340
Air Taxi:
Military:	2,581

(12-month period ending on 8/31/2012)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone
Approach/Departure	Alpena	128.425
WX	Alpena	120.675T (989-356-3662)
CTAF	Alpena	121.35
EMERG	Alpena	121.5
Ground Control	Alpena	121.9
Tower	Alpena	121.35
UNICOM	Alpena	122.95

Expand Navaids

ID	Type	Freq	Radial	Distance
APN	VORTAC	108.8	213	0 nm
PZQ	NDB	215.0	158	22 nm
ASP	VOR/DME	116.1	356	38 nm
GLR	VOR/DME	109.2	091	49 nm

Contact Addresses

ASN Volunteer:	Owner:	Airport Manager:
Jeff Welch	County of Alpena	Ms. Billi McRoberts
	1617 Airport Rd	1617 Airport Rd
	Alpena, MI 49707	Alpena, MI 49707
	989-354-2907 (Office)	989-354-2907 (Office)
Contact the ASN Volunteer
		Airport Manager Admin

APD	AIRPORT DIAGRAM	90.3 KB
IAP	HI-ILS OR LOC/DME RWY 01	299.2 KB
IAP	ILS OR LOC RWY 01	242.6 KB
IAP	RNAV (GPS) RWY 01	272 KB
IAP	RNAV (GPS) RWY 19	210.2 KB
IAP	HI-VOR/DME OR TACAN RWY 01	235.3 KB
IAP	VOR RWY 01	152.5 KB
IAP	VOR RWY 19	185.9 KB
IAP	HI-TACAN RWY 19	248.7 KB
IAP	NDB RWY 01	191.8 KB
MIN	TAKEOFF MINIMUMS	121.2 KB
MIN	ALTERNATE MINIMUMS	35.3 KB
