AOPA Airports: Boca Raton (KBCT)

Satellite
Diagram
Sectional

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

100LL	$ 6.49 (full service service)
Jet-A	$ 6.39 (full service service)

Expand Additional Remarks

for Noise Abatement Info Call 561-391-2202

Tgls Voluntarily Rstrd to 0900-1700 Mon-Fri; Voluntary Restrn on Stop & Go Landings or Intersection Deps

All Acft Use Recommended Departures: Ry 05 L Turn Heading 360 Stay W of Interstate to 1500 Ft; Ry 23 R Turn Heading 255 As Soon As Practicable Aft Passing Ry End to 1500 Ft; Avoid Residential Areas; Overfly Mall Area

Birds on and in Vicinity of Arpt

Voluntary Noise Abatement Procedures in Effect All Times All Acft. Voluntary Curfew 2200-0700. Use Nbaa Std Noise Abatement Apch & Dep Prodedures

NBAA close in dep & arr; informal flt opns; voluntary curfew 10 pm to 7 am ctc APM 561/391-0296; minimize reverse thrust on arrival; for more info ctc APM

Dep ry 5 left turn aft tkof to 360 deg climb W of I-95, arrg ry 23 stay W I-95 til in close; avoid res area 1 mi NE end of ry; dep ry 23 right turn aft tkof to 255 deg

NOTAMs | TFR's

Runway 05/23

Dimensions:	6276 x 150ft. / 1912.9 x 45.7m	Weight Bearing Cap:	Single wheel: 40000 lb
Surface:	asphalt, grooved, in good condition	Runway Edge Lights:	medium

#	Elev/Hdg	Markings	Approach Lights	TD Point	Obstructions	Comments/Noise
05	11.4ft. MSL 49° mag 44° true 0.0% up	non-precision	visual glide slope: 4-Light/Right-Side PAPI runway end identifier: REIL is present	696' Disp Threshold	Tree, 38 ft Right of center, 32 ft high, 447 ft from end, 8:1 clearance slope	Ry 05 Apch Slope 36:1 to Dsplcd Thld Due to 32 Ft Tree; 38 R of Cntrln; 447 Ft From End of Ry

23	12.6ft. MSL 229° mag 224° true 0.0% down	non-precision	visual glide slope: 4-Light/Left-Side PAPI runway end identifier: REIL is present	378' Disp Threshold	Fence, Both-Sides, 8 ft high, 309 ft from end, 13:1 clearance slope	Ry 23, Apch Slope 34:1 to Dsplcd Thld Due to Trees 37 Ft; Ob; 903 Ft Fm End of Ry

Business/Service Information

Name		Location	Freq. Monitored	Main Phone
Avitat Boca Raton	Maintenance Fuel Sales AOPA WorldPoints	On field: SW	ARINC: 131.65	561-955-9556
Boca Aircraft Owners-(T- HANGARS)		On field: N 26.384911-80.103593		561-362-7224
Boca Aviation	Maintenance $6.49 $6.39 Rentals AOPA WorldPoints	On field: N 26.382066-80.105953	ARINC: 131.95	561-368-1110
Boca National Aircraft, Inc.	Sales	On field: NW		561-998-8044
Lynn University	Flight Training AOPA WorldPoints	On field: NE		561-237-7333

List Your Business in AOPA Airports

Services at this airport:

Services:
Engine Repair: MajorAirframe Repair: MajorBulk Oxygen: High/Low
Fuel: 100LL Low-Lead, Jet A
Transportation:
Rental Cars: ,

Expand Nearby restaurants, attractions

Bogarts at Muvico Theater 561-395-6516

Yellow Cab 561-689-4222

Metro 561-391-2230

Rascal House 2 mi 561-982-8899

Ramano's Macaroni Grill 2 mi 561/997-5492

Muvico Theaters on fld

Boomer's Family Recreation on fld

Houston's 2 mi 561-998-0550

P.F. Chang's 1 mi 561-393-3722

Information above provided by the airport manager.
Search nearby: Hotels | Restaurants

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Operations & More Information

Lat/Long:	N26 22.7100' / W80 6.4617'26.3785000-80.1076944
Charts:	NACO: Miami Sectional
Mag Var:	05W (2000)
ARTCC:	Miami (ZMA)
FSS:	Miami (MIA) 1-800-WXBRIEF
NOTAM Facility:	MIA
Approach/Departure Control Facility	PBI
Pattern Altitude:	Light Aircraft: 1000 MSL; Heavy Aircraft: 1500 MSL
Wind Indicator:	Lighted
Seg. Circle:	No
Lighting:	Pilot Activated Lighting: high intensity: 7 clicks in 5 secs medium intensity: 5 clicks in 5 secs low intensity: 3 clicks in 5 secs When ATCT Clsd MIRL Ry 05/23 Preset Med Intensity and REIL Rys 05 & 23 Oper Continuously

Aircraft & Activity

Based GA Aircraft

Single Engine:	96
Multi Engine:	33
Jets:	42
Helicopters:	1
Gliders:
Ultralights:

Airport Activity

GA Local:	42,791
GA Itinerant:	33,367
Commercial:
Air Taxi:	5,289
Military:	313

(12-month period ending on 5/21/2010)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone	Sector
Approach/Departure	Palm Beach	125.2
WX	Boca Raton	121.125T (561-391-2696)
Clearance-Delivery	Palm Beach	127.35	WHEN BCT ATCT CLSD
CTAF	Boca Raton	118.425
Ground Control Clearance-Delivery	Boca Raton	121.8
Tower	Boca Raton	118.425

Expand Navaids

ID	Type	Freq	Radial	Distance
FX	NDB	221.0	045	16 nm
PBI	VORTAC	115.7	187	18 nm
FLL	VOR/DME	116.5	009	18 nm
PBI	VOT	109.0	181	19 nm
MIA	VOT	112.0	015	36 nm
DHP	VORTAC	113.9	025	37 nm
VKZ	VOR/DME	117.1	008	38 nm
PHK	VORTAC	115.4	127	40 nm

Contact Addresses

ASN Volunteer:	Owner:	Airport Manager:
J Haynie	Boca Raton Airport Authority	Ken A. Day
	3701 Fau Blvd Ste 205	3701 Fau Blvd Ste 205
	Boca Raton, FL 33431	Boca Raton, FL 33431
	561-391-2202 (Office)	561-391-2202 (Office)
Contact the ASN Volunteer
Fax: 561-391-2238
Contact Person: Ken Day

Attendance:	Attended Year-round, 7 Days a Week,All
Tower:	Air Traffic Control Tower, 16 hrs/day, everyday, year-roundTower Hrs: 0700-2300
Elevation:	13 ft (4.0 m) (Surveyed)
Location:	2.00 mi. NW of Boca Raton
Beacon:	Present (white-green)
Runways:	05/23 Runway length: 6276 ft
Fees:	No data

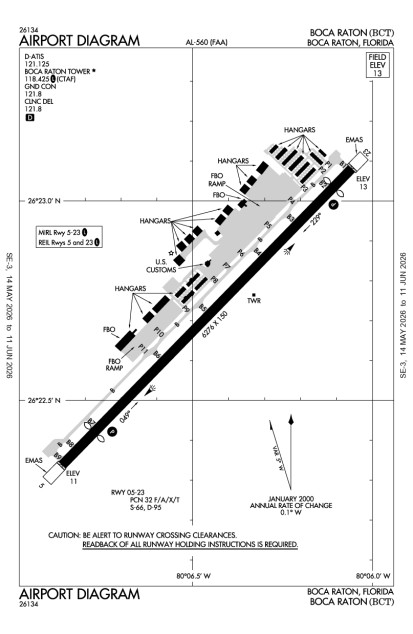

APD	AIRPORT DIAGRAM	114.7 KB
IAP	RNAV (GPS) RWY 05	292.4 KB
IAP	RNAV (GPS) RWY 23	324.1 KB
IAP	VOR/DME-A	221.4 KB
MIN	TAKE-OFF MINIMUMS	97.6 KB
MIN	ALTERNATE MINIMUMS	21 KB
STAR	CAYSL TWO (RNAV)	213.3 KB
STAR	PRRIE ONE (RNAV)	236.7 KB
STAR	TUXXI ONE	215.3 KB

Boca Raton

Overview

Expand Instrument Approach Procedures
