AOPA Airports: Birmingham-Shuttlesworth International (KBHM)

FAA Information Effective: 5/2/2013

AOPA members save at 3,000+ GA airports.Book Now!

KBHMCivil
Public Use

Birmingham-Shuttlesworth International

Birmingham, AL
Phone: 205-595-0533
Nearby airports

Satellite
Diagram
Sectional

Open in Google Maps

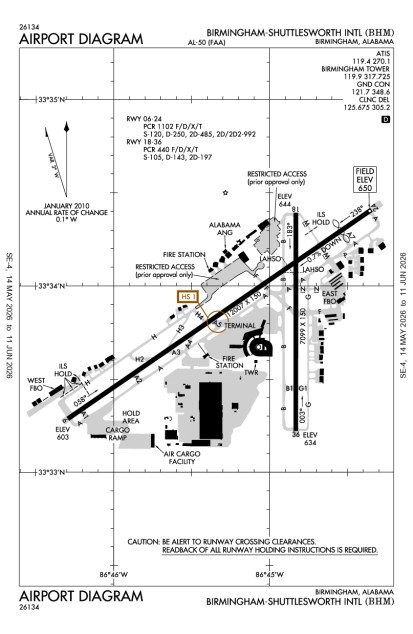

AIRPORT DIAGRAM

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

Jet A	$ 6.65 (full service)
100 LL	$ 7.09 (full service)

Alerts

Security Directive SD-8G

Call FBO for transient pilot security procedures or after hours escort. Learn More

Expand Additional Remarks

Bird Activity Invof All Rys

Twy N Restricted to Acft Weighing 204000 Lbs or Less

Twy M North of Ry 6/24 Restricted to Acft 75000 Lbs or Less

Twy G Restricted to Acft 65000 Lbs or Less

Ang: Extremely Ltd Space A Capability After Duty Hr (1300-2330z++ Tue-Fri)

Twy F Btn Ry 18/36 and Twy G Restricted to Acft Weighing 100,000 Lbs or Less

Taxiway N is restrd to acft space 204,000 lbs or less; Taxiway "G" is restricted to acft 75,000 lbs or less; taxiway "F" is restricted to acft 101,000 lbs or less east of ry 18-36

Flight trng restrictions ctc 595-2129; engine runups must be approved by airport authority ctc 205/544-0542

Security Directive SD-8G

NOTAMs | TFR's

Runway 06/24

Dimensions:	11998 x 150ft. / 3657.0 x 45.7m	Weight Bearing Cap:	Single wheel: 175000 lb
Surface:	asphalt, grooved, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	TD Point	ILS/LOC	Obstructions	Comments/Noise
06	603.4ft. MSL 58° mag 55° true 0.4% up	precision	runway visual range: Touchdown, Midfield, Rollout visual glide slope: 4-Light/Left-Side PAPI centerline: Centerline Lights are present end touchdown: End Touchdown Lights are present approach: 2400ft/High-Intensity/Sequenced Flashers, Cat-II/III Config. runway visual value: RVV is present		ILS		Gradient 0.16% Up NE

24	650.0ft. MSL 238° mag 235° true 0.4% down	precision	visual glide slope: 4-Light/Left-Side PAPI runway visual range: Touchdown, Midfield, Rollout centerline: Centerline Lights are present approach: 1400ft/Medium-Intensity/Runway Alignment Indicators	1197' Disp Threshold	ILS/DME	Tree, 892 ft Right of center, 225 ft high, 5,324 ft from end, 30:1 clearance slope	Gradient 0.46% Down SW +144 Ft Hill 4010 Ft; 250 Ft R; Apch Ratio 40:1 Based on Dsplcd Thr MALSR Ry 24 Ctld by ATCT But Operates Ummonitored

Runway 18/36

Dimensions:	7099 x 150ft. / 2163.8 x 45.7m	Weight Bearing Cap:	Single wheel: 75000 lb
Surface:	asphalt, grooved, in good condition	Runway Edge Lights:	medium

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC	Obstructions	Comments/Noise
18	644.3ft. MSL 183° mag 180° true 0.2% down	non-precision	runway end identifier: REIL is present visual glide slope: 4-Light/Left-Side PAPI	LOC/DME	Terrain, Right, 16 ft high, 615 ft from end, 26:1 clearance slope	Gradient 0.15% Up N

36	633.4ft. MSL 3° mag 0° true 0.2% up	non-precision	runway end identifier: REIL is present		Trees, 392 ft Left of center, 76 ft high, 1,736 ft from end, 20:1 clearance slope	Gradient 0.15% Down S

Business/Service Information

Name		Location	Freq. Monitored	Main Phone
Atlantic Aviation Birmingham East Ramp	Maintenance $7.09 $6.65 Sales	On field: NE	UNICOM: 122.95 ARINC: 130.57	205-591-6830
Birmingham Flight Center	Rentals Flight Training	On field: W		205-849-7722

List Your Business in AOPA Airports

Services at this airport:

Services:
Engine Repair: MajorAirframe Repair: MajorBulk Oxygen: High/Low
Fuel: 100LL Low-Lead, Jet A
Transportation: Courtesy Car, Limousine, Shuttle Bus
Rental Cars:

National	Book Now!	866-315-9155
Alamo	Book Now!	866-315-9155
Avis
Budget
Thrifty

Customs: International Landing Rights

Expand Nearby restaurants, attractions

Pizza Hut 205-592-4660

McDonald's 205-599-3333

Charlie's Steakery 205-595-6460

Down Home Cookin 205-592-4362

VJ's 205-833-5351

The Olive Garden 3 mi 205-591-0731

O'Charlie's 3 mi 205-956-6625

Logan's Roadhouse 3 mi 205-957-9775

svcs avbl at trmnl

Riverchase Galleria Mall 15 mi

Five Pts South 5 mi

Botantical Gardens 5 mi

Bhm Zoo 5 mi

Art Museum 3 mi

Civil Rights Museum 3 mi

Information above provided by the airport manager.
Search nearby: Hotels | Restaurants

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

19589MARLTON10/27/2012 4:59:27 PM UTC
First time to use this forum. been an AOPA member for over 13 years and find tremendous benefits. Regarding Atlantic East FBO, i flew in 10 -19-2012 and was greeted with the nicest line guy, then went inside to be greeted and taken care of by "Lil", Lillian, the nicest lady i ever met.. she treated us so special, we needed it because were enroute to UAB hospital for serious surgery ( Cancer) for my wifes sister. The service we got caused me not to notice the fuel price. N23LA
18449CGRABOWSKY8/13/2012 1:48:56 PM UTC
Very nice folks at Atlantic East and helpful with getting the hotel curtesy van and unloading the aircraft. Nice facility but no area to walk our dogs. We would have taken the 15 gallons at $7.09 instead of paying the $40 overnight fee but it would have put us overweight. 15 x 7.09=$106.35 then minus 40 and devide by 15 gives $4.42 a gallon. I minus the $40 as a sunk cost of being there overnight.
17787PERSALL6/21/2012 5:49:34 PM UTC
Atlantic East is a wonderful FBO, Wendy was very helpful with car rental issue. I'll definitely be back!
147920359384510/31/2011 8:42:08 PM UTC
Fuel is very expensive, I also paid $7.09 on two trips I made to BHM in October. The staff are friendly enough but the price gouging leaves a really bitter taste. Fuel prices are over $2.00 a gallon higher than fuel I pay in most airports in the mid-south. My recommendation - don't stop in Birmingham. If you have to stop; don't buy gas and don't stay overnight.
143140113065610/4/2011 1:47:31 AM UTC
I paid $7.09 per gallon on 10/02/2011, on the east side. Highest price fuel around.Personal was very nice...Buy your fuel elsewhere..15 gallon min.otherwise you will also pay $40.00, overnight, for single engine overnight.parking...plus $5.00 security fee..Staff members are friendly.
14108GMANTOOTH9/19/2011 3:24:37 AM UTC
Great experience with Atlantic East. Very friendly and helpful. Courtesy car available along with very accurate directions. Will definitely vist Atlantic East again.
12510068819056/7/2011 2:30:48 PM UTC
I paid $6.99 a gallon full service at the West side FBO, plus paid a nominal security fee for parking over night. (For future reference that is $1.70 higher than the going rate for 100LL four other FBOs I stopped at that week. In short, don't buy fuel there.
10622HALLLC10/17/2010 11:41:59 PM UTC
After reading previous comments regarding the FBO, we were reluctant to go to BHM. Called ahead 10/16/10 to see if these people were really this bad! Lil took our call and soon thereafter felt assured that we would not have to mortgage the plane just to pay outrages fees. Our visit today was excellent. Lil and the line guys were outstanding and very professional. We were made to feel at home and there were no suprises. Their fuel prices (100LL) are very high. We will return. Have a great day Lil and the BHM EAST team!
9714HAMILTON9967/26/2010 3:26:27 PM UTC
WOW... what a wonderful experience I had! They brought my rental car plane side, unloaded my plane for me while and helped me cover it. I went inside to fill out paperwork and was greeted by a very friendly young lady who helped with directions to my destination in town. Upon my return a couple of days later, they had kindly pulled the aircraft into a hanger "so it wouldn't be so hot for you" and helped me with loading and getting ready to go! I was hesitant to try this FBO based on the comment from 5/2007 -- but I was positively overwhelmed with the good customer service and friendliness of ALL the staff members I was in contact with! Would definitely recommend this FBO.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Member-submitted Photos

View all
Upload your photos of Birmingham-Shuttlesworth International

Operations & More Information

Lat/Long:	N33 33.8333' / W86 45.1383'33.5638889-86.7523056
Charts:	NACO: Atlanta Sectional
Mag Var:	03W (2010)
ARTCC:	Atlanta (ZTL)
FSS:	Anniston (ANB) 1-800-WXBRIEF
NOTAM Facility:	BHM
Approach/Departure Control Facility
Pattern Altitude:	Fixed Wing: 1644 MSL
Wind Indicator:	Lighted
Seg. Circle:	No
Lighting:	No data

Aircraft & Activity

Based GA Aircraft

Single Engine:	75
Multi Engine:	36
Jets:	77
Helicopters:	4
Gliders:
Ultralights:

Airport Activity

GA Local:	430
GA Itinerant:	41,099
Commercial:	31,288
Air Taxi:	26,916
Military:	5,131

(12-month period ending on 12/31/2011)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone	Sector
Approach/Departure CLASS C	Birmingham	127.675	231-049
Approach/Departure CLASS C IC	Birmingham	123.8	050-230
WX	Birmingham	.0T (205-591-6172)
ATIS	Birmingham	119.4
Clearance-Delivery PTC	Birmingham	125.675
EMERG	Birmingham	121.5
Ground Control	Birmingham	121.7
Tower	Birmingham	119.9
Tower(S)	Birmingham	118.25
UNICOM	Birmingham	122.95

Expand Navaids

ID	Type	Freq	Radial	Distance
BHM	VOT	110.0	000	0 nm
BH	NDB	224.0	057	6 nm
VUZ	VORTAC	114.4	129	10 nm
OKW	VORTAC	111.0	052	32 nm
SCD	NDB	284.0	320	32 nm
TDG	VOR/DME	108.8	267	36 nm
GAD	VOR/DME	112.3	232	42 nm
GGY	NDB	338.0	350	43 nm
LDK	VORTAC	117.8	062	43 nm
ARF	NDB	296.0	215	49 nm

Contact Addresses

ASN Volunteer:	Owner:	Airport Manager:
Betty Meyer	Birmingham Airport Authority	Al Denson
	5900 Airport Hwy	Birmingham Arpt Auth, 5900 Airport Hwy
	Birmingham, AL 35212	Birmingham, AL 35212
	205-595-0533 (Office)	205-595-0533 (Office)
Contact the ASN Volunteer
		Airport Manager Admin

Attendance:	Attended Year-round, 7 Days a Week,All
Tower:	ATCT plus Terminal Radar Approach Control, 24 hrs/day, everyday, year-roundTower Hrs: 24Tower Hrs: 0700-1730 TUE-SUN
Elevation:	650 ft (198.1 m) (Surveyed)
Location:	4.00 mi. NE of Birmingham
Beacon:	Present (white-green)
Approaches:	ILS, DME, LOC, RNAV, GPS, RNP
Runways:	06/24, 18/36 Longest paved runway: 11998 ft
Fees:	No data

APD	AIRPORT DIAGRAM	135.1 KB
DP	BIRMINGHAM FIVE	258 KB
DP	BIRMINGHAM FIVE, CONT.1	216.6 KB
IAP	ILS OR LOC RWY 06	278.7 KB
IAP	ILS OR LOC/DME RWY 24	305.7 KB
IAP	ILS RWY 06(CAT II) (changed)	252.8 KB
IAP	RNAV (RNP) Z RWY 06	329 KB
IAP	RNAV (RNP) Z RWY 24	320.8 KB
IAP	RNAV (GPS) RWY 18	213.8 KB
IAP	RNAV (GPS) RWY 36	239.3 KB
IAP	RNAV (GPS) Y RWY 06	229.6 KB
IAP	RNAV (GPS) Y RWY 24	261 KB
IAP	LOC RWY 18	258.7 KB
LAH	LAHSO	7.1 KB
MIN	TAKEOFF MINIMUMS	188.4 KB
MIN	ALTERNATE MINIMUMS	40.2 KB
