AOPA Airports: Cannon Air Force Base (KCVS)

FAA Information Effective: 5/2/2013

4295 msl

AOPA members save at 3,000+ GA airports.Book Now!

KCVSUsaf
Private Use

Cannon Air Force Base

Clovis, NM
Phone: 575-784-2801
Nearby airports

Satellite
Diagram
Sectional

Open in Google Maps

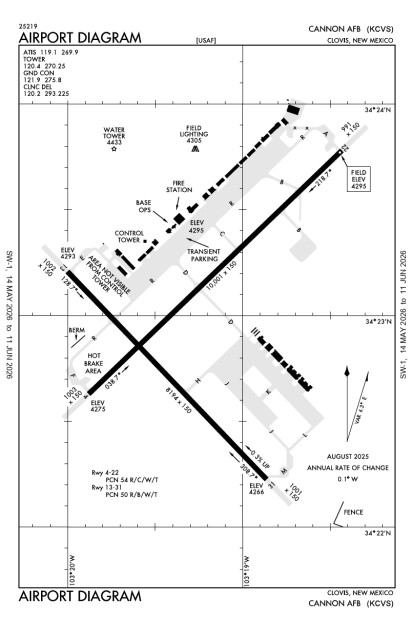

AIRPORT DIAGRAM

Click chart for current METARs and aeronautical charts

Expand Additional Remarks

Caution: Bird Haz: Sewage Lagoon and Lake Lctd 1/2 Nm SE of Rwy 22 Apch End

Misc: Classified Storage for Transient Aircrew Unavbl at Afld Management Ops. CTC Comd Post for Storage

Service-Oil: Oil Svc Unavbl for Mil-7808 Oil

Rstd: Tran B1 Apv for Touch-And-Go Ldg Up to But Not More Than 250k Gwt

Caution: Warning, Loaded Acft Parked in Proximity of Apch End Rwy 31

Caution: Reduced Wingtip Clnc for C130 Acft in Prk Row Delta-India (24') and Prk Rows Lima-Papa (15')

Caution: Twy Edge Lgts 15' From Marked, Stressed Pavement on Twy D at Int of Twy R

Rstd: Rwy 31 Ltd to Emerg Use Only When Delta Combat Acft Prk Area (Capa) in Use

Rstd: Rwy 13 Ltd to Full Stop Ldg Only When Delta Combat Acft Prk Area (Capa) in Use

Rstd: Delta Combat Acft Prk Area (Capa) Ltd to Lcl Assigned Act with Wingspans 133' or Less When in Use

Caution: Potential Exists for Hydroplaning on Rwy 13-31 Asphalt Interior Portion. for All Rwy Exp 30-45 Min Rwy Suspension After Hvy Acft Arr/Dep Due Fodon Rwy

Rstd: Twy B Rstd to C130 with Weight of 147,000 Lbs or Less

Rstd: Hvy Acft Req Touch-And-Go Coord with Afld Mgmt

Rstd: Tran C17 and C135 Apv for Touch-And-Go Ldg

Misc: Dv Grade 0-6 and Abv or Civ Equivalent and Rotators CTC Afld Mgt Via Ptd 372.2 and Comd Post Uhf When 100 Nm Out with Eta and Dv Reqs

Cstms/Ag/Img: Customs Svc Unavbl

Caution: Mil Nvd Ops May be Conducted in Vcnty of Afld Anytime Btn Ss and Sr

Caution: Tacan Gnd Nav Ck Pt Incorrect on Rwy 22

Rstd: All Holding Apron Taxi-Lines Rstd to Acft with Wheelbase of More Than 14'

Misc: Classified Stor for Tran Aircrew Unavbl at Afld Mgmt Opns But is Avbl at Comd Post

Caution: Uas Act Within Class D Airspace and Btn Class D Airspace and R5104

Service-Tran Alert: Am32a-60 Support Eqpt Incompatible with Ea6 Acft

Aerodrome Offl Bus Only (Obo) on the First Mon of the Month

Misc: Fire Fighting Capabilities Ltd Cat 8-10 Acft. Recommend Units Ask for Current Capability When Requesting Pprs

Misc: Afld Wx Obs Sent by An/Fmq19 Automated Obsn Sys; Augmented by Human Observer during Afld Opn Hrs. Obsn Site Ltd 000-070 Degs Due Bldg; Ngt Obsn Ltd Due Hi Ints Ramp Lgt

Misc: Wx Briefing for Tran Aircrew Byd Nml Opr Hr Avbl Via 25 Ows at Davis-Monthan Afb Dsn 228-6598/6599/6588 C520-228-6598/6599

Rstd: No Less Than 24 Hrs Prior and No More Than 15 Days Prior, CTC Dsn 681-2801, C575-784-2801, Fax Extn 4658. All Acft Must Adhere to Ppr +/-30 Min or Ppr is Invalid

Service-Lgt: Rwy 04/22 and Rwy 13/31 Ils Gs/Rpi and PAPI Gs/Rrp Not Coincidental

Rstd: Hvy Acft Exp Rgt 180ø Turn Rwy 22 and 31 and Left 180ø Turn Rwy 04 and 13

Service-Tran Alert: Avbl 1400-0600z++ Mon-Fri, 1300-2100z++ Sat-Sun

Oil: O-148 Soap

Fluid: Sp Presair Lpox Lox

Fuel: J8

Jasu: (Md-3) (Am32a-60a)

See Flip Ap/1 Supplementary Arpt Rmk

Caution: Bash Phase Ii in Eff 1 Oct-10 Nov, 12 Mar-22 Apr and 1 Jun-31 Jul

Caution: Clovis Muni 13 Nm Ne. Portales Muni 14 Nm Ssw

Bearing Strength Rwy 13/31: St165 Sbtt340

Bearing Strength Rwy 04/22: St175 Sbtt700 Ddt780

Caution: Aprx 20' AGL Ag Irrigation Eqpt Lctd Aprx 2000' Fr Rwy 13-31 Apch Ends

Service-Lgt: Gated Thld Lgt on All Rwy for Ftr Acft

Caution: Veh Tfc on Road (15' Agl), Aprx 1200' Fr Apch End Rwy 13

Rstd: Dep Acft Rstd to 5300' Til Passing Dep End of Rwy

RESTRICTED. MILITARY AIRPORT. PRIOR PERMISSION REQUIRED. CONTACT BASE OPS MANAGER 505/784-2801

NOTAMs | TFR's

Runway 04/22

Dimensions:	10003 x 150ft. / 3048.9 x 45.7m	Weight Bearing Cap:
Surface:	concrete, no surface treatment, condition not reported	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC
04	4274.9ft. MSL 35° mag 45° true 0.2% up	precision	visual glide slope: 4-Light/Left-Side PAPI runway visual range: Touchdown approach: 2400ft/High-Intensity/Sequenced Flashers, Cat-I Config.	LOC/GS

22	4295.0ft. MSL 215° mag 225° true 0.2% down	precision	visual glide slope: 4-Light/Left-Side PAPI runway visual range: Touchdown approach: 2400ft/High-Intensity/Sequenced Flashers, Cat-I Config.	LOC/GS

Runway 13/31

Dimensions:	8196 x 150ft. / 2498.1 x 45.7m	Weight Bearing Cap:
Surface:	pem, no surface treatment, condition not reported	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC
13	4293.4ft. MSL 125° mag 135° true 0.3% down	precision	visual glide slope: 4-Light/Left-Side PAPI approach: SSALR	LOC/GS

31	4266.2ft. MSL 305° mag 315° true 0.3% up	precision	visual glide slope: 4-Light/Left-Side PAPI approach: SSALR	LOC/GS

Business/Service Information

List Your Business in AOPA Airports

Services at this airport:

Services:
Engine Repair: MajorAirframe Repair: Major

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Member-submitted Photos

View all
Upload your photos of Cannon Air Force Base

Operations & More Information

Lat/Long:	N34 22.9660' / W103 19.3285'34.3827665-103.3221410
Charts:	NACO: Albuquerque Sectional
Mag Var:	10E (1985)
ARTCC:	Albuquerque (ZAB)
FSS:	Albuquerque (ABQ) 1-800-WXBRIEF
NOTAM Facility:	CVS
Approach/Departure Control Facility
Pattern Altitude:	Vfr Jet Rectangular 5800', Tran Jet Overhead 6300'
Wind Indicator:	Not Present
Seg. Circle:	No
Lighting:	No data

Aircraft & Activity

Based GA Aircraft

Single Engine:
Multi Engine:
Jets:
Helicopters:
Gliders:
Ultralights:

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone
Approach/Departure BASIC RADAR SVC	Cannon	125.05
ATIS	Cannon	119.1
Clearance-Delivery	Cannon	120.2
EMERG	Cannon	121.5
Ground Control	Cannon	121.9
Tower	Cannon	120.4
RDR	Cannon	127.75
SFA PTD	Cannon	139.3

Expand Navaids

ID	Type	Freq	Radial	Distance
CVS	TACAN	.0	358	0 nm
TXO	VORTAC	112.2	243	25 nm
TCC	VORTAC	113.6	152	50 nm

Contact Addresses

Owner:	Airport Manager:
Maprusaf	Base Operations
27th Cs Gp Tac/Otm Cannon Afb	27th Cs Gp Tac/Otb Cannon Afb
Clovis, NM 88101
575-784-2801 (Office)	575-784-2801 (Office)
	Airport Manager Admin

Attendance:	Attended Year-round, 7 Days a Week,All
Tower:	ATCT plus Approach Control, 16 hrs/day, weekdays, other hours weekendsTower Hrs: 24ATIS Hrs: PART-TIME
Elevation:	4,295 ft (1,309.1 m) (Surveyed)
Location:	5.00 mi. W of Clovis
Beacon:	Present (white-green)
Approaches:	ILS, DME, LOC, RNAV, GPS, TACAN
Runways:	04/22, 13/31 (unpaved) Longest paved runway: 10003 ft
Fees:	No data

APD	AIRPORT DIAGRAM	93.1 KB
IAP	ILS OR LOC RWY 31 (changed)	199.1 KB
IAP	ILS OR LOC/DME RWY 04	224.7 KB
IAP	ILS OR LOC/DME RWY 13	216 KB
IAP	ILS OR LOC/DME RWY 22	229.6 KB
IAP	RNAV (GPS) RWY 04	161.8 KB
IAP	RNAV (GPS) RWY 13	166.5 KB
IAP	RNAV (GPS) RWY 22	162.4 KB
IAP	RNAV (GPS) RWY 31	153.5 KB
IAP	TACAN RWY 04	186.9 KB
IAP	TACAN RWY 13	187.3 KB
IAP	TACAN RWY 22	198.2 KB
IAP	TACAN RWY 31	170.4 KB
MIN	TAKEOFF MINIMUMS	104.3 KB
MIN	RADAR MINIMUMS	28.8 KB
