AOPA Airports: Cheyenne Regional/Jerry Olson Field (KCYS)

FAA Information Effective: 5/2/2013

6159 msl

AOPA members save at 3,000+ GA airports.Book Now!

KCYSCivil
Public Use

Cheyenne Regional/Jerry Olson Field

Cheyenne, WY
Phone: 307-634-7071
www.cheyenneairport.com
Nearby airports

Satellite
Diagram
Sectional

Open in Google Maps

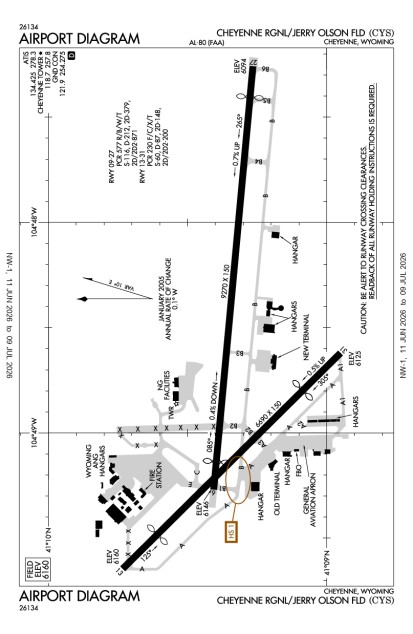

AIRPORT DIAGRAM

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

Jet A	$ 5.10 (full service)
100 LL	$ 5.67 (full service)

Alerts

Security Directive SD-8G

Call FBO for transient pilot security procedures or after hours escort. Learn More

Expand Additional Remarks

Bird Activity Invof Arpt

Twys C E F A1 & A2 are Non-Movement Areas

Rcr Avbl on Req Fm ATCT 0600-2200 30 Min Prior Notice Required

Ang: Spot 9 Clsd on Prk Ramp Ufn

Ang: Comd Post Normal Opr 1400-0400z++ Mon-Thu, Ltd Fri, Clsd Sat, Sun and Hol

Ang: All Tran Acft CTC Ang Comd Post 15 Min Prior to Lndg

Ang: Ang Base Ops Normal Opr 1100-2300z++ Mon-Thu, Ltd Fri, Clsd Sat, Sun, and Hol

See Flip Ap/1 Supplementary Arpt Info

Bash Phase Ii, Increased Bird Haz Oct-Mar

Caution: Twy C and E Hold Short Lines for All Rys

Rstd: Twy C Clsd North of Twy F, Twy D, and G Clsd Indefly

Heavy Copter Tfc 2 Nm SW of Arpt, Sfc to 1000 Ft Dur Dalgt, Weekdays

Ang: Lmtd Deice Svc Avbl to Mil Acft with Ang Ppr. Ppr Dsn 388-6355/6879, C307-772-6355/6879

Rstd: Ang Ppr Req to Prk on Mil Ramp

Pilots Should Avoid F.E. Warren Afhp at All Times

Security Directive SD-8G

Heavy rotary wing tfc 2 mi SW of arpt sfc to 1000' AGL during dalgt wkdays; use ry 9-27 when wind is less than 11 kt

Arpt requests to avoid runups 10 pm-6 am

NOTAMs | TFR's

Runway 09/27

Dimensions:	9270 x 150ft. / 2825.5 x 45.7m	Weight Bearing Cap:	Single wheel: 75000 lb
Surface:	concrete, grooved, in fair condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	TD Point	ILS/LOC	Obstructions	Comments/Noise
09	6145.6ft. MSL 85° mag 95° true 0.6% down	precision	visual glide slope: 4-Light/Left-Side PAPI runway end identifier: REIL is present	610' Disp Threshold		Tree, 500 ft Right of center, 50 ft high, 300 ft from end, 2:1 clearance slope	Apch Ratio 17:1 Fm Dsplcd Thr

27	6094.3ft. MSL 265° mag 275° true 0.6% up	precision	visual glide slope: 4-Light/Left-Side PAPI approach: 1400ft/Medium-Intensity/Runway Alignment Indicators runway visual range: Touchdown	675' Disp Threshold	ILS

Runway 13/31

Dimensions:	6690 x 150ft. / 2039.1 x 45.7m	Weight Bearing Cap:	Single wheel: 75000 lb
Surface:	asphalt, grooved, in good condition	Runway Edge Lights:	medium

#	Elev/Hdg	Markings	Approach Lights	TD Point	Obstructions	Comments/Noise
13	6159.4ft. MSL 125° mag 135° true 0.5% down	non-precision	visual glide slope: 4-Box/Left-Side VASI runway end identifier: REIL is present	1061' Disp Threshold	Fence, 225 ft Right of center, 9 ft high, 200 ft from end	+9' Fence, 199 Ft Fm Rwy End, 400 Ft Rgt +49' Tree; Dist 500 Ft, 500 Ft Rgt,18:1 Based on Dsplcd Thr

31	6123.7ft. MSL 305° mag 315° true 0.5% up	non-precision	visual glide slope: 4-Box/Left-Side VASI runway end identifier: REIL is present	1160' Disp Threshold

Business/Service Information

Name		Location	Freq. Monitored	Main Phone
Cheyenne Flying Club		CHEYENNE, WY 41.161242-104.818325		307-630-4777
Legend	$5.67 $5.10	On field: SW 41.151790-104.818035	UNICOM: 122.95	307-634-7079
Wings of Wyoming	Rentals Sales Flight Training	On field: SW 41.150999-104.819527		307-778-3050

List Your Business in AOPA Airports

Services at this airport:

Services:
Engine Repair: MinorAirframe Repair: MinorBulk Oxygen: High/Low
Fuel: 100LL Low-Lead, Jet A, Jet A1
Transportation: Public, Shuttle Bus
Rental Cars:

Avis
Hertz

Expand Nearby restaurants, attractions

BC 307-632-4444

Capitol City 307-632-8294

El Charito 307-433-0502

Wyoming State Museum 1 mi

Old West Museum 1 mi

Cheyenne Frontier Days last full week of July 1 mi

Cloud 9 & Lounge 637-5800, 634-4333

Terry Bison Ranch

Wyoming State Capitol

Information above provided by the airport manager.
Search nearby: Hotels | Restaurants

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

11645JHASKELL1232/17/2011 4:15:19 PM UTC
The Hitching Post Main office Burnt down, but the rooms are still available. BUT the FBO is pretty awesome. I have to admit :).
11233K0RM12312/28/2010 3:37:29 PM UTC
The on-field restaurant is out-of-business. There are no longer any restaurants on-field but Sky Harbor has a crew car. Leave room in your tanks to buy some fuel and borrow the car. Ask for directions to Penny's Diner.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Member-submitted Photos

View all
Upload your photos of Cheyenne Regional/Jerry Olson Field

Operations & More Information

Lat/Long:	N41 9.3383' / W104 48.6283'41.1556389-104.8104722
Charts:	NACO: Cheyenne Sectional
Mag Var:	10E (2005)
ARTCC:	Denver (ZDV)
FSS:	Casper (CPR) 1-800-WXBRIEF
NOTAM Facility:	CYS
Approach/Departure Control Facility
Pattern Altitude:	Fixed Wing: 7156 MSL
Wind Indicator:	Lighted
Seg. Circle:	Yes
Lighting:	Pilot Activated Lighting: high intensity: 7 clicks in 5 secs medium intensity: 5 clicks in 5 secs low intensity: 3 clicks in 5 secs Actvt HIRL Ry 09/27, MIRL Ry 13/31, PAPI Rys 09 & 27, VASI Rys 13 & 31,REIL Rys 09, 13 & 31, and MALSR Ry 27 - CTAF

Aircraft & Activity

Based GA Aircraft

Single Engine:	35
Multi Engine:	38
Jets:	4
Helicopters:	9
Gliders:
Ultralights:

Airport Activity

GA Local:	14,236
GA Itinerant:	6,846
Commercial:	38
Air Taxi:	5,185
Military:	25,623

(12-month period ending on 12/31/2012)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone
Approach/Departure	Cheyenne	124.55
WX	Cheyenne	.0T (307-632-7680)
ATIS	Cheyenne	134.425
CTAF	Cheyenne	118.7
EMERG	Cheyenne	121.5
Ground Control	Cheyenne	121.9
Tower	Cheyenne	118.7
NG OPS (STEAMBOAT)	Cheyenne	126.2
UNICOM	Cheyenne	122.95

Expand Navaids

ID	Type	Freq	Radial	Distance
CYS	VORTAC	113.1	194	4 nm
GLL	VOR/DME	114.2	330	41 nm
LAR	VOR/DME	117.6	091	43 nm

Contact Addresses

ASN Volunteer:	Owner:	Airport Manager:
Leslie Ball	Cheyenne Airport Board	David Haring
	Po Box 2210	4000 Airport Parkway
	Cheyenne, WY 82003	Cheyenne, WY 82001
	307-634-7071 (Office)	307-634-7071 (Office)
Contact the ASN Volunteer
		Airport Manager Admin

Attendance:	Attended Year-round, 7 Days a Week,0600-2200
Tower:	ATCT(Air Force) plus Radar Approach Control, 16 hrs/day, everyday, year-roundTower Hrs: 0600-2200Primary Approach Control Hrs: 24
Elevation:	6,159 ft (1,877.3 m) (Surveyed)
Location:	1.00 mi. N of Cheyenne
Beacon:	Present (white-green)
Approaches:	ILS, LOC, VOR, RNAV, GPS, NDB, TACAN
Runways:	09/27, 13/31 Longest paved runway: 9270 ft
Fees:	Tiedown, Hangar

APD	AIRPORT DIAGRAM	122.1 KB
HOT	HOT SPOT	12.1 KB
IAP	ILS OR LOC RWY 27	296.7 KB
IAP	RNAV (GPS) RWY 09	253.3 KB
IAP	RNAV (GPS) RWY 13	240.7 KB
IAP	RNAV (GPS) RWY 27	218.6 KB
IAP	RNAV (GPS) RWY 31	248.3 KB
IAP	VOR OR TACAN-A	206.3 KB
IAP	NDB RWY 27	209.8 KB
MIN	TAKEOFF MINIMUMS	222 KB
MIN	ALTERNATE MINIMUMS	57.4 KB
MIN	RADAR MINIMUMS	24.9 KB
