AOPA Airports: Decatur (KDEC)

Satellite

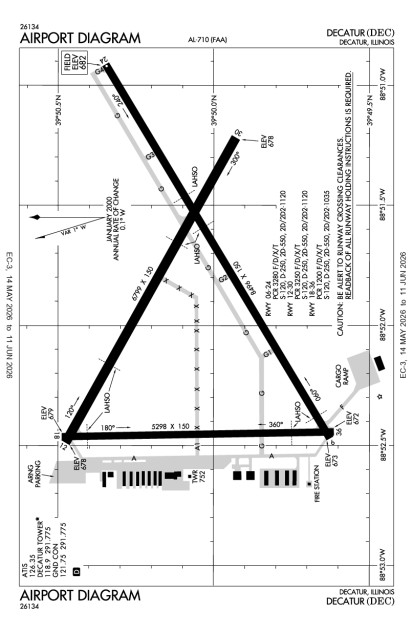

Diagram
Sectional

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

Jet A	$ 5.67 (full service)
100 LL	$ 6.74 (full service)

Expand Additional Remarks

(Lahso_Ald, Rwy 24) Ry 24 Secondary Lahso 8,000 Ft Hold Short of Ry 18/36

Ry 12 & Ry 18 Apch Ends are Closely Aligned. Ry 06 & Ry 36 Apch Ends are Closely Aigned. Verify Correct Ry and Compass Heading Prior to Dep

for Us Customs Call 217-425-4803

Snow Removal Opns in Progress Winter Months; Vehicle Operators Will be Monitoring CTAF; Acft Lndg/Dep Use CTAF When ATCT Clsd

Glider Opns by Written Apvl Only; Contact Amgr 217-428-2423. Glider Opns Allowed on Rys 06 & 30 Only. No Sod Opns

Birds; Deer & Other Wildlife on & Invof Arpt

When ATCT Clsd be Alert for Intmt Vehicular Tfc in Arpt Opns Areas

North Ramp From Hangar B to Hangar G Closed to Aircraft Over 12500 Lbs

Security Directive SD-8G

Noise sensitive areas apch ends ry 18 & 12; 6/24 preferred jet ry; ctc APM for more info

NOTAMs | TFR's

Runway 06/24

Dimensions:	8496 x 150ft. / 2589.6 x 45.7m	Weight Bearing Cap:	Single wheel: 75000 lb
Surface:	asphalt, concrete, grooved, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC	Obstructions
06	672.7ft. MSL 60° mag 59° true 0.1% up	precision	runway visual range: Touchdown approach: 1400ft/Medium-Intensity/Runway Alignment Indicators	ILS/DME	Road, 599 ft Left of center, 17 ft high, 885 ft from end, 39:1 clearance slope

24	681.8ft. MSL 240° mag 239° true 0.1% down	precision	visual glide slope: 4-Box/Left-Side VASI runway visual range: Midfield

Runway 12/30

Dimensions:	6799 x 150ft. / 2072.3 x 45.7m	Weight Bearing Cap:	Single wheel: 75000 lb
Surface:	asphalt, concrete, grooved, in good condition	Runway Edge Lights:	medium

#	Elev/Hdg	Markings	Approach Lights	Obstructions
12	678.3ft. MSL 120° mag 119° true	non-precision	No Data	Tree, 288 ft Right of center, 43 ft high, 1,174 ft from end, 22:1 clearance slope

30	678.0ft. MSL 300° mag 299° true	non-precision	visual glide slope: 4-Light/Left-Side PAPI

Runway 18/36

Dimensions:	5298 x 150ft. / 1614.8 x 45.7m	Weight Bearing Cap:	Single wheel: 75000 lb
Surface:	asphalt, concrete, grooved, in good condition	Runway Edge Lights:	medium

#	Elev/Hdg	Markings	Approach Lights	Obstructions
18	678.9ft. MSL 180° mag 179° true 0.1% down	non-precision	visual glide slope: 4-Light/Left-Side PAPI	Trees, 15 ft Right of center, 55 ft high, 1,755 ft from end, 28:1 clearance slope

36	672.2ft. MSL 0° mag 359° true 0.1% up	non-precision	visual glide slope: 4-Box/Left-Side VASI runway end identifier: REIL is present	Pole, 461 ft Left of center, 50 ft high, 2,344 ft from end, 42:1 clearance slope

Name		Location	Freq. Monitored	Main Phone
Decatur Aero Club	Flight Training	DECATUR, IL		217-422-3177
Gaitros Aviation, LLC	Maintenance $6.74 $5.67	On field: W	UNICOM: 122.95	217-423-9903

Services at this airport:

Fuel: 100LL Low-Lead, Jet A
Transportation: Shuttle Bus, Public
Rental Cars:

Avis
Hertz

Expand Nearby restaurants, attractions

Walker Limo 217-422-6078

A-1 217-424-6076

Baldwin 217-422-5906 (shuttle)

Information Booth in terminal-wkdays

Main Hangar 217-421-7452

Macon County Historical Society Museum 1/8 mi 217-422-4919

Children's Museum of IL 3 mi 217-423-5437

Scovill Zoo-Cheetahs 3 mi 217-421-7435

Beach House3 mi 217-422-7202

Indoor Sports Center 6 mi 217-429-3472

nmrs 1/2 mi south

Information above provided by the airport manager.
Search nearby: Hotels | Restaurants

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

16717TELLWOOD2/22/2012 1:29:26 AM UTC
The folks at Gaitross Aviation are extremely friendly and efficient. Same goes for the folks at main terminal restaurant, which is a 100 yard walk. Tower service was first class and friendly as well. Fantastic stop.
16327RONWARREN1/29/2012 5:55:14 PM UTC
Excellent airport and FBO. Friendly service and nice facility with flight planning room for pilots with nice computer. Also, there is an excellent restaurant on the field. Great food and service!
15890ROSENKAVALIER1/6/2012 5:12:17 AM UTC
Fantastic tower service. We were coming after dark, and it's very hard to pick out the airport lights amongst the rest of the light clutter. The tower controller turned the ry 30 lights up bright, and turned off the rest of the airport lights . That made it a whole lot easier to find the runway!!
9424012021007/1/2010 4:09:16 PM UTC
I've ate at the restaurant - good food! Great Sunday brunch

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Operations & More Information

Lat/Long:	N39 50.0738' / W88 51.9414'39.8345625-88.8656892
Charts:	NACO: St Louis Sectional
Mag Var:	01W (2000)
ARTCC:	Chicago (ZAU)
FSS:	Saint Louis (STL) 1-800-WXBRIEF
NOTAM Facility:	DEC
Approach/Departure Control Facility	CMI
Pattern Altitude:	Fixed Wing: 1479 MSL
Wind Indicator:	Lighted
Seg. Circle:	No
Lighting:	Pilot Activated Lighting: high intensity: 7 clicks in 5 secs medium intensity: 5 clicks in 5 secs low intensity: 3 clicks in 5 secs When ATCT Clsd HIRL Ry 06/24 Preset Low Intst; to Incr Intst & Actvt MIRL Rys 12/30 & 18/36; PAPI Ry 30, REIL Ry 36, Twy Lgts & MALSR Ry 06 - CTAF

Aircraft & Activity

Based GA Aircraft

Single Engine:	50
Multi Engine:	5
Jets:	0
Helicopters:	3
Gliders:
Ultralights:

Airport Activity

GA Local:	18,767
GA Itinerant:	13,595
Commercial:	9
Air Taxi:	4,003
Military:	10,092

(12-month period ending on 12/31/2011)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone
Approach/Departure	Champaign	132.85
WX	Decatur	.0T (217-429-0052)
ATIS	Decatur	126.35
CTAF	Decatur	118.9
Ground Control	Decatur	121.75
Tower	Decatur	118.9
UNICOM	Decatur	122.95

Expand Navaids

ID	Type	Freq	Radial	Distance
AXC	VORTAC	117.2	353	6 nm
SYZ	NDB	365.0	360	26 nm
AAA	NDB	329.0	132	29 nm
CMI	VORTAC	110.0	243	30 nm
MTO	VOR/DME	109.4	306	34 nm
SPI	VORTAC	112.7	091	38 nm
BMI	VOR/DME	108.2	173	39 nm
MT	NDB	347.0	306	40 nm
SP	NDB	382.0	086	42 nm
HMJ	NDB	281.0	254	44 nm
VLA	VORTAC	114.3	013	47 nm

Attendance:	Attended Year-round,Sat Sun/0700-2130Year-round,Mon-Fri/All
Tower:	Air Traffic Control Tower, 16 hrs/day, everyday, year-round
Elevation:	682 ft (207.9 m) (Surveyed)
Location:	4.00 mi. E of Decatur
Beacon:	Present (white-green)
Approaches:	ILS, LOC, VOR, RNAV, GPS
Runways:	06/24, 12/30, 18/36 Longest paved runway: 8496 ft
Fees:	Hangar

APD	AIRPORT DIAGRAM	121.4 KB
IAP	ILS OR LOC RWY 06	304.1 KB
IAP	RNAV (GPS) RWY 06	248.8 KB
IAP	RNAV (GPS) RWY 12	230.3 KB
IAP	RNAV (GPS) RWY 18	226.7 KB
IAP	RNAV (GPS) RWY 24	234.6 KB
IAP	RNAV (GPS) RWY 30	255.9 KB
IAP	RNAV (GPS) RWY 36	238.2 KB
IAP	LOC BC RWY 24	251.2 KB
IAP	VOR RWY 18	216.8 KB
IAP	VOR RWY 36	243.2 KB
LAH	LAHSO	14.3 KB
MIN	TAKEOFF MINIMUMS	200 KB
MIN	ALTERNATE MINIMUMS	48.8 KB

ASN Volunteer:	Owner:	Airport Manager:
Scott Gaitros	Decatur Park District	Joseph Attwood
	Box 1136	910 Airport Road
	Decatur, IL 62525	Decatur, IL 62521
	217-428-2423 (Office)	217-428-2423 (Office)
Contact the ASN Volunteer

Decatur

Overview

Expand Instrument Approach Procedures
