AOPA Airports: Duke Field,(Eglin AF Aux NR 3) (KEGI)

FAA Information Effective: 5/2/2013

AOPA members save at 3,000+ GA airports.Book Now!

KEGIUsaf
Private Use

Duke Field,(Eglin AF Aux NR 3)

Crestview, FL
Phone: 904-882-2013
Nearby airports

Overview

Attendance:	Attended Clsd Wkend And Hol. Base Ops/Atc Not Manned Ot. See Flip Ap/1 Rte And Area Rstd, Wx Restrictions, And Supplementary Airport Rmk.Year-round,Mon-Fri/1500-0600z++
Tower:	Air Traffic Control Tower, 15 hrs/day, weekdays onlyATIS Hrs: PMSV METRO: SUN 0500Z++ TO FRI 0500Z++. SVC LCTD
Elevation:	195 ft (59.4 m) (Surveyed)
Location:	3.00 mi. W of Crestview
Beacon:	Present (split-white-green)
Approaches:	ILS, LOC, RNAV, GPS, TACAN
Runways:	18/36, 180/360 Longest paved runway: 8025 ft
Fees:	No data

Plain | Embed this

METARs
TAFs

Satellite
Diagram
Sectional

Open in Google Maps

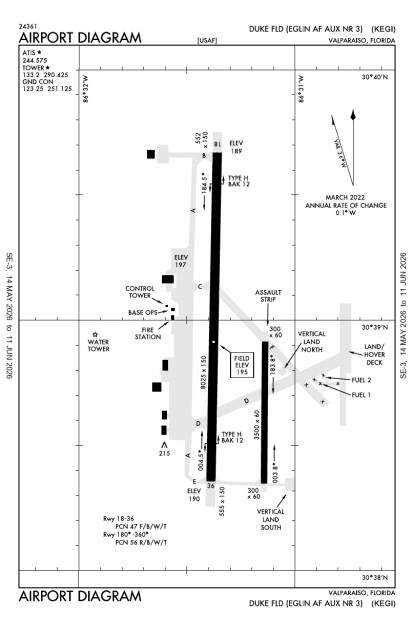

AIRPORT DIAGRAM

Click chart for current METARs and aeronautical charts

Expand Additional Remarks

Fuel: J8

Bearing Strength Rwy 18-36: St175

Rstd: Aircrew Supporting 7 Sfg Airborne Ops Must Obtain A Lcl Area Orientation Briefing Fr the 919th Oss. CTC Current Ops at 875-6550 Dsn or 850-883-6550 Com or Via Their Organizational E-Mail Address: 919oss.Oso.Currentops@Eglin.Af.Mil

Caution: Nstd Mandatory Signs for Ry 18/36 with Exc of Twy B

Caution: Hi Volume of Mil Trng Acft Near Cew Vortac and in Vcnty of Bob Sikes Arpt. Unlgtd Obst on Afld. Surveillance Radar Returns Intmt Fr Dwg Tacan R-360 Cw to R-50, 25 Dme to 45 Dme, 5000' and Blw. Due to Lack of Visual Reference Dur Ngt Vfr Opr, Pilot Efforts to Maint Alt by Visual Means M

Rstd: Alz Rstd for Use by Afsoc, 919th Sow and 96 Tw Acft Only. 180 Deg Turns on Ry 180/Ry 360 Assault Ldg Zone (Alz) Ltd to U-28/Pc-12/C-145

Service-Lgt: Ry 36 Als Nstd (Only HIRL, Thld, Pret/Hold Bar, and Term Bar Avbl). Ry 180 and Ry 360 Assault Ldg Zone (Alz) Nstd Afld Marking Pattern (Amp) Lgt Configuration

Bird Activity on & Invof Arpt during Dalgt Hrs. Heavy Concentrations Feb-Jun & Sep-Dec. CTC Base Ops for Current Bird Watch Conds

Service-Tran Alert: No Tran Alert Svcs Avbl

Pmsv Metro: Pmsv is Monitored by Eglin, Avbl 0600z++ Mon Thru 0600z++ Sat

Misc: Wx Opr 1500-0600z++, Ot Svc Not Avbl. Remote Briefing Avbl 26 Ows Barksdale Afb, Dsn 331-2651, C318-529-2651. Afld Wx Mnt by An/Fmq-19 Asos; Augmented 1500-0600z++ Wkd; Automated 0600-1500z++ Mon-Fri and H24 Weekends and Hol. Afld Vis Rstd to 1/8 Sm to SW and 1/4 Sm W Thru Nw Due to Main Ba

See Flip Ap/1 Rte & Area Rstd (Florida-Valparaiso) for Bash, Wx Rstd & Supplementary Arpt Info

Caution: All Twy Edge Lgt That Meet Ry on West Side Nstd (Lgt are More Than 10 Ft From Twy Edge Line); Acft Flw Twy Cntrln

Comd Post: (Call Sandcastle) Dsn 875-6701, C850-883-6701 or 1-800-437-8843

Misc: Exp No Ntc Closure of Duke Fld Airspace for Special Msn Test. Std Usaf Rsrs Applied. Base Ops Dsn 875-6538/6516, C850-883-6516, Fax Dsn 872-3308, Nml Opr Wkd

Cstms/Ag/Img: Ltd Svc, No Resident Cstms Agent. Avbl Only to Base Asgn Acft and 7th Special Forces Gp (7 Sfg) Apvd Msn. 72 Hr Pn Rqr. All Other Acft Must Clear Cstms Prior to Arr

Rstd: Offl Bus Only - Duke Fld Rstd to Acft Supporting 7th Sfg Msn Acft Only. Ppr Min 48 Hr. in Advance and Must be Approved by Afm (Airfield Manager). CTC Base Ops Dsn 875-6538/6516. No 180 Deg Turns on Alz. Alz Rstd for Use by Afsoc and 919th Sow Acft Only

Tran Alert: Tran Alert Svc Avbl for Apv 7th Sfg Msns Only. All Other Acft Rqr Tran Alert Svc Should Utilize Eglin Afb-Vps (CTC Eglin Am Ops Dsn 872-5313). Tran Acft Not Allowed When Tran Alert Unavbl. Tran Acft Must Use Flw Me to Prk. Tran Alert Will Not Support Lcl, Round Robin or Out and Back

NOTAMs | TFR's

Runway 18/36

Dimensions:	8025 x 150ft. / 2446.0 x 45.7m	Weight Bearing Cap:	Single wheel: 150000 lb
Surface:	asphalt, concrete, no surface treatment, condition not reported	Runway Edge Lights:	non-std

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC	Comments/Noise
18	189.2ft. MSL 0.0% up	non-precision	visual glide slope: 4-Light/Left-Side PAPI approach: 2400ft/High-Intensity/Sequenced Flashers, Cat-I Config.	LOC/GS	Type-H Bak-12b(B) (1260') Rwy 18 Nstd Alsf-1 Len 2000' Thld Lgt Spacing Incorrect and Pre-Thld Cntr Lgts Missing. Ry 18/36 Dist Mkrs Nstd. Ry 18 PAPI Rrp Not Coincidental with Ils Rpi. Thld Lgt Spacing Incorrect and Pre-Thld Cntr Lgts Missing. Ry 18/36 Dist Mkrs Nstd

36	190.4ft. MSL 0.0% down	non-precision	runway end identifier: REIL is present approach: Simplified Short/Sequenced Flashers visual glide slope: 4-Light/Left-Side PAPI		Type-H Bak-12b(B) (1260')

Runway 180/360

Dimensions:	3500 x 60ft. / 1066.8 x 18.3m	Weight Bearing Cap:
Surface:	asphalt, concrete, no surface treatment, condition not reported	Runway Edge Lights:

#	Elev/Hdg	Tr. Pat.	Approach Lights
180	189.6ft. MSL 0.2% up	No Data	No Data

360	195.3ft. MSL 0.2% down	No Data	No Data

Business/Service Information

List Your Business in AOPA Airports

Services at this airport:

Services:
Bulk Oxygen: Low
Fuel: Jet B +Icing Inhibitor

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Member-submitted Photos

View all
Upload your photos of Duke Field,(Eglin AF Aux NR 3)

Operations & More Information

Lat/Long:	N30 38.9152' / W86 31.3176'30.6485869-86.5219594
Charts:	NACO: New Orleans Sectional
Mag Var:	02W (2010)
ARTCC:	Jacksonville (ZJX)
FSS:	Gainesville (GNV) 1-800-WXBRIEF
NOTAM Facility:	GNV
Approach/Departure Control Facility	VPS
Pattern Altitude:	No data provided. Assume 1000 AGL
Wind Indicator:	Present (unlit)
Seg. Circle:	No
Lighting:	Rotg Bcn Out of Service Ss-Sr

Aircraft & Activity

Airport Activity

GA Local:	NaN
GA Itinerant:	NaN
Commercial:
Air Taxi:
Military:	66,000

(12-month period ending on unknown)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone	Sector
Approach	Duke	132.1	090-270
Approach	Duke	125.1	271-089
Approach	Eglin	132.1
DEP/P	Eglin	120.9
DEP/P	Duke	120.9
EMERG	Duke	121.5
Tower	Duke	133.2
PTD	Duke	142.3

Expand Navaids

ID	Type	Freq	Radial	Distance
DWG	TACAN	.0	360	10 nm
CEW	VORTAC	115.9	140	13 nm
NGS	TACAN	.0	087	22 nm
NSE	TACAN	.0	102	26 nm
PKZ	NDB	326.0	071	36 nm
JUY	NDB	264.0	192	40 nm
NUN	VOR	108.8	075	44 nm
NPA	TACAN	.0	066	45 nm
BKK	NDB	275.0	259	49 nm
BVG	NDB	352.0	217	50 nm

Contact Addresses

Owner:	Airport Manager:
USAF	Chief of Airfield Management
Dept Of The Af, Hq Adtc	Dept Of The Af, Hq Adtc
Eglin Afb, FL 32542	Eglin Afb, FL 32542

	Airport Manager Admin
Air Tfc Rep Base Ops Off Tel 904-882-3608

APD	AIRPORT DIAGRAM	83.4 KB
IAP	ILS RWY 18 OR LOC RWY 18	217.3 KB
IAP	RNAV (GPS) RWY 36	159.4 KB
IAP	TACAN RWY 18	188.2 KB
IAP	TACAN RWY 36	165.3 KB
