KEKMCivil
Public Use

Elkhart Municipal

Elkhart, IN
Phone: 574-264-5217
www.elkhartindiana.org
Nearby airports

Operations | Communications | Weather | Runways | Comments | Remarks | Procedures | Services, Businesses & FBOsKneeboard Format

Overview

Attendance: Attended
Year-round, 7 Days a Week,0600-2200
Tower:Air Traffic Control Tower, 16 hrs/day, weekdays, other hours weekends
Elevation:778 ft (237.1 m) (Surveyed)
Location:3.00 mi. NW of Elkhart
Beacon: Present (white-green)
Approaches:ILS, DME, LOC, VOR, RNAV, GPS
Runways:08/26 (unpaved) , 09/27, 18/36
Longest paved runway: 6500 ft
Fees:Hangar
  |  Embed this
  • METARs
  • TAFs

Expand Instrument Approach Procedures

Use subject to Terms and Conditions

Check All | Download checked: Single PDF | ZIP

  • Satellite

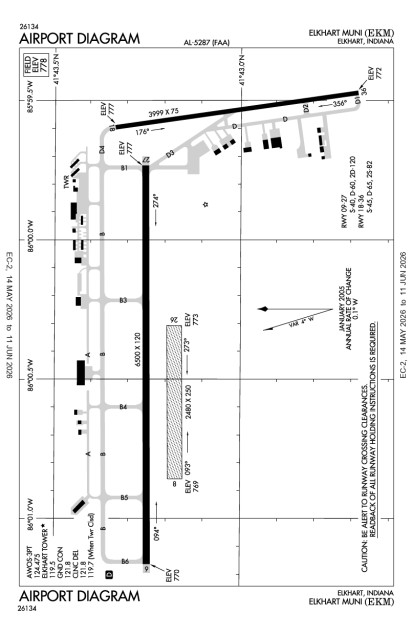

  • Diagram
  • Sectional

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

Jet A$ 5.99  (full service)
100 LL$ 6.19  (full service)

Expand Additional Remarks

NOTAMs | TFR's

Runway 08/26

Dimensions:2480 x 250ft. / 755.9 x 76.2mWeight Bearing Cap:
Surface:turf, grass, sod, no surface treatment, condition not reportedRunway Edge Lights:
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
08769.3ft. MSL
93° mag
89° true
0.2% up		No DataNo DataCrops, Both-Sides, 10 ft high, 272 ft from end, 27:1 clearance slope
26773.3ft. MSL
273° mag
269° true
0.2% down		No DataNo DataCrops, Both-Sides, 10 ft high, 362 ft from end, 36:1 clearance slope

Runway 09/27

Dimensions:6500 x 120ft. / 1981.2 x 36.6mWeight Bearing Cap: Single wheel: 40000 lb
Surface:concrete, grooved, in excellent conditionRunway Edge Lights:high
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
09770.4ft. MSL
94° mag
90° true
0.1% up		No Dataprecisionvisual glide slope: 4-Box/Left-Side VASI
runway end identifier: REIL is present
Trees, 291 ft Right of center, 73 ft high, 1,987 ft from end, 24:1 clearance slope
27777.1ft. MSL
274° mag
270° true
0.1% down		No Dataprecisionapproach: 1400ft/Medium-Intensity/Runway Alignment Indicators
visual glide slope: 4-Light/Left-Side PAPI
runway visual range: Touchdown
ILSTrees, 444 ft Right of center, 64 ft high, 2,699 ft from end, 39:1 clearance slope

Runway 18/36

Dimensions:3999 x 75ft. / 1218.9 x 22.9mWeight Bearing Cap: Single wheel: 45000 lb
Surface:asphalt, grooved, in fair conditionRunway Edge Lights:medium
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
18777.2ft. MSL
176° mag
172° true
0.1% down		non-precisionrunway end identifier: REIL is present
visual glide slope: 4-Light/Left-Side PAPI
Building, 313 ft Right of center, 23 ft high, 844 ft from end, 28:1 clearance slope
36771.8ft. MSL
356° mag
352° true
0.1% up		non-precisionvisual glide slope: 4-Box/Left-Side VASI
runway end identifier: REIL is present
Trees, 250 ft Both-Sides of center, 51 ft high, 1,170 ft from end, 19:1 clearance slope

Business/Service Information

Name LocationFreq. MonitoredMain Phone
Indiana Flight Center
  • Maintenance
  • $6.19
  • $5.99
  • Rentals
  • Sales
  • Flight Training
 On field: NE
 UNICOM: 122.95
574-266-4040
MAA
  • Flight Training
Osceola, IN
574-293-0494
Proflitepilots
  • Rentals
  • Flight Training
 On field: SW
41.713626-85.994904
UNICOM: 122.95
574-326-8211
Travel Management Company, Ltd
  • Flight Training
ELKHART, IN
574-264-5083
Wings for Witness, Inc
    		ELKHART, IN
    		574-266-8562
    List Your Business in AOPA Airports

    Services at this airport:

    Services:
    Engine Repair: MajorAirframe Repair: Major
    Fuel: 100LL Low-Lead, Jet A
    Transportation: Limousine, Van, Courtesy Car
    Rental Cars:
    EnterpriseBook Now! 866-315-9155

    Expand Nearby restaurants, attractions

    Information above provided by the airport manager.
    Search nearby: Hotels | Restaurants

    Expand Member Comments

    AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

    Only current AOPA members and business managers can post comments. Make sure you are logged in.

    Are you sure you want to delete this comment?

    CancelDelete

    Member-submitted Photos

    View all
    Upload your photos of Elkhart Municipal

      Operations & More Information

      Lat/Long:N41 43.1644' / W86 0.1931'
      Charts:NACO: Chicago Sectional
      Mag Var:04W (2005)
      ARTCC:Chicago (ZAU)
      FSS:Terre Haute (HUF)
      1-800-WXBRIEF
      NOTAM Facility:EKM
      Approach/Departure Control FacilitySBN
      Pattern Altitude:Fixed Wing: 1778 MSL
      Wind Indicator:Lighted
      Seg. Circle:Yes
      Lighting:Pilot Activated Lighting:
      • medium intensity: 7 clicks in 5 secs
      When ATCT Clsd MIRL Ry 18/36 & HIRL Ry 09/27 Preset Low Intst; to Incr Intst & Actvt VASI Ry 09 & Ry 36; PAPI Ry 18 & 27; REIL Rys 18 & 36 & 09 & MALSR Ry 27 - CTAF

      Aircraft & Activity

      Based GA Aircraft

      Single Engine:42
      Multi Engine:18
      Jets:22
      Helicopters:0
      Gliders:
      Ultralights:

      Airport Activity

      GA Local:8,999
      GA Itinerant:11,571
      Commercial:
      Air Taxi:642
      Military:214

      (12-month period ending on 12/31/2011)

      Air Safety Institute Resources

      Accident Reports

      Expand Communications Card

      Contact Addresses

      ASN Volunteer:Owner:Airport Manager:
      Robert MonroeCity of ElkhartAndy Jones
      1211 Co Rd 6 W1211 Co Rd 6 W
      Elkhart, IN 46514Elkhart, IN 46514
      574-264-5217 (Office) 574-264-5217 (Office)
