KERICivil
Public Use

Erie International/Tom Ridge Field

Erie, PA
Phone: 814-833-4258
www.erieairport.org
Nearby airports

Operations | Communications | Weather | Runways | Comments | Remarks | Procedures | Services, Businesses & FBOsKneeboard Format

Overview

Attendance: Attended
Year-round, 7 Days a Week,All
Tower:ATCT plus Terminal Radar Approach Control, 18 hrs/day, everyday, year-roundTower Hrs: 0600-0000
Elevation:731 ft (222.8 m) (Surveyed)
Location:5.00 mi. SW of Erie
Beacon: Present (white-green)
Approaches:ILS, DME, LOC, RNAV, GPS, NDB
Runways:02/20, 06/24
Longest paved runway: 8420 ft
Fees:Landing, Ramp, Parking, Tiedown, Hangar, Launch
  |  Embed this
  • METARs
  • TAFs

Expand Instrument Approach Procedures

Use subject to Terms and Conditions

Check All | Download checked: Single PDF | ZIP

  • Satellite

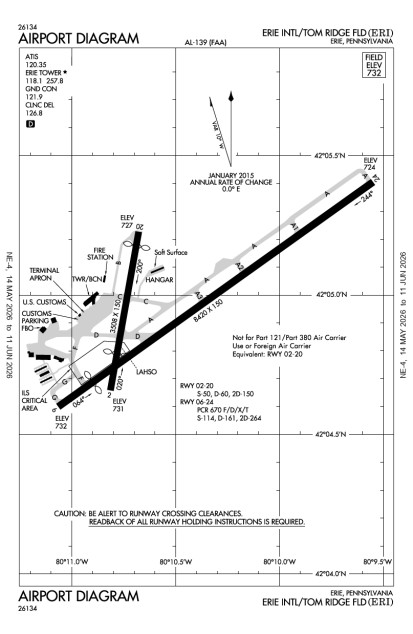

  • Diagram
  • Sectional

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

Jet A$ 5.73  (self service)
Jet A$ 6.02  (full service)
100 LL$ 6.94  (full service)

Alerts

Security Directive SD-8G

Call FBO for transient pilot security procedures or after hours escort. Learn More

Expand Additional Remarks

NOTAMs | TFR's

Runway 02/20

Dimensions:3508 x 150ft. / 1069.2 x 45.7mWeight Bearing Cap: Single wheel: 50000 lb
Surface:asphalt, no surface treatment, in fair conditionRunway Edge Lights:medium
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
02731.4ft. MSL
20° mag
10° true
0.1% down		non-precisionNo Data816' Disp Threshold
Trees, 93 ft Left of center, 20 ft high, 231 ft from end, 1:1 clearance slope
+31 Ft Rr 0-125 Ft Fm Ry End on Both Sides of Cntrln. +43 Ft Trees, 174 Ft Fm Ry End 117 Ft R Apch Ratio 50:1 to Dsplcd Thld
20727.3ft. MSL
200° mag
190° true
0.1% up		non-precisionvisual glide slope: 4-Box/Left-Side VASI
306' Disp Threshold
Road, 36 ft Both-Sides of center, 17 ft high, 200 ft from end
+15 Ft Road at Aer 225 Ft R. +9 Ft Fence 65 Ft Fm Ry End 128 Ft R Apch Ratio 29:1 to Dsplcd Thld

Runway 06/24

Dimensions:8420 x 150ft. / 2566.4 x 45.7mWeight Bearing Cap: Single wheel: 65000 lb
Surface:asphalt, grooved, in good conditionRunway Edge Lights:high
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
06731.6ft. MSL
64° mag
54° true
0.1% down		precisionrunway visual range: Touchdown
approach: 1400ft/Medium-Intensity/Runway Alignment Indicators
920' Disp Threshold
ILSRailroad, 380 ft Right of center, 33 ft high, 202 ft from end
+46 Ft Rr Signal 100 Ft Fm Aer, 490 Ft R; +15 Ft Obst Mkd Bldg 150 Ft Fm Aer, 462 Ft L; +21 Ft Obst Lgtd Pole at Aer 360 Ft R MALSR Unmon Markings Worn Off & Faded
24723.5ft. MSL
244° mag
234° true
0.1% up		precisionapproach: 1400ft/Medium-Intensity/Runway Alignment Indicators
ILS/DMERoad, 237 ft Both-Sides of center, 14 ft high, 466 ft from end, 19:1 clearance slope
+6 Ft Fence 250 Ft L of Ry End Apch Ratio 50:1 to Dsplcd Thld MALSR Unmon Markings Worn Off & Faded

Business/Service Information

Name LocationFreq. MonitoredMain Phone
North Coast Air
  • Maintenance
  • $6.94
  • $6.02
  • $5.73
On field: NW
 UNICOM: 122.95
814-836-9220
NCFS
  • Rentals
  • Flight Training
 On field: NW
42.079623-80.186634
814-434-0875
List Your Business in AOPA Airports

Services at this airport:

Services:
Engine Repair: MinorAirframe Repair: Minor
Fuel: 100 Octane, Jet A
Transportation: Shuttle Bus, Courtesy Car, Limousine, Public
Rental Cars:
NationalBook Now! 866-315-9155
Avis
Budget

Customs: International Landing Rights

Expand Nearby restaurants, attractions

Information above provided by the airport manager.
Search nearby: Hotels | Restaurants

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

CancelDelete

Member-submitted Photos

View all
Upload your photos of Erie International/Tom Ridge Field

    Operations & More Information

    Lat/Long:N42 4.9850' / W80 10.4367'
    Charts:NACO: Detroit Sectional
    Mag Var:10W (2015)
    ARTCC:Cleveland (ZOB)
    FSS:Altoona (AOO)
    1-800-WXBRIEF
    NOTAM Facility:ERI
    Approach/Departure Control Facility
    Pattern Altitude:Light Aircraft: 1530 MSL; Heavy Aircraft: 1730 MSL
    Wind Indicator:Lighted
    Seg. Circle:No
    Lighting:Pilot Activated Lighting:
    • high intensity: 7 clicks in 5 secs
    • medium intensity: 5 clicks in 5 secs
    • low intensity: 3 clicks in 5 secs
    When ATCT Clsd Actvt HIRL Rwy 06/24; MALSR Rwy 06 & 24 & Twy Lgts - CTAF. MIRL Rwy 02/20, Twys B & C Unavbl

    Aircraft & Activity

    Based GA Aircraft

    Single Engine:33
    Multi Engine:4
    Jets:2
    Helicopters:
    Gliders:
    Ultralights:

    Airport Activity

    GA Local:6,409
    GA Itinerant:8,705
    Commercial:41
    Air Taxi:9,360
    Military:1,279

    (12-month period ending on 5/31/2010)

    Air Safety Institute Resources

    Accident Reports

    Expand Communications Card

    Contact Addresses

    ASN Volunteer:Owner:Airport Manager:
    Gregory HayesErie Regional Airport AuthorityChristopher L Rodgers
    4411 W 12th St4411 W 12th St
    Erie, PA 16505Erie, PA 16505
    814-833-4258 (Office) 814-833-4258 (Office)
