FAA Information Effective: 3/7/2013

AOPA members save at 3,000+ GA airports.Book Now!
KEWRCivil
Public Use

Newark Liberty International

Newark, NJ
Phone: 973-961-6000
Nearby airports

Operations | Communications | Weather | Runways | Comments | Remarks | Procedures | Services, Businesses & FBOsKneeboard Format

Overview

Attendance: Attended
Year-round, 7 Days a Week,All
Tower:Air Traffic Control Tower, 24 hrs/day, everyday, year-round
Elevation:18 ft (5.5 m) (Surveyed)
Location:3.00 mi. S of Newark
Beacon: Present (white-green)
Approaches:ILS, DME, LOC, VOR, RNAV, GPS, RNP
Runways:04L/22R, 04R/22L, 11/29, H1
Longest paved runway: 11000 ft
Fees:Landing, Ramp, Parking
  |  Embed this
  • METARs
  • TAFs

Expand Instrument Approach Procedures

Use subject to Terms and Conditions

Check All | Download checked: Single PDF | ZIP

  • Satellite

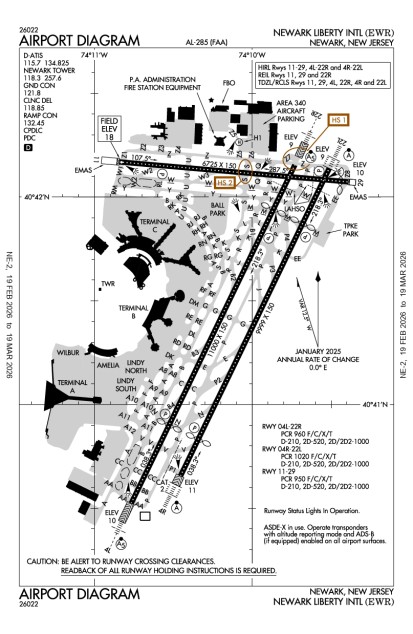

  • Diagram
  • Sectional

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

Jet A$ 8.70  (full service)
100 LL$ 8.16  (full service)

Alerts

Security Directive SD-8G

Call FBO for transient pilot security procedures or after hours escort. Learn More

Expand Additional Remarks

NOTAMs | TFR's

Runway 04L/22R

Dimensions:11000 x 150ft. / 3352.8 x 45.7mWeight Bearing Cap:
Surface:asphalt, concrete, grooved, in good conditionRunway Edge Lights:high
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
04L9.9ft. MSL
39° mag
26° true
0.0% down		precisionend touchdown: End Touchdown Lights are present
visual glide slope: 4-Light/Left-Side PAPI
centerline: Centerline Lights are present
approach: 1400ft/Medium-Intensity/Runway Alignment Indicators
runway visual range: Touchdown, Midfield, Rollout
2540' Disp Threshold
ILS/DMETree, 550 ft Left of center, 59 ft high, 1,900 ft from end, 29:1 clearance slope
Ry 04l Apch Ratio 50:1 to Dsplcd Thld Ry 04l P4l Unusbl 5 Degs L of Cntrln
22R8.6ft. MSL
219° mag
206° true
0.0% up		precisionvisual glide slope: 4-Light/Left-Side PAPI
centerline: Centerline Lights are present
end touchdown: End Touchdown Lights are present
approach: 1400ft/Medium-Intensity/Runway Alignment Indicators
runway end identifier: REIL is present
runway visual range: Touchdown, Midfield, Rollout
1440' Disp Threshold
ILS/DMEPole, 400 ft Left of center, 30 ft high, 975 ft from end, 26:1 clearance slope
Ry 22r Apch Ratio 50:1 to Dsplcd Thld

Runway 04R/22L

Dimensions:10000 x 150ft. / 3048.0 x 45.7mWeight Bearing Cap:
Surface:asphalt, concrete, grooved, in good conditionRunway Edge Lights:high
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
04R10.8ft. MSL
39° mag
26° true
0.0% down		No Dataprecisionrunway visual range: Touchdown, Midfield, Rollout
centerline: Centerline Lights are present
end touchdown: End Touchdown Lights are present
visual glide slope: 4-Light/Left-Side PAPI
approach: 2400ft/High-Intensity/Sequenced Flashers, Cat-II/III Config.
1190' Disp Threshold
ILS/DMEPole, 575 ft Right of center, 51 ft high, 2,175 ft from end, 39:1 clearance slope
+5 Ft Pole25 Ft Fm Ry End 175 Ft Right Apch Ratio 50:1 to Dsplcd Thr
22L9.1ft. MSL
219° mag
206° true
0.0% up		precisionend touchdown: End Touchdown Lights are present
runway visual range: Touchdown, Midfield, Rollout
centerline: Centerline Lights are present
approach: 1400ft/Medium-Intensity/Runway Alignment Indicators
visual glide slope: 4-Light/Left-Side PAPI
1793' Disp Threshold
ILS/DMEPole, 500 ft Right of center, 32 ft high, 550 ft from end, 12:1 clearance slope
Apch Ratio 50:1 to Dsplcd Thr

Runway 11/29

Dimensions:6800 x 150ft. / 2072.6 x 45.7mWeight Bearing Cap:
Surface:asphalt, concrete, grooved, in good conditionRunway Edge Lights:high
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
1117.6ft. MSL
108° mag
95° true
0.1% down		precisioncenterline: Centerline Lights are present
runway end identifier: REIL is present
visual glide slope: 4-Box/Left-Side VASI
end touchdown: End Touchdown Lights are present
ILS/DMEAntenna, 550 ft Left of center, 81 ft high, 1,725 ft from end, 19:1 clearance slope
299.6ft. MSL
288° mag
275° true
0.1% up		non-precisionrunway end identifier: REIL is present
end touchdown: End Touchdown Lights are present
centerline: Centerline Lights are present
visual glide slope: 4-Light/Right-Side PAPI
298' Disp Threshold
Building, 450 ft Right of center, 24 ft high, 220 ft from end, 1:1 clearance slope
Ry 29 +9 Ft Blast Fence76 Ft Fm Ry End Both Sides of Ry Cntrln; +38 Ft Sign 20 Ft Fm Ry End 500 Ft L; +11 Ft Grnd180 Ft Fm Ry End Both Sides Ry 29 Apch Ratio 13:1 to Dsplcd Thr Arresting Gear: Engineeered Materials Arresting System (Emas) 432 Ft by 179 Ft in Width Located at the Departure End Ry 29

Helipad H1

Dimensions:54 x 54ft. / 16.5 x 16.5mWeight Bearing Cap:
Surface:asphalt, concrete, no surface treatment, in good conditionRunway Edge Lights:perimeter
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
H1No Data
No Datanon-precisionNo Data

Business/Service Information

Name LocationFreq. MonitoredMain Phone
Signature Flight Support
  • $8.16
  • $8.70
On field: N
40.706409-74.170589
ARINC: 130.85973-624-1660
Worldwide Flight Services
    		NEWARK, NJ
    		973-961-3498
    List Your Business in AOPA Airports

    Services at this airport:

    Services:
    Engine Repair: MajorAirframe Repair: Major
    Fuel: 100LL Low-Lead, Jet A
    Transportation: Limousine
    Rental Cars:
    NationalBook Now! 866-315-9155
    Avis
    Budget
    Hertz

    Customs: International Landing Rights

    Expand Nearby restaurants, attractions

    Information above provided by the airport manager.
    Search nearby: Hotels | Restaurants

    Expand Member Comments

    AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

    Only current AOPA members and business managers can post comments. Make sure you are logged in.

    Are you sure you want to delete this comment?

    CancelDelete

    Member-submitted Photos

    View all
    Upload your photos of Newark Liberty International

      Operations & More Information

      Lat/Long:N40 41.5500' / W74 10.1200'
      Charts:NACO: New York Sectional
      Mag Var:13W (1985)
      ARTCC:New York (ZNY)
      FSS:New York (ISP)
      1-800-WXBRIEF
      NOTAM Facility:EWR
      Approach/Departure Control FacilityN90
      Pattern Altitude:Fixed Wing: 1018 MSL
      Wind Indicator:Lighted
      Seg. Circle:No
      Lighting:No data

      Aircraft & Activity

      Based GA Aircraft

      Single Engine:
      Multi Engine:
      Jets:1
      Helicopters:7
      Gliders:
      Ultralights:

      Airport Activity

      GA Local:NaN
      GA Itinerant:12,629
      Commercial:282,442
      Air Taxi:116,748
      Military:528

      (12-month period ending on 9/30/2011)

      Air Safety Institute Resources

      Accident Reports

      Expand Communications Card

      Contact Addresses

      ASN Volunteer:Owner:Airport Manager:
      Susan LoricchioPort Authority of Ny & NjHuntley A. Lawrence
      225 Park AvenueBuilding #1- Conrad Road
      New York, NY 10048Newark, NJ 07114
      212-435-3720 (Office) 973-961-6000 (Office)
      Contact the ASN Volunteer
      Airport Manager Admin
      Leasee: Property Owned by City of Newark
