AOPA Airports: Fort Collins-Loveland Municipal (KFNL)

FAA Information Effective: 5/2/2013

5016 msl

AOPA members save at 3,000+ GA airports.Book Now!

KFNLCivil
Public Use

Fort Collins-Loveland Municipal

Fort Collins/Loveland, CO
Phone: 970-962-2852
Nearby airports

Satellite
Diagram
Sectional

Open in Google Maps

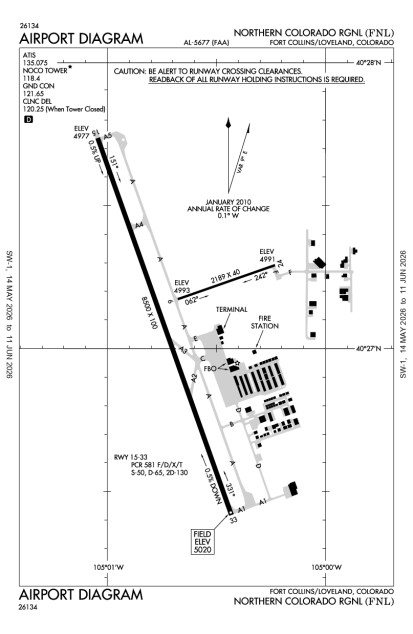

AIRPORT DIAGRAM

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

Jet-A-Premix	$ 5.61 (full service service)
100LL	$ 6.03 (full service service)
Jet A	$ 5.03 (full service)
Jet-A	$ 5.55 (full service service)
100 LL	$ 6.04 (full service)

Alerts

Security Directive SD-8G

Call FBO for transient pilot security procedures or after hours escort. Learn More

Expand Additional Remarks

Ry 6/24 Runway Edge Reflectors Full Length

Sfc Condition Unmonitored 0500-1300z++

Twy A2 & A3 Wt Brg Lmt 12,500 Lbs Swa

Ry 33 Preferred Tkof and Lndg with Winds 5 Knots or Less Any Direction

be Alert; Intensive Usaf Student Training in Vicinity of Colorado Springs & Pueblo Colorado

Security Directive SD-8G

Runway 6-24 avbl for crosswinds ovr 6 knots sngl-eng

Reduce power to cruise climb as soon as safely possible & avoid flight ovr residential areas N

NOTAMs | TFR's

Runway 06/24

Dimensions:	2273 x 40ft. / 692.8 x 12.2m	Weight Bearing Cap:
Surface:	asphalt, no surface treatment, in good condition	Runway Edge Lights:

#	Elev/Hdg	Markings	Approach Lights	Comments/Noise
06	4989.8ft. MSL 62° mag 71° true 0.1% down	basic	No Data

24	4987.1ft. MSL 242° mag 251° true 0.1% up	basic	No Data	Rwy 24 -2'-4' Ditch Within 55' L & R of Cntrln Full Length of Ry, Concrete Headwall 43' L & R of Cntrln, 815' Fm Ry 06 Thr

Runway 15/33

Dimensions:	8500 x 100ft. / 2590.8 x 30.5m	Weight Bearing Cap:	Single wheel: 50000 lb
Surface:	asphalt, grooved, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC
15	4973.0ft. MSL 151° mag 160° true 0.5% up	precision	runway end identifier: REIL is present visual glide slope: 4-Light/Left-Side PAPI

33	5015.7ft. MSL 331° mag 340° true 0.5% down	precision	approach: 1400ft/Medium-Intensity/Runway Alignment Indicators visual glide slope: 4-Light/Left-Side PAPI	ILS

Business/Service Information

Name		Location	Freq. Monitored	Main Phone
Avionics Specialists LLC	Maintenance Sales Flight Training	On field: E	UNICOM: 122.7	970-203-0505
Colorado Contrails Aviation, Inc.	Rentals Sales Flight Training	On field: E 40.448907-105.007067		970-203-9980
Fort Collins-Loveland Jet Center	Maintenance $6.03 $5.55 $5.61 $6.04 $5.03 Rentals Sales Flight Training	On field: CTR	UNICOM: 122.7	970-667-2574
Front Range Helicopters	Rentals Flight Training	On field: CTR		970-663-7200
Leading Edge Flight Training	Maintenance Rentals Flight Training	LOVELAND, CO 40.446457-105.005844		970-669-1187

List Your Business in AOPA Airports

Services at this airport:

Services:
Engine Repair: MajorAirframe Repair: MajorBulk Oxygen: High/Low
Fuel: 100LL Low-Lead, Jet A
Transportation: Courtesy Car
Rental Cars:

Enterprise	Book Now!	866-315-9155
Budget
Hertz

Expand Nearby restaurants, attractions

Cracker Barrel 1 mi

Chiili's 1 mi

Shamrock 224-2222

Loveland 667-5859

Rocky Mountain Factory Outlet Mall

Rocky Mountain National Park 25 mi

Loveland Sculpture Park 10 mi

Colorado State University 10 mi

Lonestar Steakhouse 1 mi

Information above provided by the airport manager.
Search nearby: Hotels | Restaurants

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

18827LADONNE9/7/2012 1:16:13 PM UTC
This past weekend, my wife and I flew our Cessna 172XP from our home base at KUGN (Chicago area) to KFNL. The purpose of our trip was that we are planning to relocate to the Fort Collins area upon our imminent retirement. About 30 minutes East of Fort Collins, our low voltage warning light came on accompanied by a buzzing in our headsets. After judiciously shedding electrical load, we arrived at Fort Collins and landed. We explained our predicament to the line man who introduced us to Terry Cecil, the A&P for Professional Aircraft Services, based at KFNL. Keep in mind, this was Saturday of Labor Day weekend. Terry and indeed the entire Fort Collins-Loveland Jet Center team could not have been nicer, more accommodating and understanding of our dilemma. The staff assisted us with loading up our rental car with our luggage and Terry ushered our plane into the hanger promising to call around lunchtime. Right after having lunch in town, Terry called and explained that he found a loose alternator terminal that had allowed the RF suppression capacitor to rotate, short and damage one or more of the diodes in the alternator. Both the capacitor and the alternator would need to be replaced. Being Labor Day weekend, the earliest the parts could be obtained would be Wednesday morning but Terry said that he felt confident in being able to get us going by lunch time Wednesday. Tuesday, the parts were ordered and overnighted. Wednesday at noon, as promised, the parts had been replaced, the plane and systems tested and we were good to go. One of the goals of our trip was not only to scout out prospective neighborhoods to retire to but also to scout out a home for our plane. We planned to explore both KFNL as well as KGXY. After this extraordinary experience, we never did travel to Greeley. In our experience, there is no way in the world that we could ever find a home and staff more accommodating than KFNL or an aircraft maintenance facility more expert, professional and responsive than Terry and Professional Aircraft Services. We'll be making KFNL our home soon.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Member-submitted Photos

View all
Upload your photos of Fort Collins-Loveland Municipal

Operations & More Information

Lat/Long:	N40 27.1096' / W105 0.6801'40.4518272-105.0113356
Charts:	NACO: Cheyenne Sectional
Mag Var:	09E (2010)
ARTCC:	Denver (ZDV)
FSS:	Denver (DEN) 1-800-WXBRIEF
NOTAM Facility:	FNL
Approach/Departure Control Facility	DEN
Pattern Altitude:	Fixed Wing: 6015 MSL
Wind Indicator:	Lighted
Seg. Circle:	Yes
Lighting:	Pilot Activated Lighting: high intensity: 7 clicks in 7 secs medium intensity: 5 clicks in 7 secs low intensity: 3 clicks in 7 secs Dusk-Dawn. HIRL Ry 15/33 Preset Low Intst; to Incr Intst & Activate Parallel Twy Lgts; REIL Ry 15; MALSR Ry 33; & PAPI Ry 33 - CTAF. Ry 15 PAPI on Cont

Aircraft & Activity

Based GA Aircraft

Single Engine:	210
Multi Engine:	6
Jets:	10
Helicopters:	20
Gliders:	1
Ultralights:	0

Airport Activity

GA Local:	40,000
GA Itinerant:	63,000
Commercial:	600
Air Taxi:	3,500
Military:	200

(12-month period ending on 12/31/2012)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone
Approach/Departure	Denver	134.85
WX	N/A	135.075T (970-669-9187)
Clearance-Delivery	Denver	120.25
CTAF	N/A	122.7
UNICOM	N/A	122.7

Expand Navaids

ID	Type	Freq	Radial	Distance
GLL	VOR/DME	114.2	249	21 nm
BJC	VOR/DME	115.4	359	33 nm
DVV	VORTAC	114.7	324	38 nm
DEN	VOT	110.0	000	39 nm
DEN	VOR/DME	117.9	329	42 nm
BKF	TACAN	.0	337	46 nm
CYS	VORTAC	113.1	180	47 nm
FQF	VORTAC	116.3	328	49 nm

Contact Addresses

ASN Volunteer:	Owner:	Airport Manager:
Steven Wolf	Fort Collins & Loveland	Jason Licon
	4900 Earhart Road	4900 Earhart Road
	Loveland, CO 80538	Loveland, CO 80538
	970-962-2850 (Office)	970-962-2852 (Office)
Contact the ASN Volunteer

Attendance:	Attended Year-round, 7 Days a Week,All
Tower:	No
Elevation:	5,016 ft (1,528.9 m) (Surveyed)
Location:	9.00 mi. SE of Fort Collins/Loveland
Beacon:	Present (white-green)
Approaches:	ILS, DME, LOC, VOR, RNAV, GPS
Runways:	06/24, 15/33 Longest paved runway: 8500 ft
Fees:	Tiedown, Hangar

APD	AIRPORT DIAGRAM	83.9 KB
DP	BAYLR ONE (RNAV)	189.7 KB
DP	BRYCC ONE (RNAV)	161.1 KB
DP	CONNR ONE (RNAV)	165.9 KB
DP	COORZ ONE (RNAV)	161.7 KB
DP	DENVER SIX	221.7 KB
DP	DENVER SIX, CONT.1	134.9 KB
DP	EEONS TWO (RNAV)	155.9 KB
DP	EMMYS TWO (RNAV)	153.5 KB
DP	EPKEE ONE (RNAV)	172.1 KB
DP	EXTAN TWO (RNAV)	165.2 KB
DP	FOOOT ONE (RNAV)	154.5 KB
DP	PIKES FIVE	270.7 KB
DP	PLAINS FIVE	200.2 KB
DP	PLAINS FIVE, CONT.1	272.5 KB
DP	RIKKK ONE (RNAV)	157.8 KB
DP	ROCKIES NINE	218.9 KB
DP	ROCKIES NINE, CONT.1	198.2 KB
DP	SOLAR ONE (RNAV)	162.5 KB
DP	SPAZZ ONE (RNAV)	189.9 KB
DP	STAKR ONE (RNAV)	159.1 KB
DP	YAMMI ONE (RNAV)	154.6 KB
DP	YELLOWSTONE SEVEN	183.3 KB
DP	YELLOWSTONE SEVEN, CONT.1	219.8 KB
DP	YOKES TWO (RNAV)	183.5 KB
IAP	ILS OR LOC RWY 33	240.7 KB
IAP	RNAV (GPS) RWY 15	198.8 KB
IAP	RNAV (GPS) RWY 33	268.6 KB
IAP	VOR/DME-A	172.4 KB
MIN	TAKEOFF MINIMUMS	104.4 KB
MIN	ALTERNATE MINIMUMS	29.2 KB
STAR	DANDD SEVEN	255.1 KB
STAR	DANDD SEVEN, CONT.1	79.6 KB
STAR	KIPPR TWO (RNAV)	242 KB
STAR	KIPPR TWO (RNAV), CONT.1	208.6 KB
STAR	LANDR SEVEN	242.3 KB
STAR	LANDR SEVEN, CONT.1	111.7 KB
STAR	LARKS SEVEN	241.9 KB
STAR	LARKS SEVEN, CONT.1	106.8 KB
STAR	POWDR EIGHT	227.1 KB
STAR	POWDR EIGHT, CONT.1	103.7 KB
STAR	QUAIL SEVEN	269.4 KB
STAR	RAMMS SIX	208.5 KB
STAR	RAMMS SIX, CONT.1	93.8 KB
STAR	SAYGE EIGHT	241 KB
STAR	SAYGE EIGHT, CONT.1	99.9 KB
STAR	TOMSN SIX	233.6 KB
STAR	TOMSN SIX, CONT.1	93.9 KB
STAR	TSHNR ONE (RNAV)	231.5 KB
