FAA Information Effective: 5/2/2013

AOPA members save at 3,000+ GA airports.Book Now!
KFOKCivil
Public Use

Francis S Gabreski

Westhampton Beach, NY
Phone: 631-852-8095
www.gabreski-airport.com
Nearby airports

Operations | Communications | Weather | Runways | Comments | Remarks | Procedures | Services, Businesses & FBOsKneeboard Format

Overview

Attendance: Attended
Year-round, 7 Days a Week,0700-2300
Tower:Air Traffic Control Tower, 16 hrs/day, everyday, year-round
Elevation:66 ft (20.1 m) (Surveyed)
Location:3.00 mi. N of Westhampton Beach
Beacon: Present (white-green)
Approaches:ILS, LOC, RNAV, GPS, TACAN
Runways:01/19, 06/24, 15/33
Longest paved runway: 9001 ft
Fees:Landing, Ramp, Parking, Tiedown, Hangar
  |  Embed this
  • METARs
  • TAFs

Expand Instrument Approach Procedures

Use subject to Terms and Conditions

Check All | Download checked: Single PDF | ZIP

  • Satellite

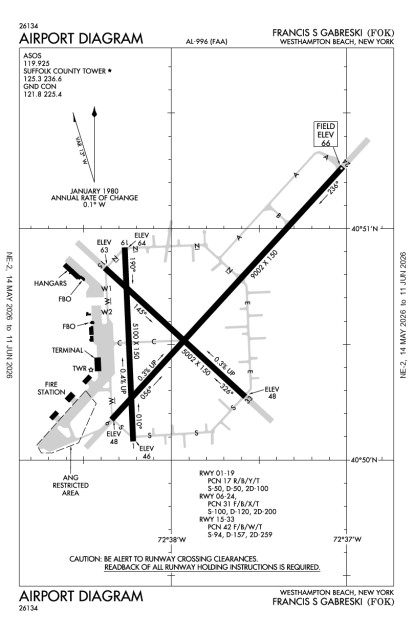

  • Diagram
  • Sectional

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

Jet A$ 6.39  (full service)
100 LL$ 7.50  (full service)

Expand Additional Remarks

NOTAMs | TFR's

Runway 01/19

Dimensions:5001 x 150ft. / 1524.3 x 45.7mWeight Bearing Cap: Single wheel: 50000 lb
Surface:asphalt, concrete, no surface treatment, in good conditionRunway Edge Lights:
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
0146.8ft. MSL
10° mag
357° true
0.4% up		No DatabasicNo DataTrees, 62 ft Right of center, 46 ft high, 1,174 ft from end, 21:1 clearance slope
1964.1ft. MSL
190° mag
177° true
0.4% down		No DatabasicNo DataTrees, 200 ft Left of center, 30 ft high, 1,000 ft from end, 26:1 clearance slope

Runway 06/24

Dimensions:9001 x 150ft. / 2743.5 x 45.7mWeight Bearing Cap: Single wheel: 50000 lb
Surface:asphalt, concrete, no surface treatment, in good conditionRunway Edge Lights:high
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
0647.5ft. MSL
56° mag
43° true
0.2% up		precisionrunway end identifier: REIL is present
visual glide slope: 2-Light/Left-Side PAPI
Brush, 95 ft Right of center, 10 ft high, 215 ft from end, 1:1 clearance slope
Vgsi and Rnav Glidepath Not Coincident
2466.1ft. MSL
236° mag
223° true
0.2% down		precisionapproach: 1400ft/Medium-Intensity/Runway Alignment Indicators
visual glide slope: 4-Light/Left-Side PAPI
ILSTrees, 688 ft Left of center, 72 ft high, 1,992 ft from end, 24:1 clearance slope
Vgsi and Ils Glidepath Not Coincident

Runway 15/33

Dimensions:5003 x 150ft. / 1524.9 x 45.7mWeight Bearing Cap: Single wheel: 50000 lb
Surface:asphalt, concrete, no surface treatment, in fair conditionRunway Edge Lights:medium
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
1562.7ft. MSL
145° mag
132° true
0.3% down		basicvisual glide slope: 2-Light/Left-Side PAPI
runway end identifier: REIL is present
Trees, 65 ft Right of center, 9 ft high, 267 ft from end, 7:1 clearance slope
15/33 Military Max Effort Lndg Strip Markings (3500 X 60) Included with Basic Ry Markings
3347.9ft. MSL
326° mag
313° true
0.3% up		basicrunway end identifier: REIL is present
visual glide slope: 4-Box/Left-Side VASI
Trees, 273 ft Left of center, 36 ft high, 1,039 ft from end, 23:1 clearance slope

Business/Service Information

Name LocationFreq. MonitoredMain Phone
SKYSAILORS
  • Rentals
  • Flight Training
 On field: SW
40.844074-72.641258
631-288-5858
JD Aero
  • Flight Training
Westhampton Beach, NY
631-270-7393
Malloy Air East, Inc.
  • $7.50
  • $6.50
On field: W
 UNICOM: 122.95
631-288-5410
Sheltair Aviation Services
  • $7.92
  • $6.39
On field: NW
 ARINC: 130.2631-288-9866
List Your Business in AOPA Airports

Services at this airport:

Services:
Engine Repair: MajorAirframe Repair: Major
Fuel: 100LL Low-Lead, Jet A
Transportation: Limousine, Public
Rental Cars:
EnterpriseBook Now! 866-315-9155


Customs: International Landing Rights

Expand Nearby restaurants, attractions

Information above provided by the airport manager.
Search nearby: Hotels | Restaurants

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

CancelDelete

Member-submitted Photos

View all
Upload your photos of Francis S Gabreski

    Operations & More Information

    Lat/Long:N40 50.6200' / W72 37.9067'
    Charts:NACO: New York Sectional
    Mag Var:13W (1980)
    ARTCC:New York (ZNY)
    FSS:New York (ISP)
    1-800-WXBRIEF
    NOTAM Facility:FOK
    Approach/Departure Control FacilityN90
    Pattern Altitude:Fixed Wing: 1167 MSL
    Wind Indicator:Present (unlit)
    Seg. Circle:No
    Lighting:Pilot Activated Lighting:
    • medium intensity: 5 clicks in 7 secs
    When ATCT Clsd Actvt HIRL Ry 06/24, MIRL Ry 15/33, VASI Rys 33, PAPI Rwy 06, 15 & 24, MALSR Ry 24, REIL Rys 06, 15, & 33 - CTAF

    Aircraft & Activity

    Based GA Aircraft

    Single Engine:98
    Multi Engine:15
    Jets:8
    Helicopters:4
    Gliders:2
    Ultralights:

    Airport Activity

    GA Local:40,059
    GA Itinerant:204,489
    Commercial:
    Air Taxi:2,492
    Military:13,197

    (12-month period ending on 12/31/2009)

    Air Safety Institute Resources

    Accident Reports

    Expand Communications Card

    Contact Addresses

    ASN Volunteer:Owner:Airport Manager:
    Joseph CostanzoCounty of SuffolkAnthony Ceglio
    County CenterGabreski Airport, Administration Bldg #1
    Riverhead, NY 11901Westhampton, NY 11978
    631-852-1600 (Office) 631-852-8095 (Office)
