AOPA Airports: Wheeling Ohio County (KHLG)

Satellite
Diagram
Sectional

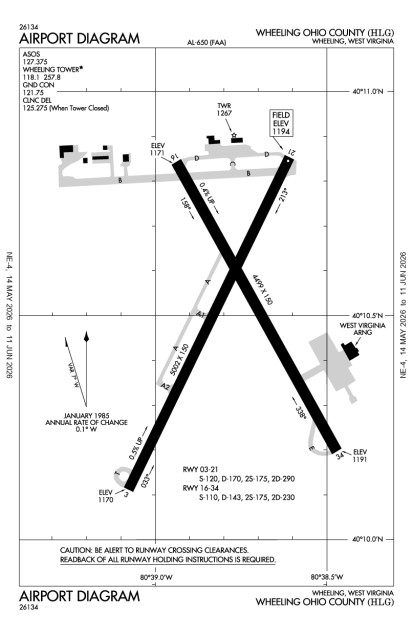

KHLG (Wheeling Ohio County) airport diagram

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

100LL	$ 6.39 (full service service)
Jet-A	$ 5.19 (full service service)

Runway 03/21

Dimensions:	5001 x 150ft. / 1524.3 x 45.7m	Weight Bearing Cap:	Single wheel: 120000 lb
Surface:	asphalt, grooved, in excellent condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC	Obstructions	Comments/Noise
03	1170.5ft. MSL 33° mag 26° true 0.5% up	precision	runway visual value: RVV is present approach: 1400ft/Medium-Intensity/Sequenced Flashers	ILS

21	1194.7ft. MSL 213° mag 206° true 0.5% down	precision	runway end identifier: REIL is present visual glide slope: 4-Box/Left-Side VASI		Tree, 250 ft Both-Sides of center, 20 ft high, 201 ft from end	10 Ft Building 150 Ft Dstc, 250 Ft R; 6 Ft Fence, 0-200 Ft Dstc, 0-500 Ft R/L; 10 Ft Brush, 150 Ft Dstc, 250 Ft R/L REIL Ry 21 Out of Service Indefly

Runway 16/34

Dimensions:	4497 x 150ft. / 1370.7 x 45.7m	Weight Bearing Cap:	Single wheel: 110000 lb
Surface:	asphalt, no surface treatment, in good condition	Runway Edge Lights:	medium

#	Elev/Hdg	Markings	Approach Lights	Obstructions
16	1171.7ft. MSL 158° mag 151° true 0.4% up	basic	No Data	Trees, 240 ft Left of center, 40 ft high, 650 ft from end, 11:1 clearance slope

34	1191.3ft. MSL 338° mag 331° true 0.4% down	non-precision	runway end identifier: REIL is present visual glide slope: 2-Light/Left-Side PAPI	Trees, 231 ft Right of center, 10 ft high, 201 ft from end

Business/Service Information

Name		Location	Main Phone
Ohio Valley Aviation Sales, Inc.	Maintenance	On field: W	304-277-2121
Ohio Valley Flight Academy	Rentals Flight Training	On field: W 40.179660-80.652866	304-277-1660
Wheeling Ohio County Aviation Center	$6.39 $5.19	WHEELING, WV 40.179529-80.646515	304-277-3499

List Your Business in AOPA Airports

Services at this airport:

Services:
Engine Repair: MinorAirframe Repair: Major
Fuel: 100LL Low-Lead, Jet A
Transportation: Limousine
Rental Cars:

Enterprise

Book Now!

866-315-9155

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

17899068605177/4/2012 1:46:10 AM UTC
This airport is terrible for anything but a place to stop for a quick break and fuel. No food, vending doesn't work, no car, etc. This airport is a big disappointment. On the other hand it is a handing stop between VA and MI, controlled airfield, 5000ft runway and friend staff.
17369011529645/9/2012 4:47:42 PM UTC
We stopped there on 5/7/12 to get some food, re-fuel, and check weather. While the fuel price was good, there was nothing else there available. The only food was from a few vending machines, and these didn't work. There is no computer available for weather access and the only person at the FBO said the only way to get weather info at this airport is to call Flight Service. When asked about other food possibilities they said there is nothing available -- they did not offer a courtesy car or suggest other transportation to get food. Overall, if you want anything more than just fuel I would avoid stopping at this airport.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Operations & More Information

Lat/Long:	N40 10.5000' / W80 38.7767'40.1750000-80.6462778
Charts:	NACO: Cincinnati Sectional
Mag Var:	07W (1985)
ARTCC:	Cleveland (ZOB)
FSS:	Elkins (EKN) 703-724-4288
NOTAM Facility:	HLG
Approach/Departure Control Facility	PIT
Pattern Altitude:	Fixed Wing: 2000 MSL
Wind Indicator:	Lighted
Seg. Circle:	No
Lighting:	Pilot Activated Lighting: high intensity: 7 clicks in 7 secs medium intensity: 5 clicks in 5 secs low intensity: 3 clicks in 3 secs When ATCT Clsd Actvt HIRL Ry 03/21, MIRL Ry 16/34, MALSF Ry 03, VASI Ry 21, PAPI Ry 34, REIL Rys 21 & 34, & All Twy Lgts Except Twy A - CTAF

Aircraft & Activity

Based GA Aircraft

Single Engine:	24
Multi Engine:	8
Jets:	3
Helicopters:	1
Gliders:
Ultralights:	0

Airport Activity

GA Local:	29,441
GA Itinerant:	12,820
Commercial:	0
Air Taxi:	1,488
Military:	2,833

(12-month period ending on 12/31/2009)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone
Approach/Departure	Pittsburgh	125.275
WX	Wheeling	127.375T (304-277-3504)
CLASS B	Pittsburgh	119.35
CTAF	Wheeling	118.1
EMERG	Wheeling	121.5
Ground Control	Wheeling	121.75
Tower	Wheeling	118.1
UNICOM	Wheeling	122.95

Expand Navaids

ID	Type	Freq	Radial	Distance
HLG	VOR/DME	112.2	222	6 nm
AIR	VOR/DME	117.1	047	12 nm
CFX	NDB	239.0	109	17 nm
MMJ	VORTAC	112.0	236	28 nm
AGC	VOR/DME	110.0	267	29 nm
CTW	VOR/DME	111.8	102	38 nm
MKP	NDB	287.0	262	41 nm
EWC	VORTAC	115.8	215	44 nm
VV	NDB	353.0	301	45 nm
VV	NDB	299.0	301	45 nm
BSV	VOR/DME	112.4	137	50 nm

Attendance:	Attended Year-round,Sat-Sun/0800-2000Year-round,Mon-Fri/0700-2200
Tower:	Air Traffic Control Tower, 15 hrs/day, weekdays, other hours weekends
Elevation:	1,195 ft (364.2 m) (Surveyed)
Location:	8.00 mi. NE of Wheeling
Beacon:	Present (white-green)
Approaches:	ILS, LOC, VOR, RNAV, GPS
Runways:	03/21, 16/34 Longest paved runway: 5001 ft
Fees:	Tiedown

APD	AIRPORT DIAGRAM	88.4 KB
IAP	ILS OR LOC RWY 03	300 KB
IAP	RNAV (GPS) RWY 03	265 KB
IAP	RNAV (GPS) RWY 16	216.7 KB
IAP	RNAV (GPS) RWY 21	177.9 KB
IAP	RNAV (GPS) RWY 34	207.4 KB
IAP	VOR RWY 21	175.5 KB
MIN	TAKEOFF MINIMUMS	148.8 KB
MIN	ALTERNATE MINIMUMS	33.5 KB
STAR	NESTO FOUR	285.1 KB

ASN Volunteer:	Owner:	Airport Manager:
Wade Augerbright	Ohio County Comsn	Thomas S. Tominack
	1500 Chaplin St	Rt 5, Box 5
	Wheeling, WV 26003	Wheeling, WV 26003
	304-234-3628 (Office)	304-234-3865 (Office)
Contact the ASN Volunteer
		Airport Manager Admin

Wheeling Ohio County

Overview

Expand Instrument Approach Procedures

Minimum Fuel Prices

Alerts

Security Directive SD-8G

Expand Additional Remarks
