AOPA Airports: Hutchinson Municipal (KHUT)

Satellite
Diagram
Sectional

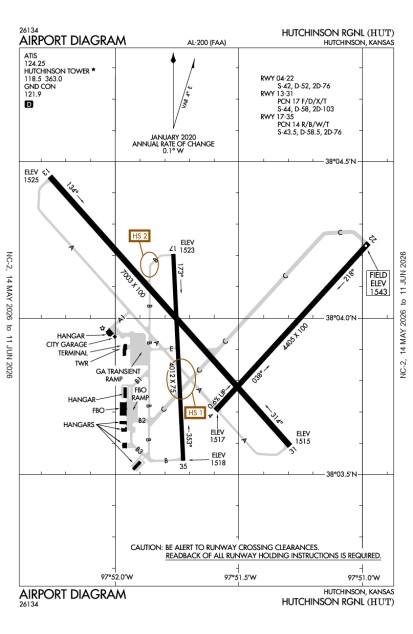

KHUT (Hutchinson Municipal) airport diagram

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

Jet-A-Premix	$ 6.08 (full service service)
100LL	$ 6.49 (full service service)
Jet A	$ 5.89 (full service)
100 LL	$ 6.85 (full service)

Runway 04/22

Dimensions:	6000 x 100ft. / 1828.8 x 30.5m	Weight Bearing Cap:	Single wheel: 42000 lb
Surface:	asphalt, no surface treatment, in fair condition	Runway Edge Lights:	medium

#	Elev/Hdg	Markings	Approach Lights	TD Point	Obstructions	Comments/Noise
04	1515.8ft. MSL 36° mag 42° true 0.5% up	non-precision	runway end identifier: REIL is present visual glide slope: 4-Box/Left-Side VASI	400' Disp Threshold	Road, Both-Sides, 16 ft high, 400 ft from end, 12:1 clearance slope	NE +16' Road 199' & 225' R of Cntrln Apch Ratio 49:1 to Dsplcd Thld

22	1542.5ft. MSL 216° mag 222° true 0.5% down	non-precision	runway end identifier: REIL is present visual glide slope: 4-Box/Left-Side VASI		Terrain, 450 ft Left of center, 83 ft high, 2,450 ft from end, 27:1 clearance slope	+5 Ft Ground 199 Ft Both Sides of Cntrln

Runway 13/31

Dimensions:	7004 x 100ft. / 2134.8 x 30.5m	Weight Bearing Cap:	Single wheel: 42000 lb
Surface:	asphalt, no surface treatment, in excellent condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC	Obstructions
13	1525.0ft. MSL 132° mag 138° true 0.2% down	precision	runway visual range: Touchdown approach: 1400ft/Medium-Intensity/Runway Alignment Indicators runway visual value: RVV is present	ILS	Tree, 1,000 ft Left of center, 96 ft high, 4,875 ft from end, 48:1 clearance slope

31	1514.8ft. MSL 312° mag 318° true 0.2% up	non-precision	visual glide slope: 4-Box/Left-Side VASI runway end identifier: REIL is present		Road, Both-Sides, 21 ft high, 650 ft from end, 21:1 clearance slope

Runway 17/35

Dimensions:	4252 x 75ft. / 1296.0 x 22.9m	Weight Bearing Cap:	Single wheel: 42000 lb
Surface:	asphalt, no surface treatment, in fair condition	Runway Edge Lights:	medium

#	Elev/Hdg	Markings	Approach Lights	TD Point	Obstructions	Comments/Noise
17	1523.3ft. MSL 171° mag 177° true 0.2% down	basic	visual glide slope: 4-Light/Left-Side PAPI		Trees, 100 ft Left of center, 125 ft high, 3,900 ft from end, 29:1 clearance slope

35	1515.5ft. MSL 351° mag 357° true 0.2% up	basic	visual glide slope: 4-Light/Left-Side PAPI	800' Disp Threshold	Road, Both-Sides, 16 ft high, 290 ft from end, 5:1 clearance slope	Apch Ratio 50+:1 to Dsplcd Thld

Name		Location	Freq. Monitored	Main Phone
Wells Aircraft	Maintenance $6.85 $6.49 $5.89 $6.08 Rentals Sales Flight Training	On field: SW 38.061777-97.866082	UNICOM: 122.95	620-663-1546

Services at this airport:

Services:
Engine Repair: MajorAirframe Repair: MajorBulk Oxygen: Low
Fuel: 100LL Low-Lead, Jet A
Transportation: Shuttle Bus, Public
Rental Cars:

Enterprise

Book Now!

866-315-9155

Expand Nearby restaurants, attractions

Sirloin Stockade 1 1/2 mi 620-663-5451

Fazoli's 1 1/2 mi 620-669-0500

McDonald's 1 1/2 mi 620-662-4014

Kansas State Fair 3 mi

Hutchinson Zoo 5 mi

Rcat 620-694-2913

Hutch 620-669-8203

Sand Hills State Park 4 mi

Prairie Dunes Golf course 2 mi

Kansas Cosmosphere & Space Center 3 mi

Highlands Golf Course 8 mi

Carey Park & Municipal Golf Course 5 mi

Airport Steak House 620-662-4281

Information above provided by the airport manager.
Search nearby: Hotels | Restaurants

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

17368MCPHERSL5/9/2012 1:56:15 PM UTC
Stopped at the airport late afternoon. We had not made arrangements for a room for the night or transportation. The FBO, Wells Aviation, had a great employee at the desk (I have forgotten her name) she got on the phone and set us up with transportation and a hotel. Absolutely a great experience, kudos and thanks. The tower personnel were also very friendly considering we had not been to the airport before and needed help taxing to the FBO.
9748THAXTER7/29/2010 12:50:59 PM UTC
Stopped en-route from Oshkosh. I'd seen on the directory there was a restaurant, but you get jaded after a while. But the Airport Steakhouse is a GREAT place. It surpasses most restaurants wherever they are located. The service, food, atmosphere, and setting was impeccable. Lots of attention to details that tell you that the people who own and run the place know exactly what they are doing. It was an exceptional ending to an already pleasant day.
9517061336027/8/2010 3:54:38 PM UTC
Great airport! The Steakhouse on the field is fantastic, probably some of the best steak I have ever had! There is also a great Cirrus Service Center as well as the Kansas Cosmosphere. The FBO has a nice little courtesy car that will let you take it to the Cosmosphere. This is a great fly away for food.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Operations & More Information

Lat/Long:	N38 3.9300' / W97 51.6383'38.0655000-97.8606389
Charts:	NACO: Wichita Sectional
Mag Var:	06E (2000)
ARTCC:	Kansas City (ZKC)
FSS:	Wichita (ICT) 1-800-WXBRIEF
NOTAM Facility:	HUT
Approach/Departure Control Facility	ICT
Pattern Altitude:	Fixed Wing: 2342 MSL
Wind Indicator:	Lighted
Seg. Circle:	Yes
Lighting:	Pilot Activated Lighting: high intensity: 7 clicks in 5 secs medium intensity: 5 clicks in 5 secs low intensity: 3 clicks in 5 secs Actvt HIRL Ry 13/31; MIRL Ry 17/35; MIRL Ry 04/22; MALSR Ry 13; VASI Rys 04 & 22; PAPI Rys 17 & 35 - CTAF

Aircraft & Activity

Based GA Aircraft

Single Engine:	30
Multi Engine:	3
Jets:	2
Helicopters:	0
Gliders:
Ultralights:

Airport Activity

GA Local:	18,978
GA Itinerant:	12,063
Commercial:	0
Air Taxi:	1,631
Military:	2,950

(12-month period ending on 10/31/2012)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone
Approach/Departure	Wichita	125.5
WX	Hutchinson	.0T (620-662-1071)
ATIS	Hutchinson	124.25
CTAF	Hutchinson	118.5
EMERG	Hutchinson	121.5
Ground Control	Hutchinson	121.9
Tower	Hutchinson	118.5
UNICOM	Hutchinson	122.95

Expand Navaids

ID	Type	Freq	Radial	Distance
HUT	VOR/DME	116.8	031	5 nm
MPR	NDB	227.0	200	19 nm
ICT	VORTAC	113.8	319	23 nm
LYO	NDB	386.0	128	24 nm
EWK	NDB	281.0	264	28 nm
ICT	VOT	114.0	000	33 nm
IC	NDB	332.0	320	35 nm
IAB	TACAN	.0	307	39 nm
PTT	NDB	356.0	057	47 nm
EGT	NDB	414.0	326	50 nm

Attendance:	Attended For Attendant After Hrs Call 620-663-1546.Year-round, 7 Days a Week,0700-1900
Tower:	Air Traffic Control Tower, 16 hrs/day, everyday, year-round
Elevation:	1,543 ft (470.3 m) (Surveyed)
Location:	3.00 mi. E of Hutchinson
Beacon:	Present (white-green)
Approaches:	ILS, DME, LOC, VOR, RNAV, GPS, NDB
Runways:	04/22, 13/31, 17/35 Longest paved runway: 7004 ft
Fees:	Hangar

APD	AIRPORT DIAGRAM	109.4 KB
HOT	HOT SPOT	12 KB
IAP	ILS OR LOC RWY 13	248.2 KB
IAP	RNAV (GPS) RWY 04	262.2 KB
IAP	RNAV (GPS) RWY 13	248.3 KB
IAP	RNAV (GPS) RWY 22	215 KB
IAP	RNAV (GPS) RWY 31	261 KB
IAP	LOC BC RWY 31	190 KB
IAP	VOR/DME RWY 22	177.8 KB
IAP	VOR RWY 04	167.4 KB
IAP	NDB RWY 13	167.5 KB
MIN	TAKEOFF MINIMUMS	146.6 KB
MIN	ALTERNATE MINIMUMS	36.9 KB

ASN Volunteer:	Owner:	Airport Manager:
David Krueger	City of Hutchinson	Mr. Pieter Miller
	Box 1567	1100 N. Airport Road
	Hutchinson, KS 67504	Hutchinson, KS 67504
	620-694-2610 (Office)	620-694-2692 (Office)
Contact the ASN Volunteer

Hutchinson Municipal

Overview

Expand Instrument Approach Procedures
