AOPA Airports: Wichita Mid-Continent (KICT)

Satellite
Diagram
Sectional

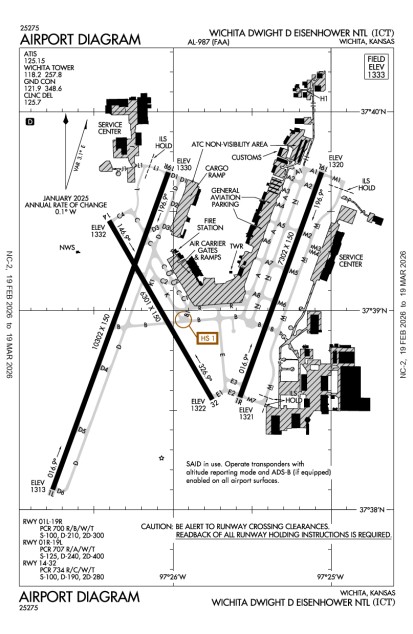

KICT (Wichita Mid-Continent) airport diagram

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

Jet-A-Prist	$ 6.03 (full service)
100LL	$ 6.32 (full service)
100LL	$ 5.72 (self service)

Expand Additional Remarks

Pushback Clearance Rqrd at Trml Gates 5, 6, 11 and 12. Pushback Enters Twy R

Twys F, G, H, J, M1 and All Parking Ramps are Non-Movement Areas

Ppr Required for Acft Carrying Class 1 - Division 1.1; 1.2 or 1.3 Explosives As Defined by 49 Cfr 173.50

Migratory Birds on & Invof Arpt

Security Directive SD-8G

Commercial acft ry 1L-19R preferred; restriction on gnd run-up

Intensive Flight Training

NOTAMs | TFR's

Runway 01L/19R

Dimensions:	10301 x 150ft. / 3139.7 x 45.7m	Weight Bearing Cap:	Single wheel: 100000 lb
Surface:	concrete, grooved, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC
01L	1312.6ft. MSL 13° mag 20° true 0.2% up	precision	runway visual range: Touchdown, Midfield, Rollout end touchdown: End Touchdown Lights are present approach: 2400ft/High-Intensity/Sequenced Flashers, Cat-II/III Config. centerline: Centerline Lights are present	ILS

19R	1329.7ft. MSL 193° mag 200° true 0.2% down	precision	runway visual range: Touchdown, Midfield, Rollout centerline: Centerline Lights are present approach: 1400ft/Medium-Intensity/Runway Alignment Indicators	ILS

Runway 01R/19L

Dimensions:	7301 x 150ft. / 2225.3 x 45.7m	Weight Bearing Cap:	Single wheel: 125000 lb
Surface:	concrete, grooved, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC
01R	1320.9ft. MSL 13° mag 20° true 0.0% down	precision	approach: 1400ft/Medium-Intensity/Runway Alignment Indicators runway visual range: Touchdown	ILS/DME

19L	1319.8ft. MSL 193° mag 200° true 0.0% up	precision	approach: 1400ft/Medium-Intensity/Runway Alignment Indicators visual glide slope: 4-Light/Left-Side PAPI	ILS/DME

Runway 14/32

Dimensions:	6301 x 150ft. / 1920.5 x 45.7m	Weight Bearing Cap:	Single wheel: 100000 lb
Surface:	concrete, grooved, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	Comments/Noise
14	1332.1ft. MSL 143° mag 150° true 0.2% down	non-precision	visual glide slope: 4-Light/Left-Side PAPI runway end identifier: REIL is present

32	1321.6ft. MSL 323° mag 330° true 0.2% up	basic	visual glide slope: 4-Light/Left-Side PAPI runway end identifier: REIL is present	PAPI Out of Service Indefly

Business/Service Information

Name		Location	Freq. Monitored	Main Phone
Bevan-Rabell, Inc.	Maintenance Sales	On field: NE 37.659533-97.423840		316-946-4870
Bombardier Aircraft Services	Maintenance Sales	WICHITA, KS		888-227-1428
Cessna Employees Flying Club	AOPA WorldPoints	WICHITA, KS		316-517-6065
EagleMed, LLC		On field: N		316-613-4855
FlightSafety Int'l (Cessna)	Flight Training	On field: CTR 37.659499-97.425299		316-220-3100
Learjet Learning Center	Flight Training	On field: NW 37.664799-97.435942		316-943-3394
HBS ICT	Maintenance Sales	On field: E	UNICOM: 122.95 ARINC: 130.57	316-946-4300
JB Aviation, LLC	Rentals Flight Training	WICHITA, KS 37.729750-97.187773		316-688-0050
Wichita Area Technical College	Flight Training	On field: NE		316-677-9400
Yingling Aviation	Maintenance $6.32 $5.72 $6.03 Rentals Sales Flight Training AOPA WorldPoints	On field: E	UNICOM: 122.95	800-835-0083

List Your Business in AOPA Airports

Services at this airport:

Services:
Engine Repair: MajorAirframe Repair: MajorBulk Oxygen: High/Low
Fuel: 100LL Low-Lead, Jet A
Transportation: Shuttle Bus, Courtesy Car, Limousine, Van, Public
Rental Cars: Avis (AOPA Discount Code: AWD A451300) , Budget, Dollar, Hertz (AOPA Discount Code: CDP 10232) , National, Enterprise (AOPA Discount Code: AOPAP9) , Thrifty
Customs: International Landing Rights

Expand Nearby restaurants, attractions

nmrs within 5 mi

Legends in airport Hilton 316-945-5272

S & S Limousine 316-641-5670

Lear Jet Factory on fld

Cessna Factory on fld

ABC 264-4222

Best 838-2233

American 262-7511

Host Int'l/Harvest Grill 316-946-4968

Information above provided by the airport manager.
Search nearby: Hotels | Restaurants

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

14111ANDYMILLER9/19/2011 4:05:41 PM UTC
Yingling very GA friendly! Great visit, airplane carefully marshaled in which was very helpful on such a busy ramp. Staff really nice. Wonderful facility, and got me a great deal on hotel across street. $7.00 tie down fee even though I purchased fuel.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Operations & More Information

Lat/Long:	N37 38.9967' / W97 25.9833'37.6499444-97.4330556
Charts:	NACO: Wichita Sectional
Mag Var:	07E (1985)
ARTCC:	Kansas City (ZKC)
FSS:	Fort Worth (FTW) 817-541-3474
NOTAM Facility:	ICT
Approach/Departure Control Facility
Pattern Altitude:	Fixed Wing: 2332 MSL
Wind Indicator:	Lighted
Seg. Circle:	No
Lighting:	No data

Aircraft & Activity

Based GA Aircraft

Single Engine:	107
Multi Engine:	42
Jets:	66
Helicopters:	7
Gliders:
Ultralights:

Airport Activity

GA Local:	24,860
GA Itinerant:	53,180
Commercial:	15,564
Air Taxi:	26,724
Military:	32,730

(12-month period ending on 6/30/2011)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone	Sector
Approach	Wichita	125.5	270-009 BLO 5000 & BYD 20 NM
Approach/Departure	Wichita	134.85	010-190
Approach/Departure CLASS C IC	Wichita	126.7	191-009
WX	Wichita	.0T (316-945-8022)
ATIS	Wichita	125.15
Clearance-Delivery	Wichita	125.7
CLASS C	Wichita	134.85	010-190 ABV 4,000 FT
CLASS C	Wichita	134.8	010-190 AT OR BLO 4,000 FT
EMERG	Wichita	121.5
Ground Control	Wichita	121.9
Tower	Wichita	118.2
UNICOM	Wichita	122.95

Expand Navaids

ID	Type	Freq	Radial	Distance
ICT	VOT	114.0	002	1 nm
IC	NDB	332.0	007	4 nm
IAB	TACAN	.0	275	8 nm
ICT	VORTAC	113.8	121	9 nm
EGT	NDB	414.0	347	20 nm
EWK	NDB	281.0	191	26 nm
HUT	VOR/DME	116.8	122	32 nm
MPR	NDB	227.0	158	44 nm
ANY	VORTAC	112.9	043	46 nm

Contact Addresses

ASN Volunteer:	Owner:	Airport Manager:
Kenneth Mathis	Wichita Airport Authority	Mr. Victor White, A.A.E
	2173 Air Cargo Road	2173 Air Cargo Road
	Wichita, KS 67209	Wichita, KS 67209
	316-946-4700 (Office)	316-946-4700 (Office)
Contact the ASN Volunteer

Attendance:	Attended Year-round, 7 Days a Week,All
Tower:	ATCT plus Approach Control, 24 hrs/day, everyday, year-roundTower Hrs: 24Primary Depart. Control Hrs: 24Primary Approach Control Hrs: 24ATIS Hrs: 24
Elevation:	1,333 ft (406.3 m) (Surveyed)
Location:	5.00 mi. SW of Wichita
Beacon:	Present (white-green)
Runways:	01L/19R, 01R/19L, 14/32 Longest paved runway: 10301 ft
Fees:	Landing, Ramp, Parking, Tiedown, Hangar

APD	AIRPORT DIAGRAM (changed)	178.5 KB
HOT	HOT SPOT	12 KB
IAP	ILS OR LOC RWY 01L (changed)	229.4 KB
IAP	ILS OR LOC RWY 01R (changed)	257.9 KB
IAP	ILS OR LOC RWY 19L (changed)	271.4 KB
IAP	ILS OR LOC RWY 19R (changed)	300.6 KB
IAP	ILS RWY 01L(CAT II) (changed)	208.3 KB
IAP	RNAV (RNP) Z RWY 01L (changed)	209.4 KB
IAP	RNAV (RNP) Z RWY 14 (changed)	237.6 KB
IAP	RNAV (RNP) Z RWY 19L (changed)	255.3 KB
IAP	RNAV (RNP) Z RWY 19R (changed)	251.5 KB
IAP	RNAV (GPS) RWY 01R (changed)	254.7 KB
IAP	RNAV (GPS) RWY 32 (changed)	265.9 KB
IAP	RNAV (GPS) Y RWY 01L (changed)	282 KB
IAP	RNAV (GPS) Y RWY 14 (changed)	261.5 KB
IAP	RNAV (GPS) Y RWY 19L (changed)	269.8 KB
IAP	RNAV (GPS) Y RWY 19R (changed)	284 KB
IAP	VOR RWY 14 (changed)	234.6 KB
IAP	NDB RWY 01R (changed)	218 KB
MIN	TAKE-OFF MINIMUMS	77.9 KB
MIN	ALTERNATE MINIMUMS	20.8 KB

Wichita Mid-Continent

Overview

Expand Instrument Approach Procedures
