AOPA Airports: New Century Aircenter (KIXD)

Satellite
Diagram
Sectional

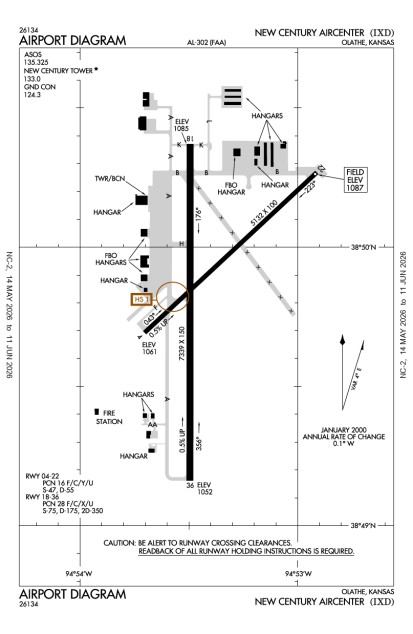

KIXD (New Century Aircenter) airport diagram

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

100 LL	$ 5.50 (self service)
100LL	$ 5.85 (self-service service)
Jet-A-Premix	$ 5.20 (full service service)
Jet A	$ 4.75 (self service)
100LL	$ 6.35 (full service service)
Jet A	$ 4.95 (full service)
Jet-A-Premix	$ 4.95 (self-service service)
100 LL	$ 5.95 (full service)
Jet-A	$ 5.75 (full service service)

Expand Additional Remarks

to Confirm Snow Removal and Winter Conditions Nov-Mar Call 913-221-8085

Army Ops: Dsn 552-6994/5, C913-782-1077

Low Sun Angles Reduce Visibility When Crossing Ry 18/36 Fm Twys 'A' or 'B'

ATCT View of SW End of Twy 'F' & Ry 04/22 is Obscured

Birds & Waterfowl on & Invof Arpt

NOTAMs | TFR's

Runway 04/22

Dimensions:	5132 x 100ft. / 1564.2 x 30.5m	Weight Bearing Cap:	Single wheel: 47000 lb
Surface:	asphalt, no surface treatment, in fair condition	Runway Edge Lights:	medium

#	Elev/Hdg	Markings	Approach Lights	Obstructions
04	1061.1ft. MSL 43° mag 47° true 0.5% up	basic	visual glide slope: 4-Light/Left-Side PAPI	Building, 120 ft Left of center, 26 ft high, 1,230 ft from end, 39:1 clearance slope

22	1087.2ft. MSL 223° mag 227° true 0.5% down	basic	No Data	Road, Both-Sides, 12 ft high, 200 ft from end

Runway 18/36

Dimensions:	7339 x 150ft. / 2236.9 x 45.7m	Weight Bearing Cap:	Single wheel: 75000 lb
Surface:	asphalt, no surface treatment, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC	Obstructions
18	1084.9ft. MSL 176° mag 180° true 0.5% down	precision	visual glide slope: 4-Box/Left-Side VASI runway end identifier: REIL is present

36	1051.5ft. MSL 356° mag 0° true 0.5% up	precision	approach: 1400ft/Medium-Intensity/Runway Alignment Indicators	ILS/DME	Pole, 320 ft Right of center, 89 ft high, 4,400 ft from end, 47:1 clearance slope

Business/Service Information

Name		Location	Freq. Monitored	Main Phone
AA Jet Center	Maintenance $6.45 $5.95 $6.95 $6.45 $5.10 $5.75 Sales	On field: NE 38.839039-94.886599	UNICOM: 122.95	913-768-1500
ATD Flight Systems	Rentals Flight Training	KANSAS CITY, MO		816-221-8455
KC Flight Training	Rentals Flight Training	On field: SW 38.839373-94.884624		913-240-1694
Kings Avionics, Inc.	Maintenance	On field: SW		913-829-4606
New Century Air Service	Maintenance $5.95 $5.50 $6.35 $5.85 $4.95 $4.75 $5.20 $4.95 Rentals	On field: NE 38.839373-94.884453	UNICOM: 122.95	913-768-9400
Signature Flight Support	Maintenance $7.19 $6.93 $7.16 $7.08 Sales	On field: W 38.832184-94.895037	UNICOM: 122.95 ARINC: 129.0	913-782-9003

List Your Business in AOPA Airports

Services at this airport:

Services:
Engine Repair: MajorAirframe Repair: MajorBulk Oxygen: High/Low
Fuel: 100LL Low-Lead, Jet A

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

14019064451329/13/2011 1:47:54 AM UTC
We used New Century Air Service twice, great service, courtesy car and the lowest fuel price of the area. Clean facility and very nice people .
13689TREWJKL8/22/2011 4:56:51 PM UTC
Advanced Aviation is an exceptional group of professionals. I was greeted on the ramp with my rental car ready and pulled up next to my plane, they even loaded my bags while I secured the plane. After leaving the airport I went to a local steakhouse and noticed the rental car smoking, turns out Enterprise must have had the oil changed and the cap was missing. One call to Advanced Aviation and they brought me another vehicle while I enjoyed my dinner. This place really does take care of their customers. Thank you Kyle.
10563N6129H10/12/2010 7:04:37 PM UTC
The folks at Advance Aviation are fantastic. I called the day before and ask for a rental. They contacted Enterprise and had the car ready for us the next day. They will meet you and guide you in. They even brought the rental out to the ramp next to our plane after we landed. Nice clean facility and great people to do business with.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Operations & More Information

Lat/Long:	N38 49.8550' / W94 53.4183'38.8309167-94.8903056
Charts:	NACO: Kansas City Sectional
Mag Var:	04E (2000)
ARTCC:	Kansas City (ZKC)
FSS:	Columbia (COU) 1-800-WXBRIEF
NOTAM Facility:	IXD
Approach/Departure Control Facility	MCI
Pattern Altitude:	Single-Engine Acft 1000 Ft Agl; Multi-Engine/Turbine Acft 1500 Ft AGL Light Aircraft: 2087 MSL; Turbine Aircraft: 2587 MSL
Wind Indicator:	Lighted
Seg. Circle:	Yes
Lighting:	Pilot Activated Lighting: high intensity: 7 clicks in 5 secs medium intensity: 5 clicks in 5 secs low intensity: 3 clicks in 5 secs When ATCT Clsd Actvt MALSR Ry 36 - CTAF. VASI Ry 18 on 24 Hrs

Aircraft & Activity

Based GA Aircraft

Single Engine:	59
Multi Engine:	11
Jets:	1
Helicopters:	1
Gliders:
Ultralights:

Airport Activity

GA Local:	19,261
GA Itinerant:	20,874
Commercial:
Air Taxi:	2,300
Military:	2,563

(12-month period ending on 12/31/2009)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone
Approach/Departure	Kansas City	118.9
ARMY OPS	New Century	46.9
WX	New Century	135.325T (913-780-6987)
CTAF	New Century	133.0
Ground Control	New Century	124.3
Tower	New Century	133.0
UNICOM	New Century	122.95

Expand Navaids

ID	Type	Freq	Radial	Distance
OJC	VOR/DME	113.0	259	7 nm
RIS	VOR/DME	111.4	213	22 nm
MKC	VOT	108.6	000	22 nm
DO	NDB	359.0	191	24 nm
DO	NDB	236.0	191	24 nm
MCI	VORTAC	113.3	190	28 nm
TOP	VORTAC	117.8	116	36 nm
FOE	TACAN	.0	096	37 nm
FOE	VOT	111.0	000	37 nm
BUM	VORTAC	115.9	324	39 nm
ANX	VORTAC	114.0	239	39 nm
TO	NDB	365.0	110	41 nm
TO	NDB	521.0	110	41 nm

Attendance:	Attended Year-round,Fri-Sat/0600-2300Year-round,Sun-Thu/All
Tower:	Air Traffic Control Tower, 15 hrs/day, everyday, year-round
Elevation:	1,087 ft (331.3 m) (Surveyed)
Location:	4.00 mi. SW of Olathe
Beacon:	Present (white-green)
Approaches:	ILS, LOC, RNAV, GPS
Runways:	04/22, 18/36 Longest paved runway: 7339 ft
Fees:	No data

APD	AIRPORT DIAGRAM	99.9 KB
DP	CHIEF FIVE	195.5 KB
DP	LAKES EIGHT	267.6 KB
DP	RACER FIVE	246.8 KB
DP	ROYAL FIVE	208.9 KB
DP	TIFTO FOUR	176.5 KB
DP	WILDCAT THREE	218.6 KB
HOT	HOT SPOT	12 KB
IAP	ILS OR LOC RWY 36	225.3 KB
IAP	RNAV (GPS) RWY 18	190.2 KB
IAP	RNAV (GPS) RWY 36	205.7 KB
LAH	LAHSO	6.9 KB
MIN	TAKEOFF MINIMUMS	146.5 KB
MIN	ALTERNATE MINIMUMS	36.8 KB
STAR	BRAYMER FOUR	207.7 KB
STAR	BRAYMER FOUR, CONT.1	199.6 KB
STAR	JHAWK SIX	132.6 KB
STAR	JHAWK SIX, CONT.1	124.1 KB
STAR	ROBINSON THREE	151.8 KB
STAR	ROBINSON THREE, CONT.1	152.1 KB
STAR	TYGER SIX	128.8 KB
STAR	TYGER SIX, CONT.1	116.4 KB

ASN Volunteer:	Owner:	Airport Manager:
Ed Macan	Johnson County	Colin McKee
	One New Century Parkway	One New Century Parkway
	New Century, KS 66031	New Century, KS 66031
	913-715-6000 (Office)	913-715-6000 (Office)
Contact the ASN Volunteer
		Airport Manager Admin
Lee Metcalfe, Executive Director

New Century Aircenter

Overview

Expand Instrument Approach Procedures
