AOPA Airports: Long Beach /Daugherty Field (KLGB)

FAA Information Effective: 3/7/2013

AOPA members save at 3,000+ GA airports.Book Now!

KLGBCivil
Public Use

Long Beach /Daugherty Field

Long Beach, CA
Phone: 562-570-2605
www.lgb.org
Nearby airports

Satellite
Diagram
Sectional

Open in Google Maps

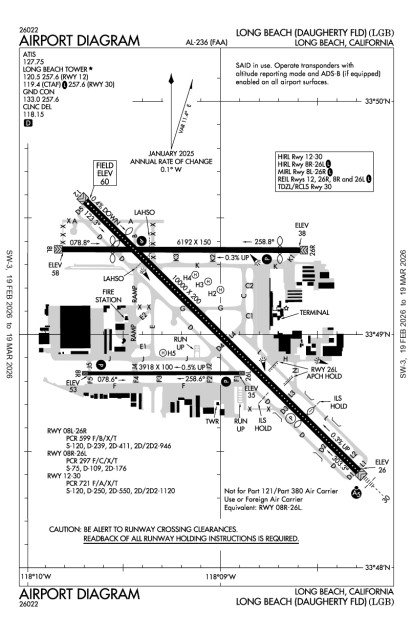

AIRPORT DIAGRAM

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

Jet-A	$ 5.65 (truck service)
100LL	$ 6.36 (self-service service)
100LL	$ 6.36 (full service service)
100LL	$ 6.36 (truck service)
Jet-A	$ 5.65 (full service service)

Alerts

Security Directive SD-8G

Call FBO for transient pilot security procedures or after hours escort. Learn More

Expand Additional Remarks

Twys D3 and L3 Wgt Limits A340 Dc10 30/40 & Md11 541000 Lbs; C17 450000 Lbs

Noise Limits (Decibels Sgl Event Noise Exposure Level) Ry 25r Tkof 92.0 Ldg 88.0; Ry 07l Tkof 88.0 Ldg 92.0; Ry 25l Tkof 95.0 Ldg 93.0; Ry 07r Tkof 95.0 Ldg 92.0. Rys 12 & 30 0700-2200 Tkof 102.5 Ldg 101.5; 0600-0700 & 2200-2300 Tkof 90.0 Ldg 90.0; 2300-0600 Tkof 79.0 Ldg 79.0

Ry 12/30 Lgtd Distance Remaining Signs West Side

Trng Helipads H1; H2; H3 & H4 Located N of Ry 12/30 Midfield Btn Twys G & K. Trng Helipads H5 & H6 Located S of Ry 12/30 Btn Twys D & J for Hover Work Only

11 Foot Lighted Fence Located 77 Feet South of Centerline Twy D at D2

Birds on & Inv of Arpt

All Rys Clsd 2200-0700 Lcl Excp Ry 12/30

Prior Notice Requested for Military Jets and Civilian Non-Stage Iii Jets, CTC Noise Abatement (562) 570-2635 or Freq 122.85 Mon-Fri 0730-1630

No Twy Access to Ry 07l W of Twy D; 4897 Ft Remaining on Ry 07l From Twy D

(A35-30) Max Ldg Wgts A-330 347000 Lbs; A-340 379000 Lbs; Dc-10-10 & C-17 344000 Lbs; Dc10 3/40 & Md-11 379000 Lbs; L-1011 354000 Lbs. Ry 12 Max Ldg Wgt Dc-10 30/40 & Md-11 588100 Lbs; C-17 538600 Lbs

Max Tkof Wgt Dc-10 30/40 & Md-11 588100 Lbs; C-17 538600 Lbs. Twys D3 & L3 Wgt Limits A-340 Dc-10 30/40 & Md-11 541000 Lbs; C-17 450000 Lbs

Touch & Go; Stop & Go; Low Apch Only Permitted 0700-1900 Wkdays & 0800-1500 Wkends & Hols Only on Rys 07l/25r & 07r/25l Unless Weather Conditions Require Atc to Direct Such Opns to Rys 16r/34l & 16l/34r

Airships Moored in Infield and Operating Invof Arpt

Max Ldg Wgt for C17at or Byd Glide Slope or Ry Aiming Point Marking 538600 Lbs; Ry 30 Ldg Prior Tory Aiming Point Marking 344000 Lbs

Ry 12/30 FAA Strength Evaluation Dc-10-10 440000 Lbs; Dc-10-30 550000 Lbs; L-1011 460000 Lbs

Helipad H1, H2, H4, H5, & H6 20 X 20 Asph. Helipad H3 35 X 300 Asph

Engine Run-Ups, Other Than Pre-Flight, are Limited to Hrs of 0700-2100 Weekdays & 0900-2100 Weekends & Holidays

6 Ft Lighted Chain Link Fence Lctd 130 Ft South of Cntrln of Twy F. Fence Begins Nw Corner of ATCT & Extends 400 Ft to West

Security Directive SD-8G

Published Noise rule

Intensive Flight Training

Tgls & low apchs allowed only on wkdays from 7 am to 7 pm; wkends 8 am to 3 pm

Enforced 24 hrs; call APM or 122.85

NOTAMs | TFR's

Runway 07L/25R

Dimensions:	6191 x 150ft. / 1887.0 x 45.7m	Weight Bearing Cap:	Single wheel: 30000 lb
Surface:	asphalt, porous friction course, in fair condition	Runway Edge Lights:	medium

#	Elev/Hdg	Markings	Approach Lights	TD Point	Obstructions	Comments/Noise
07L	57.3ft. MSL 76° mag 90° true 0.3% down	non-precision	No Data	1305' Disp Threshold	Pole, 36 ft Right of center, 78 ft high, 200 ft from end, 12:1 clearance slope	6 Ft Fence 190 Ft Fm Ry End with Obstruction Lgt Apch Ratio 20:1 to Dsplcd Thr

25R	36.8ft. MSL 256° mag 270° true 0.3% up	non-precision	visual glide slope: 4-Box/Left-Side VASI runway end identifier: REIL is present	530' Disp Threshold	Road, 200 ft Right of center, 16 ft high, 300 ft from end, 6:1 clearance slope	Apch Ratio 34:1 to Dsplcd Thr

Runway 07R/25L

Dimensions:	5421 x 150ft. / 1652.3 x 45.7m	Weight Bearing Cap:	Single wheel: 30000 lb
Surface:	asphalt, no surface treatment, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	TD Point	Obstructions	Comments/Noise
07R	52.6ft. MSL 76° mag 90° true 0.4% down	non-precision	No Data		Tower, 500 ft Right of center, 102 ft high, 2,500 ft from end, 22:1 clearance slope	Lgtd Tower 152 Ft AGL 2500 Ft West & 500 Ft South of Ry Thld

25L	31.1ft. MSL 256° mag 270° true 0.4% up	non-precision	runway end identifier: REIL is present visual glide slope: 4-Light/Left-Side PAPI	1523' Disp Threshold	Trees, 300 ft Right of center, 61 ft high, 1,420 ft from end, 20:1 clearance slope	PAPI Out of Service Indefly

Runway 12/30

Dimensions:	10003 x 200ft. / 3048.9 x 61.0m	Weight Bearing Cap:	Single wheel: 30000 lb
Surface:	asphalt, grooved, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	TD Point	ILS/LOC	Obstructions	Comments/Noise
12	60.3ft. MSL 121° mag 135° true 0.4% down	precision	visual glide slope: 4-Box/Left-Side VASI runway end identifier: REIL is present centerline: Centerline Lights are present runway visual range: Rollout	1351' Disp Threshold		Fence, 500 ft Left of center, 8 ft high, 200 ft from end	6 Ft Pole 190 Ft Fm Ry End; Fence 490 Ft L of Cntrln Apch Ratio 50:1 to Dsplcd Thr

30	25.7ft. MSL 301° mag 315° true 0.4% up	precision	visual glide slope: 4-Light/Left-Side PAPI centerline: Centerline Lights are present approach: 1400ft/Medium-Intensity/Runway Alignment Indicators end touchdown: End Touchdown Lights are present runway visual range: Touchdown	2002' Disp Threshold	ILS	Tree, 630 ft Right of center, 42 ft high, 1,480 ft from end, 30:1 clearance slope	Apch Ratio 50:1 to Dsplcd Thr

Runway 16L/34R

Dimensions:	3330 x 75ft. / 1015.0 x 22.9m	Weight Bearing Cap:	Single wheel: 12500 lb
Surface:	asphalt, no surface treatment, in fair condition	Runway Edge Lights:

#	Elev/Hdg	Markings	Approach Lights	TD Point	Obstructions	Comments/Noise
16L	40.4ft. MSL 166° mag 180° true 0.2% down	basic	No Data		Fence, Both-Sides, 6 ft high, 200 ft from end	+6' Fence at 190' Fm Ry End Apch Ratio 20:1 to Dsplcd Thld

34R	33.5ft. MSL 346° mag 0° true 0.2% up	basic	No Data	1156' Disp Threshold	Road, Both-Sides, 15 ft high, 210 ft from end	+8' Fence at 190' Fm Ry End Apch Ratio 20:1 to Dsplcd Thr

Runway 16R/34L

Dimensions:	4470 x 75ft. / 1362.5 x 22.9m	Weight Bearing Cap:	Single wheel: 12500 lb
Surface:	asphalt, no surface treatment, in fair condition	Runway Edge Lights:

#	Elev/Hdg	Markings	Approach Lights	TD Point	Obstructions	Comments/Noise
16R	49.7ft. MSL 166° mag 180° true 0.1% down	basic	visual glide slope: 4-Box/Left-Side VASI	310' Disp Threshold	Fence, ft of center, 15 ft high, 200 ft from end	+6' Fence at 120' Fm Ry End with Obstruction Lgts Apch Ratio 20:1 to Dsplcd Thr

34L	43.9ft. MSL 346° mag 0° true 0.1% up	basic	No Data		Road, ft of center, 15 ft high, 550 ft from end, 23:1 clearance slope

Business/Service Information

Name		Location	Freq. Monitored	Main Phone
AFTC	Maintenance Rentals Flight Training	Long Beach, CA 33.816451-118.159676		562-363-6406
Aces High Aviation	Rentals Flight Training	On field: S 33.811628-118.154633		562-726-3719
Aero Aviation, LLC	Rentals Sales Flight Training	On field: NE		562-425-6774
Aero Technology	Maintenance Sales	On field: S		562-595-6055
AFIT	Flight Training	Long Beach, CA 33.816486-118.159375		866-270-8224
AirFlite	Fuel	On field: W 33.816241-118.158259	ARINC: 129.375	562-490-6200
Angel City Flyers	Maintenance Rentals Sales Flight Training	On field: SW		562-366-4806
ATP Flight School – LGB	Rentals Flight Training	On field: NW 33.810942-118.153002		800-255-2877
California Flight Center	Maintenance Rentals Sales Flight Training	On field: W 33.812386-118.161306	UNICOM: 122.95	562-490-2662
Cypress College		CYPRESS, CA		714-484-7411
Eagle Aviation	Flight Training	On field: NE		562-377-0774
FlightSafety Int'l	Flight Training	On field: E		800-487-7670
FliteServ	$6.36 $6.36 $6.36 $5.65 $5.65	On field: SW 33.812424-118.161697		562-760-4052
Gulfstream Aerospace Corporation	Maintenance	On field: CTR	UNICOM: 122.95	562-420-1818
JFI JetCenter		LONG BEACH, CA		562-425-8800
Long Beach City College		LONG BEACH, CA		562-938-4111
Long Beach Flying Club & Flight Academy	Maintenance Rentals Sales Flight Training	On field: S		562-290-0321
Los Angeles Helicopters	Maintenance Fuel Rentals Sales Flight Training	On field: NE		562-377-0396
Pacific Air Center	Fuel Sales	On field: SW 33.812243-118.160201		562-513-5222
Rainbow Air	Maintenance Fuel Rentals Flight Training	On field: W	UNICOM: 122.85	562-424-0119
Ray's Flying Club, Inc.	Rentals Flight Training	On field: E 33.811673-118.151865		714-994-4299
Rotor Aviation, Inc.	Rentals Flight Training	On field: W		562-595-6867
Signature Flight Support	Fuel Sales	On field: S	ARINC: 130.6	562-997-0700
Sunset Flying, Inc	Rentals Flight Training	On field: SW 33.812172-118.158689		866-759-3672
West Coast Aircraft Maintenance	Maintenance	LONG BEACH, CA		562-981-6064

List Your Business in AOPA Airports

Services at this airport:

Services:
Engine Repair: MajorAirframe Repair: MajorBulk Oxygen: High/Low
Fuel: 100LL Low-Lead, Jet A
Transportation: Limousine, Public, Shuttle Bus
Rental Cars:

National	Book Now!	866-315-9155
Avis
Budget
Hertz

Customs: International Landing Rights

Expand Nearby restaurants, attractions

Enterprise 562-496-3134

Aquarium of the Pacific 4 mi

Marriott Hotel 562-425-5210

Yellow 562-435-6111

Los Angeles Coliseum 17 mi

Rose Bowl 25 mi

Anaheim Stadium 16 mi

Queen Mary 5 mi

Knotts Berry Farm 8 mi

Disneyland 11 mi

Prop Room Cafe in trml 562-420-8646

Airport Deli 562-981-9903

Holiday Inn 1 mi 562-597-4401

Information above provided by the airport manager.
Search nearby: Hotels | Restaurants

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

14669BRUCEPACKER10/24/2011 2:51:21 AM UTC
Flew in 10/21/2011 with my Comanche. SOCAL approach tolerable, as always, vectoring us for the 30 ILS approach, although the controllers there are frequently flippant if you question them in any way, so keep your nose clean. Ground control was helpful, AirFlight was great with literal red carpet service. Friendly staff, let us use the crew car for a quick trip to a nearby address for my son to apply for his seaman's certificate (reason for the trip). Beautiful salt water aquariums throughout. Certainly recommend this airport for LA trips and highly recommend this FBO.
10453ELLIOT CANNON10/1/2010 6:02:55 PM UTC
I parked my Comanche at AirFlight twice in the past month. Red carpet service each time. Nice people. Absolutely beutiful facility.
9966LAURAPZACCARIA8/20/2010 2:15:49 PM UTC
We landed our Columbia at Airflite Long Beach and had the same good service as a business jet. 20 gal of 100LL will waive the daily landing fee. Hertz crew cars were available. Highly recommended.
9682013278807/24/2010 5:43:59 PM UTC
Very happy with the prices and service at Signature on 6/13/2010. Topped off our Cherokee with 15 Gallons and not only was the tie down fee waived, but we were allowed to use a courtesy car the rest of the day. A 50 cent weekend top-off fuel discount was applied bringing the fuel price down to a competitive $4.74 per Gallon. Office and line personel were very courteous and professional.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Member-submitted Photos

View all
Upload your photos of Long Beach /Daugherty Field

Operations & More Information

Lat/Long:	N33 49.0652' / W118 9.1040'33.8177540-118.1517330
Charts:	NACO: Los Angeles Sectional
Mag Var:	14E (1980)
ARTCC:	Los Angeles (ZLA)
FSS:	Prescott (PRC) 1-800-WXBRIEF
NOTAM Facility:	LGB
Approach/Departure Control Facility	SCT
Pattern Altitude:	Tpa is 1000 Ft AGL for Piston Acft and 1500 Ft AGL for Large or Turbine Powered Acft Light Aircraft: 1000 MSL; Heavy Aircraft: 1500 MSL
Wind Indicator:	Lighted
Seg. Circle:	No
Lighting:	Pilot Activated Lighting: high intensity: 7 clicks in 5 secs medium intensity: 5 clicks in 5 secs low intensity: 3 clicks in 5 secs Actvt MALSR Ry 30 When ATCT Clsd - CTAF; Ry 12/30 HIRL Lgtd During Hrs ATCT Clsd. REIL Rys 12, 25r & 25l, MIRL Ry 07l/25r, HIRL Ry 07r/25l, Cl Tdzl Lights Ry 12/30 Not Avbl When ATCT Clsd. VASI Ry 25r and PAPI Ry 25l Oper 0700-2200 Only. VASI Ry 12 and PAPI Ry 30 Oper Cont

Aircraft & Activity

Based GA Aircraft

Single Engine:	301
Multi Engine:	46
Jets:	46
Helicopters:	42
Gliders:	0
Ultralights:

Airport Activity

GA Local:	132,201
GA Itinerant:	103,095
Commercial:	30,197
Air Taxi:	5,411
Military:	867

(12-month period ending on 9/30/2012)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone	Sector
Approach	Socal	124.65
WX	Long Beach	.0T (562-424-0572)
ATIS	Long Beach	127.75
Clearance-Delivery	Long Beach	118.15
CTAF	Long Beach	119.4
DEP/P	Socal	127.2
EMERG	Long Beach	121.5
Ground Control	Long Beach	133.0
Tower IC	Long Beach	120.5	RY 12 APCH RY 30 DEP
Tower IC	Long Beach	119.4	RY 30 APCH RY 12 DEP
UNICOM	Long Beach	122.95

Expand Navaids

ID	Type	Freq	Radial	Distance
SLI	VORTAC	115.7	278	5 nm
CPM	NDB	378.0	117	6 nm
LAX	VOT	113.9	000	10 nm
LAX	VORTAC	113.6	101	16 nm
SNA	VOT	110.0	000	16 nm
EMT	NDB	359.0	185	17 nm
SMO	VOR/DME	110.8	112	19 nm
ELB	VOR/DME	117.2	278	23 nm
POM	VORTAC	110.4	214	24 nm
UR	NDB	253.0	139	25 nm
PAI	NDB	370.0	139	30 nm
VNY	VOR/DME	113.1	130	30 nm
SXC	VORTAC	111.4	012	30 nm
PDZ	VORTAC	112.2	244	32 nm
RAL	VOR	112.4	243	36 nm
SB	NDB	397.0	236	42 nm
RIV	TACAN	.0	249	44 nm
VTU	VOR/DME	108.2	096	48 nm
HDF	VOR	113.4	259	48 nm
FIM	VORTAC	112.5	116	49 nm
PMD	VORTAC	114.5	170	49 nm

Contact Addresses

ASN Volunteer:	Owner:	Airport Manager:
Candace Robinson	City of Long Beach	Mario Rodriguez
	City Hall 333 W. Ocean	4100 Donald Douglas Dr
	Long Beach, CA 90802	Long Beach, CA 90808
	562-570-2600 (Office)	562-570-2605 (Office)
Contact the ASN Volunteer
		Airport Manager Admin
Carol Carlton-Lowe (Asst Mgr) 562-570-2630. Karl Zittel (Superintendent Airport Opns) 562-570-2632. Arpt Bureau Fax (562) 570-2601 Noise Complaints Public Affairs (562) 570-2678

Attendance:	Attended Year-round, 7 Days a Week,All
Tower:	Air Traffic Control Tower, 18 hrs/day, everyday, year-round
Elevation:	60 ft (18.3 m) (Surveyed)
Location:	3.00 mi. NE of Long Beach
Beacon:	Present (white-green)
Approaches:	ILS, LOC, VOR, RNAV, GPS, TACAN, RNP
Runways:	07L/25R, 07R/25L, 12/30, 16L/34R, 16R/34L Longest paved runway: 10003 ft
Fees:	No data

APD	AIRPORT DIAGRAM	160.6 KB
DP	ANAHEIM THREE	284.5 KB
DP	ANAHEIM THREE, CONT.1	147.5 KB
DP	SENIC ONE (RNAV)	286.1 KB
HOT	HOT SPOT	9.3 KB
IAP	ILS OR LOC RWY 30	272.3 KB
IAP	RNAV (RNP) RWY 12	271.1 KB
IAP	RNAV (RNP) RWY 25R	296.6 KB
IAP	RNAV (RNP) Y RWY 30	290.8 KB
IAP	RNAV (GPS) Z RWY 30	287.5 KB
IAP	VOR OR TACAN RWY 30	252.9 KB
IAP	ARSENAL VISUAL RWY 30	162.1 KB
IAP	LA RIVER VISUAL RWY 12	132.1 KB
LAH	LAHSO	6.6 KB
MIN	TAKEOFF MINIMUMS	131.4 KB
MIN	ALTERNATE MINIMUMS	30.9 KB
STAR	KAYOH FOUR	253.6 KB
STAR	KEFFR ONE (RNAV)	176.7 KB
STAR	KEFFR ONE (RNAV), CONT.1	78.6 KB
STAR	TANDY THREE	178.9 KB
