FAA Information Effective: 5/2/2013

AOPA members save at 3,000+ GA airports.Book Now!
KMDHCivil
Public Use

Southern Illinois

Carbondale/Murphysboro, IL
Phone: 618-529-1721
www.siairport.com
Nearby airports

Operations | Communications | Weather | Runways | Comments | Remarks | Procedures | Services, Businesses & FBOsKneeboard Format

Overview

Attendance: Attended
Year-round, 7 Days a Week,All
Tower:Air Traffic Control Tower, 14 hrs/day, everyday, year-round
Elevation:411 ft (125.3 m) (Surveyed)
Location:3.00 mi. NW of Carbondale/Murphysboro
Beacon: Present (white-green)
Approaches:ILS, LOC, RNAV, GPS, NDB
Runways:06/24, 18L/36R, 18R/36L
Longest paved runway: 6506 ft
Fees:Tiedown, Hangar
  |  Embed this
  • METARs
  • TAFs

Expand Instrument Approach Procedures

Use subject to Terms and Conditions

Check All | Download checked: Single PDF | ZIP

  • Satellite

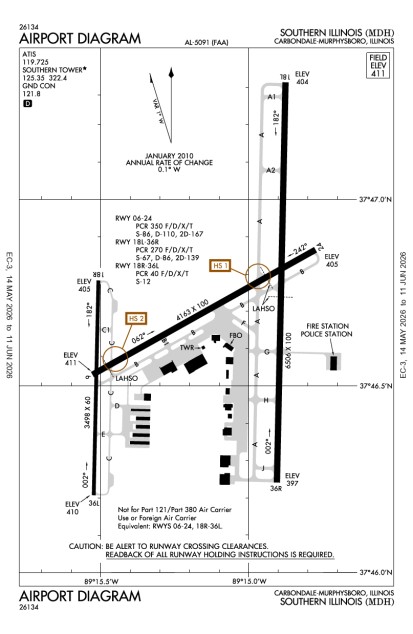

  • Diagram
  • Sectional

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

100LL$ 5.31  (self-service service)
Jet-A-Premix$ 5.39  (full service service)
100LL$ 5.49  (full service service)

Alerts

Security Directive SD-8G

Call FBO for transient pilot security procedures or after hours escort. Learn More

Expand Additional Remarks

NOTAMs | TFR's

Runway 06/24

Dimensions:4163 x 100ft. / 1268.9 x 30.5mWeight Bearing Cap: Single wheel: 36000 lb
Surface:asphalt, porous friction course, in fair conditionRunway Edge Lights:medium
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
06410.9ft. MSL
62° mag
61° true
0.1% down		basicvisual glide slope: 4-Box/Left-Side VASI
runway end identifier: REIL is present
Trees, 261 ft Left of center, 52 ft high, 686 ft from end, 15:1 clearance slope
24405.0ft. MSL
242° mag
241° true
0.1% up		basicvisual glide slope: 4-Light/Right-Side PAPI
runway end identifier: REIL is present

Runway 18L/36R

Dimensions:6506 x 100ft. / 1983.0 x 30.5mWeight Bearing Cap: Single wheel: 80000 lb
Surface:asphalt, grooved, in excellent conditionRunway Edge Lights:high
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
18L404.1ft. MSL
182° mag
181° true
0.1% down		precisionapproach: 1400ft/Medium-Intensity/Runway Alignment Indicators
ILS
36R397.2ft. MSL
2° mag
1° true
0.1% up		precisionrunway end identifier: REIL is present
visual glide slope: 4-Box/Left-Side VASI
Pole, 228 ft Left of center, 46 ft high, 1,169 ft from end, 21:1 clearance slope
Mkd Pline 39 Ft Abv Ry End; 1872 Ft Fm Ry; 192l Cntrln Apch Ratio 42:1

Runway 18R/36L

Dimensions:3498 x 60ft. / 1066.2 x 18.3mWeight Bearing Cap: Single wheel: 30000 lb
Surface:asphalt, no surface treatment, in excellent conditionRunway Edge Lights:medium
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
18R404.8ft. MSL
182° mag
181° true
0.2% up		No Databasicvisual glide slope: Pulsating-Steady Burn/Left-Side VASI
Trees, 114 ft Left of center, 26 ft high, 836 ft from end, 24:1 clearance slope
Unusbl Byd 6 Deg Right of Course. Pvasi Out of Service Indef
36L409.9ft. MSL
2° mag
1° true
0.2% down		No Databasicvisual glide slope: Pulsating-Steady Burn/Left-Side VASI
Trees, 30 ft Left of center, 80 ft high, 2,320 ft from end, 26:1 clearance slope

Business/Service Information

Name LocationFreq. MonitoredMain Phone
Flightline
  • Maintenance
  • $5.49
  • $5.31
  • $5.39
  • Rentals
  • Flight Training
 On field: CTR
37.777228-89.252071
UNICOM: 122.95
618-529-3377
Southern Illinois University Carbondale
    		On field: CTR
    		618-453-1147
    List Your Business in AOPA Airports

    Services at this airport:

    Services:
    Engine Repair: MajorAirframe Repair: Major
    Fuel: 100LL Low-Lead, Jet A
    Transportation: Public, Courtesy Car
    Rental Cars:
    EnterpriseBook Now! 866-315-9155

    Expand Nearby restaurants, attractions

    Information above provided by the airport manager.
    Search nearby: Hotels | Restaurants

    Expand Member Comments

    AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

    Only current AOPA members and business managers can post comments. Make sure you are logged in.

    Are you sure you want to delete this comment?

    CancelDelete

    Member-submitted Photos

    View all
    Upload your photos of Southern Illinois

      Operations & More Information

      Lat/Long:N37 46.6850' / W89 15.1217'
      Charts:NACO: St Louis Sectional
      Mag Var:01W (2010)
      ARTCC:Kansas City (ZKC)
      FSS:Saint Louis (STL)
      1-800-WXBRIEF
      NOTAM Facility:MDH
      Approach/Departure Control Facility
      Pattern Altitude:Light Aircraft: 1211 MSL; Heavy Aircraft: 1411 MSL
      Wind Indicator:Lighted
      Seg. Circle:Yes
      Lighting:When ATCT Clsd Ry 18l/36r Preset Med Intst; to Increase Intst & Actvt VASI Ry 06; PAPI Ry24; MIRL Ry 06/24; MALSR Ry 18l; VASI Ry 36r; HIRL Ry 18l/36r - CTAF. When ATCT Clsd 18r/36l & Pvasi Ry 18r & 36l by Request Only - Call 618-534-3662

      Aircraft & Activity

      Based GA Aircraft

      Single Engine:70
      Multi Engine:7
      Jets:1
      Helicopters:2
      Gliders:
      Ultralights:1

      Airport Activity

      GA Local:49,975
      GA Itinerant:27,104
      Commercial:5
      Air Taxi:867
      Military:462

      (12-month period ending on 12/31/2012)
