AOPA Airports: Manhattan Regional (KMHK)

AOPA members save at 3,000+ GA airports.Book Now!

KMHKCivil
Public Use

Manhattan Regional

Manhattan, KS
Phone: 785-587-4565
www.flymanhattan.com
Nearby airports

Overview

Attendance:	Attended Year-round, 7 Days a Week,0600-2200
Tower:	Air Traffic Control Tower, 10 hrs/day, everyday, year-round
Elevation:	1,066 ft (324.9 m) (Surveyed)
Location:	4.00 mi. SW of Manhattan
Beacon:	Present (white-green)
Approaches:	ILS, DME, LOC, VOR, RNAV, GPS
Runways:	03/21, 13/31 Longest paved runway: 7000 ft
Fees:	Tiedown, Hangar, Landing, Parking

Plain | Embed this

METARs
TAFs

Satellite
Diagram
Sectional

Open in Google Maps

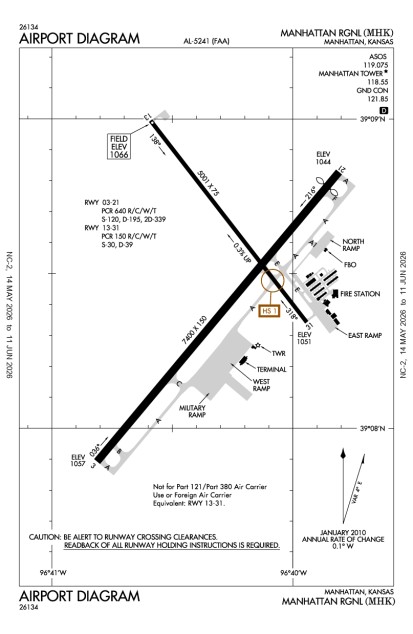

AIRPORT DIAGRAM

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

100 LL	$ 6.09 (self service)
Jet A	$ 4.90 (self service)
Jet A	$ 5.50 (full service)
100 LL	$ 6.80 (full service)

Expand Additional Remarks

Aft Hrs Air Carrier Ops are Not Authorized in Excess of 15 Min Before or After Scheduled Arrival or Departure Time Without Prior Coordination to Confirm Arff Services are Available Prior to Landing or Takeoff. Contact Mhk Arff 785-587-4521

Migratory Birds Invof Arpt Mar-May & Sep-Nov

Coyote & Deer on & Invof All Rys

Military Airfield 7 Miles SW Resembles This Arpt

Tpa 1900 Ft MSL (843 Ft Agl) Lgt Acft; 2500 Ft MSL (1443 Ft Agl) Turbine Powered Acft

Non-Std Atc Minima Applied Ifr Arvls with Respect to Hi-Performance-Acft Opns Conducted Within Cfns of R-3602

24 Hr Ppr for Unscheduled Air Carrier Ops with More Than 30 Passenger Seats, Call Airport Administration 785-587-4597

Ry 13/31 Clsd to Acft Over 33000 Lbs

Security Directive SD-8G

PPR fm APM for acft w/more than 30 pax

Restricted area R3602 A/B immediate W, no ovrflt; active artillery firing

NOTAMs | TFR's

Runway 03/21

Dimensions:	7000 x 150ft. / 2133.6 x 45.7m	Weight Bearing Cap:	Single wheel: 75000 lb
Surface:	concrete, grooved, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC	Obstructions
03	1055.9ft. MSL 36° mag 40° true 0.2% down	precision	approach: 1400ft/Medium-Intensity/Runway Alignment Indicators visual glide slope: 4-Light/Left-Side PAPI	ILS	Trees, 537 ft Left of center, 105 ft high, 3,996 ft from end, 36:1 clearance slope

21	1043.3ft. MSL 216° mag 220° true 0.2% up	non-precision	runway end identifier: REIL is present visual glide slope: 4-Light/Left-Side PAPI		Trees, 259 ft Right of center, 86 ft high, 2,124 ft from end, 23:1 clearance slope

Runway 13/31

Dimensions:	5000 x 75ft. / 1524.0 x 22.9m	Weight Bearing Cap:	Single wheel: 30000 lb
Surface:	concrete, no surface treatment, in good condition	Runway Edge Lights:	medium

#	Elev/Hdg	Markings	Approach Lights	Obstructions
13	1066.0ft. MSL 138° mag 142° true 0.4% down	non-precision	visual glide slope: 4-Box/Left-Side VASI	Pole, 392 ft Left of center, 237 ft high, 7,174 ft from end, 29:1 clearance slope

31	1044.6ft. MSL 318° mag 322° true 0.4% up	non-precision	runway end identifier: REIL is present visual glide slope: 4-Box/Left-Side VASI	Tree, 624 ft Left of center, 93 ft high, 1,607 ft from end, 15:1 clearance slope

Business/Service Information

Name		Location	Freq. Monitored	Main Phone
Gatts, Inc.	Flight Training	On field: E		888-778-6676
Heartland Aviation, Inc.	Maintenance $6.09 $4.90	On field: E 39.140113-96.664410		785-537-9200
J H Aviation	Flight Training	Manhattan, KS 39.140246-96.664410		620-629-1839
JO Flying Service	Maintenance Flight Training	MANHATTAN, KS 39.140180-96.665010		808-554-9969
Kansas Air Center	Maintenance $6.80 $5.50 Rentals Sales Flight Training	On field: SW	UNICOM: 122.85	785-776-1991
K-State Flying Club, INC	Flight Training	MANHATTAN, KS

List Your Business in AOPA Airports

Services at this airport:

Services:
Engine Repair: MajorAirframe Repair: Major
Fuel: 100LL Low-Lead, Jet A
Transportation: Courtesy Car
Rental Cars:

Enterprise	Book Now!	866-315-9155
Hertz

Expand Nearby restaurants, attractions

Subway 2 mi 785-539-0908

Little Apple Brewing Co 5 mi 785/539-5500

Gold Fork 8 mi 785-776-5909

Carlos O'Kellys 7 mi 785-537-4688

Harrys Downtown 6 mi 785-537-1300

Valentinos Italian Buffet 5 mi 785/539-6444

All Chinese Buffet 3 mi 785-539-8299

Grizzly's Grill 5 mi 785-532-9100

Taxi-4-Less 785-776-5508

Oz Museum 18 mi in Wamego

ABC Union 785-537-1295

Bell 785-537-2080

Sunset Zoo 6 mi

Kansas State University 7 mi

Fort Riley 5 mi

Information above provided by the airport manager.
Search nearby: Hotels | Restaurants

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

14713JC-70110/27/2011 3:01:19 AM UTC
Runway 13/31 is closed for underground utility construction.
9756011968247/29/2010 8:49:47 PM UTC
7-29-10 Runway 13/31 is now open for business.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Operations & More Information

Lat/Long:	N39 8.4740' / W96 40.3078'39.1412339-96.6717970
Charts:	NACO: Kansas City Sectional
Mag Var:	04E (2010)
ARTCC:	Kansas City (ZKC)
FSS:	Wichita (ICT) 1-800-WXBRIEF
NOTAM Facility:	MHK
Approach/Departure Control Facility	FRI
Pattern Altitude:	Light Aircraft: 1900 MSL; Heavy Aircraft: 2500 MSL; Turbine Aircraft: 2500 MSL
Wind Indicator:	Lighted
Seg. Circle:	Yes
Lighting:	Pilot Activated Lighting: high intensity: 7 clicks in 5 secs medium intensity: 5 clicks in 5 secs low intensity: 3 clicks in 5 secs When Twr Clsd Actvt HIRL Ry 03/21 & MIRL Ry 13/31; REIL Rys 21 & 31 - CTAF. PAPI Rys 03 & 21 and VASI Rys 13 & 31 Oper Cont. Actvt MALSR Ry 03 - CTAF

Aircraft & Activity

Based GA Aircraft

Single Engine:	33
Multi Engine:	12
Jets:
Helicopters:
Gliders:
Ultralights:

Airport Activity

GA Local:	7,027
GA Itinerant:	8,545
Commercial:	2,740
Air Taxi:
Military:	1,785

(12-month period ending on 12/31/2011)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone
Approach DEP/P	Marshall Aaf Gca	121.25
WX	Manhattan	119.075T (785-537-1035)
CTAF	Manhattan	118.55
Ground Control	Manhattan	121.85
Tower	Manhattan	118.55

Expand Navaids

ID	Type	Freq	Radial	Distance
MHK	VOR/DME	110.2	206	0 nm
CVY	NDB	314.0	034	9 nm
FRI	VOR	109.4	035	14 nm
CYW	NDB	362.0	118	27 nm
HRU	NDB	407.0	008	28 nm
TO	NDB	365.0	267	46 nm
TO	NDB	521.0	267	46 nm
SLN	VORTAC	117.1	066	46 nm
FOE	VOT	111.0	000	48 nm
FOE	TACAN	.0	279	49 nm

Contact Addresses

ASN Volunteer:	Owner:	Airport Manager:
David Rogers	City of Manhattan	Peter Van Kuren
	1101 Poyntz	5500 Ft Riley Suite 120
	Manhattan, KS 66502-5497	Manhattan, KS 66502-9791
	785-587-4560 (Office)	785-587-4565 (Office)
Contact the ASN Volunteer
Aft Hrs (2200-0600 Cst) Contact 785-587-4562

APD	AIRPORT DIAGRAM	88.8 KB
DP	WILSY ONE (RNAV)	259.5 KB
HOT	HOT SPOT	12 KB
IAP	ILS OR LOC/DME RWY 03	276.8 KB
IAP	RNAV (GPS) RWY 03	278.3 KB
IAP	RNAV (GPS) RWY 21	245.2 KB
IAP	VOR/DME-F	175.9 KB
IAP	VOR RWY 03	200.4 KB
MIN	TAKEOFF MINIMUMS	146.6 KB
MIN	ALTERNATE MINIMUMS	36.9 KB
