AOPA Airports: Minot Air Force Base (KMIB)

FAA Information Effective: 5/2/2013

AOPA members save at 3,000+ GA airports.Book Now!

KMIBUsaf
Private Use

Minot Air Force Base

Minot, ND
Phone: 701-723-1854
Nearby airports

Satellite
Diagram
Sectional

Open in Google Maps

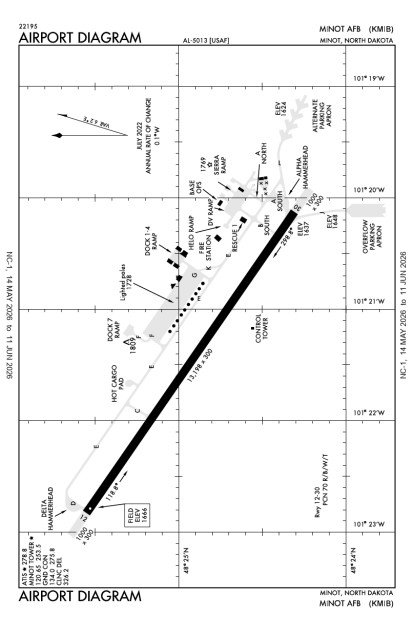

AIRPORT DIAGRAM

Click chart for current METARs and aeronautical charts

Expand Additional Remarks

Bearing Strength Rwy 11-29: St175, Sbtt590, Tdt837, Ddt870, & Trt580

Misc: Rsc/Rcr Not Reported When Afld Clsd

Misc Cont: ... Fr Offl Augmented Metro Obsn Pt, W of Horizon is Unobstructed. All Other Quad Contain Obst, Rstd Cap to Cont View and Evaluate Wx Cond. Work Perm, Atc and Metro Share Significant Chg in Wx Cond, Rwy Info, Eqpt Status and Obsn Pirep

Misc: Wx Svcs are H24 0600z++ Mon - 0400z ++Sat, Clsd Sat, Sun, and Hol As Dictated by Lcl Msn or Dur Fcsts Wvr Wx Cond at Dsn 453-6385, C701-723-6385. Dur Wx Flt Closure Remote Svc Avbl Fr 15 Opr Wx Squadron Dsn 576-9755, C618-256-9755. Augmented Wx Obsn When Flw Cond Observed: Tornado, Funnel

Caution: No Twy End Lights for Twy 'F' & Twy 'G' Where They Intersect Twy 'E'."

Caution: Bash Phase Ii Eff 31 Mar - 01 May, 01 Sep - 30 Nov

Rstd: Ftr and Acft Larger Than Dc-9 Proh Fr Using Skid Row/Dv Ramp

Rstd: Acft with Tt Type Ldg Gear with Max Acft Wt 477,000 Lbs or More Must CTC Afld Mgt Prior to Arr or Dep

Rstd: Avoid Ovft Blw 4200' of Afld When Clsd, Excld Publ Inst Apch of Dep Pro

Rstd: Ppr CTC Afld Mgr 72 Hr Pn Dsn 453-2347, C701-723-2347. Ppr All Acft Incl Dv, Haz Cargo and Airevac Regardless of Affiliation for Notification and Coord Purposes. All Ron Tran Crews Must CTC Comd Post with Billeting Arng.All Vip Acft CTC Comd Post No Later Than 60 Nm Out

Cstms/Ag/Img: Cstms Avbl for Acft Arr Fr Foreign Areas, Incl Rqr in Rmk Sec of Flt Plan and Reconfirm Not Later Than 30 Min Prior to Arr on Ptd. Incl A Pax Breakdown by Total Nr of Us Mil and Us Civ on Board, When Applicable

Ns Abtmt: Acc Quiet Hr Policy 0430-1200z++

Tfc Pat: Rectangular 2900', Multi-Eng Jet Rgt Tfc Rwy 29; Overhead 3400', Rgt Break Rwy 11

Caution: Bird Haz. Copter Vfr Opr in Eff H24 in Designated Test Area 2400' and Blw Lctd N of Rwy. Unctl Veh Tfc on Twy. Hi Potential for Hydroplaning First/Last 3000' of Rwy When Rwy Sfc Cond Present

Tran Alert: Opr 1330++-2330z++ Wkd; Clsd Sat and Sun

Oil: O-133-148 Joap - Rqr 2 Hr Pn Wkend

Fluid: Sp Presair De-Ice-Exp Possible Delay Wkend. Lox Lhox Lhnit

Fuel: J8

Jasu: 9(Md-3a) 2(M32a-60a) (Ma-1a)

RESTRICTED. MILITARY AIRPORT. PRIOR PERMISSION REQUIRED. CONTACT BASE OPS MANAGER 701/723-2347

NOTAMs | TFR's

Runway 11/29

Dimensions:	13197 x 300ft. / 4022.4 x 91.4m	Weight Bearing Cap:	Single wheel: 81000 lb
Surface:	concrete, grooved, condition not reported	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC
11	1666.5ft. MSL 115° mag 125° true 0.2% down	precision	approach: 2400ft/High-Intensity/Sequenced Flashers, Cat-I Config. visual glide slope: 4-Light/Left-Side PAPI	LOC/GS

29	1637.7ft. MSL 295° mag 305° true 0.2% up	precision	approach: 2400ft/High-Intensity/Sequenced Flashers, Cat-I Config. visual glide slope: 4-Light/Left-Side PAPI	ILS

Business/Service Information

List Your Business in AOPA Airports

Services at this airport:

Services:
Engine Repair: MajorAirframe Repair: MajorBulk Oxygen: Low

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Member-submitted Photos

View all
Upload your photos of Minot Air Force Base

Operations & More Information

Lat/Long:	N48 24.9461' / W101 21.4823'48.4157686-101.3580386
Charts:	NACO: Billings Sectional
Mag Var:	10E (1985)
ARTCC:	Minneapolis (ZMP)
FSS:	Grand Forks (GFK) 1-800-WXBRIEF
NOTAM Facility:	MIB
Approach/Departure Control Facility
Pattern Altitude:	No data provided. Assume 1000 AGL
Wind Indicator:	Present (unlit)
Seg. Circle:	No
Lighting:	No data

Aircraft & Activity

Based GA Aircraft

Single Engine:
Multi Engine:
Jets:
Helicopters:
Gliders:
Ultralights:

Airport Activity

GA Local:	NaN
GA Itinerant:	NaN
Commercial:
Air Taxi:
Military:	30,000

(12-month period ending on unknown)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone
Approach/Departure BASIC RADAR SVC	Minot	119.6
EMERG	Minot	121.5
Ground Control	Minot	134.0
Tower	Minot	120.65
RDR	Minot	119.6
RDR	Minot	120.0

Expand Navaids

ID	Type	Freq	Radial	Distance
MIB	TACAN	.0	076	0 nm
MOT	VORTAC	117.1	330	10 nm

Contact Addresses

Owner:	Airport Manager:
USAF	Base Operations
Minot Afb	Minot Afb
Minot, ND 58701	Minot, ND 58701

	Airport Manager Admin

Attendance:	Attended Operates 24 Frs From 1200z++ Mon Thru 0400z++ Fri.Year-round,Mon-Fri/Year-round,Sat&Sun/1500-2300z++
Tower:	ATCT plus Approach Control, 24 hrs/day, weekdays, other hours weekendsTower Hrs: 00Z++SAT AND SUNTower Hrs: OPR H24 FROM 1300++MON THRU-0500Z++SAT: ++1300-05Tower Hrs: SAME AS ATCT HRSPrimary Approach Control Hrs: 24ATIS Hrs: CONTINUOUS
Elevation:	1,667 ft (508.1 m) (Estimated)
Location:	10.00 mi. N of Minot
Beacon:	Present (split-white-green)
Approaches:	ILS, DME, LOC, TACAN
Runways:	11/29 Runway length: 13197 ft
Fees:	No data

APD	AIRPORT DIAGRAM	89.9 KB
IAP	HI-ILS OR LOC/DME RWY 11	255.8 KB
IAP	HI-ILS OR LOC/DME RWY 29	264.9 KB
IAP	ILS OR LOC/DME RWY 11	247.5 KB
IAP	ILS OR LOC/DME RWY 29	256.6 KB
IAP	HI-TACAN RWY 11	222.6 KB
IAP	HI-TACAN RWY 29	229.3 KB
IAP	TACAN RWY 11	213.1 KB
IAP	TACAN RWY 29	219.3 KB
IAP	COPTER TACAN 122	183.9 KB
IAP	COPTER TACAN 289	190 KB
