AOPA Airports: Crystal (KMIC)

Satellite

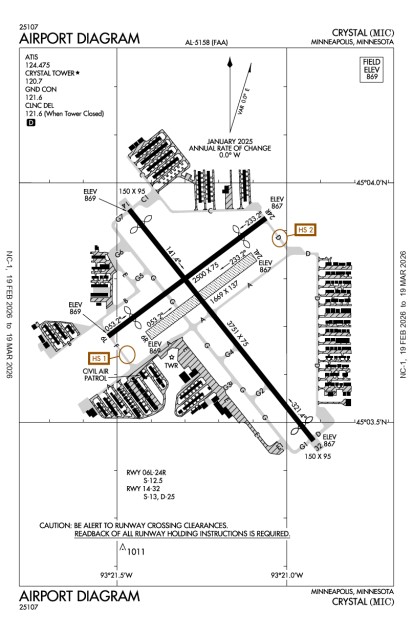

Diagram
Sectional

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

100LL	$ 4.25 (full service service)
Jet-A	$ 4.25 (full service service)

Expand Additional Remarks

Helicopter Training Conducted in Grass East of Ry 32r and South of Ry 24l

Ry 14l is Calm Wind Ry When ATCT is Clsd

When ATCT Clsd Snow Removal Operators Monitor 120.7

Ry 14r/32l Clsd to Fixed Wing Acft 1/2 Hr Aft Ss to 1/2 Hr Prior to Sr

Ultralight Opns Prohibited

Deer & Waterfowl on & Invof Arpt

When Taxiing Invof Ry 32l Runup Pad Vis Fm ATCT Obscured by Bldg

Intensive Flight Training

Runway 6R to 24L clsd winter

NOTAMs | TFR's

Runway 06L/24R

Dimensions:	2499 x 75ft. / 761.7 x 22.9m	Weight Bearing Cap:	Single wheel: 12500 lb
Surface:	asphalt, no surface treatment, in good condition	Runway Edge Lights:	medium

#	Elev/Hdg	Markings	Approach Lights	TD Point	Obstructions	Comments/Noise
06L	869.0ft. MSL 51° mag 53° true 0.1% down	basic	visual glide slope: 4-Box/Left-Side VASI	390' Disp Threshold	Tree, 141 ft Left of center, 58 ft high, 1,200 ft from end, 17:1 clearance slope	Ry 06l 27:1 to Dsplcd Thld

24R	866.8ft. MSL 231° mag 233° true 0.1% up	basic	visual glide slope: 4-Box/Left-Side VASI	389' Disp Threshold	Tree, 171 ft Right of center, 46 ft high, 672 ft from end, 10:1 clearance slope	Ry 24r 23:1 to Dsplcd Thld

Runway 06R/24L

Dimensions:	2122 x 150ft. / 646.8 x 45.7m	Weight Bearing Cap:
Surface:	turf, grass, sod, no surface treatment, in fair condition	Runway Edge Lights:

#	Elev/Hdg	Markings	Approach Lights	Comments/Noise
06R	868.9ft. MSL 51° mag 53° true 0.1% down	none	No Data	Ry 06r/24l Mkd with Yellow Cones

24L	867.0ft. MSL 231° mag 233° true 0.1% up	none	No Data

Runway 14L/32R

Dimensions:	3263 x 75ft. / 994.6 x 22.9m	Weight Bearing Cap:	Single wheel: 13000 lb
Surface:	asphalt, no surface treatment, in good condition	Runway Edge Lights:	medium

#	Elev/Hdg	Markings	Approach Lights
14L	867.5ft. MSL 139° mag 141° true 0.0% down	non-precision	runway end identifier: REIL is present visual glide slope: 4-Box/Left-Side VASI

32R	866.5ft. MSL 319° mag 321° true 0.0% up	non-precision	visual glide slope: 4-Box/Left-Side VASI runway end identifier: REIL is present

Runway 14R/32L

Dimensions:	3266 x 75ft. / 995.5 x 22.9m	Weight Bearing Cap:	Single wheel: 13000 lb
Surface:	asphalt, no surface treatment, in good condition	Runway Edge Lights:

#	Elev/Hdg	Markings	Approach Lights
14R	867.8ft. MSL 139° mag 141° true 0.0% down	basic	No Data

32L	866.5ft. MSL 319° mag 321° true 0.0% up	basic	No Data

Business/Service Information

Name		Location	Freq. Monitored	Main Phone
Club Cherokee		CRYSTAL, MN		952-334-7171
Maxwell Aircraft Service, Inc.	Maintenance	On field: SW		763-533-8611
North of Sixty Flying, Inc.	Maintenance $4.25 $4.25 Rentals Sales Flight Training	On field: SE	UNICOM: 122.95	763-745-7888
Thunderbird Aviation	Maintenance Rentals Sales Flight Training	On field: SW	ARINC: 131.32	763-533-4162
YANKEE FLYING CLUB		MINNEAPOLIS, MN		612-724-4312

List Your Business in AOPA Airports

Services at this airport:

Services:
Engine Repair: MajorAirframe Repair: Major
Fuel: 100LL Low-Lead, Jet A

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

18734BOATENTOD9/2/2012 7:40:24 PM UTC
Went to Thunderbird for an overnight tie down and fuel, staff was very friendly and helpfully, helped with our bags, called taxi for us, provided us with bottle water.
18331RICHNASSER7/31/2012 4:28:21 PM UTC
Flying Cloud has rental cars, but fuel may be cheaper at Crystal. Premier Jet Center at FCM are very friendly under new management and have awesome crew cars!
12078006275724/11/2011 2:37:24 AM UTC
I'm trying to decide between landing at Crystal or Flying Cloud. I'll flying a Skyhawk and will need fuel, a tie-down and a rental car for a few days. Any thoughts to help me decide between the two airports?
9680DPURSCELL7/23/2010 7:31:43 PM UTC
How strange. We were just thinking about them at the same time.
9674010552337/23/2010 11:38:59 AM UTC
Unfortunately with decline in GA they declared bankruptcy and closed down. No other buyers were available to run the business.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Operations & More Information

Lat/Long:	N45 3.7192' / W93 21.2363'45.0619861-93.3539375
Charts:	NACO: Twin Cities Sectional
Mag Var:	02E (2000)
ARTCC:	Minneapolis (ZMP)
FSS:	Princeton (PNM) 1-800-WXBRIEF
NOTAM Facility:	MIC
Approach/Departure Control Facility	MSP
Pattern Altitude:	Fixed Wing: 1869 MSL
Wind Indicator:	Lighted
Seg. Circle:	No
Lighting:	Pilot Activated Lighting: high intensity: 7 clicks in 5 secs medium intensity: 5 clicks in 5 secs low intensity: 3 clicks in 3 secs When ATCT Clsd Actvt MIRL Ry 06l/24r; REIL Ry14l/32r; MIRL Ry 14l/32r - CTAF

Aircraft & Activity

Based GA Aircraft

Single Engine:	172
Multi Engine:	12
Jets:	0
Helicopters:	8
Gliders:
Ultralights:

Airport Activity

GA Local:	110,704
GA Itinerant:	68,457
Commercial:
Air Taxi:	8,225
Military:	473

(12-month period ending on 4/30/2011)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone
Approach/Departure	Minneapolis	126.5
WX	Crystal	.0T (763-531-2343)
ATIS	Crystal	124.475
CTAF	Crystal	120.7
Ground Control	Crystal	121.6
Tower	Crystal	120.7
UNICOM	Crystal	122.95

Expand Navaids

ID	Type	Freq	Radial	Distance
GEP	VORTAC	117.3	165	5 nm
MSP	VOR/DME	115.3	331	11 nm
MSP	VOT	111.0	000	12 nm
STP	VOT	114.4	000	15 nm
FCM	VOR/DME	117.7	014	15 nm
PPI	NDB	400.0	300	21 nm
FGT	VORTAC	115.7	338	27 nm
CBG	NDB	350.0	186	30 nm
PNM	NDB	368.0	157	32 nm
GYL	NDB	407.0	057	36 nm
ROS	NDB	282.0	202	42 nm
STC	VOR/DME	112.1	131	42 nm
DWN	VORTAC	109.0	084	47 nm
JMR	NDB	327.0	181	50 nm

Contact Addresses

ASN Volunteer:	Owner:	Airport Manager:
Kevin Rebman	Metropolitan Airport Commission	Jeff Nawrocki
	6040 28th Avs S	6040 28th Ave S
	Minneapolis, MN 55450	Minneapolis, MN 55450
	612-726-8100 (Office)	763-537-2058 (Office)
Contact the ASN Volunteer
		Airport Manager Admin
Bernard Swanson, Maint Supsvr 763-537-4096

Attendance:	Attended Year-round,Sat-Sun/0700-1900Year-round,Mon-Fri/0700-2100
Tower:	Air Traffic Control Tower, 14 hrs/day, everyday, year-round
Elevation:	869 ft (264.9 m) (Surveyed)
Location:	8.00 mi. NW of Minneapolis
Beacon:	Present (white-green)
Approaches:	VOR, RNAV, GPS
Runways:	06L/24R, 06R/24L (unpaved) , 14L/32R, 14R/32L Longest paved runway: 3266 ft
Fees:	No data

APD	AIRPORT DIAGRAM	130.9 KB
HOT	HOT SPOT	14.5 KB
IAP	RNAV (GPS) RWY 14L	235.9 KB
IAP	VOR OR GPS-A	175.8 KB
MIN	TAKEOFF MINIMUMS	155.2 KB
MIN	ALTERNATE MINIMUMS	46.4 KB
STAR	AGUDE FOUR	240.4 KB
STAR	ENCEE ONE (RNAV)	141 KB
STAR	GOPHER SIX	279 KB
STAR	TWOLF TWO	188.2 KB
STAR	TWOLF TWO, CONT.1	101.7 KB

Crystal

Overview

Expand Instrument Approach Procedures
