AOPA Airports: Minot International (KMOT)

Satellite
Diagram
Sectional

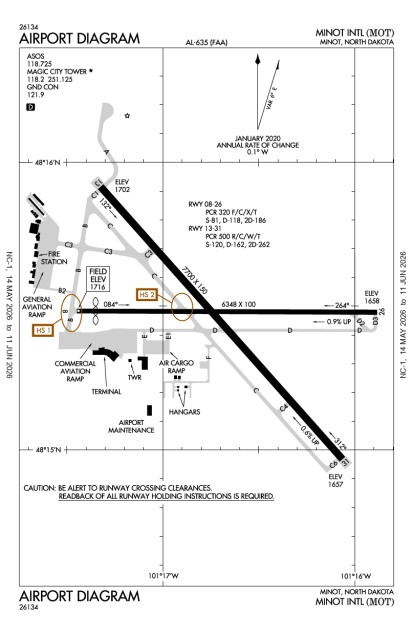

KMOT (Minot International) airport diagram

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

Jet-A-Premix	$ 5.50 (full service service)
100LL	$ 5.60 (full service service)
Jet A	$ 5.65 (full service)
100 LL	$ 6.25 (full service)
Jet-A	$ 5.50 (full service service)

Expand Additional Remarks

(Dspl Thr Elev Datum, Rwy 08) Converted to Navd88 on 18 Oct 2002 Using Vertcon Fm Ngs

Minot Afb (Mib) Asr Out of Service for Preventive Maintenance Fridays 0700-0900 & Altn Tuesdays 0630-0830

Customs Svc Avbl 24 Hrs; for Customs Call 701-838-6704

Twys D/E/B2 Restricted to 12500 Lbs or Less & are Marked with Edge Reflectors

Deer & Birds Invof Arpt

Security Directive SD-8G

Intensive Flight Training

NOTAMs | TFR's

Runway 08/26

Dimensions:	6351 x 100ft. / 1935.8 x 30.5m	Weight Bearing Cap:	Single wheel: 120000 lb
Surface:	asphalt, grooved, in fair condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	TD Point	Obstructions	Comments/Noise
08	1715.7ft. MSL 80° mag 90° true 0.9% down	non-precision	visual glide slope: 4-Light/Left-Side PAPI runway end identifier: REIL is present	393' Disp Threshold	Trees, 616 ft Left of center, 81 ft high, 1,764 ft from end, 19:1 clearance slope	Rwy 08 Apch Ratio 24:1 Fm Dsplcd Thld

26	1658.2ft. MSL 260° mag 270° true 0.9% up	non-precision	visual glide slope: 4-Light/Left-Side PAPI runway end identifier: REIL is present

Runway 13/31

Dimensions:	7700 x 150ft. / 2347.0 x 45.7m	Weight Bearing Cap:	Single wheel: 120000 lb
Surface:	concrete, grooved, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC
13	1701.8ft. MSL 128° mag 138° true 0.6% down	precision	visual glide slope: 4-Light/Left-Side PAPI

31	1657.3ft. MSL 308° mag 318° true 0.6% up	precision	approach: 1400ft/Medium-Intensity/Runway Alignment Indicators runway visual range: Touchdown	ILS/DME

Business/Service Information

Name		Location	Freq. Monitored	Main Phone
Minot Aero Center	$6.25 $5.60 $5.65 $5.50 $5.50	On field: W 48.262313-101.293859	UNICOM: 122.95	701-857-4738
Minot Aero Center	Maintenance $6.25 $5.65 Rentals Flight Training	On field: NW 48.262341-101.294149	UNICOM: 122.95	701-857-4738
Pietsch Aircraft Restoration and Repair	Maintenance $5.80 $5.50 Rentals Sales Flight Training	On field: W 48.262513-101.293409	UNICOM: 122.95	701-852-4092

List Your Business in AOPA Airports

Services at this airport:

Services:
Engine Repair: MajorAirframe Repair: Major
Fuel: 100LL Low-Lead, Jet A
Transportation: Shuttle Bus, Courtesy Car, Van
Rental Cars:

Enterprise	Book Now!	866-315-9155
National	Book Now!	866-315-9155
Avis
Hertz

Customs: Airport of Entry

Expand Nearby restaurants, attractions

Vegas 701-839-3000

Taxi-9000 701-852-9000

Dakota Square 5 mi

Scandinavian Heritage Center 3 mi

Roosevelt Park 4 mip

Hardee's 5 blk 701-838-4408

Lucky Strike 2 blks 701-852-2902

Roll-N-Pin 4 blks 701-839-8774

International Inn 2 blk 701-852-3161

Minot 701-852-8000

Information above provided by the airport manager.
Search nearby: Hotels | Restaurants

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

13191066560697/22/2011 4:55:03 PM UTC
Used KMOT as a fuel and customs stop on trip to Alaska. Great service from Minot Aero, the Tower, and Customs! Landed just before heavy rain which caught us during taxi. Minot Aero met us at the plane with umbrellas. All this at a time when they are dealing with terrible flooding. Thanks Minot!
10325DEANLYONSMD9/19/2010 6:08:34 PM UTC
Minot Aero Center is now run by Pietsch Aricraft. Service, courtesy, amenities and professionalism are excellent. Rental cars can be dropped off there. Offering to bring the plane to the ramp in a light rain without asking was appreciated. This FBO is now run by pilots, for pilots. They have a great air museum right on the field. Fuel prices are good. I highly recommend stopping there. Mooney N101DX.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Operations & More Information

Lat/Long:	N48 15.4583' / W101 16.6817'48.2576389-101.2780278
Charts:	NACO: Billings Sectional
Mag Var:	10E (1990)
ARTCC:	Minneapolis (ZMP)
FSS:	Grand Forks (GFK) 1-800-WXBRIEF
NOTAM Facility:	MOT
Approach/Departure Control Facility	MIB
Pattern Altitude:	Light Aircraft: 2515 MSL; Heavy Aircraft: 3215 MSL
Wind Indicator:	Lighted
Seg. Circle:	Yes
Lighting:	Pilot Activated Lighting: high intensity: 7 clicks in 5 secs medium intensity: 5 clicks in 5 secs low intensity: 3 clicks in 5 secs When ATCT is Clsd Actvt HIRL Rys 08/26 & 13/31; REIL Rys 08,26 ; MALSR Ry 31 - CTAF. PAPI Rys 08, 26 & 13 Oper 24 Hrs

Aircraft & Activity

Based GA Aircraft

Single Engine:	117
Multi Engine:	6
Jets:	3
Helicopters:	1
Gliders:
Ultralights:

Airport Activity

GA Local:	15,212
GA Itinerant:	15,446
Commercial:	7,094
Air Taxi:	4,965
Military:	6,439

(12-month period ending on 6/30/2012)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone
Approach/Departure	Minot	119.6
WX	Magic City	118.725T (701-837-9379)
CTAF	Magic City	118.2
Ground Control	Magic City	121.9
Tower	Magic City	118.2
UNICOM	Magic City	122.95

Expand Navaids

ID	Type	Freq	Radial	Distance
MOT	VORTAC	117.1	101	0 nm
MIB	TACAN	.0	150	10 nm

Attendance:	Attended Year-round, 7 Days a Week,All
Tower:	Air Traffic Control Tower, 15 hrs/day, everyday, year-round
Elevation:	1,716 ft (523.0 m) (Surveyed)
Location:	2.00 mi. N of Minot
Beacon:	Present (white-green)
Approaches:	ILS, DME, LOC, VOR, RNAV, GPS
Runways:	08/26, 13/31 Longest paved runway: 7700 ft
Fees:	Landing, Parking, Tiedown, Hangar

APD	AIRPORT DIAGRAM	103.9 KB
HOT	HOT SPOT	12 KB
IAP	ILS OR LOC RWY 31	264.1 KB
IAP	RNAV (GPS) RWY 08	250.4 KB
IAP	RNAV (GPS) RWY 13	205.7 KB
IAP	RNAV (GPS) RWY 26	228.8 KB
IAP	RNAV (GPS) RWY 31	219.8 KB
IAP	LOC/DME BC RWY 13	206.3 KB
IAP	VOR RWY 08	203.4 KB
IAP	VOR RWY 13	135.1 KB
IAP	VOR RWY 26	208.9 KB
IAP	VOR RWY 31	136.7 KB
MIN	TAKEOFF MINIMUMS	155.2 KB
MIN	ALTERNATE MINIMUMS	44.6 KB

Owner:	Airport Manager:
City of Minot	Andrew Solsvig
25 Airport Rd	25 Airport Rd
Minot, ND 58703	Minot, ND 58703
701-857-4724 (Office)	701-857-4724 (Office)

Minot International
