AOPA Airports: Mountain Home Air Force Base (KMUO)

FAA Information Effective: 5/2/2013

AOPA members save at 3,000+ GA airports.Book Now!

KMUOUsaf
Private Use

Mountain Home Air Force Base

Mountain Home, ID
Phone: 208-828-2222
Nearby airports

Satellite
Diagram
Sectional

Open in Google Maps

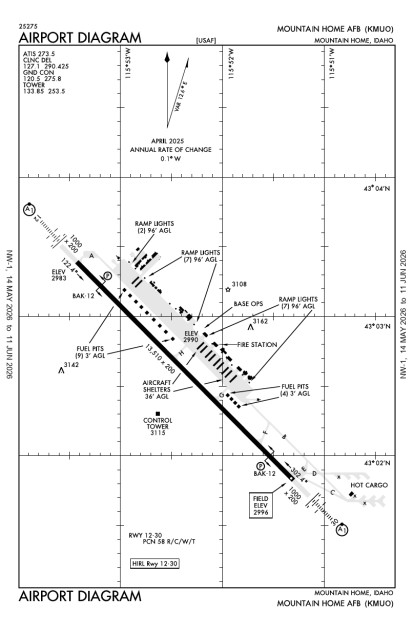

AIRPORT DIAGRAM

Click chart for current METARs and aeronautical charts

Expand Additional Remarks

Caution: Acft Shelters Lctd Aprx 1100 Ft E of Rwy Cntrln

Misc: for Emerg Atc Svc Requiring Opening of Mountain Home Afb Afld Outside of Publ Hr CTC Mountain Home Comd Post Dsn 728-5800 or C208-828-5800. Exp 30 Min Delay for Coord

Caution: Rwy Edge Lgts Lctd 27-32' Fr Edge of Usable Rwy Sfc. Rwy 30 Hold Sign at Int of Rwy 30 and Twy Echo Incorrectly Sited. Lctn May Create Confusion of Actual Vfr Hold Posn

Fluid: De-Ice

Misc: Human Obsn Sfc Vis Ltd From 310-090

Caution: Hydroplaning Potential Increased Dur Wet Ry Conditions. Ry 12/30 Sfc is Non-Grooved

Rstd: All Acft Must Adhere to Ppr Eta +/- 30 Min or Ppr is Invalid. CTC Base Ops Dsn 728-2222, C208-828-2222, Fax Extn 4128

Misc: Afld Wx is Maint by An/Fmq-19 Automated Observing System and Augmented by Human Observer During Opr Hr. Dsn 728-6303, C208-828-6303, Fax Etn 4438

Misc: Afld Subject to Short Notice Closures

Caution: "Taxilines in Eor's are Made for Acft with Wingspans of 43 Ft or Less Only."

Cstms Rqr for All Cargo & Non-Us Mil Pers Must be Completed by Us Cstms Office, Boise. Ensure Aircrew Remain at Acft Til Cstms Arr

Cstms/Ag/Img: Consult Base Ops Prior Planning Msn. Acft Req Support Must CTC 366 Sfs Police Dsn 728-2256, Com 208-828-2256 &/or Afld Mgr Dsn 728-2222, Com 208-828-2222 at Least 24 Hr Prior Arr. Failure to Comply May Result in Delays. 366 Sfs Police Provide Cstms for Us Mil Pers

Rwy Surface Type: Pem

Acc Comd Post: 311.0 321.0 15091 Remarks(Have Quick Timing Avbl 381.3) (Raymond 27)

Misc:Std Usaf Rsrs Applied. Acc Acft Exp Reduced Rwy Separation: Acc Acft Not Wishing to Participate in Rsrs Will Make Intentions Known on Initial CTC with Twr

Misc: First 1280' Rwy 12-30 Concrete, Mid 10,940 Asphaltic Concrete. Acft Carry Drag Chutes to Prk or Advs Twr

Ns Abtmt: Comd Quiet Hr Policy in Eff 0530-1300z++

Tfc Pat: Overhead/Ftr Rectangular 4800', Lgt Acft/Copter 3800'. All Dep Maint at or Blw 4300' Til Dep End. Cargo Rectangular at 4300'

Waterfowl Hazard. See Ap/1

Rstd: All Dep Maint at or Blw 4300' Til Dep End. Ppr Only Exc Vip Code 6 or Abv, Airevac and Saam. Min 24 Hr Ntc Rqr and No More Than 7 Days Prior. Acft Rqr Cstms Must Coord for Ppr No Later Than 48 Hrs Prior

Svc Tran Alert: Opr 1400-0700z++ Mon-Thu, 1400-0100z++ Fri, Clsd Wkend & Hol

Oil: O-148-156 Joap

Fuel: J8

Jasu: 2(Am32a-60)

A-Gear: Rwy 12-30 Bak-12b in Raised Posn, Req 30 Min Pn for Removal

RESTRICTED. MILITARY AIRPORT. PRIOR PERMISSION REQUIRED. CONTACT BASE OPS MANAGER 208/828-2222

NOTAMs | TFR's

Runway 12/30

Dimensions:	13508 x 200ft. / 4117.2 x 61.0m	Weight Bearing Cap:	Single wheel: 155000 lb
Surface:	pem, no surface treatment, condition not reported	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC	Comments/Noise
12	2983.1ft. MSL 117° mag 135° true 0.1% up	precision	approach: 2400ft/High-Intensity/Sequenced Flashers, Cat-I Config. visual glide slope: 4-Light/Left-Side PAPI	ILS	(964')

30	2995.9ft. MSL 297° mag 315° true 0.1% down	precision	approach: 2400ft/High-Intensity/Sequenced Flashers, Cat-I Config. visual glide slope: 4-Light/Left-Side PAPI	ILS	(1500')

Business/Service Information

List Your Business in AOPA Airports

Services at this airport:

Services:
Bulk Oxygen: High/Low
Fuel: Jet B +Icing Inhibitor

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Member-submitted Photos

View all
Upload your photos of Mountain Home Air Force Base

Operations & More Information

Lat/Long:	N43 2.6158' / W115 52.3458'43.0435972-115.8724306
Charts:	NACO: Salt Lake City Sectional
Mag Var:	18E (1975)
ARTCC:	Salt Lake City (ZLC)
FSS:	Boise (BOI) 1-800-WXBRIEF
NOTAM Facility:	MUO
Approach/Departure Control Facility
Pattern Altitude:	No data provided. Assume 1000 AGL
Wind Indicator:	Present (unlit)
Seg. Circle:	No
Lighting:	No data

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone
Approach	Mountain Home	124.8
Approach(S)	Mountain Home	134.1
Clearance-Delivery	Mountain Home	127.1
EMERG	Mountain Home	121.5
Ground Control	Mountain Home	120.5
Tower	Mountain Home	133.85
PTD	Mountain Home	138.9

Expand Navaids

ID	Type	Freq	Radial	Distance
MUO	TACAN	.0	009	0 nm
LIA	VOR	114.9	292	6 nm
STI	NDB	333.0	229	10 nm
BOI	VORTAC	113.3	138	34 nm
BOI	VOT	116.7	000	35 nm
BO	NDB	221.0	135	38 nm
BO	NDB	359.0	135	38 nm
MPA	NDB	238.0	123	45 nm

Contact Addresses

Owner:	Airport Manager:
USAF	Base Operations (Otb)
347 Cs Group, Mt Home Afb	347 Cs Group, Mt Home Afb
Mountain Home, ID 83648	Mountain Home, ID 83648

	Airport Manager Admin

Attendance:	Attended 1400-0700z++ Mon-Thu; 1400-0100z++ Fri; 1400-2300z++ Sat-Sun; Closed Hol.All
Tower:	ATCT plus Approach Control, 17 hrs/day, weekdays, other hours weekendsTower Hrs: AND HOL.Tower Hrs: 1400-0700Z++ MON-THU; 1400-0100Z++ FRI; CLSD WKENDTower Hrs: 24Primary Approach Control Hrs: 24ATIS Hrs: PART-TIME
Elevation:	2,996 ft (913.2 m) (Surveyed)
Location:	10.00 mi. SW of Mountain Home
Beacon:	Present (white-green)
Approaches:	ILS, DME, LOC, TACAN
Runways:	12/30 (unpaved) Runway length: 13508 ft
Fees:	No data

APD	AIRPORT DIAGRAM (changed)	85 KB
IAP	HI-ILS OR LOC/DME RWY 12	209.6 KB
IAP	HI-ILS OR LOC/DME RWY 30	213.8 KB
IAP	ILS OR LOC/DME RWY 12	197.4 KB
IAP	ILS OR LOC/DME RWY 30	199.2 KB
IAP	HI-TACAN RWY 12	196.6 KB
IAP	HI-TACAN RWY 30	237.3 KB
IAP	TACAN RWY 12	186.4 KB
IAP	TACAN RWY 30	223.4 KB
MIN	TAKEOFF MINIMUMS	222 KB
