AOPA Airports: Fallon Nas /Van Voorhis Field (KNFL)

FAA Information Effective: 5/2/2013

3934 msl

AOPA members save at 3,000+ GA airports.Book Now!

KNFLNavy
Private Use

Fallon Nas /Van Voorhis Field

Satellite
Diagram
Sectional

Open in Google Maps

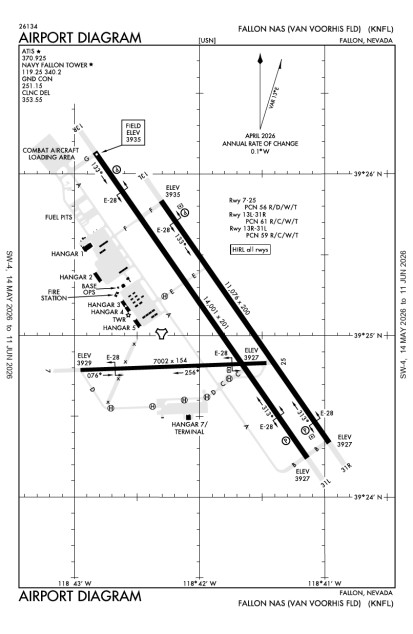

AIRPORT DIAGRAM

Click chart for current METARs and aeronautical charts

Expand Additional Remarks

Caution: Extv Bird Act Within Aprx 15 Nm of Arpt Fr Sfc to Aprx 3000' Agl. General Avn Acft Opr Fr Fallon Muni Arpt 5 Nm Nnw

Rstd - Ppr 24 Hr in Advance for Tran Svc Exc Medevac, Sar, Deployed Squadrons/Cvw or Sked Logistics Flt. Ppr Valid Only 4 Hr Byd Eta Unless Resked, Dsn 890-3415/3479, C775-426-3415/3479

See Flip Ap/1 Supplementary Arpt Rmk

Tran Alert: No Tran Maint/Hgr Space or De-Ice Avbl

Fluid: Sp Lox

Jasu: 1(Gtc-85) 1(Ncpp-105) 2(Nc-8a)

Caution: Radar Twr 1.1 Nm SW of Ctl Twr 167' Agl. Large Multi-Eng Acft Full Stop/Touch and Go Land Past E-28 A-Gear at Apch Ends. Twy C, S Apn to Apch End Rwy 25 Varies in Width Tapering to 50' Wide E of Rwy 13r-31l. Twy D, S Apn to Apch End Rwy 07, 50' Wide

Fuel: 4 Hr Pn Rqr for Acft Req for Hot Refueling, Dsn 890-2508/9 C775-426-2508/9. J8

Misc: Sked of Frtc Airspace Outside of Publ Airfield Hrs Will be Allowed Only After Apvl Has Been Granted by the Nas Fallon Ops Officer to Extn/Mod Publ Airfield Hrs

Misc: Base Ops Dsn 890-2419/2458, C775-426-2419/2458. Logistics Acft Exp Asr/Par Apch

Ns Abtmt: When Dep Rwy 31l Turn Rgt, Hdg 040ø, Over Dep End. All Acft CTC Odo, Dsn 890-2419/2458, C775-426-2419/2458, Prior to Filing Vfr, for Noise Sensitive Area Briefing. Str-in Apch Only Mon-Fri After 0600z ++ and All Day Sun

Tfc Pat: All Acft Activate Ldg/Taxi Lgt While on Apch. Reduced Rwy Separation Std in Eff for Usn/Usmc Acft. Initial All Rwy 7600'; Overhead Break 5500'; No Overhead for Rwy 07; Pat Alt 5000'. Due Extv Tfc, Acft Req Practice Apch Exp Len Delays

A-Gear: E-28(B) Apch End Rwy 31r Nml Derigged

RESTRICTED. MILITARY AIRPORT. PRIOR PERMISSION REQUIRED. CONTACT BASE OPS MANAGER 775/426-2419

NOTAMs | TFR's

Runway 07/25

Dimensions:	7003 x 154ft. / 2134.5 x 46.9m	Weight Bearing Cap:
Surface:	asphalt, no surface treatment, condition not reported	Runway Edge Lights:	high

#	Elev/Hdg	Tr. Pat.	Approach Lights	Comments/Noise
07	3928.1ft. MSL 73° mag 87° true 0.0% down	No Data	No Data	Hook E28(B) (1300')

25	3926.3ft. MSL 253° mag 267° true 0.0% up	No Data	No Data	Hook E28(B) (1293')

Runway 13L/31R

Dimensions:	11080 x 200ft. / 3377.2 x 61.0m	Weight Bearing Cap:
Surface:	concrete, no surface treatment, condition not reported	Runway Edge Lights:	high

#	Elev/Hdg	Tr. Pat.	Approach Lights	Comments/Noise
13L	3934.2ft. MSL 131° mag 145° true 0.1% down	No Data	No Data	Hook E28(B) (952')

31R	3926.0ft. MSL 311° mag 325° true 0.1% up	No Data	No Data	Hook E28(B) (954')

Runway 13R/31L

Dimensions:	14005 x 201ft. / 4268.7 x 61.3m	Weight Bearing Cap:	Single wheel: 93000 lb
Surface:	asphalt, no surface treatment, condition not reported	Runway Edge Lights:	high

#	Elev/Hdg	Tr. Pat.	Approach Lights	Comments/Noise
13R	3934.1ft. MSL 131° mag 145° true 0.1% down	No Data	visual glide slope: 4-Light/Left-Side PAPI	Hook E28(B) (1804')

31L	3925.9ft. MSL 311° mag 325° true 0.1% up	No Data	visual glide slope: 4-Light/Left-Side PAPI	Hook E28(B) (1897')

Business/Service Information

List Your Business in AOPA Airports

Services at this airport:

Services:
Bulk Oxygen: High/Low

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Member-submitted Photos

View all
Upload your photos of Fallon Nas /Van Voorhis Field

Operations & More Information

Lat/Long:	N39 25.0699' / W118 41.9156'39.4178317-118.6985939
Charts:	NACO: San Francisco Sectional
Mag Var:	14E (2010)
ARTCC:	Oakland (ZOA)
FSS:	Reno (RNO) 1-800-WXBRIEF
NOTAM Facility:	NFL
Approach/Departure Control Facility
Pattern Altitude:	Tfcpat: Initial All Rys 7600 Ft Msl; Overhead Break 5500 Ft Msl; No Overhear Ry 07. Pat Alt 5500 Ft MSL
Wind Indicator:	Not Present
Seg. Circle:	No
Lighting:	No data

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone
Approach/Departure	Navy Fallon	120.85
EMERG	Navy Fallon	121.5
Tower	Navy Fallon	119.25
RDR	Navy Fallon	123.0
RDR Tower(S)	Navy Fallon	134.1

Expand Navaids

ID	Type	Freq	Radial	Distance
NFL	TACAN	.0	066	0 nm
HZN	VORTAC	114.1	096	15 nm
LLC	VORTAC	116.5	172	43 nm
FMG	VORTAC	117.9	082	45 nm

Contact Addresses

Owner:	Airport Manager:
US Navy	Commanding Officer
Oceanographic Ofc - Code 3142	Naval Air Station
Washington, DC 20373	Fallon, NV 89406

	Airport Manager Admin

Attendance:	Attended Sat-Sun Opr By Ppr/Lcl Use Only. Closed Hol. Other Times By Notam.Year-round,Mon-Fri/1515-0645z++
Tower:	ATCT plus Approach Control, 15 hrs/day, everyday, year-roundTower Hrs: SAME AS TWR HOURS
Elevation:	3,934 ft (1,199.1 m) (Estimated)
Location:	3.00 mi. NE of Fallon
Beacon:	Present (split-white-green)
Approaches:	RNAV, GPS, TACAN
Runways:	07/25, 13L/31R, 13R/31L Longest paved runway: 14005 ft
Fees:	No data

APD	AIRPORT DIAGRAM	121.1 KB
DP	WATER FIVE	223.3 KB
DP	WATER FIVE, CONT.1	89.1 KB
DP	YERIN FIVE	263.5 KB
IAP	RNAV (GPS) RWY 13R	229.1 KB
IAP	RNAV (GPS) RWY 31L	212 KB
IAP	HI-TACAN RWY 13R	216.9 KB
IAP	HI-TACAN RWY 31L/R	258.1 KB
IAP	TACAN RWY 13R	239.5 KB
IAP	TACAN RWY 31L/R	260.6 KB
MIN	TAKEOFF MINIMUMS	112.8 KB
MIN	RADAR MINIMUMS	35 KB
