AOPA Airports: Metropolitan Oakland International (KOAK)

FAA Information Effective: 5/2/2013

AOPA members save at 3,000+ GA airports.Book Now!

KOAKCivil
Public Use

Metropolitan Oakland International

Oakland, CA
Phone: 510-563-6436
www.oaklandairport.com
Nearby airports

Satellite
Diagram
Sectional

Open in Google Maps

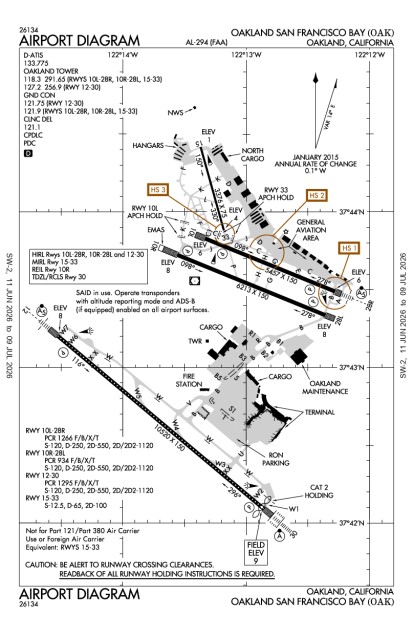

AIRPORT DIAGRAM

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

Jet-A	$ 5.92 (truck service)
100LL	$ 7.38 (truck service)

Alerts

Security Directive SD-8G

Call FBO for transient pilot security procedures or after hours escort. Learn More

Expand Additional Remarks

100' Lighted Microwave Antenna Twr Lctd 1320' Wsw of Oak Vortac; S of Upwind End of Rwy 27l

1000 Ft Clearways Ry 11 & Ry 29

Acft with Experimental or Limited Certification Having Over 1000 Horsepower or 4000 Lbs are Restricted to Ry 11/29

Noise Abatement Procedures Not Applicable in Emergencies or Whenever Ry 11/29 is Clsd Due to Maintenance, Safety, Winds or Weather

Rwys 09l/27r & 09r/27l Have Centerline Reflectors

400 Ft Blast Pad Ry 29 & 500 Ft Blast Pad Ry 11

Twy K Between Rwy 9r and Intersection Twys F, L, K Max Acft Weight 25,000 Lbs Single; 45,000 Lbs Dual; Tandem Not Authorized

Twy K Between Twy D & Intersection Twys F, L, K Max Acft Weight 25,000 Lbs Single; 115,000 Lbs Dual; 140,000 Lbs Tandem

Twy C Between Twy J & F Max Acft Weight 25,000 Lbs Single; 150,000 Lbs Dual; 155,000 Lbs Tandem (Dual Tandem Not Authorized)

Twy C Between Twy G & J Max Acft Weight 25,000 Lbs Single; 175,000 Lbs Dual; 400,000 Lbs Tandem

Twy C Between Rwy 27r & Twy G and Twys B, J, and D Max Acft Weight 900,000 Lbs

Twy P Max Acft Weight 24,000 Lbs Single; 40,000 Lbs Dual

Twy G & H Between Rwy 27 L & 27r: Max Acft Weight 12,500 Lbs

Twy A, E, G, H Between Rwy 27r and Twy C Max Acft Weight 150,000 Lbs

Intersection of Twys B, W and V Not Visible From Atct. Twy K Btn Ry 33 and Twy D and Portions of Twy D Not Visible From ATCT

24 Hr Noise Abatement Procedure - Turbojet and Turbofan Powered Acft, Turborops Over 17, 000 Lbs, Four-Engine Reciprocating Powered Acft, and Surplus Military Aircraft Over 12,500 Pounds Should Not Depart Rys 27r & 27r or Land on Rys 09r & 09l

Preferential Ry Use Program in Effect 2200-0600. North Fld Preferred Arr Ry 27l, North Fld Preferred Dep Rys 09r or 27r. If These Rys Unacceptable for Safety or Atc Instruction Then Ry 11/29 Must be Used

Ry 15/33 Clsd to Air Carrier Acft

for Noise Abatement Information CTC Noise Abatement Office at (510) 563-6463

Rys 29, 27r and Ry 27l Distance Remaining Signs Left Side

Birds on & Invof Arpt

Security Directive SD-8G

Intensive Flight Training

TPA's nonstandard ctc APM

Part 150 ; arr & dep ovr body of water; ry restrictions imposed for specific acft; gnd run-up restrictions; ctc APM for info

NOTAMs | TFR's

Runway 09L/27R

Dimensions:	5458 x 150ft. / 1663.6 x 45.7m	Weight Bearing Cap:
Surface:	asphalt, grooved, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC	Obstructions
09L	5.5ft. MSL 96° mag 112° true 0.0% up	precision	visual glide slope: 4-Light/Right-Side PAPI

27R	5.8ft. MSL 276° mag 292° true 0.0% down	precision	visual glide slope: 4-Light/Left-Side PAPI approach: 1400ft/Medium-Intensity/Runway Alignment Indicators runway visual value: RVV is present	ILS	Building, 480 ft Right of center, 11 ft high, 530 ft from end, 30:1 clearance slope

Runway 09R/27L

Dimensions:	6213 x 150ft. / 1893.7 x 45.7m	Weight Bearing Cap:
Surface:	asphalt, grooved, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Tr. Pat.	Markings	Approach Lights
09R	8.1ft. MSL 96° mag 112° true	No Data	precision	runway end identifier: REIL is present visual glide slope: 4-Light/Left-Side PAPI

27L	8.2ft. MSL 276° mag 292° true		precision	runway visual value: RVV is present visual glide slope: 4-Light/Left-Side PAPI

Runway 11/29

Dimensions:	10001 x 150ft. / 3048.3 x 45.7m	Weight Bearing Cap:
Surface:	asphalt, grooved, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC
11	7.8ft. MSL 113° mag 129° true 0.0% up	precision	runway visual range: Touchdown, Midfield, Rollout centerline: Centerline Lights are present visual glide slope: 4-Light/Left-Side PAPI approach: 1400ft/Medium-Intensity/Runway Alignment Indicators	ILS

29	8.6ft. MSL 294° mag 310° true 0.0% down	precision	approach: 2400ft/High-Intensity/Sequenced Flashers, Cat-II/III Config. centerline: Centerline Lights are present runway visual range: Touchdown, Midfield, Rollout end touchdown: End Touchdown Lights are present visual glide slope: 4-Light/Left-Side PAPI	ILS/DME

Runway 15/33

Dimensions:	3376 x 75ft. / 1029.0 x 22.9m	Weight Bearing Cap:	Single wheel: 12500 lb
Surface:	asphalt, no surface treatment, in good condition	Runway Edge Lights:	medium

#	Elev/Hdg	Markings	Approach Lights
15	1.5ft. MSL 148° mag 164° true 0.1% up	basic	No Data

33	3.9ft. MSL 328° mag 344° true 0.1% down	basic	No Data

Business/Service Information

Name		Location	Freq. Monitored	Main Phone
Alameda Aero Club	Rentals Flight Training	On field: NW 37.740610-122.224810		510-638-4149
Business Jet Center - Oakland L.P.	Sales	On field: NE	ARINC: 129.275	866-383-5669
KaiserAir Oakland Jet Center	Maintenance Fuel Sales	On field: N	UNICOM: 122.95 ARINC: 131.725	510-569-9622
Landmark Aviation	$7.38 $5.92	Oakland, CA	UNICOM: 122.95	510-633-1266
Oakland Flyers LLC	Maintenance Rentals Flight Training	On field: N		510-568-3317
Sundance Air Services	Maintenance	On field: NW 37.740585-122.226055		510-635-0300

List Your Business in AOPA Airports

Services at this airport:

Services:
Engine Repair: MajorAirframe Repair: MajorBulk Oxygen: High/Low
Fuel: 100LL Low-Lead, Jet A
Transportation: Shuttle Bus, Courtesy Car, Public, Limousine
Rental Cars:

National	Book Now!	866-315-9155
Alamo	Book Now!	866-315-9155
Avis
Budget
Dollar
Hertz

Customs: International Landing Rights

Expand Nearby restaurants, attractions

Best Western Oakland Airport 510-633-0500

Hampton Inn & Suites Oakland 510-521-4500

Holiday Inn Oakland Airport 510-569-4400

Jetfinity Catering 650-292-1200

Courtyard Oakland Airport 510-568-7600

Hilton Oakland Airport 510-635-5000

Veterans Cab Co 533-1900

Traveller Cab 444-6161

ABC CAB/Friendly Cab-Greyline Cab Co 536-3000

Yellow 444-1234

Metro Cab 444-5561

Goodwill 836-1234

nmrs adj to 2 mi

Information above provided by the airport manager.
Search nearby: Hotels | Restaurants

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

17630APRUDNEV6/4/2012 7:32:50 AM UTC
Landmark is a new operator here, they work since approximately December. And they are very friendly to the general aviation, while servicing a lot of big jets, charters and so on. Extra advantage in addition to the transportation to/from Bart or rental car agencies and delivering rental cars directly, is that they are 5 minutes walking from Aviation Museum, and 7 minutes walking from rental cars pick-up and drop-off sites where free shuttles are available to the passenger terminal (with restaurants and shuttle to the Bart) so even if you can;t contact them or they are very busy (sometimes) you still have a free transportation. Great FBO, they made OAK a very reasonable place for the GA aviation (to pick up or drop by passengers, or to stop for the dinner or for the quick visit to San Francisco).
17608JOHN221US6/1/2012 1:20:17 PM UTC
I have used Business Jet Center and thought they were a great operation. The everyone was friendly and they gave me a shuttle to the BART station right away.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Member-submitted Photos

View all
Upload your photos of Metropolitan Oakland International

Operations & More Information

Lat/Long:	N37 43.2783' / W122 13.2433'37.7213056-122.2207222
Charts:	NACO: San Francisco Sectional
Mag Var:	16E (1995)
ARTCC:	Oakland (ZOA)
FSS:	Oakland (OAK) 1-800-WXBRIEF
NOTAM Facility:	OAK
Approach/Departure Control Facility	NCT
Pattern Altitude:	Tfc Pat Alt Rwy 27l 606' Msl; Rwy 27r 1006' MSL
Wind Indicator:	Lighted
Seg. Circle:	No
Lighting:	No data

Aircraft & Activity

Based GA Aircraft

Single Engine:	161
Multi Engine:	34
Jets:	38
Helicopters:	6
Gliders:
Ultralights:	1

Airport Activity

GA Local:	36,591
GA Itinerant:	42,657
Commercial:	112,496
Air Taxi:	23,448
Military:	2,949

(12-month period ending on 12/31/2012)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone	Sector
Approach CLASS C	Norcal	125.35	EAST
Approach/Departure CLASS C	Norcal	135.1	WEST
Approach(S)	Norcal	134.5
Approach(S)	Norcal	133.95
WX	Oakland	.0T (510-383-9514)
Clearance-Delivery	Oakland	121.1
CLASS C	Norcal	127.0	NORTH
CLASS C	Norcal	135.65	SOUTH
D-ATIS	Oakland	133.775	N & S COMPLEX
DEP/P CLASS C	Norcal	120.9	NW
Ground Control	Oakland	121.9	NORTH CMPLX
Ground Control	Oakland	121.75	SOUTH CMPLX
Tower	Oakland	118.3	NORTH CMPLX
Tower	Oakland	127.2	SOUTH CMPLX
Tower(S)	Oakland	124.9
UNICOM	Oakland	122.95

Expand Navaids

ID	Type	Freq	Radial	Distance
OAK	VORTAC	116.8	137	0 nm
SFO	VOT	111.0	000	9 nm
SFO	VOR/DME	115.8	033	10 nm
SAU	VORTAC	116.2	102	17 nm
NUQ	TACAN	.0	319	19 nm
OSI	VORTAC	113.9	351	20 nm
CCR	VOR/DME	117.0	186	21 nm
SJC	VOR/DME	114.1	312	25 nm
LV	NDB	374.0	258	26 nm
SGD	VORTAC	112.1	148	28 nm
SUU	TACAN	.0	186	34 nm
TCY	NDB	203.0	258	37 nm
PYE	VORTAC	113.7	108	38 nm

Contact Addresses

ASN Volunteer:	Owner:	Airport Manager:
Paul Millner	Port of Oakland	Douglas Mansel
	530 Water St.	Metropolitan Oakland Intl Arpt
	Oakland, CA 94607	Oakland, CA 94621
	510-563-3300 (Office)	510-563-6436 (Office)
Contact the ASN Volunteer
		Airport Manager Admin
Operations - Darron Evans, Opns Supervisor (510)563-6432, Cell: (510) 715-6286 or Douglas Mansel (510) 563-2889, 24hr Operations (510) 563-3361

Attendance:	Attended Year-round, 7 Days a Week,All
Tower:	Air Traffic Control Tower, 24 hrs/day, everyday, year-round
Elevation:	9 ft (2.7 m) (Surveyed)
Location:	4.00 mi. S of Oakland
Beacon:	Present (white-green)
Approaches:	ILS, DME, LOC, VOR, RNAV, GPS, RNP
Runways:	09L/27R, 09R/27L, 11/29, 15/33 Longest paved runway: 10001 ft
Fees:	Landing, Tiedown, Hangar, Parking

APD	AIRPORT DIAGRAM	145.1 KB
DP	COAST FIVE	190.3 KB
DP	COAST FIVE, CONT.1	174.6 KB
DP	MARINA FIVE	262.9 KB
DP	NIMITZ TWO	163.4 KB
DP	NUEVO FIVE	214.2 KB
DP	OAKLAND FIVE	232.3 KB
DP	SALAD ONE	164.9 KB
DP	SCAGGS ISLAND TWO	273.7 KB
DP	SILENT SEVEN	249.3 KB
DP	SKYLINE THREE	188.6 KB
DP	SKYLINE THREE, CONT.1	239.2 KB
HOT	HOT SPOT	12.2 KB
IAP	ILS OR LOC RWY 11	296.7 KB
IAP	ILS OR LOC RWY 29	320.5 KB
IAP	ILS OR LOC/DME RWY 27R	287.7 KB
IAP	ILS RWY 29 (SA CAT I) (changed)	300.3 KB
IAP	ILS RWY 29(CAT II) (deleted)	B
IAP	ILS RWY 29 (CAT II - III) (changed)	323 KB
IAP	RNAV (RNP) Z RWY 11	280.5 KB
IAP	RNAV (RNP) Z RWY 27L	225.5 KB
IAP	RNAV (RNP) Z RWY 27R	248.7 KB
IAP	RNAV (RNP) Z RWY 29	281.5 KB
IAP	RNAV (GPS) RWY 09L	243.2 KB
IAP	RNAV (GPS) RWY 09R	233.4 KB
IAP	RNAV (GPS) Y RWY 11	254.9 KB
IAP	RNAV (GPS) Y RWY 27L	256.5 KB
IAP	RNAV (GPS) Y RWY 27R	218.5 KB
IAP	RNAV (GPS) Y RWY 29	237.1 KB
IAP	VOR/DME RWY 27L	229.9 KB
IAP	VOR RWY 09R	282.7 KB
MIN	TAKEOFF MINIMUMS	119.4 KB
STAR	COMMO ONE	228.3 KB
STAR	HADLY TWO	185.4 KB
STAR	LOCKE ONE	289.1 KB
STAR	MADWIN FIVE	290.8 KB
STAR	MANTECA TWO	287.7 KB
STAR	MARVN ONE	218.6 KB
STAR	PANOCHE THREE	207.8 KB
STAR	RAIDR TWO (RNAV)	148.7 KB
