FAA Information Effective: 8/20/2015

KOSHCivil
Public Use

Wittman Regional Airport

Oshkosh, WI


Phone: 920-236-4930
www.wittmanairport.com
Nearby airports

AOPA members save at 3,000+ GA airports.Book Now!

Overview

Attendance: Attended
For Airport Attendant Other Hrs Call 920-236-7827.Year-round, 7 Days a Week,0700-2000
Tower:Air Traffic Control Tower, 16 hrs/day, everyday, year-roundTower Hrs: 0600-2200
Elevation:808 ft (246.3 m) (Surveyed)
Location:2.00 mi. S of Oshkosh
Beacon: Present (white-green)
Instrument Procedures:ILS, DME, LOC, VOR, RNAV, GPS, NDB
Runways:05/23, 09/27, 13/31, 18/36
Longest paved runway: 8002 ft
Fees:No data

  • METARs
  • TAFs

Expand Instrument Procedures

Use subject to Terms and Conditions

  • Satellite

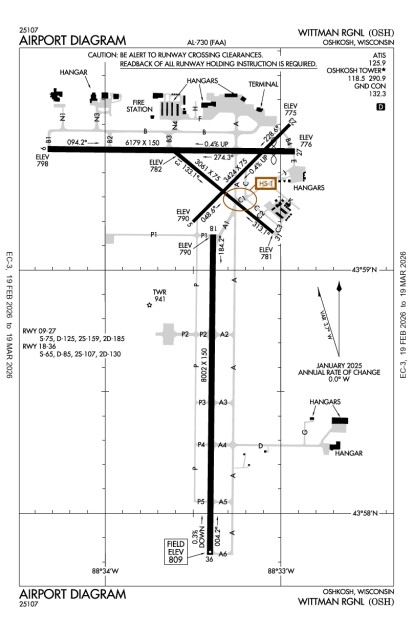

  • Diagram
  • Sectional

Minimum Fuel Prices

100LL$ 4.99  (self serve service)
100LL$ 5.29  (full serve service)
Jet-A$ 4.59  (full serve service)

Expand Additional Remarks

Runway 05/23

Dimensions:3697 x 75ft. / 1126.8 x 22.9mWeight Bearing Cap:
Surface:asphalt, no surface treatment, in fair conditionRunway Edge Lights:
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
05790.2ft. MSL
48° mag
45° true
0.5% down
basicNo DataPole, 150 ft Right of center, 23 ft high, 980 ft from end, 33:1 clearance slope
23773.3ft. MSL
228° mag
225° true
0.5% up
basicNo Data274' Disp Threshold
Pole, 130 ft Left of center, 26 ft high, 280 ft from end, 3:1 clearance slope
Ry 22 Approch Ratio 21:1 at Displaced Threshold

Runway 09/27

Dimensions:6179 x 150ft. / 1883.4 x 45.7mWeight Bearing Cap: Single wheel: 75000 lb
Surface:concrete, grooved, in good conditionRunway Edge Lights:high
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
09797.4ft. MSL
94° mag
91° true
0.4% down
non-precisionvisual glide slope: 4-Light/Left-Side PAPI
Pole, 65 ft Right of center, 72 ft high, 2,505 ft from end, 32:1 clearance slope
27775.7ft. MSL
274° mag
271° true
0.4% up
non-precisionrunway end identifier: REIL is present
visual glide slope: 4-Light/Left-Side PAPI
531' Disp Threshold
Pole, 580 ft Right of center, 35 ft high, 470 ft from end, 7:1 clearance slope
Ry 27 Approach Ratio 28:1 at Displaced Thr

Runway 13/31

Dimensions:3061 x 75ft. / 933.0 x 22.9mWeight Bearing Cap:
Surface:asphalt, no surface treatment, in fair conditionRunway Edge Lights:
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
13781.7ft. MSL
132° mag
129° true
0.0% down
basicNo DataTree, 200 ft Left of center, 55 ft high, 1,600 ft from end, 25:1 clearance slope
31781.1ft. MSL
312° mag
309° true
0.0% up
basicNo DataPole, 60 ft Right of center, 17 ft high, 590 ft from end, 22:1 clearance slope

Runway 18/36

Dimensions:8002 x 150ft. / 2439.0 x 45.7mWeight Bearing Cap: Single wheel: 65000 lb
Surface:concrete, grooved, in good conditionRunway Edge Lights:high
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
18789.5ft. MSL
184° mag
181° true
0.2% up
precisionrunway end identifier: REIL is present
visual glide slope: 4-Light/Left-Side PAPI
Antenna, 250 ft Left of center, 15 ft high, 550 ft from end, 23:1 clearance slope
36808.3ft. MSL
4° mag
1° true
0.2% down
precisionvisual glide slope: 4-Light/Left-Side PAPI
approach: 1400ft/Medium-Intensity/Runway Alignment Indicators
ILS

Business/Service Information

Name LocationFreq. MonitoredMain Phone
Aviation Services Company
  • Maintenance
  • Rentals
  • Flight Training
On field: SE
43.988036-88.550454
920-410-3591
Basler Flight Service
  • $5.29
  • $4.99
  • $4.59
On field: N
43.994822-88.554381
UNICOM: 122.95
920-236-7827
Basler Turbo Conversions
  • Maintenance
On field: SE
43.972988-88.544382
920-236-7820
EAA
    Oshkosh, WI
    920-426-4800
    Fox Valley Technical College
    • Flight Training
    On field: SE
    43.971191-88.544408
    920-232-6001
    Freedom of Flight Flying Club
      Oshkosh, WI
      43.981575-88.563108
      920-231-3790
      Myers Aviation
      • Maintenance
      On field: NE
      43.988002-88.550062
      920-231-9772
      New View Technologies
      • Maintenance
      On field: N
      920-303-0709
      Orion Flight Services
        Oshkosh, WI
        43.994327-88.552116
        920-424-8090
        Oshkosh Aircraft Builders Club
          On field: E
          920-573-3381
          Sonex Aircraft
          • Sales
          Oshkosh, WI
          920-230-8324
          University of Wisconsin - Oshkosh
            Oshkosh, WI
            920-424-0234
            Winnebago Flying Club
              Oshkosh, WI
              920-267-7704
              List Your Business in AOPA Airports

              Services at this airport:

              Services:
              Engine Repair: MajorAirframe Repair: MajorBulk Oxygen: High/Low
              Fuel: 100LL Low-Lead
              Transportation:
              Rental Cars:
              EnterpriseBook Now! 866-315-9155
              Hertz

              Expand Nearby restaurants, attractions

              Expand Member Comments

              AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

              Are you sure you want to delete this comment?

              CancelDelete

              Member-submitted Photos

              View all

                Operations & More Information

                Lat/Long:N43 59.0695' / W88 33.4161'
                Charts:NACO: Chicago Sectional
                Mag Var:03W (2015)
                ARTCC:Chicago (ZAU)
                FSS:Green Bay (GRB)
                1-800-WXBRIEF
                NOTAM Facility:OSH
                Approach/Departure Control FacilityMKE
                Pattern Altitude:1808 MSL | 1000 AGL
                Wind Indicator:Lighted
                Seg. Circle:Yes
                Lighting:Pilot Activated Lighting:
                • high intensity: 7 clicks in 5 secs
                • medium intensity: 5 clicks in 5 secs
                • low intensity: 3 clicks in 5 secs
                When ATCT Clsd, VASI Ry 9 on and HIRL Ry 18/36 Preset on Med Intst; to Incr Intst & Actvt PAPI Ry 27; HIRL Ry 09/27 ; MALSR Ry 36; HIRL Ry 18/36 - CTAF

                Aircraft & Activity

                Based GA Aircraft

                Single Engine:121
                Multi Engine:37
                Jets:5
                Helicopters:1
                Gliders:
                Ultralights:

                Airport Activity

                GA Local:31,875
                GA Itinerant:35,871
                Commercial:2
                Air Taxi:1,025
                Military:401

                (12-month period ending on 12/31/2012)

                Air Safety Institute Resources

                Accident Reports

                Expand Communications Card

                Contact Addresses

                Owner:Airport Manager:
                Winnebago CountyPeter Moll
                415 Jackson St525 W 20th St
                Oshkosh, WI 54901Oshkosh, WI 54901
                920-236-4930 (Office) 920-236-4930 (Office)
