AOPA Airports: Ohio State University (KOSU)

Expand Additional Remarks

Helicopter Ldgs on Twy A Prohibited. Helicopter Ldgs/ Tkofs Fm the Fbo Ramp Prohibited

Heliport (Unlit) Located North Side Airfield, Adjacent Air Guard Ramp, Twy G

Snow Removal Operating Procedures: When Twr Clsd Announce Arrival on Freq 118.8

All Movement Area N of Ry 09r/27l are Not Avbl for Acr Opns with More Than 30 Psgr Seats

Birds & Deer on and Invof Arpt

Noise Sensitive Area Within 4 Miles to the North and Northeast. Noise Abatement Rstrns: No Tgl or Rptd Tkof/Lndg 2300-0700 Dly

Intensive Flight Training

ASOS is hooked up to ATIS transmitte/121.35; tgl or repeated tkof & lndgs are not permitted btn 11 pm to 7 am

In efct; tbjt dep ry 9R-27L; by agreement with Port Columbus (CMH) Approach Control, acft departing off OSU on a bearing between 090 degrees and 210 degrees shall not be allowed to exit the OSU class delta surface area between these bearings

NOTAMs | TFR's

Runway 05/23

Dimensions:	3562 x 100ft. / 1085.7 x 30.5m	Weight Bearing Cap:	Single wheel: 21000 lb
Surface:	asphalt, no surface treatment, in good condition	Runway Edge Lights:	medium

#	Elev/Hdg	Markings	Approach Lights	Obstructions
05	903.1ft. MSL 54° mag 49° true 0.3% down	basic	No Data	Trees, 200 ft Right of center, 37 ft high, 780 ft from end, 15:1 clearance slope

23	892.7ft. MSL 234° mag 229° true 0.3% up	basic	No Data	Trees, 50 ft Both-Sides of center, 60 ft high, 1,422 ft from end, 20:1 clearance slope

Runway 09L/27R

Dimensions:	2994 x 100ft. / 912.6 x 30.5m	Weight Bearing Cap:	Single wheel: 25200 lb
Surface:	asphalt, no surface treatment, in fair condition	Runway Edge Lights:	medium

#	Elev/Hdg	Tr. Pat.	Markings	Approach Lights	Obstructions	Comments/Noise
09L	904.4ft. MSL 92° mag 87° true 0.4% down	No Data	basic	visual glide slope: 2-Box/Left-Side VASI		Operate Continuously

27R	891.5ft. MSL 272° mag 267° true 0.4% up	No Data	basic	visual glide slope: 2-Box/Left-Side VASI	Trees, 122 ft Right of center, 72 ft high, 1,545 ft from end, 18:1 clearance slope	W Operate Continuously

Runway 09R/27L

Dimensions:	5004 x 100ft. / 1525.2 x 30.5m	Weight Bearing Cap:	Single wheel: 45000 lb
Surface:	asphalt, grooved, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC	Obstructions	Comments/Noise
09R	901.3ft. MSL 92° mag 87° true 0.2% down	precision	visual glide slope: 4-Light/Left-Side PAPI approach: 1400ft/Medium-Intensity/Runway Alignment Indicators	ILS		Operate Continuously

27L	889.6ft. MSL 272° mag 267° true 0.2% up	precision	visual glide slope: 4-Light/Left-Side PAPI runway end identifier: REIL is present		Tree, 714 ft Right of center, 53 ft high, 2,470 ft from end, 42:1 clearance slope	Twr Operates When Open Operate Continuously

Runway 14/32

Dimensions:	3049 x 100ft. / 929.3 x 30.5m	Weight Bearing Cap:	Single wheel: 32500 lb
Surface:	asphalt, no surface treatment, in fair condition	Runway Edge Lights:	medium

#	Elev/Hdg	Markings	Approach Lights	Obstructions
14	899.8ft. MSL 141° mag 136° true 0.2% down	basic	No Data	Trees, 212 ft Right of center, 95 ft high, 2,566 ft from end, 24:1 clearance slope

32	893.7ft. MSL 321° mag 316° true 0.2% up	basic	No Data	Trees, 292 ft Left of center, 85 ft high, 2,073 ft from end, 22:1 clearance slope

Business/Service Information

Name		Location	Freq. Monitored	Main Phone
Capital City Aviation	Rentals Flight Training	On field: SW 40.074919-83.076103		614-459-2541
Central Ohio Flyers Association		COLUMBUS, OH		614-602-2632
Columbus Northwest Flyers	Flight Training	On field: SE 40.073671-83.070030		614-451-3838
NFA	Flight Training	On field: SE 40.074525-83.070545		614-459-1335
The Ohio State University Airport	Maintenance Fuel Rentals Sales Flight Training	On field: SW 40.074952-83.075824	UNICOM: 122.95	614-292-5580

List Your Business in AOPA Airports

Services at this airport:

Services:
Engine Repair: MajorAirframe Repair: MajorBulk Oxygen: High/Low
Fuel: 100LL Low-Lead, Jet A1 +Icing Inhibitor
Transportation: Limousine
Rental Cars:

Thrifty

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

18516FOREEYES8/21/2012 2:19:01 AM UTC
Flew in for a day trip in a 340 for a day trip to the zoo. 3 line crew greeted us with a red carpet. Brought the rental car right up to the car. Staff very friendly. Waived landing fee with fuel purchase. FBO small but clean and has everything one needs. Rental car return was smooth and taken care of by the staff. The controllers were great and very accommodating. Would fly in again anytime. The town aroiund the airport is very nice, clean and friendly with nice restaurants.
156080058676612/19/2011 4:32:17 PM UTC
I would not fly into this airport again. Whether you are stopping for 5 mins to drop something off, 2 hrs for lunch, or overnight, there is a $10 fee, even for single engine GA aircraft. Bolton to the SW is much better. Cheaper fuel as well. No wonder GA is dieing!
13288055832377/29/2011 8:15:04 PM UTC
We stopped here twiice to/from AirVenture 2011. Perfect GA airport experience. We were marshalled perfectly, fueled cheaply, and treated with courtesy. Good controllers, too.
12689SPIRITAIRAA6/19/2011 11:23:22 PM UTC
IBHelp@communityspiritbank.com spirit_of_deborah@ymail.com; spirit_of_live@ymail.com; spirit_wind@ymail.com; spirit_wolf@ymail.com; spiritandcitylife@ymail.com; spiritangel93@ymail.com; spiritanimal@ymail.com; spiritautobrokers@ymail.com; spiritbone@ymail.com; spiritboy81@ymail.com
105240665606910/10/2010 4:36:56 PM UTC
We came in on Friday for a concert at Schottenstein. Very well organized FBO, personell were very helpfull and friendly. Had a rental car ready to go and printed off directions for our hotel. Fuel prices were good and the tower was very tolerant of first timers. The area around the airport (Dublin) is very nice.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Operations & More Information

Lat/Long:	N40 4.7899' / W83 4.3891'40.0798309-83.0731517
Charts:	NACO: Detroit Sectional
Mag Var:	05W (1990)
ARTCC:	Indianapolis (ZID)
FSS:	Dayton (DAY) 1-800-WXBRIEF
NOTAM Facility:	OSU
Approach/Departure Control Facility	CMH
Pattern Altitude:	Fixed Wing: 1900 MSL
Wind Indicator:	Lighted
Seg. Circle:	No
Lighting:	Pilot Activated Lighting: medium intensity: 5 clicks in 3 secs When Twr Clsd Atcvt MALSR Ry 09r - CTAF. HIRL Ry 09r/27l and Either MIRL Ry 05/23 or 14/32, May be Preset Med Ints in Favor of Forecasted Wind; Otherwise Low Intst. MIRL Ry 09l/27r Low Intst

Aircraft & Activity

Based GA Aircraft

Single Engine:	123
Multi Engine:	23
Jets:	11
Helicopters:	6
Gliders:
Ultralights:

Airport Activity

GA Local:	29,223
GA Itinerant:	36,091
Commercial:	3
Air Taxi:	2,703
Military:	206

(12-month period ending on 12/31/2011)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone	Sector
WX	State	.0T (614-451-2465)
ATIS	State	121.35
CLASS C	Columbus	120.2	280-099
CLASS C	Columbus	125.95	280-099
CTAF	State	118.8
Ground Control Clearance-Delivery	State	121.7
Tower	State	118.8
NG-OPNS	State	123.075
NG-OPNS	State	46.8
UNICOM	State	122.95

Expand Navaids

ID	Type	Freq	Radial	Distance
CHC	NDB	272.0	339	5 nm
OS	NDB	515.0	091	6 nm
CMH	VOT	111.0	000	10 nm
DLZ	NDB	215.0	179	12 nm
CM	NDB	379.0	296	16 nm
CM	NDB	275.0	296	16 nm
CM	NDB	391.0	296	16 nm
BU	NDB	230.0	026	17 nm
LCK	TACAN	.0	343	18 nm
UYF	NDB	263.0	070	20 nm
APE	VORTAC	116.7	265	23 nm
HEH	NDB	524.0	283	28 nm
BUD	VOR	109.8	186	32 nm
CSS	NDB	414.0	033	32 nm
XUB	VOR	112.5	357	33 nm
CCJ	NDB	341.0	073	35 nm
SGH	VOR/DME	113.2	071	39 nm
RZT	NDB	236.0	002	39 nm
ROD	VORTAC	117.5	110	46 nm
IL	NDB	407.0	045	47 nm
FFO	TACAN	.0	075	48 nm
TVT	VOR/DME	116.5	246	49 nm

Attendance:	Attended Year-round, 7 Days a Week,0600-2300
Tower:	Air Traffic Control Tower, 16 hrs/day, everyday, year-round
Elevation:	906 ft (276.1 m) (Surveyed)
Location:	10.00 mi. NW of Columbus
Beacon:	Present (white-green)
Approaches:	ILS, LOC, RNAV, GPS, NDB
Runways:	05/23, 09L/27R, 09R/27L, 14/32, H1 Longest paved runway: 5004 ft
Fees:	Parking

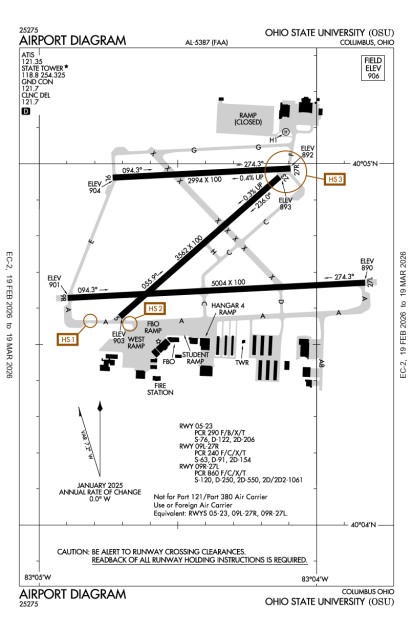

APD	AIRPORT DIAGRAM	133.6 KB
HOT	HOT SPOT	14.5 KB
IAP	ILS OR LOC RWY 09R	221.7 KB
IAP	RNAV (GPS) RWY 09R	237.1 KB
IAP	RNAV (GPS) RWY 27L	245 KB
IAP	NDB RWY 09R	193.9 KB
MIN	TAKEOFF MINIMUMS	163.1 KB
MIN	ALTERNATE MINIMUMS	33.8 KB
STAR	BREMN THREE	223.3 KB
STAR	BREMN THREE, CONT.1	124.4 KB
STAR	GAILL ONE (RNAV)	285.1 KB
STAR	GUNNE TWO	205.5 KB
STAR	GUNNE TWO, CONT.1	98.1 KB

ASN Volunteer:	Owner:	Airport Manager:
Alan Harding	Ohio State University	Douglas E. Hammon
	Ohio State Univ Airport, 2160 W. Case Rd	Ohio State Univ Airport, 2160 W. Case Rd
	Columbus, OH 43235	Columbus, OH 43235
	614-292-5460 (Office)	614-292-5460 (Office)
Contact the ASN Volunteer
		Airport Manager Admin
for Arpt Opns Call 614-292-5580

Ohio State University

Overview

Expand Instrument Approach Procedures
