AOPA Airports: Riverside Municipal (KRAL)

Satellite
Diagram
Hotspots
Sectional

Open in Google Maps

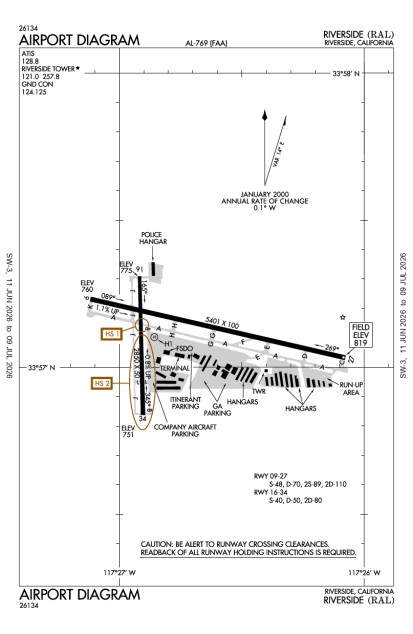

AIRPORT DIAGRAM

Full Hotspot PDF

KRAL (Riverside Municipal) runway hotspot diagram

Airport hotspot diagrams are provided by the FAA Office of Runway Safety to the AOPA Air Safety Institute.

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

100LL	$ 6.10 (full service service)
Jet-A	$ 5.10 (full service service)

Expand Additional Remarks

Power Plant 3,000 Ft North of Ry 16 Thld Producing Thermal Plume, Avoidance Adzd,

Ry 27 -20 Ft Ditch 50 Ft Fm Ry End

Noise Abatement Procedures in Effect CTC Amgr (951) 351-6113

South 1,400 Ft of Ry 34 and Twy J and Twy B Not Visible From the ATCT

Numerous Power Lines 1,780 - 2,887 Feet North of Ry 16 Thld at or Blo 80 Feet AGL

Acft Dep Rys 09 & 27 Not Vsbl to Acft at Other End of Ry

Hilton Garden Inn Fontana 10 mi 909-822-7300

VFR dep ry 9, climb 1500' MSL prior to turn; turn left or right 15 deg dep end ry 27, then clmb to 1500' to avoid houses W 1mi

Intensive Flight Training

Portions apch end ry 34 & assocd twy fm the ry thld to a point 1400' N not totally vsb fm twr; ry 27 gnd drops to -20 at 50' fm ry end; acft dep ry 9, 27 & 34 not vsb to acft; lighted helipad NW corner main tarmac

NOTAMs | TFR's

Runway 09/27

Dimensions:	5401 x 100ft. / 1646.2 x 30.5m	Weight Bearing Cap:	Single wheel: 48000 lb
Surface:	asphalt, no surface treatment, in good condition	Runway Edge Lights:	medium

#	Elev/Hdg	Tr. Pat.	Markings	Approach Lights	ILS/LOC	Obstructions	Comments/Noise
09	760.4ft. MSL 89° mag 103° true 1.1% up	No Data	precision	approach: 1400ft/Medium-Intensity/Runway Alignment Indicators visual glide slope: 4-Light/Left-Side PAPI	ILS

27	818.6ft. MSL 269° mag 283° true 1.1% down		non-precision	runway end identifier: REIL is present visual glide slope: 4-Light/Left-Side PAPI		Terrain, 520 ft Right of center, 37 ft high, 1,155 ft from end, 25:1 clearance slope	Supplemental Wind Cone 0 Ft Fm Thr 350 Ft S of Ry Cntrln REIL Out of Service Indefly

Runway 16/34

Dimensions:	2850 x 50ft. / 868.7 x 15.2m	Weight Bearing Cap:	Single wheel: 40000 lb
Surface:	asphalt, no surface treatment, in fair condition	Runway Edge Lights:	medium

#	Elev/Hdg	Markings	Approach Lights	Obstructions
16	774.5ft. MSL 165° mag 179° true 0.8% down	basic	No Data	Pole, 150 ft Right of center, 60 ft high, 1,920 ft from end, 28:1 clearance slope

34	750.6ft. MSL 345° mag 359° true 0.8% up	basic	visual glide slope: 2-Light/Left-Side PAPI	Tree, centered, 20 ft high, 900 ft from end, 34:1 clearance slope

Name		Location	Freq. Monitored	Main Phone
ATP Flight School – RIV	Rentals Flight Training	On field: NW 33.949519-117.445521		800-255-2877
AvTech Exams Llc	Maintenance Flight Training	On field: W		951-352-8180
California Aviation Services, Inc.	Maintenance Rentals Sales Flight Training AOPA WorldPoints	On field: SW		951-354-5274
Riverside Premium Flight Services	$6.10 $5.10	On field: SE 33.949608-117.443590	UNICOM: 122.95	951-352-2631

Services at this airport:

Services:
Engine Repair: MajorAirframe Repair: MajorBulk Oxygen: High/Low
Fuel: 100LL Low-Lead, Jet A
Transportation:
Rental Cars: Enterprise (AOPA Discount Code: AOPAP9) , Hertz (AOPA Discount Code: CDP 10232)

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

16492IKAROS612/6/2012 11:32:10 PM UTC
I visited the airport for the first time this past Saturday and the controllers were very accomodating and assisted me in taxing. Riverside Premium services had a car waiting for me and were very polite and eager to assist. I wish the gates were open after 5:00 pm for returning the the vehicle on the ramp and un-loading but I made it before then so no worries but it will be nice if they have a combination to get in after hours.
12568002786356/9/2011 10:39:53 PM UTC
Whoops! RAL is Class D airspace. Fingers too fast.
12567002786356/9/2011 10:10:47 PM UTC
I have been flying into RAL for 25 years and I was based there for 10 years. The tower operation is really outstanding, and any pilot who asks for assistance either in the air or on the ground receives correct, appropriate and timely attention. Safely navigating through RAL Class C is enhanced by the fact that the tower has radar capability. 100LL is available 24/7. Maintenance One aircraft maintenance personnel are knowledgeable and competent mechanics. The passenger terminal is spacious and comfortable; but the last I knew, it was not open on Sundays or at night. Transient parking in front of the terminal can be limited. Flight planning facilities at the terminal are sub-standard. You might want to check with airport personnel if you intend to park overnight or need a first class flight planning room.. ...they might have established some new facilities since I last needed such services there. Finally D & D Cafe' located at the terminal is a favorite with the locals, including pilots and nearby residents.
9964BRAD.ANDERSON8/19/2010 11:59:28 PM UTC
Went up from CRQ for my first solo x-country. The airport wa, well, hot. About 100 F or 38 C. I had some issues finding the transient ramp because its not noted on the taxi diagram nor posted on the field. I did not have time to eat but I did enjoy the air conditioning. My only other complaint, besides the heat, was the ground controller. I asked him to set up VFR Flight Following back to CRQ and did not sound very happy about it. I was happy to get out of there after that. But all in all, I give the airport 7.5/10.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Operations & More Information

Lat/Long:	N33 57.1133' / W117 26.7067'33.9518889-117.4451111
Charts:	NACO: Los Angeles Sectional
Mag Var:	14E (2000)
ARTCC:	Los Angeles (ZLA)
FSS:	Riverside (RAL) 1-800-WXBRIEF
NOTAM Facility:	RAL
Approach/Departure Control Facility	SCT
Pattern Altitude:	Tpa Lgt Acft 1000'; Jet and All Other Acft 1500' Rotorcraft: 1300 MSL; Light Aircraft: 1819 MSL; Turbine Aircraft: 2319 MSL
Wind Indicator:	Lighted
Seg. Circle:	Yes
Lighting:	Pilot Activated Lighting: high intensity: 7 clicks in 5 secs medium intensity: 5 clicks in 5 secs low intensity: 3 clicks in 5 secs Actvt MIRL Rys 09/27 & 16/34, MALSR Ry 09, Twy Lgts and Helipad Perimeter Lgts - 121.0. PAPI Rys 09, 27 and 34 Oper Cont

Aircraft & Activity

Based GA Aircraft

Single Engine:	141
Multi Engine:	18
Jets:	2
Helicopters:	3
Gliders:
Ultralights:

Airport Activity

GA Local:	39,251
GA Itinerant:	39,173
Commercial:
Air Taxi:	268
Military:	186

(12-month period ending on 12/29/2011)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone	Sector
Approach/Departure	Socal	135.4
WX	Riverside	.0T (951-352-4392)
ATIS	Riverside	128.8	951-688-7257
CTAF	Riverside	121.0
Ground Control	Riverside	121.7
Tower	Riverside	121.0
UNICOM	Riverside	122.95

Expand Navaids

ID	Type	Freq	Radial	Distance
RAL	VOR	112.4	116	0 nm
PDZ	VORTAC	112.2	050	5 nm
SB	NDB	397.0	198	7 nm
RIV	TACAN	.0	274	9 nm
HDF	VOR	113.4	295	17 nm
POM	VORTAC	110.4	099	19 nm
ELB	VOR/DME	117.2	027	22 nm
SNA	VOT	110.0	052	27 nm
EMT	NDB	359.0	090	30 nm
SLI	VORTAC	115.7	056	32 nm
VCV	VOR/DME	109.4	170	39 nm
CPM	NDB	378.0	069	40 nm
OCN	VORTAC	115.3	343	43 nm
LAX	VOT	113.9	074	46 nm
UR	NDB	253.0	092	49 nm
LAX	VORTAC	113.6	073	49 nm

Attendance:	Attended Year-round, 7 Days a Week,0700-1800
Tower:	Air Traffic Control Tower, 13 hrs/day, everyday, year-roundATIS Hrs: 24Tower Hrs: 0700-2000
Elevation:	819 ft (249.6 m) (Surveyed)
Location:	4.00 mi. SW of Riverside
Beacon:	Present (white-green)
Runways:	09/27, 16/34, H1 Longest paved runway: 5401 ft
Fees:	Parking, Tiedown, Hangar

APD	AIRPORT DIAGRAM	114.3 KB
HOT	HOT SPOT	12.1 KB
IAP	ILS OR LOC RWY 09 (changed)	464.2 KB
IAP	RNAV (GPS) RWY 09 (changed)	794.8 KB
IAP	RNAV (GPS) RWY 27 (changed)	481.5 KB
IAP	VOR RWY 09 (changed)	415.7 KB
IAP	VOR-A (changed)	497.4 KB
IAP	VOR-B (changed)	418.5 KB
MIN	TAKE-OFF MINIMUMS	78 KB
MIN	ALTERNATE MINIMUMS	18.1 KB
STAR	SETER TWO	281.5 KB
STAR	ZIGGY FOUR (changed)	300.7 KB
STAR	ZIGGY FOUR, CONT.1	181.5 KB

ASN Volunteer:	Owner:	Airport Manager:
Daniel Olson	City of Riverside	Mark Ripley
	6951 Flight Road	6951 Flight Road
	Riverside, CA 92504	Riverside, CA 92504
	951-351-6113 (Office)	951-351-6113 (Office)
Contact the ASN Volunteer

Riverside Municipal

Overview

Expand Instrument Approach Procedures
