AOPA Airports: Louisville International-Standiford Field (KSDF)

FAA Information Effective: 5/2/2013

AOPA members save at 3,000+ GA airports.Book Now!

KSDFCivil
Public Use

Louisville International-Standiford Field

Louisville, KY
Phone: 502-368-6524
www.flylouisville.com
Nearby airports

Satellite
Diagram
Sectional

Open in Google Maps

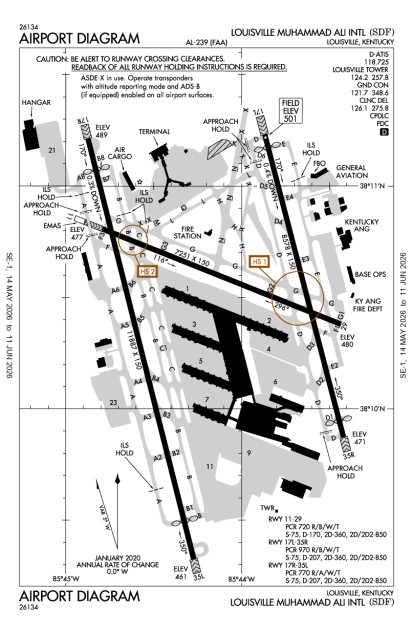

AIRPORT DIAGRAM

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

Jet A	$ 6.43 (full service)
100 LL	$ 7.91 (full service)

Alerts

Security Directive SD-8G

Call FBO for transient pilot security procedures or after hours escort. Learn More

Expand Additional Remarks

Successive And/or Simultaneous Departures are Approved on Ry 17l/35r & Ry 17r/35l with Course Divergence No Later Than 1. 1nm Fm the Ry End Due to Noise Abatement Considerations

Ang: Apvl Auth 123 Aw/Ogc, Base Ops Dsn 741-4581/4584, C502-413-4581/4584

Std Dep Point on Ry 17r is at Twy B. Pilots Must Req Use of Ry 17r Extn. Declared Dist for Tkf at Twy B Asda/Tora/Toda 10,245 Ft

Taxi in Position and Hold Waiver in Effect From 0330 Until Sunrise at the Intersection of Ry 17r at Twy B, and at the Intersection of Ry 35l at Twy B. These Rys Will be Used for Dep Only When Exercising the Provisions of This Waiver

Asde-X Surveillance Sys in Use: Pilots Should Oper Transponders with Mode-C on All Twys and Rys

(E117) Ky Ang/123tac Recon

Continuous Construction on Arpt; be Alert for Frequent Runway & Twy Closures

Std Dep Points on Rwy 35l are at Twys A and B. Pilots Must Req Use of Rwy 35l Extension. Declared Distance for Tkf at Twy A and B Asda/Tora/Toda 10,250 Ft

Birds on and Invof Arpt

Security Directive SD-8G

Preferential ry sys; arpt master plan; ctc APM

NOTAMs | TFR's

Runway 11/29

Dimensions:	7250 x 150ft. / 2209.8 x 45.7m	Weight Bearing Cap:	Single wheel: 75000 lb
Surface:	concrete, wire comb or wire tine, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC	Obstructions
11	476.6ft. MSL 114° mag 111° true 0.1% up	basic	No Data		Building, 325 ft Right of center, 55 ft high, 1,375 ft from end, 20:1 clearance slope

29	480.1ft. MSL 294° mag 291° true 0.1% down	precision	approach: 1400ft/Medium-Intensity/Runway Alignment Indicators visual glide slope: 4-Light/Left-Side PAPI runway visual range: Touchdown	LOCALIZER

Runway 17L/35R

Dimensions:	8579 x 150ft. / 2614.9 x 45.7m	Weight Bearing Cap:	Single wheel: 75000 lb
Surface:	concrete, grooved, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Tr. Pat.	Markings	Approach Lights	TD Point	ILS/LOC	Comments/Noise
17L	500.8ft. MSL 168° mag 165° true 0.3% down	No Data	non-standard	approach: 1400ft/Medium-Intensity/Runway Alignment Indicators runway visual range: Touchdown, Midfield, Rollout centerline: Centerline Lights are present visual glide slope: 4-Light/Left-Side PAPI end touchdown: End Touchdown Lights are present	329' Disp Threshold	ILS/DME	S

35R	471.4ft. MSL 348° mag 345° true 0.3% up	No Data	non-standard	runway visual range: Touchdown, Midfield, Rollout centerline: Centerline Lights are present visual glide slope: 4-Light/Right-Side PAPI approach: 2400ft/High-Intensity/Sequenced Flashers, Cat-II/III Config. end touchdown: End Touchdown Lights are present	450' Disp Threshold	ILS/DME

Runway 17R/35L

Dimensions:	11890 x 150ft. / 3624.1 x 45.7m	Weight Bearing Cap:	Single wheel: 75000 lb
Surface:	concrete, grooved, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Tr. Pat.	Markings	Approach Lights	TD Point	ILS/LOC	Comments/Noise
17R	489.3ft. MSL 168° mag 165° true 0.2% down	No Data	precision	runway visual range: Touchdown, Midfield, Rollout end touchdown: End Touchdown Lights are present visual glide slope: 4-Light/Right-Side PAPI centerline: Centerline Lights are present approach: 1400ft/Medium-Intensity/Runway Alignment Indicators	850' Disp Threshold	ILS/DME	S

35L	461.4ft. MSL 348° mag 345° true 0.2% up	No Data	precision	end touchdown: End Touchdown Lights are present visual glide slope: 4-Light/Left-Side PAPI approach: 2400ft/High-Intensity/Sequenced Flashers, Cat-II/III Config. runway visual range: Touchdown, Midfield, Rollout centerline: Centerline Lights are present	1040' Disp Threshold	ILS/DME

Business/Service Information

Name		Location	Freq. Monitored	Main Phone
Atlantic Aviation	Maintenance $7.91 $6.43	On field: NE	ARINC: 129.9	502-368-1515
Aviation Technology, Inc.	Maintenance	On field: S		502-361-7130

List Your Business in AOPA Airports

Services at this airport:

Services:
Engine Repair: MajorAirframe Repair: Major
Fuel: 100LL Low-Lead, Jet A
Transportation: Shuttle Bus, Limousine, Public
Rental Cars:

Enterprise	Book Now!	866-315-9155
Alamo	Book Now!	866-315-9155
National	Book Now!	866-315-9155
Avis
Budget
Hertz
Thrifty
Dollar

Customs: International Landing Rights

Expand Nearby restaurants, attractions

Waffle House 1 mi

Bob Evans 1 mi

Fifth Quarter 1 mi

Executive West 1/4 mi

Executive Inn 1/4 mi

Pizza Hut

Burger King

KFC

Yellow 636-5511

Ready 957-5977

Hillerich & Bradsbury Baseball Museum 5 mi

J B Speed Art 3 mi

Derby Museum 4 mi

Harland Sanders Museum 3 mi

Kentucky Kingdom 1 mi

Churchill Downs 4 mi

Woodford Reserve

Information above provided by the airport manager.
Search nearby: Hotels | Restaurants

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Member-submitted Photos

View all
Upload your photos of Louisville International-Standiford Field

Operations & More Information

Lat/Long:	N38 10.4451' / W85 44.1899'38.1740858-85.7364989
Charts:	NACO: St Louis Sectional
Mag Var:	03W (1995)
ARTCC:	Indianapolis (ZID)
FSS:	Louisville (LOU) 1-800-WXBRIEF
NOTAM Facility:	SDF
Approach/Departure Control Facility
Pattern Altitude:	Light Aircraft: 1497 MSL; Heavy Aircraft: 1997 MSL
Wind Indicator:	Lighted
Seg. Circle:	No
Lighting:	No data

Aircraft & Activity

Based GA Aircraft

Single Engine:	1
Multi Engine:
Jets:	17
Helicopters:
Gliders:
Ultralights:

Airport Activity

GA Local:	754
GA Itinerant:	11,903
Commercial:	93,650
Air Taxi:	40,874
Military:	3,112

(12-month period ending on 5/31/2012)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone
Approach	Louisville	134.15
Approach/Departure CLASS C IC	Louisville	132.075
WX	Louisville	.0T (502-367-1492)
Clearance-Delivery	Louisville	126.1
D-ATIS	Louisville	118.725
EMERG	Louisville	121.5
Ground Control	Louisville	121.7
Tower	Louisville	124.2
RADAR	Louisville	123.675
UNICOM	Louisville	122.95

Expand Navaids

ID	Type	Freq	Radial	Distance
SDF	VOT	111.0	000	0 nm
BQM	VOR/DME	112.2	229	5 nm
IIU	VORTAC	114.8	298	9 nm
GOI	NDB	396.0	044	17 nm
FTK	VOR/DME	109.6	036	20 nm
ABB	VORTAC	112.4	190	25 nm
MYS	VOR	108.2	056	29 nm
EWO	VOR/DME	110.8	354	33 nm
FFT	VOR	109.4	273	39 nm
IKY	NDB	429.0	329	40 nm
EQZ	NDB	308.0	167	43 nm
TEL	NDB	206.0	080	46 nm

Contact Addresses

ASN Volunteer:	Owner:	Airport Manager:
Ray Rivera	Regional Airport Authority	Charles Miller
	Po Box 9129	P.O. Box 9129, Standiford Field
	Louisville, KY 40209-0129	Louisville, KY 40209-9129
	502-368-6524 (Office)	502-368-6524 (Office)
Contact the ASN Volunteer
P.O. Box 9129, Standiford Field
Louisville Regional Airport Authority

Attendance:	Attended Year-round, 7 Days a Week,All
Tower:	ATCT plus Terminal Radar Approach Control, 24 hrs/day, everyday, year-roundTower Hrs: 24
Elevation:	501 ft (152.7 m) (Surveyed)
Location:	4.00 mi. S of Louisville
Beacon:	Present (white-green)
Approaches:	ILS, LOC, RNAV, GPS, RNP
Runways:	11/29, 17L/35R, 17R/35L Longest paved runway: 11890 ft
Fees:	Landing, Parking

APD	AIRPORT DIAGRAM	192.6 KB
DP	APALO ONE (RNAV)	139.6 KB
DP	APALO ONE (RNAV), CONT.1	284.8 KB
DP	FEDRA TWO (RNAV)	159.3 KB
DP	FEDRA TWO (RNAV), CONT.1	298.8 KB
DP	MYSTIC ONE (RNAV)	131.7 KB
DP	MYSTIC ONE (RNAV), CONT.1	288.7 KB
DP	STREP ONE (RNAV)	130 KB
DP	STREP ONE (RNAV), CONT.1	287.8 KB
HOT	HOT SPOT	10.2 KB
IAP	ILS OR LOC RWY 17L	320.9 KB
IAP	ILS OR LOC RWY 17R	343.7 KB
IAP	ILS OR LOC RWY 35L	357.1 KB
IAP	ILS OR LOC RWY 35R	357 KB
IAP	ILS RWY 35L (SA CAT I)	295.8 KB
IAP	ILS RWY 35R (SA CAT I)	294.5 KB
IAP	ILS RWY 35L (CAT II - III)	307.6 KB
IAP	ILS RWY 35R (CAT II - III)	307.2 KB
IAP	RNAV (RNP) Z RWY 17L	281.5 KB
IAP	RNAV (RNP) Z RWY 17R	278.5 KB
IAP	RNAV (RNP) Z RWY 35L	295.3 KB
IAP	RNAV (RNP) Z RWY 35R	304.2 KB
IAP	RNAV (GPS) RWY 29	263.1 KB
IAP	RNAV (GPS) Y RWY 17L	286.1 KB
IAP	RNAV (GPS) Y RWY 17R	282.3 KB
IAP	RNAV (GPS) Y RWY 35L	281.8 KB
IAP	RNAV (GPS) Y RWY 35R	291.9 KB
IAP	LOC RWY 29	223.4 KB
MIN	TAKEOFF MINIMUMS	125.3 KB
MIN	ALTERNATE MINIMUMS	28.2 KB
STAR	CHERI TWO	192.5 KB
STAR	DAMEN ONE (RNAV)	140.1 KB
STAR	DAMEN ONE (RNAV), CONT.1	201.3 KB
STAR	DARBY FOUR	219 KB
STAR	DLAMP ONE (RNAV)	124.9 KB
STAR	DLAMP ONE (RNAV), CONT.1	196.8 KB
STAR	FRIZN ONE (RNAV)	291.6 KB
STAR	MAUDD ONE (RNAV)	143.2 KB
STAR	MAUDD ONE (RNAV), CONT.1	233 KB
STAR	MBELL ONE (RNAV)	146.1 KB
STAR	MBELL ONE (RNAV), CONT.1	277.6 KB
STAR	REDSTONE TWO	231.6 KB
