AOPA Airports: Springfield-Beckley Municipal (KSGH)

Satellite
Diagram
Sectional

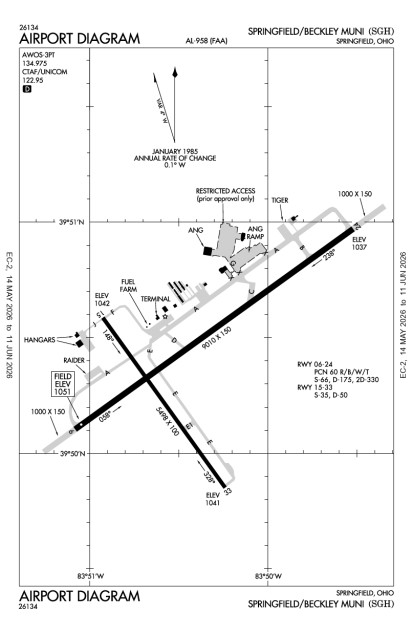

KSGH (Springfield-Beckley Municipal) airport diagram

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

100 LL	$ 5.89 (self service)
Jet-A-Premix	$ 5.10 (full service service)
Jet A	$ 5.10 (self service)
100LL	$ 5.75 (full service service)
Jet A	$ 5.20 (full service)
100 LL	$ 5.99 (full service)

Expand Additional Remarks

Heavy Bird Activity Fall & Winter Months

Deer on and Invof Arpt

Ang: Std Usaf Rsrs Applies

Ang: 0pr 1300- 2100z++ Tue-Fri, May be Extn Ot by Notam for Mil Flying

Dur ATCT Opr Hrs Ry 24 is the Preferred Ry, Wind 10 Kt or Less

Weather Obs-Ry 06 Apch End Not Vis Fr the Official Point of Observation. Vis is Limited Fr SW to Nw

Avoid Over Flying Ang Ramp

Ry 15/33 & Twy F Not Avbl for Acr Opns

Ns Abtmt: Avoid Overflying Yellow Springs 2 Nm SW Blw 4000 Ft, Practice Cir Inst Apch Na Blw 2000 Ft Estab on Final

Jasu: 6(Am32a-60b)

Traffic pattern 2,600 overhead, 2,100 rectangular traffic pattern per APM. Construction rptd ry 6

NOTAMs | TFR's

Runway 06/24

Dimensions:	9009 x 150ft. / 2745.9 x 45.7m	Weight Bearing Cap:	Single wheel: 50000 lb
Surface:	asphalt, concrete, grooved, in fair condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC	Obstructions
06	1051.2ft. MSL 58° mag 54° true 0.2% down	precision	visual glide slope: 4-Light/Left-Side PAPI runway end identifier: REIL is present		Trees, 600 ft Left of center, 40 ft high, 1,400 ft from end, 30:1 clearance slope

24	1036.9ft. MSL 238° mag 234° true 0.2% up	precision	visual glide slope: 4-Light/Left-Side PAPI	LOC/GS	Road, 605 ft Right of center, 17 ft high, 925 ft from end, 42:1 clearance slope

Runway 15/33

Dimensions:	5499 x 100ft. / 1676.1 x 30.5m	Weight Bearing Cap:	Single wheel: 12000 lb
Surface:	asphalt, concrete, no surface treatment, in fair condition	Runway Edge Lights:	medium

#	Elev/Hdg	Markings	Approach Lights	Obstructions
15	1042.1ft. MSL 148° mag 144° true 0.0% down	basic	visual glide slope: 4-Light/Left-Side PAPI runway end identifier: REIL is present	Trees, 680 ft Left of center, 38 ft high, 1,280 ft from end, 28:1 clearance slope

33	1041.2ft. MSL 328° mag 324° true 0.0% up	basic	runway end identifier: REIL is present visual glide slope: 4-Light/Left-Side PAPI	Trees, 506 ft Right of center, 67 ft high, 1,341 ft from end, 17:1 clearance slope

Name		Location	Freq. Monitored	Main Phone
Middletown Regional Flight Training, LLC	Rentals Flight Training	On field: CTR 39.845029-83.839985	UNICOM: 120.7	937-525-1441
S Jet FBO	Maintenance $5.99 $5.89 $5.75 $5.20 $5.10 $5.10 Flight Training	Springfield, OH	UNICOM: 122.95	937-323-5804

Services at this airport:

Services:
Engine Repair: MajorAirframe Repair: Major

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

14828MOKULELEMIKE11/2/2011 2:18:04 PM UTC
Great fly-in location if you are going to the Wright Patterson Museum! I flew into KSGH on 10/21. S-Jet is a great group to work with but Shelly and Paul in particular get a double thumbs up! They had a car ready for me and made sure my airplane was safely tucked away in the hangar for the night. The next day they had me fueled up and ready to go - one of the guys even offered to hand prop my airplane (1947 Cessna 140)! He seemed disappointed when I told him I had a starter :-) I can't recommend the folks at S-Jet enough. I'll be back with a bunch of friends in the spring!
14414JOHNRVOSS10/9/2011 11:31:03 PM UTC
What a pleasant experience. S Jet had the rental car ready and really made us feel welcome. Good recommendations on places to eat etc. Check the notams. Runway 24 was closed on our arrival. We will be back.
12270008794485/6/2011 1:45:14 PM UTC
Flew into KSGH on Monday May 2, 2011, departed May 5. Tower now only operates Tuesday through Friday. S Jet folks were very friendly and had the rental car waiting. As the business information indicates they do not monitor the unicom. No fee to park and tie down. I could not get Springfield flight academy at the phone number listed. The ANG has apparently moved off the field so activity there is fairly low.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Operations & More Information

Lat/Long:	N39 50.4167' / W83 50.4100'39.8402778-83.8401667
Charts:	NACO: Cincinnati Sectional
Mag Var:	04W (1985)
ARTCC:	Indianapolis (ZID)
FSS:	Dayton (DAY) 1-800-WXBRIEF
NOTAM Facility:	SGH
Approach/Departure Control Facility	CMH
Pattern Altitude:	Overhead Tpa 1549 Fixed Wing: 2100 MSL
Wind Indicator:	Lighted
Seg. Circle:	Yes
Lighting:	Pilot Activated Lighting: medium intensity: 5 clicks in 5 secs When Twr Clsd Activate MIRL Ry 15/33, REIL Ry 06, Ry 15 & Ry 33 - CTAF. HIRL Ry 06/24 Preset on Med Ints to Increase Ints Activate - CTAF

Aircraft & Activity

Based GA Aircraft

Single Engine:	22
Multi Engine:	3
Jets:	1
Helicopters:	1
Gliders:
Ultralights:	1

Airport Activity

GA Local:	3,256
GA Itinerant:	2,267
Commercial:
Air Taxi:	291
Military:	15,369

(12-month period ending on 9/30/2009)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone	Sector
Approach/Departure	Columbus	127.225
Approach/Departure IC	Columbus	126.5	091-180
Approach/Departure(S) CLASS C	Columbus	118.85	091-180
WX	Springfield	134.975T
CLASS C	Columbus	126.5	091-180
CTAF	Springfield	120.7
Ground Control	Springfield	121.7
Tower	Springfield	120.7
UNICOM	Springfield	122.95

Expand Navaids

ID	Type	Freq	Radial	Distance
SGH	VOR/DME	113.2	049	0 nm
CCJ	NDB	341.0	238	3 nm
FFO	TACAN	.0	087	10 nm
DAY	VOT	111.0	000	18 nm
UYF	NDB	263.0	259	18 nm
IL	NDB	407.0	351	21 nm
MXQ	VOR/DME	112.9	360	25 nm
CSS	NDB	414.0	311	25 nm
DQN	VOR/DME	114.5	113	28 nm
ROD	VORTAC	117.5	166	28 nm
HW	NDB	299.0	007	29 nm
BU	NDB	230.0	278	29 nm
OS	NDB	515.0	250	33 nm
HKF	NDB	239.0	058	35 nm
CHC	NDB	272.0	260	39 nm
HOC	NDB	278.0	346	42 nm
LCK	TACAN	.0	278	42 nm
DLZ	NDB	215.0	239	43 nm
MDE	NDB	379.0	037	44 nm
XUB	VOR	112.5	300	44 nm
RZT	NDB	236.0	308	45 nm
CMH	VOT	111.0	000	45 nm
RID	VORTAC	110.6	086	47 nm
LUK	NDB	335.0	034	47 nm
OXD	NDB	282.0	069	48 nm
PWF	NDB	245.0	025	49 nm

Attendance:	Attended Year-round,Sat-Sun/0900-1700Year-round,Mon-Fri/0730-1800
Tower:	Air Traffic Control Tower, 8 hrs/day, weekdays, other hours weekendsTower Hrs: 0745-1630 TUE-SAT
Elevation:	1,051 ft (320.3 m) (Surveyed)
Location:	5.00 mi. S of Springfield
Beacon:	Present (white-green)
Approaches:	ILS, DME, LOC, VOR, RNAV, GPS, NDB
Runways:	06/24, 15/33 Longest paved runway: 9009 ft
Fees:	Parking, Hangar

APD	AIRPORT DIAGRAM	93.9 KB
IAP	ILS OR LOC RWY 24	410.5 KB
IAP	RNAV (GPS) RWY 06	242.8 KB
IAP	RNAV (GPS) RWY 24	267.8 KB
IAP	VOR/DME RWY 33	202.6 KB
IAP	VOR RWY 06	185.2 KB
IAP	VOR RWY 24	252.9 KB
IAP	NDB RWY 24	190.9 KB
MIN	TAKEOFF MINIMUMS	163.1 KB
MIN	ALTERNATE MINIMUMS	33.7 KB
STAR	DANEI TWO	147.6 KB
STAR	KEKEE THREE	114.5 KB

ASN Volunteer:	Owner:	Airport Manager:
James Miller	City of Springfield	Warren Lecocq
	76 E High St	1251 W. Blee Rd.
	Springfield, OH 45502	Springfield, OH 45502
	937-325-6108 (Office)	937-325-6108 (Office)
Contact the ASN Volunteer
