FAA Information Effective: 5/2/2013

AOPA members save at 3,000+ GA airports.Book Now!
KSGJCivil
Public Use

Northeast Florida Regional

St Augustine, FL
Phone: 904-209-0090
www.staugustineairport.com/default.asp
Nearby airports

Operations | Communications | Weather | Runways | Comments | Remarks | Procedures | Services, Businesses & FBOsKneeboard Format

Overview

Attendance: Attended
Year-round, 7 Days a Week,0600-2400
Tower:Air Traffic Control Tower, 14 hrs/day, everyday, year-round
Elevation:10 ft (3.0 m) (Surveyed)
Location:4.00 mi. N of St Augustine
Beacon: Present (white-green)
Approaches:ILS, DME, LOC, VOR, RNAV, GPS
Runways:02/20, 06/24, 12W/30W (waterway) , 13/31, 17W/35W (waterway) , 18W/36W (waterway)
Longest paved runway: 8002 ft
Fees:Tiedown, Hangar
  |  Embed this
  • METARs
  • TAFs

Expand Instrument Approach Procedures

Use subject to Terms and Conditions

Check All | Download checked: Single PDF | ZIP

  • Satellite

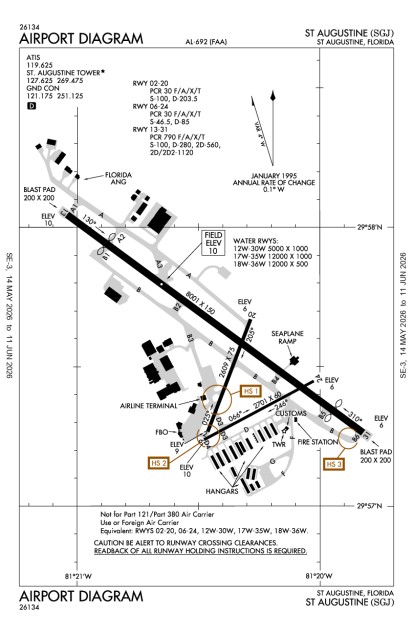

  • Diagram
  • Sectional

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

100LL$ 5.49  (self-service service)
100LL$ 6.39  (full service service)
Jet-A$ 5.99  (full service service)

Alerts

Security Directive SD-8G

Call FBO for transient pilot security procedures or after hours escort. Learn More

Expand Additional Remarks

NOTAMs | TFR's

Runway 02/20

Dimensions:2610 x 75ft. / 795.5 x 22.9mWeight Bearing Cap: Single wheel: 100000 lb
Surface:asphalt, no surface treatment, in fair conditionRunway Edge Lights:medium
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
029.1ft. MSL
25° mag
21° true
0.1% down		basicNo DataTrees, Both-Sides, 55 ft high, 1,300 ft from end, 20:1 clearance slope
205.5ft. MSL
205° mag
201° true
0.1% up		basicNo Data

Runway 06/24

Dimensions:2701 x 60ft. / 823.3 x 18.3mWeight Bearing Cap: Single wheel: 46500 lb
Surface:asphalt, no surface treatment, in excellent conditionRunway Edge Lights:medium
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
069.7ft. MSL
66° mag
62° true
0.1% down		basicvisual glide slope: 2-Light/Left-Side PAPI
Trees, 175 ft Right of center, 40 ft high, 1,000 ft from end, 20:1 clearance slope
245.9ft. MSL
246° mag
242° true
0.1% up		basicNo Data

Waterway 12W/30W

Dimensions:5000 x 1000ft. / 1524.0 x 304.8mWeight Bearing Cap:
Surface:waterRunway Edge Lights:
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
12WNo Data
No DataNo Data
30WNo Data
No DataNo Data

Runway 13/31

Dimensions:8002 x 150ft. / 2439.0 x 45.7mWeight Bearing Cap: Single wheel: 100000 lb
Surface:asphalt, no surface treatment, in good conditionRunway Edge Lights:high
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
139.4ft. MSL
130° mag
126° true
0.1% down		precisioncenterline: Centerline Lights are present
visual glide slope: 4-Box/Left-Side VASI
1058' Disp Threshold
Trees, Both-Sides, 45 ft high, 2,000 ft from end, 40:1 clearance slope
315.6ft. MSL
310° mag
306° true
0.1% up		precisioncenterline: Centerline Lights are present
visual glide slope: 4-Light/Left-Side PAPI
805' Disp Threshold
ILS/DME

Waterway 17W/35W

Dimensions:12000 x 1000ft. / 3657.6 x 304.8mWeight Bearing Cap:
Surface:waterRunway Edge Lights:
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
17WNo Data
No DataNo Data
35WNo Data
No DataNo Data

Waterway 18W/36W

Dimensions:12000 x 500ft. / 3657.6 x 152.4mWeight Bearing Cap:
Surface:waterRunway Edge Lights:
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
18WNo Data
No DataNo Data
36WNo Data
No DataNo Data

Business/Service Information

Name LocationFreq. MonitoredMain Phone
Fast Flight Options LLC
    		St Augustine, FL
    29.959136-81.342516
    		954-448-5061
    Five Star Aviation
      		ST. AUGUSTINE, FL
      29.861088-81.335022
      		904-824-9467
      Florida Aviation Career Training, Inc.
      • Rentals
      • Flight Training
      		 On field: SW
      29.954628-81.342924
      		UNICOM: 122.95
      		904-824-9401
      Florida Flyers
      • Rentals
      • Flight Training
      		 On field: S
      29.951109-81.336535
      		904-209-3505
      Galaxy Aviation of St. Augustine
      • $6.39
      • $5.99
      • Rentals
      		 On field: SW
      29.955083-81.341743
      		UNICOM: 122.95
      ARINC: 130.05      		904-824-1995
      Southeast Aero Services, Inc.
      • Maintenance
      • Sales
      		 On field: CTR
      		904-824-1899
      Southeast Avionics
      • Maintenance
      • Sales
      		 On field: SE
      		904-824-6695
      St. Augustine Airport Authority
      • $5.49
      		ST. AUGUSTINE, FL
      		904-209-0090
      List Your Business in AOPA Airports

      Services at this airport:

      Services:
      Engine Repair: MajorAirframe Repair: Major
      Fuel: 100LL Low-Lead, Jet A
      Transportation: Limousine, Public
      Rental Cars:
      EnterpriseBook Now! 866-315-9155
      Hertz
      Avis

      Expand Nearby restaurants, attractions

      Information above provided by the airport manager.
      Search nearby: Hotels | Restaurants

      Expand Member Comments

      AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

      Only current AOPA members and business managers can post comments. Make sure you are logged in.

      Are you sure you want to delete this comment?

      CancelDelete

      Member-submitted Photos

      View all
      Upload your photos of Northeast Florida Regional

        Operations & More Information

        Lat/Long:N29 57.5550' / W81 20.3833'
        Charts:NACO: Jacksonville Sectional
        Mag Var:04W (1995)
        ARTCC:Jacksonville (ZJX)
        FSS:Gainesville (GNV)
        1-800-WXBRIEF
        NOTAM Facility:SGJ
        Approach/Departure Control FacilityJAX
        Pattern Altitude:1,000 Ft Conv; 1,500 Ft Jet; 500 Ft Helicopter Heavy Aircraft: 1500 MSL; Light Aircraft: 800 MSL
        Wind Indicator:Lighted
        Seg. Circle:Yes
        Lighting:Pilot Activated Lighting:
        • high intensity: 7 clicks in 7 secs
        • medium intensity: 5 clicks in 7 secs
        Actvt HIRL Ry 13/31 & MIRL Ry 06/24 & Ry 2/20 - CTAF. Ry 06 PAPI Oper Continuously

        Aircraft & Activity

        Based GA Aircraft

        Single Engine:200
        Multi Engine:28
        Jets:17
        Helicopters:11
        Gliders:
        Ultralights:1

        Airport Activity

        GA Local:65,000
        GA Itinerant:60,000
        Commercial:2
        Air Taxi:6,000
        Military:5,000

        (12-month period ending on 2/28/2013)

        Air Safety Institute Resources

        Accident Reports

        Expand Communications Card

        Contact Addresses

        ASN Volunteer:Owner:Airport Manager:
        David FullerSt Augustine Airport AuthorityEd Wuellner
        4796 Us 1 North4796 Us 1 North
        St Augustine, FL 32095St Augustine, FL 32095
        904-209-0090 (Office) 904-209-0090 (Office)
