AOPA Airports: Sacramento International (KSMF)

Expand Additional Remarks

Crop Dusters Oper Invof Arpt at or Below 200 Ft AGL

All Acft CTC Atc Gnd Ctl Prior to Movement on Ramp

Noise Sensitive Areas W of Arpt on Sac River. Lcl Turn Discouraged for Jet Acft. When Conducting Ifr Apch in Vfr Conditions Execute Missed Apch at Dep End of Rys. Plan Vfr Patterns to E. Use Min Power Settings

Twy Y4 Will be Open and Restricted to Aircraft with A Wingspan of Less Than 118 Ft (Group Iii) and Will be Closed Nightly for Remaining Overnight Parking or Anytime Remaining Overnight Pad is Utilized

Portion of Twy W 500 Ft East of Twy A to 2100 Ft East of Twy A is Not Visible From ATCT

FAA Gwt Strength Evaluation Dc-10-10 = 410000 Lbs; Dc-10-30 = 530000 Lbs

Military Aircraft Parking Limited. Contact Arpt Opns If Parking is Required (916) 806-5351

Twy Rmk #2 Cont'D: An Aircraft Cannot Exceed the Airplane Design Group Iii Criteria and Must Have A Wheel Base of Less Than 60 Ft

Twy Rmk #2: the Maximum Allowable Gross Aircraft Load for Twys G1, G2, and the General Aviation Parking Apron Is: 70,000 Lbs for Single Gear Aircraft; 170,000 Lbs for Dual Gear Aircraft; and 250,000 Lbs for Dual Tandem Gear Aircraft

(A49a-16r) Alsf2 Opers As Ssalr Till Weather Goes Below Vfr

Birds on and in Vicinity of Arpt

Security Directive SD-8G

Intensive Flight Training

Subject to gnd fog November 15 thru March 15

Flight trng rstrns, preferential ry sys; turbojets, intcp final apch at or abv 1500' MSL; turbo 2145L/0745L ry 34r/l in use winds less than 8 kts; noise sensitive areas along side river W; ctc APM for more info

NOTAMs | TFR's

Runway 16L/34R

Dimensions:	8605 x 150ft. / 2622.8 x 45.7m	Weight Bearing Cap:	Single wheel: 100000 lb
Surface:	concrete, grooved, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Tr. Pat.	Markings	Approach Lights	ILS/LOC
16L	26.9ft. MSL 164° mag 181° true 0.1% down	No Data	precision	approach: 1400ft/Medium-Intensity/Runway Alignment Indicators visual glide slope: 4-Light/Left-Side PAPI end touchdown: End Touchdown Lights are present centerline: Centerline Lights are present	ILS/DME

34R	22.1ft. MSL 344° mag 1° true 0.1% up		non-precision	centerline: Centerline Lights are present visual glide slope: 4-Light/Left-Side PAPI

Runway 16R/34L

Dimensions:	8598 x 150ft. / 2620.7 x 45.7m	Weight Bearing Cap:	Single wheel: 100000 lb
Surface:	asphalt, porous friction course, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC	Comments/Noise
16R	24.8ft. MSL 164° mag 181° true 0.0% down	precision	approach: 2400ft/High-Intensity/Sequenced Flashers, Cat-II/III Config. end touchdown: End Touchdown Lights are present runway visual range: Touchdown, Midfield, Rollout centerline: Centerline Lights are present visual glide slope: 4-Light/Right-Side PAPI	ILS/DME	Alsf2 Unmonitored

34L	22.5ft. MSL 344° mag 1° true 0.0% up	precision	centerline: Centerline Lights are present approach: 1400ft/Medium-Intensity/Runway Alignment Indicators runway visual range: Touchdown, Midfield, Rollout visual glide slope: 4-Box/Left-Side VASI	ILS/DME

Name		Location	Freq. Monitored	Main Phone
Sacramento International Jet Center		On field: SW	UNICOM: 122.95	916-428-8292

Services at this airport:

Services:
Engine Repair: MajorAirframe Repair: Minor
Fuel: 100LL Low-Lead, Jet A
Transportation: Courtesy Car, Limousine, Shuttle Bus, Public, Van
Rental Cars:

Alamo	Book Now!	866-315-9155
National	Book Now!	866-315-9155
Avis
Budget
Hertz
Dollar

Customs: International Landing Rights

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

16588RZELRED2/13/2012 10:11:34 PM UTC
Even with my Cessna 172 easy in and out to drop off passengers so they can fly out on commercial flights. Expect to land and depart on runway 34L. The FBO is at the south east corner of 34L. Nice people at FBO . Excellent facilities including pilots lounge with a few sleeping areas. As long as the weather is good there will be no more 300 mile round trip drives from Redding to Sac for me!!!
11443009283301/17/2011 10:06:58 PM UTC
STAY AWAY!!! I flew in here in the evening to pick up an airline pilot/Federal Air Marshall friend, and the FBO was closed. (10PM) No one answered the phone, and when I contacted airport operations they would NOT open the gate to let this person through per instructions from Sacramento Jet Center. Operations then got a hold of someone associated with the FBO who said there was a $75 charge just to open the gate!!!! These people have NO concept of customer service. Go to McClellen - it's closer to town and a lot friendlier. You'll notice that comments on AIRNAV have been suppressed by SAC AIR CENTER. This tells a lot about the kind of service that is provided.
10420SSULLINS9/28/2010 3:48:14 AM UTC
Just flew up to Sacramento in my Bonanza for the day for an early meeting. SMF wasn't my first choice because I thought it would be a pain to get in and out. But we needed a rental car very early this morning, and neither Hertz nor Enterprise at any OTHER airports in the area operated very early. Called Sac Jet Center the night before and they made it SO easy - they got a car delivered the night before and when we showed up this morning they handed us the keys and took a credit card imprint and we were out the door in under 2 minutes. Yes there's a $20 handling fee but they waived it because we bought 10 gallons of gas - and the county charged $6. All a very inexpensive price to pay for the awesome service we received. On the way out this evening, the guys came out and unloaded our rental car and packed our stuff in the plane, gave us some fresh baked cookies and cold water bottles for the return trip. And getting in and out of SMF with VFR flight following couldn't have been easier. I think we taxied for about 60 seconds in and out. Will definitely go back and use Sac Jet Center again. They make even the little guy feel like a Citation driver.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Operations & More Information

Lat/Long:	N38 41.7267' / W121 35.4467'38.6954444-121.5907778
Charts:	NACO: San Francisco Sectional
Mag Var:	17E (1980)
ARTCC:	Oakland (ZOA)
FSS:	Rancho Murieta (RIU) 1-800-WXBRIEF
NOTAM Facility:	SMF
Approach/Departure Control Facility	NCT
Pattern Altitude:	Light Aircraft: 1024 MSL; Heavy Aircraft: 3000 MSL
Wind Indicator:	Lighted
Seg. Circle:	No
Lighting:	No data

Aircraft & Activity

Based GA Aircraft

Single Engine:	0
Multi Engine:	0
Jets:	9
Helicopters:
Gliders:
Ultralights:

Airport Activity

GA Local:	11,049
GA Itinerant:	7,649
Commercial:	82,573
Air Taxi:	19,227
Military:	4,653

(12-month period ending on 7/31/2012)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone	Sector
Approach/Departure CLASS C	Norcal	127.4	E-SE
Approach/Departure CLASS C	Norcal	125.4	NE
Approach/Departure CLASS C	Norcal	125.25	S-SW
Approach/Departure CLASS C	Norcal	134.8	W-N
WX	Capitol	.0T (916-649-3996)
Clearance-Delivery	Capitol	121.1
D-ATIS	Capitol	126.75
Ground Control	Capitol	121.7
Tower	Capitol	125.7
UNICOM	Capitol	122.95

Expand Navaids

ID	Type	Freq	Radial	Distance
SMF	VOT	111.4	000	0 nm
MCC	VOR/DME	109.2	264	9 nm
SAC	VOT	111.4	000	12 nm
SAC	VORTAC	115.2	336	15 nm
MYV	VOR/DME	110.8	166	24 nm
BAB	TACAN	.0	179	27 nm
ILA	VORTAC	114.4	120	30 nm
SUU	TACAN	.0	015	32 nm
HNW	VOR/DME	115.5	251	40 nm
CCR	VOR/DME	117.0	012	45 nm
LIN	VORTAC	114.8	307	46 nm
MXW	VORTAC	110.0	123	48 nm
SGD	VORTAC	112.1	033	48 nm

Attendance:	Attended Year-round, 7 Days a Week,All
Tower:	Air Traffic Control Tower, 24 hrs/day, everyday, year-round
Elevation:	27 ft (8.2 m) (Surveyed)
Location:	10.00 mi. NW of Sacramento
Beacon:	Present (white-green)
Approaches:	ILS, LOC, RNAV, GPS, RNP
Runways:	16L/34R, 16R/34L Longest paved runway: 8605 ft
Fees:	Parking, Tiedown, Landing

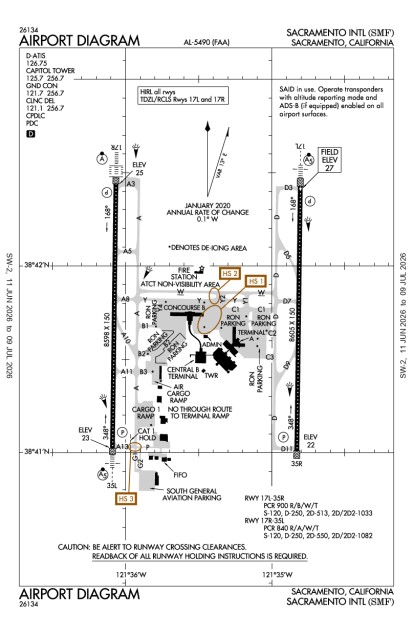

APD	AIRPORT DIAGRAM	119.6 KB
DP	DUDES NINE	167.8 KB
DP	DUDES NINE, CONT.1	171.8 KB
DP	FROGO SIX	216.1 KB
HOT	HOT SPOT	12.2 KB
IAP	ILS OR LOC RWY 16L	238.3 KB
IAP	ILS OR LOC RWY 16R	240.3 KB
IAP	ILS OR LOC RWY 34L	253.3 KB
IAP	ILS RWY 16R (SA CAT I) (changed)	211.5 KB
IAP	ILS RWY 16R(CAT II) (deleted)	B
IAP	ILS RWY 16R (CAT II - III) (changed)	210.2 KB
IAP	RNAV (RNP) Z RWY 16L	202.2 KB
IAP	RNAV (RNP) Z RWY 16R	201.2 KB
IAP	RNAV (RNP) Z RWY 34L	205.9 KB
IAP	RNAV (RNP) Z RWY 34R	200.4 KB
IAP	RNAV (GPS) Y RWY 16L	211.8 KB
IAP	RNAV (GPS) Y RWY 16R	207.9 KB
IAP	RNAV (GPS) Y RWY 34L	204.8 KB
IAP	RNAV (GPS) Y RWY 34R	178.1 KB
MIN	TAKEOFF MINIMUMS	119.4 KB
MIN	ALTERNATE MINIMUMS	28.2 KB
STAR	CONCORD TWO	84.2 KB
STAR	FLUNK THREE	109.4 KB
STAR	TUDOR TWO	157.2 KB
STAR	TUDOR TWO, CONT.1	76.5 KB
STAR	WRAPS FIVE	181.3 KB

ASN Volunteer:	Owner:	Airport Manager:
Stephen Lentz	County of Sacramento	Lance McCasland
	6900 Airport Blvd	6900 Airport Blvd
	Sacramento, CA 95837	Sacramento, CA 95837
	916-929-5411 (Office)	916-874-0566 (Office)
