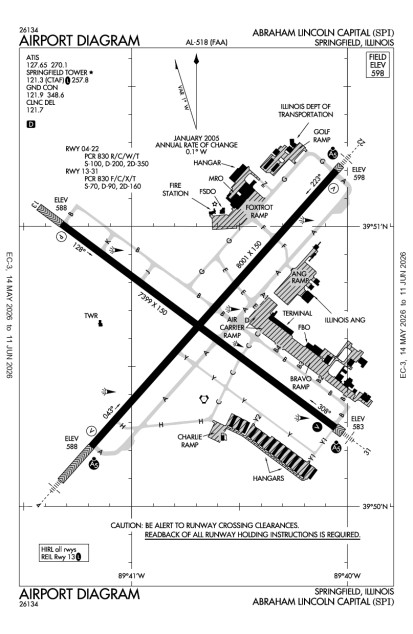

KSPI (Abraham Lincoln Capital) airport diagram

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

100LL	$ 6.28 (assisted service)

Expand Additional Remarks

Twy 'Y' Not Avbl for Acr Opns with More Than 30 Psgr Seats

(Overrun Len, Rwy 22) 150 Ft Width

Dassp Gateway Arpt Call 217-725-1143

Acft in Berm Area Adj Twys E & G Not Vsb Fr Twr; Acft in Berm Area Taxi at Own Risk

Acft on the Golf Ramp Not Vsb Fr Twr; Entrance to Twy Y Between Hangars C & D Not Vsb Fr Twr; Twy Y Marked with Non Std Signage. Acft Taxiing to Ry 4 Via Twy C Must Txi Via Twy C, H & A for A Full Length Ry 04 Dep. Intersection Dep Ry 04 at Twy H Has 7200 Ft Remaining

During Snow Removal Ops Equipment Operators Will Monitor CTAF When the Twr is Clsd

Wx Svc Avbl H24

be Alert; A 10 Ft Lgtd Barricade Seperates the Acr & the South General Aviation Ramp

General Aviation Access to & Parking on the Acr Ramp is Prohibited

Security Directive SD-8G

Large volume of mil jet opns; all tfc monitor 121.3, even if twr clsd

NOTAMs | TFR's

Runway 04/22

Dimensions:	8001 x 150ft. / 2438.7 x 45.7m	Weight Bearing Cap:	Single wheel: 100000 lb
Surface:	concrete, grooved, in fair condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC	Obstructions
04	587.8ft. MSL 43° mag 42° true 0.1% up	precision	visual glide slope: 4-Box/Left-Side VASI runway visual range: Touchdown approach: 1400ft/Medium-Intensity/Runway Alignment Indicators	ILS	Tree, 758 ft Right of center, 49 ft high, 2,239 ft from end, 41:1 clearance slope

22	597.9ft. MSL 223° mag 222° true 0.1% down	precision	visual glide slope: 4-Box/Left-Side VASI approach: 1400ft/Medium-Intensity/Runway Alignment Indicators	ILS	Tree, 704 ft Right of center, 78 ft high, 4,040 ft from end, 49:1 clearance slope

Runway 13/31

Dimensions:	7400 x 150ft. / 2255.5 x 45.7m	Weight Bearing Cap:	Single wheel: 70000 lb
Surface:	asphalt, grooved, in fair condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC	Obstructions
13	587.8ft. MSL 128° mag 127° true 0.1% down	precision	runway end identifier: REIL is present visual glide slope: 4-Light/Right-Side PAPI		Trees, 383 ft Right of center, 74 ft high, 3,131 ft from end, 39:1 clearance slope

31	583.2ft. MSL 308° mag 307° true 0.1% up	precision	approach: 1400ft/Medium-Intensity/Runway Alignment Indicators visual glide slope: 4-Box/Left-Side VASI	ILS	Tree, 628 ft Left of center, 22 ft high, 1,142 ft from end, 42:1 clearance slope

Runway 18/36

Dimensions:	5300 x 150ft. / 1615.4 x 45.7m	Weight Bearing Cap:	Single wheel: 60000 lb
Surface:	asphalt, concrete, no surface treatment, in fair condition	Runway Edge Lights:	medium

#	Elev/Hdg	Markings	Approach Lights	Obstructions
18	590.2ft. MSL 182° mag 181° true 0.1% down	basic	No Data	Tree, 292 ft Left of center, 88 ft high, 2,046 ft from end, 20:1 clearance slope

36	586.7ft. MSL 2° mag 1° true 0.1% up	basic	No Data	Tree, 200 ft Left of center, 57 ft high, 1,547 ft from end, 23:1 clearance slope

Business/Service Information

Name		Location	Freq. Monitored	Main Phone
Landmark Aviation	Maintenance Fuel	On field: SE 39.842418-89.669209	UNICOM: 122.95	217-523-5080
Lincoln Land Community College	Flight Training	SPRINGFIELD, IL		217-786-2406
McClelland Aviation Company, Inc.	Maintenance $6.28 Rentals Sales Flight Training	On field: S 39.837607-89.676847	UNICOM: 122.95	217-544-9027

List Your Business in AOPA Airports

Services at this airport:

Services:
Engine Repair: MajorAirframe Repair: MajorBulk Oxygen: High/Low
Fuel: 100LL Low-Lead, Jet A
Transportation: Public
Rental Cars:

Avis
Budget
Hertz

Expand Nearby restaurants, attractions

Lone Star Steak House 8 mi 217-787-9411

Alexanders 2 mi 217-793-0440

49er 2 mi

TGI Friday 6 mi 217-698-1900

Subway 217-788-1073

Dan's 217-525-8370

Midstate 217-522-9039

Airport 217-789-2629

A-Diamond 217-788-5828

Old State Capitol 3 mi

New Salem 12 mi

Lincoln-Herdon Law Office

Lincoln Tomb 1 1/2 mi

Lincoln Home 3 mi

Information above provided by the airport manager.
Search nearby: Hotels | Restaurants

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

21453SWINGHM303/6/2013 3:55:13 PM UTC
The people at Landmark Aviation are awesome!!!! As soon as you walk through the door, they are there to take care of you.
21452SWINGHM303/6/2013 3:53:42 PM UTC
Lincoln Land is NOT a flight training center, they only offer A&P courses. I fly through PICME aviation located at the main terminal of the airport. The instructors are second to none and will help you with anything. Their webite is www.picmeaviation.org

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Operations & More Information

Lat/Long:	N39 50.6526' / W89 40.6854'39.8442099-89.6780898
Charts:	NACO: St Louis Sectional
Mag Var:	01W (2005)
ARTCC:	Kansas City (ZKC)
FSS:	Saint Louis (STL) 1-800-WXBRIEF
NOTAM Facility:	SPI
Approach/Departure Control Facility
Pattern Altitude:	Fixed Wing: 1397 MSL
Wind Indicator:	Lighted
Seg. Circle:	No
Lighting:	Pilot Activated Lighting: high intensity: 7 clicks in 7 secs medium intensity: 5 clicks in 5 secs low intensity: 3 clicks in 3 secs When ATCT Clsd Actvt HIRL Ry 13/31; HIRL Ry 04/22; MALSR Rys 04; 22 & 31; VASI Ry 31; REIL Ry 13 - CTAF. PAPI Ry 13 & VASI Rys 04 & 22 Oper Continuously. MIRL Ry 18/36 Intst Preset On/Off Per Wind Conditions When ATCT Clsd

Aircraft & Activity

Based GA Aircraft

Single Engine:	133
Multi Engine:	29
Jets:	6
Helicopters:	1
Gliders:
Ultralights:

Airport Activity

GA Local:	6,062
GA Itinerant:	14,063
Commercial:	364
Air Taxi:	6,861
Military:	3,635

(12-month period ending on 12/31/2011)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone
Approach/Departure	Springfield	132.575
Approach/Departure CLASS C IC	Springfield	126.15
WX	Springfield	.0T (217-789-7389)
ATIS	Springfield	127.65
Clearance-Delivery	Springfield	121.7
CTAF	Springfield	121.3
EMERG	Springfield	121.5
Ground Control	Springfield	121.9
Tower	Springfield	121.3
UNICOM	Springfield	122.95

Expand Navaids

ID	Type	Freq	Radial	Distance
SPI	VORTAC	112.7	357	0 nm
SP	NDB	382.0	043	6 nm
AAA	NDB	329.0	220	25 nm
IJX	VOR/DME	108.6	079	26 nm
AXC	VORTAC	117.2	277	39 nm
PI	NDB	356.0	184	46 nm
SYZ	NDB	365.0	306	47 nm
CTK	NDB	236.0	155	47 nm

Contact Addresses

ASN Volunteer:	Owner:	Airport Manager:
William Furling	Springfield Airport Authority	Mark Hanna
	1200 Capital Airport Dr	Capital Airport
	Springfield, IL 62707-8413	Springfield, IL 62707-8419
	217-788-1080 (Office)	217-788-1080 (Office)
Contact the ASN Volunteer
		Airport Manager Admin

Attendance:	Attended Year-round, 7 Days a Week,0530-0000
Tower:	ATCT plus Terminal Radar Approach Control, 17 hrs/day, everyday, year-roundTower Hrs: 0600-2200
Elevation:	598 ft (182.3 m) (Surveyed)
Location:	3.00 mi. NW of Springfield
Beacon:	Present (white-green)
Approaches:	ILS, DME, LOC, VOR, RNAV, GPS, TACAN
Runways:	04/22, 13/31, 18/36 Longest paved runway: 8001 ft
Fees:	Tiedown, Hangar

APD	AIRPORT DIAGRAM	151.5 KB
HOT	HOT SPOT	9.8 KB
IAP	HI-ILS OR LOC RWY 22	346.7 KB
IAP	HI-ILS OR LOC/DME RWY 04	334.4 KB
IAP	ILS OR LOC RWY 04	239 KB
IAP	ILS OR LOC RWY 22	265.6 KB
IAP	ILS OR LOC RWY 31	280.9 KB
IAP	RNAV (GPS) RWY 04	245.6 KB
IAP	RNAV (GPS) RWY 13	253.2 KB
IAP	RNAV (GPS) RWY 22	259.3 KB
IAP	RNAV (GPS) RWY 31	242.3 KB
IAP	VOR/DME RWY 04	254.6 KB
IAP	VOR/DME RWY 13	226.3 KB
IAP	VOR/DME RWY 22	202.7 KB
IAP	VOR/DME RWY 31	255.7 KB
IAP	HI-VOR/DME OR TACAN RWY 04	269.8 KB
IAP	HI-VOR/DME OR TACAN RWY 22	281.4 KB
LAH	LAHSO	14.2 KB
MIN	TAKEOFF MINIMUMS	199.8 KB
MIN	ALTERNATE MINIMUMS	48.7 KB
MIN	RADAR MINIMUMS	45.2 KB
