FAA Information Effective: 11/13/2014

  • 5550 msl
KTNXUsaf
Private Use

Tonopah Test Range Airport

Tonopah, NV


Phone: 702-295-8313
Nearby airports

AOPA members save at 3,000+ GA airports.Book Now!

Overview

Attendance: Attended
Clsd Wkend And Hol.Year-round,Wkd/1300-0300z++
Tower:Air Traffic Control Tower, 14 hrs/day, weekdays onlyTower Hrs: 1300-0300Z ++ WKD; CLSD WKEND AND HOL.
Elevation:5,550 ft (1,691.6 m) (Estimated)
Location:27.00 mi. SE of Tonopah
Beacon: Not present
Instrument Procedures:ILS, DME, LOC, VOR, RNAV, GPS, TACAN
Runways:14/32
Runway length: 12001 ft
Fees:No data

  • METARs
  • TAFs

Expand Instrument Procedures

Use subject to Terms and Conditions

  • Satellite

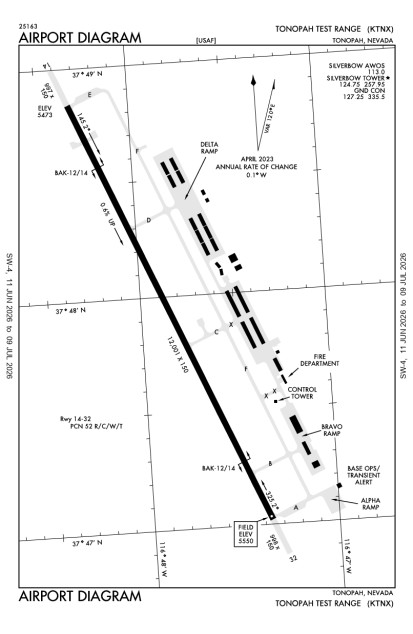

  • Diagram
  • Sectional

Expand Additional Remarks

Runway 14/32

Dimensions:12001 x 150ft. / 3657.9 x 45.7mWeight Bearing Cap:
Surface:concrete, no surface treatment, condition not reportedRunway Edge Lights:high
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
145473.4ft. MSL

0.6% up
visual glide slope: 4-Light/Left-Side PAPI
approach: 3000ft/High-Intensity/Centerline Sequence Flashers
LOC/GSColocated at 1500' for Rwy 14 Colocated at 1500' for Rwy 14
325550.3ft. MSL

0.6% down
No Dataapproach: 2400ft/High-Intensity/Sequenced Flashers, Cat-I Config.
visual glide slope: 4-Light/Left-Side PAPI
LOC/GS

Business/Service Information

List Your Business in AOPA Airports

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

Are you sure you want to delete this comment?

CancelDelete

Operations & More Information

Lat/Long:N37 47.9321' / W116 46.8452'
Charts:NACO: Las Vegas Sectional
Mag Var:16E (2005)
ARTCC:Los Angeles (ZLA)
FSS:Reno (RNO)
1-800-WXBRIEF
NOTAM Facility:RNO
Approach/Departure Control Facility
Pattern Altitude:Tfc Pat: Rectangular 7000' MSL 1500' Agl, Overhead 7500' MSL 2000' AGL
Wind Indicator:Present (unlit)
Seg. Circle:Yes
Lighting: Actvt Ry 14/32 HIRL, Key 3 Times for Lo Intst, 5 Times for Med Intst, 7 Times for Hi Intst, PAPI Ry 14 and PAPI Ry 33, Alsf-1 Ry 14 and Alsf-1 Ry 32 - Freq 257.95. Alsf-1 Ry 14 and Alsf-1 Ry 32 Oper Hi Intst Only

Aircraft & Activity

Airport Activity

GA Local:NaN
GA Itinerant:200
Commercial:
Air Taxi:
Military:

(12-month period ending on 12/14/1983)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Contact Addresses

Owner:Airport Manager:
US Air ForceVernon Gabbard Jr
Hq Air Combat CommandSandia Lab Po Box 871
Langley Afb, VA 23665Tonopah, NV 89049
804-764-3120 (Office) 702-295-8313 (Office)
