AOPA Airports: Volk Field (KVOK)

FAA Information Effective: 3/7/2013

AOPA members save at 3,000+ GA airports.Book Now!

KVOKUsaf
Private Use

Volk Field

Camp Douglas, WI
Phone: 608-427-1205
www.volkfield.ang.af.mil
Nearby airports

Overview

Attendance:	Attended Exc Hol, Closed Other Times Except Validated Overseas Or Ang Msn, Ck Notam For Current Afld Hr.Year-round,Mon-Fri/1400-2200z++
Tower:	ATCT plus Approach Control, 8 hrs/day, weekdays onlyTower Hrs: 0800-1600 MON-FRI; EXCP HOLS
Elevation:	912 ft (278.0 m) (Estimated)
Location:	1.00 mi. N of Camp Douglas
Beacon:	Present (white-green)
Approaches:	ILS, DME, LOC, RNAV, GPS, TACAN
Runways:	09/27 Runway length: 9000 ft
Fees:	No data

Plain | Embed this

METARs
TAFs

Satellite
Diagram
Sectional

Open in Google Maps

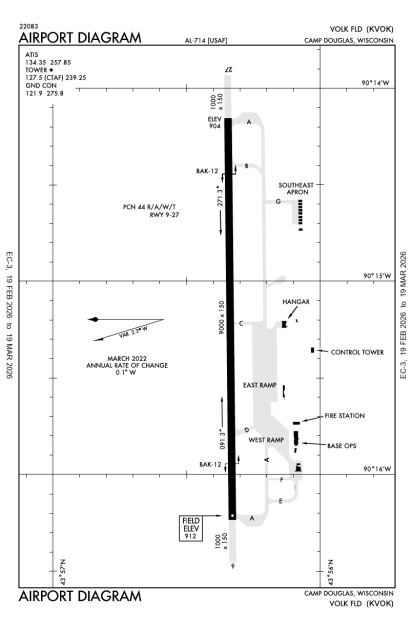

AIRPORT DIAGRAM

Click chart for current METARs and aeronautical charts

Expand Additional Remarks

Lgt: Ry 27 PAPI Nstd Lctd Rgt Side

A-Gear - Nml Bak-12b(B) Configuration: Apch End Down, Dep End Up; 20 Min Pn to Reconnect Apch End Cable

Bearing Strength Ry 09/27: St175, Sbtt500,Tdt820 & Ddt710

Rstd: Recommend Use As Emerg Arpt Only When Rqr to Land As Soon As Possible

Remarks-Caution: Bash Phase I- All Dates Not Designated As Phase Ii. Phase Ii in Effect 1 Sep to 30 Nov and 1 Mar to 31 May

Caution: Use Extreme Caution for Extensive Unmanned Aerial Systems (Uas) Ops in Vcnty

Remarks-Misc: Base Ops Dsn 871-1205, C608-427-1205

Rstd: Ppr Must be Rcv Nlt 48 Hr in Advance of Acft Arr or by 2200z++ on Fri for the Following Mon

Fmq-19 Automated Wx Obsn Avbl H24, Dsn 871-1066, Comm 608-427-1066

Misc: First 1600 Ft Ry 09 and First 1600 Ft Ry 27 Grooved Concrete, Mid 5800 Grooved Asphalt. Std Usaf Rsrs Applied

Tfc Pat: Copter Rectangular 1500'

Caution: Twy E, F and G Unlgtd, Unltd Daytime Vfr Use, Follow Me Rqr for Day Ifr and Ngt Ifr/Vfr Use

Caution - When Wind is Fr S/SW Exp Possible Low Level Wind Shear 1 to 3 Nm on Final to Rwy 27. Due to Tactical Acft Rqr, Bak-12 Cable May be in Posn for Rwy 09-27 Simultaneously

Rstd: Ppr CTC Volk Fld Dsn 871-1205, C608-427-1205. Issued Ppr Valid for Eta +/- 1 Hr. Early/Late Arr/Dep Must be Coord. After Hr Re-Coord or Cnl Will be Passed to Base Ops Sby Pers C608-343-0104

Military Use: Opr 1400-2200z++ Mon-Fri Exc Hol, Oy in Support of Ngb Validated Flying. See Flip Ap/1 Supplementary Arpt Rmk

Tran Alert - Extremely Ltd

Fluid - Lpox Lox

Fuel - J8-Avbl Ltd, Exp Possible Gnd Delay for Req Exceeding 10,000 Gal

Jasu - (Am32a-60a) 6(A/M32a-86)

RESTRICTED. MILITARY AIRPORT. PRIOR PERMISSION REQUIRED. CONTACT BASE OPS MANAGER 608/427-1205

NOTAMs | TFR's

Runway 09/27

Dimensions:	9000 x 150ft. / 2743.2 x 45.7m	Weight Bearing Cap:	Single wheel: 81000 lb
Surface:	asphalt, concrete, grooved, condition not reported	Runway Edge Lights:	high

#	Elev/Hdg	Tr. Pat.	Approach Lights	ILS/LOC	Comments/Noise
09	912.0ft. MSL 89° mag 89° true 0.1% down	No Data	approach: 1400ft/Medium-Intensity/Runway Alignment Indicators visual glide slope: 4-Light/Left-Side PAPI		Hook Bak12b(B)(1260')

27	903.7ft. MSL 269° mag 269° true 0.1% up		approach: 2400ft/High-Intensity/Sequenced Flashers, Cat-I Config. visual glide slope: 4-Light/Right-Side PAPI	ILS	Hook Bak-12b(B)(1250') Sfl Not Available on Pcl, Available Upon Request with Twr/Base Ops

Business/Service Information

List Your Business in AOPA Airports

Services at this airport:

Services:
Bulk Oxygen: High/Low
Fuel: 115 Octane, Jet B +Icing Inhibitor

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Member-submitted Photos

View all
Upload your photos of Volk Field

Operations & More Information

Lat/Long:	N43 56.3543' / W90 15.1898'43.9392375-90.2531625
Charts:	NACO: Chicago Sectional
Mag Var:	0 (1995)
ARTCC:	Chicago (ZAU)
FSS:	Green Bay (GRB) 1-800-WXBRIEF
NOTAM Facility:	GRB
Approach/Departure Control Facility
Pattern Altitude:	No data provided. Assume 1000 AGL
Wind Indicator:	Present (unlit)
Seg. Circle:	No
Lighting:	Ss-Sr. Rotg Bcn Sched Ss-Sr When Twr Operational Actvt MALSR Ry 09; PAPI Ry 09/27; HIRL Ry 09/27 - CTAF or 239.5

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone
Approach/Departure	Volk	135.25
ATIS	Volk	120.475
CTAF	Volk	127.5
EMERG	Volk	121.5
Ground Control	Volk	121.9
HARDWOOD RANGE	Volk	34.2
Tower	Volk	127.5

Expand Navaids

ID	Type	Freq	Radial	Distance
VOK	TACAN	.0	130	0 nm
CMY	NDB	412.0	090	17 nm
HBW	NDB	251.0	008	17 nm
ISW	NDB	215.0	216	31 nm
DLL	VORTAC	117.0	315	32 nm
BCK	NDB	362.0	126	32 nm
VIQ	NDB	368.0	164	39 nm
LNR	VOR/DME	112.8	352	39 nm
MFI	NDB	391.0	184	42 nm
LSE	VOR/DME	108.4	083	44 nm
STE	VORTAC	110.6	222	48 nm

Contact Addresses

Owner:	Airport Manager:
USAF	Base Operations
Hdqtrs Wi Ang Volk Fld Camp	Hdqtrs Wi Ang Volk Fld Camp
Camp Douglas, WI 54618	Camp Douglas, WI 54618
608-427-1205 (Office)	608-427-1205 (Office)
	Airport Manager Admin
Dsn 871-1205

APD	AIRPORT DIAGRAM	80.5 KB
IAP	ILS OR LOC/DME RWY 27	198.8 KB
IAP	RNAV (GPS) RWY 09	171.1 KB
IAP	HI-TACAN RWY 27	184.2 KB
IAP	TACAN RWY 09	207.9 KB
IAP	TACAN RWY 27	213.9 KB
MIN	TAKEOFF MINIMUMS	197.4 KB
