FAA Information Effective: 5/2/2013

AOPA members save at 3,000+ GA airports.Book Now!
KXFLCivil
Public Use

Flagler County

Palm Coast, FL
Phone: 386-437-0401
www.flaglercountyairport.com
Nearby airports

Operations | Communications | Weather | Runways | Comments | Remarks | Procedures | Services, Businesses & FBOsKneeboard Format

Overview

Attendance: Attended
Year-round, 7 Days a Week,0700-2000
Tower:Air Traffic Control Tower, 14 hrs/day, everyday, year-round
Elevation:33 ft (10.1 m) (Estimated)
Location:6.00 mi. S of Palm Coast
Beacon: Present (white-green)
Approaches:VOR, RNAV, GPS
Runways:06/24, 11/29, 18W/36W (waterway) , H1
Longest paved runway: 5000 ft
Fees:Tiedown, Parking
  |  Embed this
  • METARs
  • TAFs

Expand Instrument Approach Procedures

Use subject to Terms and Conditions

Check All | Download checked: Single PDF | ZIP

  • Satellite

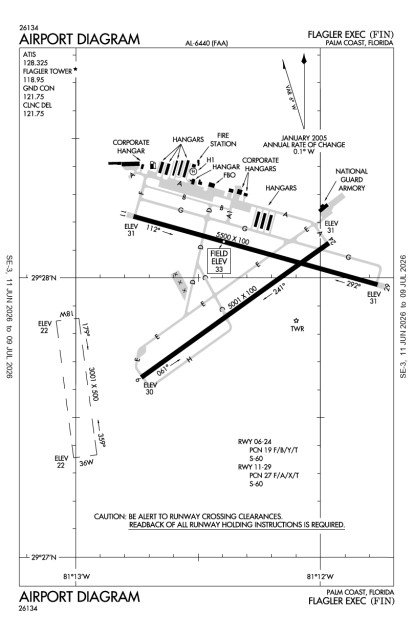

  • Diagram
  • Sectional

Click chart for current METARs and aeronautical charts

Expand Additional Remarks

NOTAMs | TFR's

Runway 06/24

Dimensions:5000 x 100ft. / 1524.0 x 30.5mWeight Bearing Cap: Single wheel: 60000 lb
Surface:asphalt, no surface treatment, in good conditionRunway Edge Lights:medium
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
0628.9ft. MSL
61° mag
55° true
0.0% up		non-precisionvisual glide slope: 2-Light/Left-Side PAPI
Trees, 47 ft Left of center, 27 ft high, 1,142 ft from end, 34:1 clearance slope
Apch Slope 8:1 to Eor
2431.1ft. MSL
241° mag
235° true
0.0% down		non-precisionvisual glide slope: 2-Light/Left-Side PAPI
Trees, Both-Sides, 44 ft high, 1,520 ft from end, 30:1 clearance slope
Apch Slope 34:1 to Eor

Runway 11/29

Dimensions:4999 x 100ft. / 1523.7 x 30.5mWeight Bearing Cap: Single wheel: 60000 lb
Surface:asphalt, no surface treatment, in fair conditionRunway Edge Lights:medium
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
1129.8ft. MSL
112° mag
106° true
0.0% up		non-precisionvisual glide slope: 2-Light/Left-Side PAPI
Trees, Both-Sides, 51 ft high, 1,764 ft from end, 30:1 clearance slope
2930.6ft. MSL
292° mag
286° true
0.0% down		non-precisionvisual glide slope: 2-Light/Left-Side PAPI
Trees, Both-Sides, 57 ft high, 2,141 ft from end, 34:1 clearance slope
Apch Slope 20:1 to Eor

Waterway 18W/36W

Dimensions:3000 x 500ft. / 914.4 x 152.4mWeight Bearing Cap:
Surface:waterRunway Edge Lights:
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
18W22.0ft. MSL
179° mag
173° true
No DataNo DataRy 18w/36w Landing Area Not Marked
36W22.0ft. MSL
359° mag
353° true
No DataNo Data

Helipad H1

Dimensions:36 x 36ft. / 11.0 x 11.0mWeight Bearing Cap:
Surface:concrete, gravel, no surface treatment, condition not reportedRunway Edge Lights:
#Elev/HdgTr. Pat.MarkingsApproach LightsTD PointILS/LOCObstructionsComments/Noise
H1No Data
No DataNo Data

Business/Service Information

Name LocationFreq. MonitoredMain Phone
Flagler Aircraft Service
  • Maintenance
  • Rentals
  • Sales
  • Flight Training
 On field: NW
29.472705-81.212740
UNICOM: 123.0
386-566-0862
Flagler County Airport
  • Fuel
 On field: N
 UNICOM: 123.0
386-437-0401
Mudry Aviation, LTD., Inc.
  • Maintenance
  • Rentals
  • Sales
  • Flight Training
 On field: NE
386-437-5792
Palm Coast Aviation
  • Flight Training
 On field: N
29.473154-81.210337
386-437-3874
Ryan Aviation, Inc.
  • Rentals
  • Flight Training
 On field: N
800-338-3044
List Your Business in AOPA Airports

Services at this airport:

Services:
Engine Repair: MajorAirframe Repair: Major
Fuel: 100LL Low-Lead, Jet A
Transportation: Limousine, Van
Rental Cars:
EnterpriseBook Now! 866-315-9155

Expand Nearby restaurants, attractions

Information above provided by the airport manager.
Search nearby: Hotels | Restaurants

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

CancelDelete

Member-submitted Photos

View all
Upload your photos of Flagler County

    Operations & More Information

    Lat/Long:N29 28.0433' / W81 12.3800'
    Charts:NACO: Jacksonville Sectional
    Mag Var:06W (2005)
    ARTCC:Jacksonville (ZJX)
    FSS:Gainesville (GNV)
    1-800-WXBRIEF
    NOTAM Facility:GNV
    Approach/Departure Control FacilityDAB
    Pattern Altitude:Heavy Aircraft: 1034 MSL; Rotorcraft: 500 MSL; Ultralights: 500 MSL; Light Aircraft: 1034 MSL
    Wind Indicator:Lighted
    Seg. Circle:Yes
    Lighting:No data

    Aircraft & Activity

    Based GA Aircraft

    Single Engine:38
    Multi Engine:12
    Jets:2
    Helicopters:6
    Gliders:
    Ultralights:

    Airport Activity

    GA Local:95,000
    GA Itinerant:95,000
    Commercial:
    Air Taxi:
    Military:10

    (12-month period ending on 4/15/2011)

    Air Safety Institute Resources

    Accident Reports

    Expand Communications Card

    Contact Addresses

    ASN Volunteer:Owner:Airport Manager:
    Alfred WackerFlagler CountyRoy Sieger Jr
    1769 East Moody Boulevard, #2, Suite 302Flagler County Airport, 201 Airport Road
    Bunnell, FL 32110Palm Coast, FL 32164
    386-437-0401 (Office) 386-437-0401 (Office)
    Contact the ASN Volunteer
    Airport Manager Admin
    Airport Physical Address: 201 Airport Road
