AOPA Airports: Mansfield Lahm Regional (MFD)

FAA Information Effective: 3/7/2013

AOPA members save at 3,000+ GA airports.Book Now!

KMFDCivil
Public Use

Mansfield Lahm Regional

Mansfield, OH
Phone: 419-522-2191
www.ci.mansfield.oh.us/lahm-airport
Nearby airports

Satellite
Diagram
Sectional

Open in Google Maps

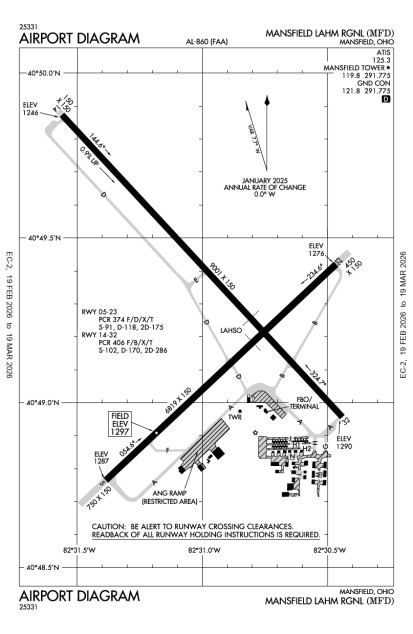

AIRPORT DIAGRAM

Click chart for current METARs and aeronautical charts

Alerts

Security Directive SD-8G

Call FBO for transient pilot security procedures or after hours escort. Learn More

Expand Additional Remarks

Ang Nrml Duty Hrs: 1130-2230z++Mon-Fri, Exc Hol. Mil Acft Rwy Sfc Cond and Bwc During Duty Frm Afd Mgt

Ppr, Afld Mgt: Dsn 696-6124/6174, Comm 419-52-624/6174. 48hr Pn Rqd. Call Skull Ops/Comd Post 20 Prior to Arvl with Ppr. Ext Lmtd Parking, Ltd Tran Svc. No Cstms/Ag/Img. Afld Mgmt Does Not Store Comsec for Tran Aircrews. Call Skull Ops/Comp Post for Eng Start When Prkd on Ang Apron

All Mil Opns: Bash Phase Ii Migratory Bird Haz are Fr Apr-May and 15 Sep - 15 Nov; Bash Phase I Other Times

Acft Larger Than A 'G1' or with A Wing Span Greater Than 80 Ft (Tip to Tip) are Restricted on Twys G/H/J/L/M/N & Should Use the Main Ramp Area

Acft on Either End of Ry 5/23 and 14/32 Cannot be Seen on the Other End Due to Ry Grade

Deer & Birds & Waterfowl on & Invof Arpt. Increased Deer Hazard During Fall and Winter Season

Rmk-Caution: 11 Ft High Fence 95 Ft From Twy Cntrln Lctd on Twy A; Between Apch End Rwy 5 and Twy F, Does Not Have Rqrd Clnc From Twy Cntrln. This Sec of Twy A Not Recommended for C-130 Acft and Larger

Fbo Aft Hrs Ctc: 419-524-4261 / 419-610-6473

Airport weblink is www.ci.mansfield.oh.us/lahm-airport.

Pilot's lounge lctd trml bldg

NOTAMs | TFR's

Runway 05/23

Dimensions:	6800 x 150ft. / 2072.6 x 45.7m	Weight Bearing Cap:	Single wheel: 90000 lb
Surface:	asphalt, grooved, in fair condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	Obstructions
05	1286.9ft. MSL 53° mag 47° true 0.2% down	non-precision	visual glide slope: 4-Light/Left-Side PAPI runway end identifier: REIL is present

23	1276.1ft. MSL 233° mag 227° true 0.2% up	non-precision	visual glide slope: 4-Light/Left-Side PAPI runway end identifier: REIL is present	Trees, 600 ft Right of center, 48 ft high, 1,550 ft from end, 28:1 clearance slope

Runway 14/32

Dimensions:	9001 x 150ft. / 2743.5 x 45.7m	Weight Bearing Cap:	Single wheel: 150000 lb
Surface:	asphalt, grooved, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC	Obstructions
14	1245.5ft. MSL 143° mag 137° true 0.5% up	precision	visual glide slope: 4-Light/Left-Side PAPI		Road, 629 ft Right of center, 27 ft high, 1,143 ft from end, 34:1 clearance slope

32	1289.7ft. MSL 323° mag 317° true 0.5% down	precision	approach: 1400ft/Medium-Intensity/Runway Alignment Indicators runway visual range: Touchdown	ILS	Trees, 250 ft Right of center, 58 ft high, 2,650 ft from end, 42:1 clearance slope

Helipad H2

Dimensions:	24 x 24ft. / 7.3 x 7.3m	Weight Bearing Cap:
Surface:	asphalt, no surface treatment, in good condition	Runway Edge Lights:

#	Elev/Hdg	Tr. Pat.	Markings	Approach Lights	TD Point	ILS/LOC	Obstructions	Comments/Noise
H2	No Data	No Data		No Data

Business/Service Information

Name		Location	Freq. Monitored	Main Phone
Richland Aviation	Maintenance Fuel	On field: S	UNICOM: 122.95	419-524-4261

List Your Business in AOPA Airports

Services at this airport:

Services:
Engine Repair: MajorAirframe Repair: Major
Fuel: 100LL Low-Lead, Jet A
Transportation:
Rental Cars:

Hertz

Expand Nearby restaurants, attractions

Mansfield/Richland City 800-642-8282

Quality Cab 419-526-6911

Flyboy's Cafe 419-774-7900

Snow Trails 12 mi

Mid-Ohio Sports Car Course 15 mi

Malabar Farm State Park 20 mi

Kingwood Center 6 mi

The Living Bible Museum 3 mi

Clear Fork Ski area 15 mi

nmrs 5 mi

Information above provided by the airport manager.
Search nearby: Hotels | Restaurants

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

17809MOONEYHUSKY6/23/2012 10:46:24 AM UTC
Restaurant recently reopened as an upscale SUBWAY restaurant. Aircraft parking with great runway view,, picnic area, lounge chair seating, WiFi and gourmet coffee are some of its features. They are also open for "breakfast sandwiches."
6653DMINDERMAN3/16/2010 3:43:16 PM UTC
I understand from the receptionist at the airport that the restaurant is closed. They are hoping for someone else to re-open it; but as of now, there are no plans.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Member-submitted Photos

View all
Upload your photos of Mansfield Lahm Regional

Operations & More Information

Lat/Long:	N40 49.2850' / W82 30.9983'40.8214167-82.5166389
Charts:	NACO: Detroit Sectional
Mag Var:	06W (1985)
ARTCC:	Cleveland (ZOB)
FSS:	Cleveland (CLE) 1-800-WXBRIEF
NOTAM Facility:	MFD
Approach/Departure Control Facility
Pattern Altitude:	Fixed Wing: 2300 MSL
Wind Indicator:	Lighted
Seg. Circle:	No
Lighting:	Pilot Activated Lighting: high intensity: 7 clicks in 7 secs medium intensity: 5 clicks in 5 secs low intensity: 3 clicks in 3 secs When ATCT Clsd Actvt HIRL Rys 05/23 & 14/32, MALSR Ry 32 REIL Rys 05 & 23 - CTAF

Aircraft & Activity

Based GA Aircraft

Single Engine:	56
Multi Engine:	11
Jets:	1
Helicopters:	0
Gliders:
Ultralights:

Airport Activity

GA Local:	3,825
GA Itinerant:	9,779
Commercial:	4
Air Taxi:	620
Military:	5,065

(12-month period ending on 12/31/2011)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone
Approach/Departure	Mansfield	124.2
Approach/Departure(S)	Mansfield	127.35
WX	Mansfield	.0T (419-522-1375)
ATIS	Mansfield	125.3
CTAF	Mansfield	119.8
EMERG	Mansfield	121.5
Ground Control	Mansfield	121.8
Tower	Mansfield	119.8
UNICOM	Mansfield	122.95

Expand Navaids

ID	Type	Freq	Radial	Distance
MFD	VORTAC	108.8	133	4 nm
MF	NDB	372.0	321	5 nm
AAU	NDB	329.0	242	15 nm
BUD	VOR	109.8	069	28 nm
TVT	VOR/DME	116.5	324	28 nm
TII	NDB	269.0	122	36 nm
DJB	VOR/DME	113.6	212	36 nm
SKY	VOR/DME	109.2	174	37 nm
APE	VORTAC	116.7	011	40 nm
DLZ	NDB	215.0	045	42 nm
PCW	NDB	423.0	166	45 nm
FZI	NDB	379.0	124	46 nm
CLE	VOT	110.4	000	47 nm
HEH	NDB	524.0	003	48 nm
CAK	VOT	110.6	000	49 nm
BSV	VOR/DME	112.4	280	50 nm

Contact Addresses

ASN Volunteer:	Owner:	Airport Manager:
Dennis Atkeson	City of Mansfield	Mark T. Daugherty
	2000 Harrington Meml Rd	2000 Harrington Meml Rd
	Mansfield, OH 44903	Mansfield, OH 44903
	419-522-2191 (Office)	419-522-2191 (Office)
Contact the ASN Volunteer
		Airport Manager Admin

Attendance:	Attended Year-round,Sat-Sun/0800-1800Year-round,Mon - Fri/0700-1900
Tower:	ATCT plus Terminal Radar Approach Control, 17 hrs/day, everyday, year-roundTower Hrs: 0600-2300Tower Hrs: 0630-2230Primary Approach Control Hrs: 0630-2230
Elevation:	1,297 ft (395.3 m) (Surveyed)
Location:	3.00 mi. N of Mansfield
Beacon:	Present (white-green)
Approaches:	ILS, DME, LOC, VOR, RNAV, GPS, NDB, TACAN
Runways:	05/23, 14/32, H2 Longest paved runway: 9001 ft
Fees:	Landing, Hangar

APD	AIRPORT DIAGRAM	103.3 KB
IAP	ILS OR LOC RWY 32	231.9 KB
IAP	RNAV (GPS) RWY 05	254.1 KB
IAP	RNAV (GPS) RWY 14	208.2 KB
IAP	RNAV (GPS) RWY 23	238.9 KB
IAP	RNAV (GPS) RWY 32	247.7 KB
IAP	HI-VOR/DME OR TACAN RWY 14	275.7 KB
IAP	VOR RWY 14	180.2 KB
IAP	VOR RWY 32	198.3 KB
IAP	NDB RWY 32	157.7 KB
LAH	LAHSO	6.8 KB
MIN	TAKEOFF MINIMUMS	163.1 KB
MIN	ALTERNATE MINIMUMS	33.8 KB
MIN	RADAR MINIMUMS	49.6 KB
