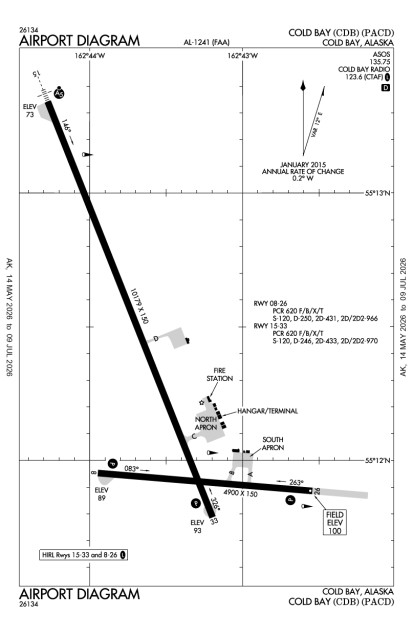

AIRPORT DIAGRAM

Click chart for current METARs and aeronautical charts

Alerts

Security Directive SD-8G

Call FBO for transient pilot security procedures or after hours escort. Learn More

Expand Additional Remarks

Twr 4.8 Nm Nw of Arpt Unlgtd

No Customs Avbl; Written Permission Required for Refueling Stops 24-48 Hrs in Advance If Arriving From A Foreign County; Fax 907-271-2684 or 907-271-2686

Cfr Index B. Index May be Reduced for Acft Less Than 90'

Brakelock Turns Not Allowed on Rys

Large Birds Near Apch Ends of All Rys

Rotg Bcn Ops Unmonitored When Cdb FSS Unmanned

Wx Camera Avbl on Internet at http://akweathercams.faa.gov

Arpt Sand Larger Gradation Than FAA Recommended/See Ac150/5200-30

Personnel and Equipment May be Working on the Ry at Any Time

Snow & Ice Removal and Arpt Haz Rprtg Only Performed during Duty Hrs Unless by Prior Arngmt in Writing with Amgr

NOTAMs | TFR's

Runway 08/26

Dimensions:	6235 x 150ft. / 1900.4 x 45.7m	Weight Bearing Cap:	Single wheel: 99000 lb
Surface:	asphalt, grooved, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	TD Point	Comments/Noise
08	90.9ft. MSL 83° mag 95° true 0.2% up	non-precision	visual glide slope: 4-Box/Left-Side VASI	1000' Disp Threshold	Line of Sight for VASI Rwy 08 Offset 5 Deg to the North

26	102.0ft. MSL 263° mag 275° true 0.2% down	non-precision	visual glide slope: 4-Box/Left-Side VASI	1000' Disp Threshold

Runway 15/33

Dimensions:	10180 x 150ft. / 3102.9 x 45.7m	Weight Bearing Cap:	Single wheel: 99000 lb
Surface:	asphalt, grooved, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC
15	73.1ft. MSL 146° mag 158° true 0.2% up	precision	runway visual value: RVV is present runway visual range: Touchdown approach: 1400ft/Medium-Intensity/Runway Alignment Indicators	ILS

33	93.7ft. MSL 326° mag 338° true 0.2% down	precision	approach: 1400ft/Medium-Intensity/Runway Alignment Indicators visual glide slope: 4-Box/Left-Side VASI	MLS

Name		Location	Freq. Monitored	Main Phone
South Side Aero	Rentals Flight Training	On field: CTR 55.202582-162.719879		907-532-2928

Services at this airport:

Services:
Engine Repair: MinorAirframe Repair: Minor
Fuel: 100LL Low-Lead, Jet A
Customs: International Landing Rights

Expand Nearby restaurants, attractions

Izembek National Wildlife Refuge 907-532-2445

Pavlof Services

Information above provided by the airport manager.
Search nearby: Hotels | Restaurants

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Operations & More Information

Lat/Long:	N55 12.3157' / W162 43.4713'55.2052618-162.7245216
Charts:	NACO: Cold Bay Sectional
Mag Var:	12E (2015)
ARTCC:	Anchorage (ZAN)
FSS:	Cold Bay (CDB) 907-532-2466
NOTAM Facility:	CDB
Approach/Departure Control Facility
Pattern Altitude:	No data provided. Assume 1000 AGL
Wind Indicator:	Present (unlit)
Seg. Circle:	Yes
Lighting:	Pilot Activated Lighting: high intensity: 7 clicks in 5 secs medium intensity: 5 clicks in 5 secs low intensity: 3 clicks in 5 secs 24 Hrs Atcvt HIRL Rys 08/26 & 15/33; MALSR Ry 15 and VASI Rys 08, 26 & 33 - CTAF

Aircraft & Activity

Based GA Aircraft

Single Engine:	0
Multi Engine:	0
Jets:	0
Helicopters:	0
Gliders:
Ultralights:

Airport Activity

GA Local:	150
GA Itinerant:	50
Commercial:	2,670
Air Taxi:	5,840
Military:	500

(12-month period ending on 1/1/2011)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone
WX	N/A	135.75T (907-532-2639)
CTAF	N/A	123.6

Expand Navaids

ID	Type	Freq	Radial	Distance
CDB	VORTAC	112.6	141	4 nm
ELF	NDB	341.0	144	6 nm

Contact Addresses

Owner:	Airport Manager:
State of Ak DotPF-Central Region	Jeff Doerning
Pouch 196900	Box 97
Anchorage, AK 99519-6900	Cold Bay, AK 99571
907-269-0749 (Office)	907-532-5000 (Office)
	Airport Manager Admin
907-532-5000 State M&O Phone

Attendance:	Attended Oct-Apr, 7 Days a Week,0630-1900May-Sep, 7 Days a Week,0800-1900
Tower:	No
Elevation:	102 ft (31.1 m) (Estimated)
Location:	N of Cold Bay
Beacon:	Present (white-green)
Approaches:	ILS, DME, LOC, VOR, RNAV, GPS, TACAN
Runways:	08/26, 15/33 Longest paved runway: 10180 ft
Fees:	No data

APD	AIRPORT DIAGRAM	70.3 KB
IAP	HI-ILS OR LOC/DME RWY 15	223.2 KB
IAP	ILS OR LOC/DME RWY 15	296.5 KB
IAP	RNAV (GPS) RWY 15	260.3 KB
IAP	RNAV (GPS) RWY 26	254.7 KB
IAP	RNAV (GPS) RWY 33	286.6 KB
IAP	LOC/DME BC RWY 33	338.1 KB
IAP	HI-VOR/DME OR TACAN RWY 15	188.8 KB
IAP	VOR/DME OR TACAN-A (changed)	330.1 KB
IAP	VOR RWY 15	248.6 KB
MIN	TAKEOFF MINIMUMS	147.3 KB
