AOPA Airports: Phoenix Sky Harbor International (PHX)

FAA Information Effective: 5/2/2013

AOPA members save at 3,000+ GA airports.Book Now!

KPHXCivil
Public Use

Phoenix Sky Harbor International

Phoenix, AZ
Phone: 602-273-3300
www.phxskyharbor.com
Nearby airports

Satellite
Diagram
Sectional

Open in Google Maps

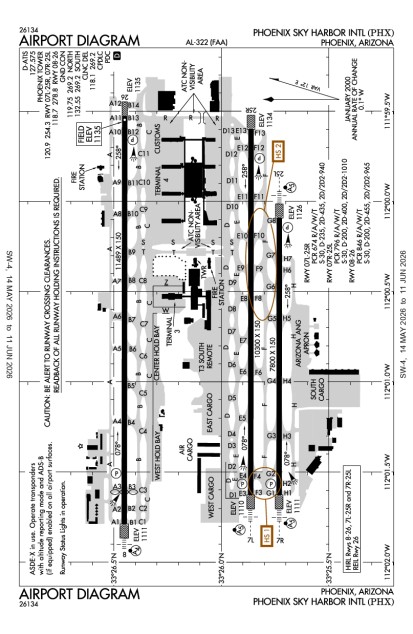

AIRPORT DIAGRAM

Click chart for current METARs and aeronautical charts

Minimum Fuel Prices

100 LL	$ 7.31 (self service)
Jet-A-Premix	$ 5.30 (full service service)
Jet A	$ 5.77 (self service)
100LL	$ 7.03 (full service service)
Jet A	$ 5.16 (full service)
100 LL	$ 6.99 (full service)

Alerts

Security Directive SD-8G

Call FBO for transient pilot security procedures or after hours escort. Learn More

Expand Additional Remarks

Ils (Aha) Ry 07r Antenna Lctd 525 Ft. West of Twy H3, 113 Ft North Twy H Centerline

Ils (Phx) Ry 07l Antenna Lctd 525 Ft West of Twy G3, 117 Ft North Twy F Centerline

Twy D Restricted to Acft Wingspan 171 Ft or Less

Twy A Between Twy A1 and Twy A10 Restricted to Acft Wingspan 125 Ft or Less

Training by Civil Turbojet Acft Prohibited Except Ppr

Fee for All Charters; Travel Clubs and Certain Revenue Producing Acft

Tran Acft Use Fbo Swift Avn for Svc C602-273-3770, 132.00."

GA Pilots Should CTC Arpt Manager @ 602-273-3300 As to How to View/Review Airport Safety Video

Overhead Train Bridge at Midpoint of Twy 'R' Provides 79 Ft Tail & Up to 160 Ft Wingtip Clnc From Twy Cntrln

Twy D Btn Intersections Twys D8 & D9 Restricted to Acft with Wingspan 135 Ft or Less

Asde-X Surveillance System in Use: Pilots Should Operate Transponders with Mode C on All Twys and Rys

Twy R and Portions of Twys S and T Directly Below the ATCT are Non Visible Areas From the Atct. Phoenix ATCT Unable to Provide Air Traffic Control Services to Acft While on Twy R, and Portions of Twys S and T

Bird Activity Within 10 Miles of Airport Up to 10,000 MSL

Personnel and Equipment Working Invof Terminals 2,3 & 4

No Experimental Flight or Ground Demonstration Without Written Approval of Aviation Director Phone 602-273-2072

Noise Abatement Procedures are in Affect at All Times. Contact 602-273-4300 for More Information

Ang: Phase Ii Bash (the High Bird Potential Haz Time Period) is in Eff Aug-Oct and Mar-May.Phase I Bash is in Eff Nov-Feb and Jun-Jul

Acft Engine Run-Up for Maintenance Prohibited Except Ppr. Contact Duty Supervisory (602) 273- 2008. No Engine Runs on Airport Btn 2300 and 0500

Heliport lctd on terminal 3 rooftop is in operation

All jets departing to the E fly 4DME bfr turning to assigned handling; On arrival from E to ry 7L-25R acft line up w/ ry 7R-25L until 3 mi out and the perform visual sidestep to 7L-25R

Security Directive SD-8G

City of Phoenix telephone is 602/273-3300

NOTAMs | TFR's

Runway 07L/25R

Dimensions:	10300 x 150ft. / 3139.4 x 45.7m	Weight Bearing Cap:	Single wheel: 30000 lb
Surface:	concrete, grooved, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	ILS/LOC	Obstructions
07L	1110.1ft. MSL 78° mag 90° true 0.2% up	precision	runway visual range: Touchdown approach: 1400ft/Medium-Intensity/Runway Alignment Indicators visual glide slope: 4-Light/Left-Side PAPI	ILS/DME	Pole, 750 ft Right of center, 62 ft high, 2,958 ft from end, 44:1 clearance slope

25R	1134.0ft. MSL 258° mag 270° true 0.2% down	precision	runway visual range: Rollout visual glide slope: 4-Light/Left-Side PAPI		Antenna, 600 ft Left of center, 416 ft high, 17,588 ft from end, 41:1 clearance slope

Runway 07R/25L

Dimensions:	7800 x 150ft. / 2377.4 x 45.7m	Weight Bearing Cap:	Single wheel: 30000 lb
Surface:	concrete, grooved, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Tr. Pat.	Markings	Approach Lights	ILS/LOC	Obstructions
07R	1110.9ft. MSL 78° mag 90° true 0.2% up	No Data	precision	visual glide slope: 4-Light/Left-Side PAPI approach: 1400ft/Medium-Intensity/Runway Alignment Indicators	ILS/DME	Pole, 640 ft Right of center, 33 ft high, 900 ft from end, 20:1 clearance slope

25L	1126.2ft. MSL 258° mag 270° true 0.2% down	No Data	precision	approach: 1400ft/Medium-Intensity/Runway Alignment Indicators visual glide slope: 4-Light/Left-Side PAPI	ILS/DME	Antenna, 1,193 ft Left of center, 424 ft high, 20,059 ft from end, 46:1 clearance slope

Runway 08/26

Dimensions:	11489 x 150ft. / 3501.8 x 45.7m	Weight Bearing Cap:	Single wheel: 30000 lb
Surface:	concrete, grooved, in good condition	Runway Edge Lights:	high

#	Elev/Hdg	Markings	Approach Lights	TD Point	ILS/LOC	Obstructions
08	1111.0ft. MSL 78° mag 90° true 0.2% up	precision	visual glide slope: 4-Light/Left-Side PAPI approach: 1400ft/Medium-Intensity/Sequenced Flashers	898' Disp Threshold	ILS/DME	Building, 503 ft Left of center, 66 ft high, 3,020 ft from end, 42:1 clearance slope

26	1134.6ft. MSL 258° mag 270° true 0.2% down	precision	visual glide slope: 4-Light/Left-Side PAPI runway end identifier: REIL is present		ILS/DME	Road, 540 ft Right of center, 9 ft high, 905 ft from end, 50:1 clearance slope

Helipad H1

Dimensions:	60 x 60ft. / 18.3 x 18.3m	Weight Bearing Cap:
Surface:	concrete, no surface treatment, condition not reported	Runway Edge Lights:

#	Elev/Hdg	Tr. Pat.	Markings	Approach Lights	TD Point	ILS/LOC	Obstructions	Comments/Noise
H1	No Data	No Data		No Data

Business/Service Information

Name		Location	Freq. Monitored	Main Phone
Cutter Aviation PHX	Maintenance $7.03 $7.31 $7.03 $5.30 $5.77 $5.30 Sales	On field: SW 33.424994-112.021322	UNICOM: 128.875 ARINC: 128.875	602-273-1237
Swift Aviation	Maintenance $6.99 $5.16 Sales	On field: SW 33.434163-112.013340	ARINC: 132.0	602-273-3770

List Your Business in AOPA Airports

Services at this airport:

Services:
Engine Repair: MajorAirframe Repair: MajorBulk Oxygen: High/Low
Fuel: 100LL Low-Lead, Jet A
Transportation: Limousine, Public, Shuttle Bus, Courtesy Car, Van
Rental Cars:

Enterprise	Book Now!	866-315-9155
National	Book Now!	866-315-9155
Alamo	Book Now!	866-315-9155
Avis
Budget
Dollar
Hertz
Thrifty

Customs: International Landing Rights

Expand Nearby restaurants, attractions

Yellow 602-340-1753

nmrs within 5 mi

Chase Field 4 mi

US Airways Arena 5 mi

Hallmark Limousine, Ltd 602-759-4330

Courier Transportation 602-232-2222

AAA Limousine 480-966-8000

Valley Limousine 602-254-1955

Carey Limousine Service 602-996-1955

Pueblo Grande Indian Ruins 3 mi

Phoenix Zoo 7 mi

Heard Museum 7 mi

Arizona State University 8 mi

Desert Botanical Gardens 5 mi

Left Seat 602-220-9307

Information above provided by the airport manager.
Search nearby: Hotels | Restaurants

Expand Member Comments

AOPA member comments are are offered unedited and do not necessarily reflect the views of AOPA.

16935012238703/15/2012 12:11:15 AM UTC
Had a great stopover at Cutter Aviation in Phoenix last month (02/12). I had my own ride to the hotel in Tempe, but on the return trip Cutter picked me up, along with my bicycle and luggage, on short notice. I was charged only for fuel. I recommend them highly... The Sky Harbor approach controllers were busy but friendly once I got their attention, and ground control was very helpful. All in all, an excellent trip to a very busy airport.
15667PAULDSON12/26/2011 5:36:02 AM UTC
We stopped off at KPHX for fuel during a cross country from KWHP to KTPL after purchasing a new plane (new to me). The approach and tower guys didn't seem to have a lot of time for the slow GA single, with all the jet traffic they had, and the ground controller got upset at us when we had to stop taxiing due to an alternator problem during taxi for take-off (all understandable I suppose), but the folks at Cutter were about the nicest people around. We only took about fifty gallons of fuel, but weren't charged a ramp fee on top of that, they were all very polite and friendly; and even sent me a Christmas card (handwritten) after our visit.
11612003664752/10/2011 3:59:27 PM UTC
We visited KPHX in our Mooney for a short meeting at a nearby hotel. We parked at Cutter, the best FBO we have found in more than 43 years of flying to many locations across the country. A friendly member of the Cutter Professional Staff met us at our airplane and drove us to their modern facility where they arranged the loan of a crew car and offered us bottled water. We provided them with identification and were escorted to their parking lot and given the keys to a nearly new car. When we returned about 2 hours later we were only charged for the 7 gallons of fuel we purchased but not for the car or the parking. The entire staff was friendly, efficient and helpful. A better FBO does not exist!

Only current AOPA members and business managers can post comments. Make sure you are logged in.

Are you sure you want to delete this comment?

Cancel Delete

Member-submitted Photos

View all
Upload your photos of Phoenix Sky Harbor International

Operations & More Information

Lat/Long:	N33 26.0567' / W112 0.6950'33.4342778-112.0115833
Charts:	NACO: Phoenix Sectional
Mag Var:	12E (2000)
ARTCC:	Albuquerque (ZAB)
FSS:	Prescott (PRC) 1-800-WXBRIEF
NOTAM Facility:	PHX
Approach/Departure Control Facility
Pattern Altitude:	Tpa: 1000'AGL Lgt Acft & Non-Turbojets; 1500'AGL Hvy Acft & Turbojets Light Aircraft: 2135 MSL; Heavy Aircraft: 2635 MSL; Turbine Aircraft: 2635 MSL
Wind Indicator:	Lighted
Seg. Circle:	No
Lighting:	No data

Aircraft & Activity

Based GA Aircraft

Single Engine:	18
Multi Engine:	8
Jets:	25
Helicopters:	9
Gliders:
Ultralights:

Airport Activity

GA Local:	390
GA Itinerant:	19,916
Commercial:	374,621
Air Taxi:	64,949
Military:	2,561

(12-month period ending on 2/29/2012)

Air Safety Institute Resources

Accident Reports

Expand Communications Card

Type	Location/Call	Freq./Phone	Sector
Approach/Departure CLASS B	Phoenix	126.8	058-118 10,500 FT AND ABV
Approach/Departure CLASS B	Phoenix	124.9	058-118 BLO 10,500 FT
Approach/Departure CLASS B	Phoenix	124.1	119-138 7,500 FT TO 14,500 FT
Approach/Departure CLASS B	Phoenix	126.8	119-138 ABV 14,500 FT
Approach/Departure CLASS B	Phoenix	123.7	119-138 BLO 7,500 FT
Approach/Departure CLASS B	Phoenix	126.8	139-191 8,500 AND ABV
Approach/Departure CLASS B	Phoenix	123.7	139-191 BLO 8,500 FT
Approach/Departure CLASS B	Phoenix	124.1	192-263 7,500 FT TO 12,500 FT
Approach/Departure CLASS B	Phoenix	126.8	192-263 ABV 12,500
Approach/Departure CLASS B	Phoenix	119.2	319-057 7,500 FT AND ABV
Approach/Departure CLASS B	Phoenix	120.7	319-057 BLO 7,500 FT
Approach/Departure IC	Phoenix	128.65	340-079)ABV 5500
WX	Phoenix	.0T (602-231-8557)
ATIS	Phoenix	127.575
Clearance-Delivery	Phoenix	118.1
Ground Control (NORTH)	Phoenix	119.75
Ground Control (SOUTH)	Phoenix	132.55
Tower	Phoenix	120.9	RY 07R/25L & 07L/25R
Tower	Phoenix	118.7	RY 08/26
RDR	Phoenix	126.575
RDR	Phoenix	133.575
RDR	Phoenix	128.45

Expand Navaids

ID	Type	Freq	Radial	Distance
PHX	VOT	109.0	000	0 nm
PXR	VORTAC	115.6	260	2 nm
CHD	NDB	407.0	303	14 nm
LUF	TACAN	.0	095	20 nm
IWA	VORTAC	113.3	281	20 nm
TFD	VORTAC	114.8	339	33 nm
BXK	VORTAC	110.6	077	41 nm
GBN	VORTAC	116.6	035	44 nm

Contact Addresses

ASN Volunteer:	Owner:	Airport Manager:
Robert Erickson	City of Phoenix	Danny Murphy
	3400 Sky Harbor Blvd, Suite 3300	3400 Sky Harbor Blvd, Suite 3300
	Phoenix, AZ 85034	Phoenix, AZ 85034
	602-273-3300 (Office)	602-273-3300 (Office)
Contact the ASN Volunteer
Communication Center
Airside Operations Superintendent: John Sawyer (602) 273-2072; Airside Manager: Kent Renneke (602) 273-3490; Airport Noise Office (602) 273-4300

Attendance:	Attended Year-round, 7 Days a Week,All
Tower:	ATCT plus Terminal Radar Approach Control, 24 hrs/day, everyday, year-roundTower Hrs: 24
Elevation:	1,135 ft (345.9 m) (Surveyed)
Location:	3.00 mi. E of Phoenix
Beacon:	Present (white-green)
Approaches:	ILS, DME, LOC, RNAV, GPS, RNP
Runways:	07L/25R, 07R/25L, 08/26, H1 Longest paved runway: 11489 ft
Fees:	Landing, Parking, Tiedown, Hangar

APD	AIRPORT DIAGRAM	207.5 KB
DP	BUCKEYE THREE	229.8 KB
DP	BUCKEYE THREE, CONT.1	391.6 KB
DP	MAXXO TWO	244.1 KB
DP	MAXXO TWO, CONT.1	351.7 KB
DP	MOBIE THREE	138.2 KB
DP	MOBIE THREE, CONT.1	327.1 KB
DP	SILOW TWO	246.6 KB
DP	SILOW TWO, CONT.1	379.2 KB
DP	ST. JOHNS SIX	180 KB
DP	ST. JOHNS SIX, CONT.1	364 KB
DP	STANFIELD THREE	287.1 KB
DP	STANFIELD THREE, CONT.1	166.3 KB
DPO	CHILY THREE	229.6 KB
DPO	CHILY THREE, CONT.1	359.7 KB
HOT	HOT SPOT	15 KB
IAP	ILS OR LOC RWY 07R	319.1 KB
IAP	ILS OR LOC RWY 08	275.9 KB
IAP	ILS OR LOC RWY 25L	289.7 KB
IAP	ILS OR LOC RWY 26	289.3 KB
IAP	ILS OR LOC/DME RWY 07L	241.4 KB
IAP	RNAV (RNP) Z RWY 07L	237.6 KB
IAP	RNAV (RNP) Z RWY 07R	242.6 KB
IAP	RNAV (RNP) Z RWY 08	235.1 KB
IAP	RNAV (RNP) Z RWY 25L	259.3 KB
IAP	RNAV (RNP) Z RWY 25R	240.3 KB
IAP	RNAV (RNP) Z RWY 26	248.6 KB
IAP	RNAV (GPS) Y RWY 07L	264.4 KB
IAP	RNAV (GPS) Y RWY 07R	271.2 KB
IAP	RNAV (GPS) Y RWY 08	224.8 KB
IAP	RNAV (GPS) Y RWY 25L	273.5 KB
IAP	RNAV (GPS) Y RWY 25R	262.6 KB
IAP	RNAV (GPS) Y RWY 26	264.3 KB
MIN	TAKEOFF MINIMUMS	112.9 KB
MIN	ALTERNATE MINIMUMS	29.6 KB
STAR	ARLIN THREE	309.5 KB
STAR	BLYTHE FOUR	276.8 KB
STAR	BUNTR TWO	210.2 KB
STAR	BUNTR TWO, CONT.1	91.2 KB
STAR	COYOT TWO	211 KB
STAR	COYOT TWO, CONT.1	123.7 KB
STAR	EAGUL FIVE (RNAV)	181.9 KB
STAR	EAGUL FIVE (RNAV), CONT.1	153.9 KB
STAR	EAGUL FIVE (RNAV), CONT.2	364.7 KB
STAR	GEELA SIX (RNAV)	170.8 KB
STAR	GEELA SIX (RNAV), CONT.1	160.1 KB
STAR	GEELA SIX (RNAV), CONT.2	358.5 KB
STAR	JESSE ONE	159.5 KB
STAR	JESSE ONE, CONT.1	78.7 KB
STAR	KOOLY FOUR (RNAV)	204.6 KB
STAR	KOOLY FOUR (RNAV), CONT.1	311.9 KB
STAR	MAIER FIVE (RNAV)	186.6 KB
STAR	MAIER FIVE (RNAV), CONT.1	158.5 KB
STAR	MAIER FIVE (RNAV), CONT.2	385.4 KB
STAR	SUNSS SEVEN	266.2 KB
