FAA Information Effective: Jun 12, 2025
All information is provided from the FAA unless otherwise noted.

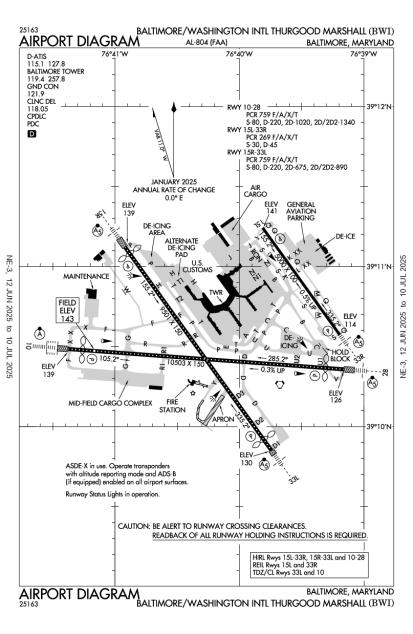

(KBWI) Baltimore/Washington International Thurgood Marshall Airport
No ratings | 1 review
Overview
Attendance:
Attended
Year-round, 7 Days a Week,All
FAA
Elevation:
143 ft (Surveyed)
Tower:
Arrivals May Be Extended Outside Of Class B.
FAA
Asde-X In Use. Operate Transponders With Altitude Reporting Mode And Ads-B (If Equipped) Enabled On All Airport Surfaces.
FAA
Tower Hrs: 24
FAA
Airspace:
B
Fees:
Timezone:
EDT (UTC-04:00)
Sunrise-Sunset:
5:41 am - 8:36 pm
Evening-Morning Civil Twilight:
9:08 pm
(Today)
(Today)
-
5:09 am
(Tomorrow)
(Tomorrow)
Minimum Fuel Prices:
$9.00
100LL (full)
$9.04
Jet-A (full)
Runway
Satellite
Sectional
FBOs
Submit New FBO
Signature Flight Support
No ratings | Be the first to review this business
Services Offered:
Car Rental
$9.00 | 100LL | full
$9.04 | Jet-A | full
Location:
On field: NE
Phone:
(410) 859-8393
Freq. Monitored:
ASRI: 129
Fees:
Handling, Other
Flight Training
Submit New Flight School
Other businesses
Submit New Business
AOPA Travel Discounts
FlightBridge is the ultimate all-in-one travel booking platform built for the general aviation community. AOPA Members receive free access to FlightBridge with AOPA discounted rates automatically applied. Members save an average of 30% on hotel bookings! Learn more about FlightBridge HERE.
Local Food/Lodging/Activities
Local Attractions
Local Activities
Restaurants
Hotels and Lodging
Travel Discounts
(410) 576-3800
(410) 752-2490
(410) 396-7102
BWI
Baltimore Inner Harbor
National Aquarium
Fort McHenry
B and O Railroad Museum
Baltimore Zoo
Flying Clubs
Submit New Flying Club
Runway 10/28
Dimensions:
10,503 × 150 ft
(3,201 × 46 m)
(3,201 × 46 m)
Weight Bearing Cap:
Single wheel: 80,000 lbs
Double wheel: 220,000 lbs
Double tandem: 1,020,000 lbs
Dual double tandem: 1,340,000 lbs
Double wheel: 220,000 lbs
Double tandem: 1,020,000 lbs
Dual double tandem: 1,340,000 lbs
Surface:
asphalt, grooved, in good condition
Runway Edge Lights:
High
Comments:
Pcr Value: 759/F/A/X/T
FAA
| Designator: | 10 | 28 |
| Elevation: | 139 ft | 126.4 ft |
| Heading: | 105° magnetic 094° true | 285° magnetic 274° true |
| Gradient: | 0.12% down | 0.12% up |
| Traffic Pattern: | Left Pattern | Left Pattern |
| Markings: | precision, in Good condition | precision, in Good condition |
| Approach Lighting: |
|
|
| Displaced Threshold: | 550 ft | 700 ft |
| ILS/LOC: | ILS | ILS |
| Obstructions: | Tree, 305 ft Right ft of center, 35 ft high, 1,606 ft from end, 40:1 clearance slope | Tree, 425 ft Right ft of center, 31 ft high, 1,230 ft from end, 33:1 clearance slope |
| Comments: | Apch Ratio 50:1 to Dsplcd Thr. FAA Midfield Rvr Sensor Shared by Rwy 10/28 & Rwy 15R/33L. FAA | Apch Ratio 50:1 to Dsplcd Thr. FAA |
Runway 15R/33L
Dimensions:
9,501 × 150 ft
(2,896 × 46 m)
(2,896 × 46 m)
Weight Bearing Cap:
Single wheel: 80,000 lbs
Double wheel: 220,000 lbs
Double tandem: 675,000 lbs
Dual double tandem: 890,000 lbs
Double wheel: 220,000 lbs
Double tandem: 675,000 lbs
Dual double tandem: 890,000 lbs
Surface:
asphalt, grooved, in good condition
Runway Edge Lights:
High
Comments:
Pcr Value: 759/F/A/X/T
FAA
| Designator: | 15R | 33L |
| Elevation: | 139 ft | 129.6 ft |
| Heading: | 155° magnetic 144° true | 335° magnetic 324° true |
| Gradient: | 0.1% down | 0.1% up |
| Traffic Pattern: | Left Pattern | Left Pattern |
| Markings: | precision, in Good condition | precision, in Good condition |
| Approach Lighting: |
|
|
| Displaced Threshold: | 301 ft | 500 ft |
| ILS/LOC: | ILS | ILS |
| Obstructions: | Antenna, 908 ft Left ft of center, 126 ft high, 4,724 ft from end, 35:1 clearance slope | Tower, 906 ft Left ft of center, 154 ft high, 7,460 ft from end, 47:1 clearance slope |
| Comments: | n/a | Rwy 33L +2 Ft Road 170 Ft from Rwy End 500 Ft Left. FAA |
Runway 15L/33R
Dimensions:
5,000 × 100 ft
(1,524 × 30 m)
(1,524 × 30 m)
Weight Bearing Cap:
Single wheel: 30,000 lbs
Double wheel: 45,000 lbs
Double wheel: 45,000 lbs
Surface:
asphalt, grooved, in fair condition
Runway Edge Lights:
High
Comments:
Pcr Value: 269/F/A/X/T
FAA
| Designator: | 15L | 33R |
| Elevation: | 141.4 ft | 114 ft |
| Heading: | 155° magnetic 144° true | 335° magnetic 324° true |
| Gradient: | 0.55% down | 0.55% up |
| Traffic Pattern: | Left Pattern | Left Pattern |
| Markings: | precision, in Good condition | precision, in Good condition |
| Approach Lighting: |
|
|
| Displaced Threshold: | n/a | n/a |
| ILS/LOC: | ILS | ILS |
| Obstructions: | Pole, 615 ft Right ft of center, 31 ft high, 1,120 ft from end, 30:1 clearance slope | Tree, 585 ft Right ft of center, 39 ft high, 1,470 ft from end, 32:1 clearance slope |
| Comments: | n/a | n/a |
TFRs
Location: BWI
Please verify all content below using the FAA TFR Search Site or with a flight briefer.
TFR count: 1 (Partial information shown. Follow links to see full TFR descriptions.)
| Number: | Effective Date: (UTC) | Expiration Date: (UTC) | Description: |
|---|---|---|---|
ACTIVE 4/9433 | 09/03/2024 2030 | SECURITY INSTRUCTIONS, WASHINGTON, DC.
THIS NOTAM
REFERENCES THE WASHINGTON DC SPECIAL FLIGHT RULES AREA (SFRA) ONLY |
NOTAMs
Location: BWI
Please verify all content below using the FAA NOTAM Search Site or with a flight briefer.
NOTAM count: 39 (Partial list shown. Expand to see full list HERE.)
| Number: | Start Date: (UTC) | End Date: (UTC) | Condition: |
|---|---|---|---|
| 04/055 | 04/06/2025 1559 | 07/06/2025 2200 | APRON GA RAMP WIP CONST SE SIDE LGTD AND BARRICADED |
| 06/148 | 06/19/2025 0600 | 06/19/2025 0830 | RWY 15R/33L CLSD |
| 06/177 | 06/16/2025 0131 | 06/17/2025 0131 | RWY 10 FICON 5/5/5 100 PCT WET OBS AT 2506160131. |
| 05/127 | 05/21/2025 0717 | 07/07/2025 1800 | TWY P EDGE LGT BTN TWY R AND TWY T2 NOT STD |
| 09/021 | 09/04/2024 1850 | AIRSPACE SEE FDC 4/1783, 4/1789, 4/9433 ZDC SECURITY INSTRUCTIONS | |
| 06/070 | 06/05/2025 2258 | 09/05/2025 2200 | RWY 10/28 CL MARKINGS OBSC |
| 05/125 | 05/21/2025 0149 | 08/20/2025 2359 | OBST TOWER LGT (ASR 1241336) 390725.80N0763128.90W (7.3NM ESE BWI) 440.0FT (319.9FT AGL) U/S |
| 06/149 | 06/13/2025 1902 | 08/31/2025 2200 | TWY K HLDG PSN SIGN EAST SIDE LGT U/S |
Additional Remarks
Acft Departing Rwy 28 Exp Dep Fm Twy U1.
Source:
FAA
Federal Aviation Administration
Acft on Visual Apchs Expect to Maintain 3000 Ft Until 10 DME Fm Bal Vortac; Dep Acft Should Expect Turns Based on Baltimore DME.
Source:
FAA
Federal Aviation Administration
Concourse A Alt Deicing Area is Rstrd to B737-800 Size Acft with Winglets or Smlr on Spots 6, 7 and 8.
Source:
FAA
Federal Aviation Administration
Cont Mowing Operations Adj All Rwys & Twys - Apr Thru Nov.
Source:
FAA
Federal Aviation Administration
Deer & Birds Ocnlly on & In vicinity of Arpt.
Source:
FAA
Federal Aviation Administration
Distracting Lgts (Golf Driving Range) Right Side Extdd Cntrln Rwy 33L Fm Approach End of Runway to 1/4 Mi Final.
Source:
FAA
Federal Aviation Administration
Dual Parallel Taxilanes Have Been Added to the 'D'/'E' Alleyway; Taxilane 'N' and Taxilane 'N1'. Taxilane 'N' is Designated A "Group V" Taxilane with Max Wingspan of 213 Ft. Taxilane 'N1' is Designated A "Group Iv" Taxilane with Max Wingspan of 170 Ft.
Source:
FAA
Federal Aviation Administration
During Atc Zero Events, UNICOM 119.4.
Source:
FAA
Federal Aviation Administration
Ga Acft CTC 129.0 Prior to Arr At Ga Ramp for Scty Purposes.
Source:
FAA
Federal Aviation Administration
Major Constr on Airport Dly; Acft Mov & Prkg Areas Subject to Short Notice Change/Closure. for Current Info Phone Bwi Operations Cntr 410-859-7018.
Source:
FAA
Federal Aviation Administration
No Apron Parking for Unsked Acr.
Source:
FAA
Federal Aviation Administration
Noise Abatement Procedures in Effect - Rstrn for Rwy 15L/33R Except for Emerg or Mercy Flights CTC Airport Manager for Info.
Source:
FAA
Federal Aviation Administration
Practice Lndg & Approach by Turbo-Pwrd Acft Prohibited 2200-0600; Practice Lndg & Tkof by B-747 Acft Prohibited Rwy 15R/33L.
Source:
FAA
Federal Aviation Administration
Rwy 15R Deice Pad, Position # 1, Rstrd to Acft with Wingspan of 156 Ft 1 Inch or Less & Length of 180 Ft 3 Inches or Less. Psn's #2 & #3 are Rstd to Acft with A Wingspan of 156 Ft 1 Inch or Less, Position #3 is Rstrd to Acft with A Wingspan of 156 Ft 1 Inch or Less & Length of 180 Ft 3 Inches or Less; Position 4 Rstrd to Acft with Wingspan of 213 Ft or Less & Length of 229 Ft 2 Inches or Less.
Source:
FAA
Federal Aviation Administration
Rwy 28 De-Ice Pad Lane 1 Rstrd to Acft with Wingspan 171 Ft or Less, Lane 2 Rstrd to Acft with Wingspan 135 Ft or Less, Lane 3 is Used by Large Acft Max Wingspan 215 Ft and When in Use- Lanes 2 and 4 are Unavbl. Lanes 4, 5 & 6 are Rstrd to Acft Wingspan 135 Ft or Less.
Source:
FAA
Federal Aviation Administration
Rwy Len Avbl for Rwy 28 Deps Fm Twy U1 is 9802 Ft.
Source:
FAA
Federal Aviation Administration
Rwy Status Lgts in Opn.
Source:
FAA
Federal Aviation Administration
Taxiing Prohibited between Concourse C & Adj Bldg Structure Southwest of Concourse C. Access to Gate C12 Must be Via Twy A.
Source:
FAA
Federal Aviation Administration
Taxilanes 'T-1' & "H" Rstrd to Group III Acft with Max Wingspan of 118 Feet.
Source:
FAA
Federal Aviation Administration
Twy "S", South of Twy "P", Rstrd to Acft 60000 Lbs & Less.
Source:
FAA
Federal Aviation Administration
Twy 'A' is Rstrd to Group Iv Acft Wingspan 171 Ft or Less.
Source:
FAA
Federal Aviation Administration
Twy T between Twy H and Twy E Rstd to Group Iv Acft with Wingspan Less Than 171 Ft. Twy T between Twy E and Twy B Rstrd to Group V Acft with Wingspan Less Than 214 Ft; When Group V Acft are on Twy T, Twy A is Rstrd to Max Wingspans of 110 Ft.
Source:
FAA
Federal Aviation Administration
Unicom 119.4.
Source:
FAA
Federal Aviation Administration
Noise Abatement
Instrument Procedures
Data Cycle:
Operations & More Information
Lat/Long:
- 39.17573, -76.66899
- 39° 10′ 32.6″ N, 76° 40′ 8.4″ W
- 39° 10.544′ N, 76° 40.139′ W
ARTCC:
Washington (ZDC)
App/Depart Control Facility:
PCT
Chart:
NACO: Washington Sectional
FSS:
Leesburg (DCA)
1-800-WX-BRIEF
1-800-WX-BRIEF
Wind Indicator:
Lighted
Mag Var:
11W (2000)
NOTAM Facility:
Seg Circle:
Yes
Beacon:
Present
Lighting:
No lighting reported.
Pattern Altitude:
No data provided. Assume 1000 AGL.
Special Operations:
Communications Card
| Type: | Frequency / Phone: | Sector / Comments: | Call Sign: |
|---|---|---|---|
| ANTHM STAR | 133.85 | Potomac | |
| Approach | 119.0 | 020-100 | Potomac |
| Approach | 124.55 | 101-130 | Potomac |
| Approach | 119.7 | 131-180 | Potomac |
| Approach | 128.7 | 181-019 | Potomac |
| Approach(S) | 119.7 | 020-130 | Potomac |
| Approach(S) | 119.0 | 131-180 | Potomac |
| Approach(S) | 125.525 | 181-019 | Potomac |
| ASOS | (227) 217-0474 | Baltimore | |
| CLASS B | 119.0 | 020-100 | Potomac |
| CLASS B | 124.55 | 101-130 | Potomac |
| CLASS B | 119.7 | 131-180 | Potomac |
| CLASS B | 128.7 | 181-019 | Potomac |
| CLASS B(S) | 119.7 | 020-130 | Potomac |
| CLASS B(S) | 119.0 | 131-180 | Potomac |
| CLASS B(S) | 125.525 | 181-019 | Potomac |
| Clearance Delivery | 118.05 | Baltimore | |
| CONLE DP | 124.55 | Potomac | |
| D-ATIS | 115.1 | Baltimore | |
| D-ATIS | 127.8 | Baltimore | |
| Departure | 124.55 | EAST | Potomac |
| Departure | 128.7 | WEST | Potomac |
| DUKPN DP | 124.55 | Potomac | |
| Emergency | 121.5 | Baltimore | |
| FIXET DP | 124.55 | Potomac | |
| FOXHL DP | 128.7 | Potomac | |
| Ground Control | 121.9 | Baltimore | |
| LINSE DP | 128.7 | Potomac | |
| MIIDY STAR | 133.75 | Potomac | |
| PALEO DP | 124.55 | Potomac | |
| RAVNN STAR | 128.35 | Potomac | |
| SWANN DP | 124.55 | Potomac | |
| TERPZ DP | 128.7 | Potomac | |
| Tower | 119.4 | Baltimore | |
| TRISH STAR | 125.525 | Potomac | |
| WESTMINSTER STAR | 126.825 | 10000 FT & BLW | Potomac |
| WESTMINSTER STAR | 133.85 | 11000 FT & ABV | Potomac |
Navaids
Services
Fuel:
100LL Low-Lead, Jet A
AM
Engine Repair:
Major
AM
Airframe Repair:
Major
AM
Bottled Oxygen:
High/Low
AM
Bulk Oxygen:
High/Low
AM
Customs:
International Landing Rights
AM
Transportation:
Limousine, Public Transportation, Shuttle Service, Van
AM
Activities:
Airline Services
AM
Camping On Field:
None Reported
Aircraft & Activity
Webcams
METARs
TAFs
Contact Addresses
Airport Manager
Gregory Solek
Bwi Airport, MD 21240-0766
(410) 859-7018 (Office)
Owner
State of Maryland
Bwi Airport, MD 21240-0766
(410) 859-7100 (Office)
