FAA Information Effective: Jun 12, 2025
All information is provided from the FAA unless otherwise noted.
Attended

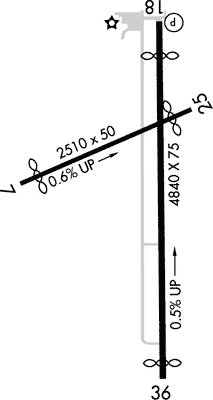

Designator: | 18 | 36 |
Elevation: | 904.9 ft | 881.4 ft |
Heading: | 181° true | 001° true |
Gradient: | 0.49% down | 0.49% up |
Traffic Pattern: | Left Pattern | Left Pattern |
Markings: | non-precision, in Good condition | non-precision, in Good condition |
Approach Lighting: |
|
|
Displaced Threshold: | 440 ft | 300 ft |
ILS/LOC: | n/a | n/a |
Obstructions: | Road, Both-Sides, 21 ft high, 230 ft from end, 1:1 clearance slope | Railroad, 180 ft Left ft of center, 17 ft high, 200 ft from end |
Comments: | 10 Ft Fence 190 Ft Fm Rwy End, 120 Ft R. FAA Apch Ratio 25:1 to Dsplcd Thr. 92 Ft Tree, 2300 Ft Fm Dsplcd Thr, 285 Ft R. FAA | 17 Ft Rr 75 Ft Fm Rwy End 250 Ft L. FAA Apch Ratio 20:1 to Dsplcd Thr. 240 Ft Trees on Ridge, 4760 Ft Fm Dsplcd Thr, 350 Ft R. FAA |
Designator: | 07 | 25 |
Elevation: | 891.5 ft | 906.2 ft |
Heading: | 069° true | 249° true |
Gradient: | 0.59% up | 0.59% down |
Traffic Pattern: | Left Pattern | Left Pattern |
Markings: | basic, in Good condition | basic, in Good condition |
Approach Lighting: | n/a | n/a |
Displaced Threshold: | 229 ft | 300 ft |
ILS/LOC: | n/a | n/a |
Obstructions: | Trees, 225 ft Left ft of center, 49 ft high, 945 ft from end, 15:1 clearance slope | Road, Both-Sides, 12 ft high, 200 ft from end |
Comments: | Apch Ratio 20:1 to Dsplcd Thr. FAA Ditch 10 Ft Fm Rwy End 60 Ft L. FAA | 10 Ft Fence 175 Ft Fm Rwy End, 40 Ft L. FAA Apch Ratio 20:1 to Dsplcd Thr. FAA |
Number: | Start Date: (UTC) | End Date: (UTC) | Condition: |
---|---|---|---|
06/217 | 06/13/2025 1551 | 06/20/2025 1400 | RWY 07/25 CLSD |
06/236 | 06/14/2025 2004 | 07/29/2025 2003 | OBST TOWER LGT (ASR 1300248) 433441.70N0895546.30W (3.9NM NE C35) 1248.7FT (259.8FT AGL) U/S |
09/257 | 09/19/2024 1439 | 09/30/2025 2359 | OBST CRANE LGT (ASN 2024-AGL-9712-OE) 433135N0895807W (0.6NM E C35) 1140FT (225FT AGL) U/S |
06/218 | 06/13/2025 1551 | 06/20/2025 1400 | TWY A BTN RWY 18/36 AND RWY 07/25 CLSD |
04/012 | 04/01/2025 1844 | RWY 18 RWY END ID LGT U/S | |
04/113 | 04/05/2025 1954 | 08/31/2025 2359 | OBST TOWER LGT (ASR 1256425) 433112.40N0901139.40W (9.2NM W C35) 1377.6FT (309.7FT AGL) U/S |
Type: | Frequency / Phone: | Sector / Comments: | Call Sign: |
---|---|---|---|
Approach/Departure | 135.45 | Madison | |
AWOS-3PT | 118.95T (608) 768-0023 | ||
Clearance Delivery Phone | (608) 249-8240 | Madison App/Dep Con | |
Clearance Delivery Phone | (630) 906-8921 | When Approach Closed | Chicago ARTCC |
CTAF | 122.8 | ||
UNICOM | 122.8 |
