FAA Information Effective: Jun 12, 2025
All information is provided from the FAA unless otherwise noted.
Attended

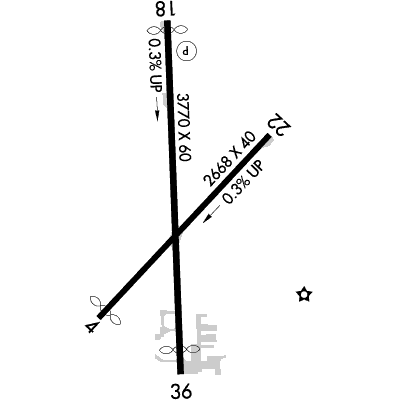

Designator: | 18 | 36 |
Elevation: | 811.3 ft | 821.9 ft |
Heading: | 181° magnetic 178° true | 361° magnetic 358° true |
Gradient: | 0.28% up | 0.28% down |
Traffic Pattern: | Left Pattern | Left Pattern |
Markings: | non-precision, in Good condition | non-precision, in Good condition |
Approach Lighting: |
| n/a |
Displaced Threshold: | 98 ft | 262 ft |
ILS/LOC: | n/a | n/a |
Obstructions: | Road, 20 ft Left ft of center, 2 ft high, 200 ft from end | Trees, 220 ft Left ft of center, 63 ft high, 325 ft from end, 1:1 clearance slope |
Comments: | 2 Ft Rd At Rwy End; 170 Ft Right. FAA Apch Ratio 20:1 to Dsplcd Thr. FAA | 14 Ft Rd 42 Ft Fm Rwy End; 28 Ft Pole 30 Ft Fm Rwy End, 125 Ft L. FAA Apch Ratio 10:1 to Dsplcd Thr; 63 Ft Trees 587 Ft Fm Dsplcd Thr, 220 L and 105 Ft Pline 1576 Ft Fm Dsplcd Thr, 70 Ft L. FAA |
Designator: | 04 | 22 |
Elevation: | 824.7 ft | 815.8 ft |
Heading: | 046° magnetic 043° true | 226° magnetic 223° true |
Gradient: | 0.33% down | 0.33% up |
Traffic Pattern: | Left Pattern | Left Pattern |
Markings: | basic, in Good condition | basic, in Good condition |
Approach Lighting: | n/a | n/a |
Displaced Threshold: | 109 ft | n/a |
ILS/LOC: | n/a | n/a |
Obstructions: | Road, 80 ft Right ft of center, 15 ft high, 200 ft from end | Trees, 164 ft Left ft of center, 58 ft high, 814 ft from end, 10:1 clearance slope |
Comments: | 30 Ft Trees 40 Ft Fm Rwy End; 100 Ft L. FAA Ctlg Obstn Exceeds A 45 Deg Slp. FAA | 6 Ft Trrn At Thr; 90 Ft L. FAA |
Number: | Start Date: (UTC) | End Date: (UTC) | Condition: |
---|---|---|---|
06/235 | 06/14/2025 1331 | 07/31/2025 2359 | RWY 18 RWY END ID LGT U/S |
06/022 | 06/02/2025 1815 | 06/30/2025 2359 | OBST STACK (ASN UNKNOWN) 432911N0892515W (5.3NM SE C47) 1457FT (650FT AGL) NOT LGTD |
Type: | Frequency / Phone: | Sector / Comments: | Call Sign: |
---|---|---|---|
Approach(S) Departure(S) | 120.1 | Madison | |
Approach/Departure | 135.45 | Madison | |
Clearance Delivery Phone | (608) 249-8240 | Madison App/Dep Con | |
Clearance Delivery Phone | (630) 906-8921 | When Approach Closed | Chicago ARTCC |
CTAF | 122.7 | ||
UNICOM | 122.7 |
