FAA Information Effective: Jun 12, 2025
All information is provided from the FAA unless otherwise noted.
Attended

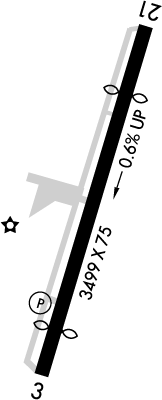

Runway length: 3,506 ft (1,069 m)
Designator: | 03 | 21 |
Elevation: | 421.1 ft | 401 ft |
Heading: | 029° magnetic 016° true | 209° magnetic 196° true |
Gradient: | 0.57% down | 0.57% up |
Traffic Pattern: | Left Pattern | Left Pattern |
Markings: | basic, in Fair condition | basic, in Fair condition |
Approach Lighting: |
|
|
Displaced Threshold: | 466 ft | 756 ft |
ILS/LOC: | n/a | n/a |
Obstructions: | Trees, 260 ft Right ft of center, 50 ft high, 250 ft from end, 1:1 clearance slope | Trees, 79 ft Right ft of center, 69 ft high, 375 ft from end, 2:1 clearance slope |
Comments: | 15 Ft Tree, 38 Ft Fm Rwy End, 176 Ft Right. FAA Rwy 03 Approach Ratio 14:1 to Dsplcd Thr. FAA Rwy 03 PAPI Out of service Indefly. FAA Rwy 03 REIL Out of service Indefly. FAA | 10 Ft Sign, 41 Ft Fm Rwy End, 44 Ft Right. FAA Rwy 21 Approach Ratio 16:1 to Dsplcd Thr. FAA Rwy 21 REIL Out of service Indefly. FAA |
Number: | Start Date: (UTC) | End Date: (UTC) | Condition: |
---|---|---|---|
06/027 | 06/03/2025 1415 | 07/03/2025 1700 | OBST TOWER LGT (ASR 1057750) 411816.60N0744025.90W (6.7NM NNW FWN) 1797.2FT (221.1FT AGL) U/S |
4/2522 | 12/05/2024 2127 | ODP SUSSEX, SUSSEX, NJ.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
DEPARTURE PROCEDURE: … Show more | |
Runway: | Applies to: | Approach/Departure: | Text: |
---|---|---|---|
All | All Aircraft | Both | All acft; fly straight out to 900' bfr lft turn |
Light Aircraft 1220 MSL
Heavy Aircraft 1420 MSL
Type: | Frequency / Phone: | Sector / Comments: | Call Sign: |
---|---|---|---|
Approach/Departure | 127.6 | Newark | |
ASOS | 118.525T (973) 875-0859 | ||
Clearance Delivery Phone | (800) 645-3206 | Newark Approach | |
CTAF | 122.7 | ||
UNICOM | 122.7 |
